Ultra Start RFK4BAM Manual de usuario

TMTM

INSTALLATION

GUIDE

MODEL

PARTS

RFK4BAM (DATA-AM ANTENNA)

DATA AM

REMOTESANTENNA

REMOTES MAY BE

DIFFERENT THAN

PICTURED

PROGRAMMING

ultrastarters.com REV.09/20/18

DATA PROTOCOL SELECTION

With the Antenna plugged in and powered up:

1 . Leave Ignition in OFF position

2. Press programming button (antenna button) 8x within 10 seconds (White LED will ﬂash 2x)

3 . Choose your protocol below by pressing the programming button:

TYPE 1 - Press 2x - ULTRA RF (Default)

TYPE 2 - Press 4x - iDatalink RF

TYPE 3 - Press 6x - Fortin RF

TYPE 4 - Press 8x - D2D

TYPE 5 - Press 10x - Future Use

4 . After 3 seconds White LED will ﬂash the number of times according to your selection.

REMOTE

PROGRAMMING

REMOTE PROGRAMMING - ONLY REQUIRED FOR D2D

Follow the “Remote Programming Procedure” from the manufactures programming instructions.

Visit the appropriate website or download the “RFK4BAM Full Guide” at

www.ultrastarters.com

For Devices that do not have a remote coding procedure follow the procedure below.

STEP 1STEP 2STEP 3STEP 4STEP 5

Turn the

Ignition ON then

OFF 2x leaving it in

the ON position at

the 2nd time.

Press and release the

programming button on

the antenna 2 times.

The LED will ﬂash

1x then 2x.

Turn the

Ignition OFF

to exit

programming.

Press and hold for 3 seconds

until LED ﬂashes turns on

solid. Release

programming button.

Press the button on each

transmitter. LED on

antenna will ﬂash 1x

for each remote

programmed.

DAC-ADPT

ANTENNA IN RF CONN 2

RF CONN 3

BLACK - GROUND

RED - 12V+ (FUSED)

RF CONN 1

DATA AM

All manuals and user guides at all-guides.com

all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

Data-AM ANTENNA RF Kit Module Connection

Fortin

iData

DEI

EVO-ALL

DBALL 2 / 3

EVO-ONE

iDATASTART ADS-AL-CA

Ultra

“i” Series

4/5X10 , DS4 / +

IC4

ANTENNA IN RF CONN 2

RF CONN 3

RF CONN 1

BLACK - GROUND

RED - 12V+ (FUSED)

RF CONN 1 -iDATALINK / EVO-ONE

RF CONN 2 -D2D

RF CONN 3 -EVO-ALL

DAC-ADAPT

ANTENNA IN ANTENNA IN

BLACK - GROUND

RED - 12V+ (FUSED)

BLACK - GROUND

RED - 12V+ (FUSED)

TYPE 1

TYPE 2

TYPE 3

TYPE 4

RF CONN 3 RF CONN 1

RF CONN 1

RF CONN 2RF CONN 2

DATA AM

All manuals and user guides at all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONE

CONNECTIONS

PROGRAMMING

MODULE

DATA PROTOCOL : TYPE 3 - Fortin RF

1 . Run Flashlink Manager, plug in EVO-ONE

2 . Click Toggle to switch to Remote Starter Connection

3 . Click Conﬁguration, then select Options

4 . Under RF Kits select Fortin 2 / Solace / Autoconnect

5 . Click on “SAVE”

ANTENNA IN

RF CONN 1

DATA-AM & EVO-ONE

PROGRAMMING PROGRAMMING REMOTES

STEP 1STEP 2STEP 3STEP 4STEP 5STEP 6

x5 x1

On each transmitter

press lock button. The

LED will stop ﬂashing

conﬁrming programming

Press and release the valet

switch ﬁve times.

The parking lights will ﬂash and

the horn/siren will chirp each

time to conﬁrm.

Press and hold the valet

switch until the parking

light turn ON, the horn/

siren will chirp once.

Press and

release the

brake pedal

once

Turn the

Ignition ON.

Turn the

Ignition OFF

to exit

programming

DATA AM

DATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONE

All manuals and user guides at all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & EVO-ALL (STANDALONE FW.)

DATA AM

CONNECTIONS

PROGRAMMING

MODULE

DATA PROTOCOL : TYPE 3 - Fortin RF

1 . Run FlashLink Manager, plug in EVO-ALL

2 . Click on “EVO-ALL OPTIONS” Tab

3 . Activate “SUPPORTED RF KITS” and Option “H2”

4 . Click on “SAVE OPTIONS”

5 . Wait for “Options Saved” message to appear.

RF CONN 3

ANTENNA IN

PROGRAMMING PROGRAMMING REMOTES

STEP 1STEP 2STEP 3STEP 4STEP 5STEP 6

On each transmitter

press the lock button.

The Blue and Red LED’s on

EVO-ALL will ﬂash

conﬁrming programming.

Hold down programming

button on EVO-ALL while

inserting Datalink Cable.

Release on BLUE & RED

Press and hold the

programming button,

release button when

the Blue and Red

LED’s turn back on

The Yellow LED

will turn on

Turn the

Ignition OFF

to exit

programming

HOLD HOLD

Turn the

Ignition ON.

BLACK - GROUND

RED - 12V+ (FUSED)

All manuals and user guides at all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & iDATASTART HC / VW

DATA AM

CONNECTIONS

DATA PROTOCOL : TYPE 2 - iDATALINK RF

1 Open “Weblink Program”

2 Choose Year / Make / Model

3 Select Connected RF & MY-Start

4 Conﬁgure module and Flash ﬁrmware

PROGRAMMING

MODULE

PROGRAMMING

STEP 1STEP 2STEP 3STEP 4STEP 5

Press Lock on each

transmitter to be

programmed.

Turn the

Ignition ON then

OFF 5x leaving it in

the on position at

the 5th time.

The Red LED will turn on. Turn the

Ignition OFF

to exit

programming.

The LED will

ﬂash Green for each

remote programmed.

PROGRAMMING REMOTES

ANTENNA IN

RF CONN 1

All manuals and user guides at all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & iDATASTART (BM & BZ)

DATA AM

CONNECTIONS

DATA PROTOCOL : TYPE 2 - iDATALINK RF

1 . Open “Weblink Program”

2. Choose Year / Make / Model

3 . Select Connected RF & MY-Start

4 . Conﬁgure module and Flash ﬁrmware

PROGRAMMING

MODULE

STEP 1STEP 2STEP 3STEP 4STEP 5

Press Lock on each

remote to be

programmed.

Turn the

Ignition ON then

OFF 5x leaving it in

the ON position at

the 5th time.

The Red LED will

turn ON.

Turn the

Ignition OFF

to exit

programming.

The LED will

ﬂash Green for each

remote programmed.

ANTENNA IN

RF CONN 1

PROGRAMMING PROGRAMMING REMOTES

All manuals and user guides at all-guides.com

all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & iDATASTART (CLASSIC / AKX)

DATA AM

CONNECTIONS

DATA PROTOCOL : TYPE 2 - iDATALINK RF

1 . Open “Weblink Program”

2. Choose Year / Make / Model

3 . Select Connected RF & MY-Start

4 . Conﬁgure module and Flash ﬁrmware

PROGRAMMING

MODULE

STEP 1STEP 2STEP 3STEP 4STEP 5

Press Lock on each

remote to be

programmed.

Turn the

Ignition ON then

OFF 5x leaving it in

the ON position at

the 5th time.

The Red LED will

turn ON.

Turn the

Ignition OFF

to exit

programming.

The LED will

ﬂash Green for each

remote programmed.

PROGRAMMING PROGRAMMING REMOTES

ANTENNA IN

RF CONN 1

All manuals and user guides at all-guides.com

TMTM

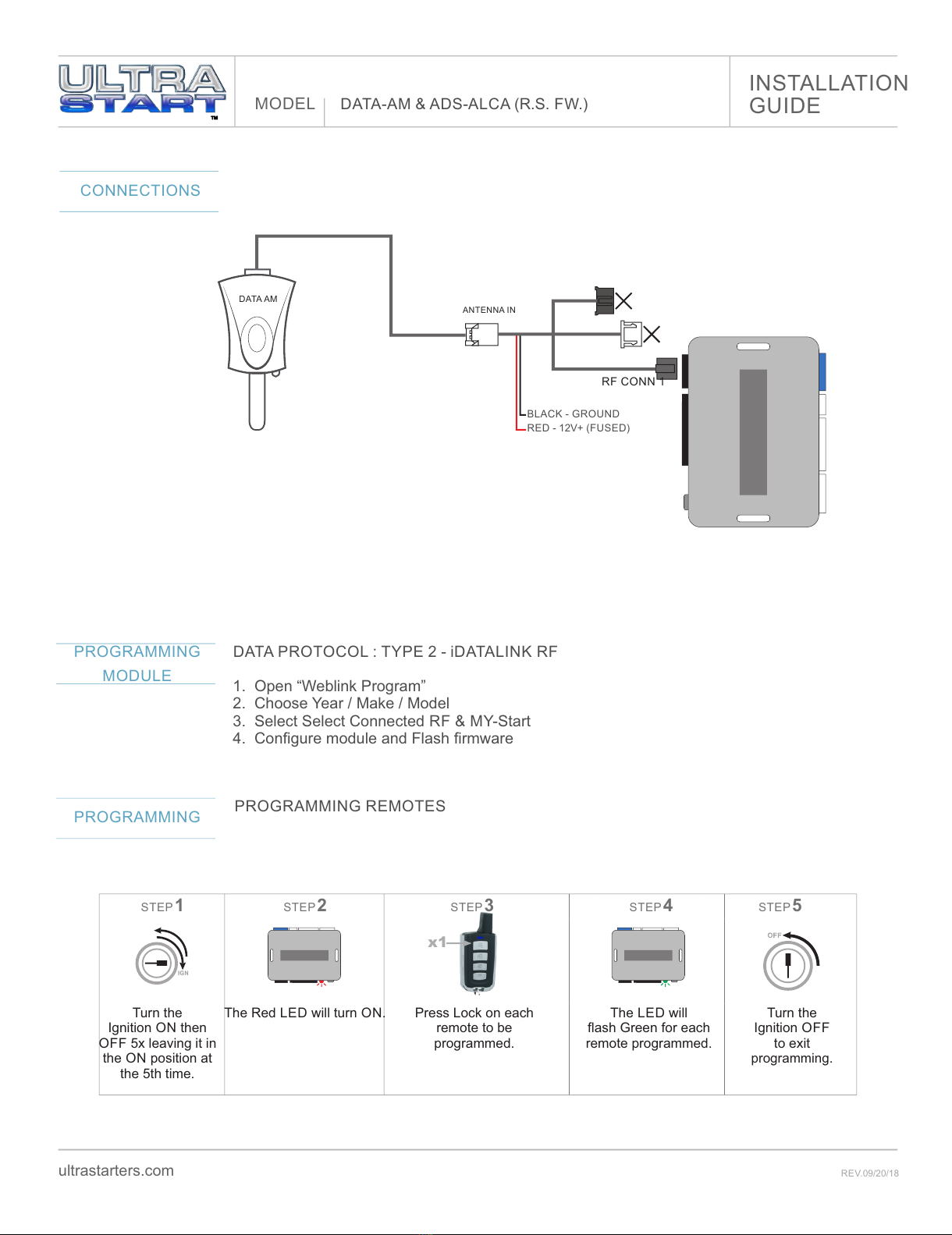

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & ADS-ALCA (R.S. FW.)

DATA AM

CONNECTIONS

PROGRAMMING

DATA PROTOCOL : TYPE 2 - iDATALINK RF

1 . Open “Weblink Program”

2. Choose Year / Make / Model

3. Select Select Connected RF & MY-Start

4 . Conﬁgure module and Flash ﬁrmware

PROGRAMMING

MODULE

STEP 1STEP 2STEP 3STEP 4STEP 5

Press Lock on each

remote to be

programmed.

Turn the

Ignition ON then

OFF 5x leaving it in

the ON position at

the 5th time.

The Red LED will turn ON. Turn the

Ignition OFF

to exit

programming.

The LED will

ﬂash Green for each

remote programmed.

PROGRAMMING REMOTES

ANTENNA IN

RF CONN 1

BLACK - GROUND

RED - 12V+ (FUSED)

All manuals and user guides at all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & DEI (4X10/5X10)

DATA AM

CONNECTIONS

PROGRAMMING PROGRAMMING REMOTES

1 . Follow programming guide to program remotes.

2 . There is no other programming required for operation.

PROGRAMMING

MODULE

DATA PROTOCOL : TYPE 4 - D2D

1 . Open “XK Loader”

2 . Choose Year / Make / Model

3 . Conﬁgure Module features

4 . Enable “SMART START” without RF

5 . Flash Firmware

RF CONN 2

STEP 1STEP 2STEP 3STEP 4STEP 5

Turn the

Ignition ON then

OFF 2x leaving it in

the ON position at

the 2nd time.

Press and release the

programming button on

the antenna 2 times.

The LED will ﬂash

1x then 2x.

Turn the

Ignition OFF

to exit

programming.

Press and hold for 3 seconds

until LED ﬂashes turns on

solid. Release programming

button.

Press the button on

each transmitter. LED

on antenna will ﬂash 1x

for each remote

programmed.

DATA AM

ANTENNA IN

All manuals and user guides at all-guides.com

TMTM

ultrastarters.com REV.09/20/18

INSTALLATION

GUIDE

MODEL DATA-AM & DEI (DBALL RSR FW.)

CONNECTIONS

PROGRAMMING

MODULE

DATA PROTOCOL : TYPE 4 - D2D

1 . Open “XK Loader”

2. Choose Year / Make / Model

3 . Conﬁgure Module features

4 . Enable “SMART START” without RF

5 . Flash Firmware

RF CONN 2

PROGRAMMING PROGRAMMING REMOTES

1 . Follow programming guide to program remotes to LoRa Data

2. There is no other programming required for operation.

STEP 1STEP 2STEP 3STEP 4STEP 5

Turn the

Ignition ON then

OFF 2x leaving it in

the ON position at

the 2nd time.

Press and release the

programming button on

the antenna 2 times.

The LED will ﬂash 1x then

2x.

Turn the

Ignition OFF

to exit

programming.

Press and hold for 3 seconds

until LED ﬂashes turns on solid.

Release programming

button.

Press the button on each

transmitter. LED on

antenna will ﬂash 1x

for each remote

programmed.

DATA AM

ANTENNA IN

All manuals and user guides at all-guides.com

Otros manuales para RFK4BAM

Tabla de contenidos

Otros manuales de Arranque remoto de Ultra Start

Ultra Start

Ultra Start 35 SERIES Manual de usuario

Ultra Start

Ultra Start 22 SERIES Manual de usuario

Ultra Start

Ultra Start 12xx Series Manual de usuario

Ultra Start

Ultra Start 35 SERIES Manual de usuario

Ultra Start

Ultra Start 1250 SERIES Manual de usuario

Ultra Start

Ultra Start 90 Series Manual de usuario

Ultra Start

Ultra Start 72 SERIES 1272 Manual de usuario

Ultra Start

Ultra Start 1250 SERIES Manual de usuario

Ultra Start

Ultra Start 25 SERIES Manual de usuario

Ultra Start

Ultra Start 1172 SERIES Manual de usuario

Ultra Start

Ultra Start 15 SERIES Manual de usuario

Ultra Start

Ultra Start 1500 SERIES Manual de usuario

Ultra Start

Ultra Start 32 SERIES Manual de usuario

Ultra Start

Ultra Start 32xx Series Manual de usuario

Ultra Start

Ultra Start 4500 Manual de usuario

Ultra Start

Ultra Start 3250 SERIES Manual de usuario

Ultra Start

Ultra Start 1350 SERIES Manual de usuario

Ultra Start

Ultra Start 72 Series Manual de usuario

Ultra Start

Ultra Start 2000 Series Manual de usuario

Ultra Start

Ultra Start 15 SERIES Manual de usuario

Ultra Start

Ultra Start 2500 SERIES Manual de usuario

Ultra Start

Ultra Start 1655XR Manual de usuario

Ultra Start

Ultra Start 25 SERIES Manual de usuario

Ultra Start

Ultra Start 22 SERIES Manual de usuario

Manuales populares de Arranque remoto de otras marcas

AstroStart

AstroStart 803U Manual de usuario

Durite

Durite 0-649-20 Manual

EINHELL

EINHELL BT-PS 1000 Manual

Linear

Linear ACCESS AK-21 Especificaciones técnicas

Soundstream

Soundstream TARANTULA RS.2 Manual de usuario

Jaycar Electronics

Jaycar Electronics MB3752 Manual de usuario

ADS

ADS FLASHLOGIC FLRSVW1 Manual de usuario

Selecta

Selecta JS012 Manual de usuario

Black Widow Security

Black Widow Security BW RAS 400 Manual de usuario

Vector

Vector Power City DK080706 Suplemento

Code Alarm

Code Alarm CA-535 Manual de usuario

Ozito

Ozito OJS-800 Manual de usuario

Profi-Partner

Profi-Partner 46387 Manual de usuario

EZ STARTER

EZ STARTER EZ-45 Manual de usuario

Viper

Viper 4204 Manual de usuario

Essex Electronics

Essex Electronics KE-1701 Manual de usuario

EINHELL

EINHELL EGS 3600 Manual

Rooboost

Rooboost RB-1750WP Manual de usuario
