OWNER’S GUIDE

2WAY REMOTE VEHICLE STARTER

Table Of Contents

Page 2

Table Of Contents Page 2

Welcome Page 3

Feature List

About Ultra Start

FCC Notice

Remote Starter Functions Page 4

Remote Starting

Extended Runtime

Remote Stop

Idle Mode

Turbo Timer Mode

Optional Features Page 6-7

Lock Doors

Unlock Doors

Priority Unlock

Silent Lock and Unlock

Trunk Release *

Car Finder *

Panic

Constant Lock And Trunk Output

Cold Start/ Temperature Start Mode Page 8

Setting The Digital Clock Page 9

Battery Replacement

Product Warranty Page 12

Reservation Mode (Manual Transmissions Vehicles) Page 5

Service Mode Page 10

Activating & Deactivating Service Mode

Diagnostics Page 11

Diagnostics Chart

Diagnostic Memory

2WAY REMOTE VEHICLE STARTER

OWNER’S GUIDE

This device complies with Part 15 of the FCC rules. Operation of this device is subject to

the following conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the part responsible for

compliance voids the users authority to operate this device.

Congratulations on your purchase of an Ultra Start 2way remote vehicle starter. Ultra

Start remote vehicle starters will provide years of comfort and convenience. To utilize

and understand this system to the fullest, please read this manual in detail.

FCC Notice

Welcome

It is our continuing objective to design and manufacture the absolute best Remote Car

Starters, Vehicle Security Systems, Keyless Entry Systems and Security Bypass units

available in today’s competitive market. This objective is met by utilizing installation

professionals with decades of industry experience to assist in each step of the design

process. This has allowed us to build products that are very installer and user friendly yet

offer advanced and innovative features. Our systems utilize intelligent programming and

auto learning systems and are designed to work properly in every vehicle. Our systems are

also designed wherever possible to be easily enhanced, allowing the consumer and the retailer

to enjoy easy and cost effective upgrades and additions to their system down the road. Our

limited lifetime warranty provides one of the best protection plans in the industry, giving

both the consumer and the retailer confidence when they invest in an Ultra Start product.

About Ultra Start

Feature List

- Remote Keyless Entry. - Panic Mode. (Personal Protection)

- Engine Idle Mode. - Turbo Timer Mode.

- Starter Disable. - Anti-Grind Protection.

- Dual Car Operation. - User Extendable Runtime.

- Safety Start Mode. - System Override Protection.

- Remote Service Mode- - Window Roll-Up/ Down.

- Park Light Diagnostics- - Up to 4 Different Transmitter Codes.

- Ignition Auto Locks. - Cold Start Mode With 4 Start intervals.

Page 3

Remote Starting

Remote Starter Functions

Remote Stop

Idle Mode

Extended Run Time

Turbo Timer Mode

Page 4

OWNER’S GUIDE

2WAY REMOTE VEHICLE STARTER

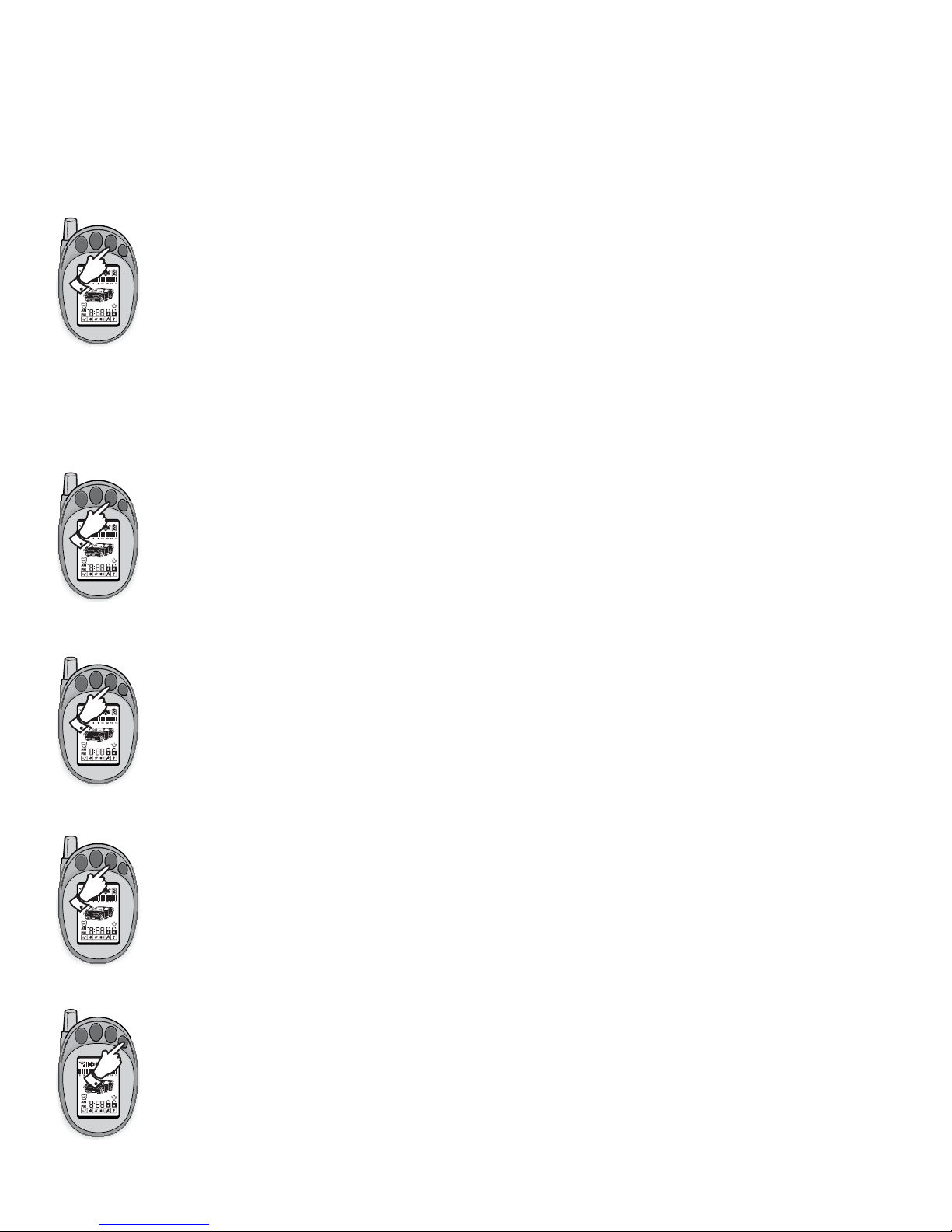

1.Press and release Button #3 on the remote transmitter.

2.The Park lights will flash and the horn (optional) will honk one time.

3. The remote will beep 3 times and the key icon will begin flashing.

4.When the vehicle has started, the system will flash the park lights four times

then remain “On” while the vehicle is running. (Normally 15 minutes)

5. The Runtime Bar Graph will appear on the LCD and begin counting down.

6. The vehicle will run for the programmed runtime. (Normally 15 minutes).

Never remote start if the vehicle is parked in a garage or attached carport!

Operate in a well ventilated area only.

Note: If the remote starter fails to start, the park lights will flash a Trouble

Shooting Code. Count the number of flashes and refer to the Diagnostics Chart

1.Press and hold Button #3 for three seconds. The remote starter will shut down.

2.The park lights will flash two times and the horn (optional) will honk two times.

Note: Pressing the brake pedal or opening hood will also stop the vehicle.

1.Press and release Button #1 while the vehicle is running by the ignition key.

2.The park lights will turn on and the horn (optional) will honk once.

3. The Remote will beep and the Run Time Bar Graph will light up.

4.Turn the ignition key “off” and the vehicle will continue to run.

5. Exit the vehicle and leave it running safely without the keys in the ignition.

1.Press and release Button #4 while the vehicle is running by the ignition key.

2.The park lights will turn on and the horn (optional) will honk once.

3. The Remote will beep and the Run Time Bar Graph will light up.

4.Turn the ignition key “off” and the vehicle will run for approximately 2 minutes .

5. Exit the vehicle and leave it running safely without the keys in the ignition.

1.Press and release Button #3 while the vehicle is running under the remote

starter. The park lights will flash and the horn (optional) will honk to confirm the

runtime has been extended. The runtime will reset (normally 15 minutes).

Note: The Run timer is not updated with this feature.

123

Manual transmission remote starters must be set into Reservation Mode before the

remote starter will activate. There are two different ways to place the system into

Reservation Mode. The activation type of Reservation Mode is determined when the

system is installed. The default setting is Auto Reservation Mode.

Auto Reservation Mode

Step 1 - While the vehicle is running, place into neutral and apply the park brake.

Step 2 - Press and release the brake pedal twice. The park lights will flash twice, the horn

(optional) will honk twice and the doors will unlock (optional).

Step 3 - Turn the ignition key off and the vehicle will continue running.

Step 4 - Exit the vehicle and close all the doors. The vehicle will then shut off *.

Manual Reservation Mode (Dealer Programmable Feature)

Step 1 - While the vehicle is running with the key, place transmission into neutral and apply the

park brake.

Step 2 - Press and release the button #4. The park lights will flash twice, the horn (optional) will

honk twice and the doors will unlock (optional).

Step 3 - Turn the ignition key off and the vehicle will continue running.

Step 4 - Exit the vehicle and close all the doors.

Step 5 - Press and hold the button #3 for 3 seconds, the vehicle will then shut off.

*****THE VEHICLE MAY NOW BE SAFELY REMOTE STARTED.*****

(See page 4 for Remote Starter Functions.)

If Reservation Mode is not set, the remote starter will not activate. When the start

Button is pressed the park lights will flash 4 times. 4 flashes is the diagnostic code

for “Not in Reservation Mode”

Note: Reservation Mode will reset if the doors of the vehicle are opened. To re-enter

the vehicle without canceling the Reservation Mode (forgot something..) The

vehicle must first be remote started. While the vehicle is running the door may

be opened, when done in the vehicle, close the door and hold button #3

until the remote starter shuts off.

* If the vehicle has dome light delay, the vehicle may stay running until the dome light turns off.

This is normally no longer than 30 seconds.

Page 5

2WAY REMOTE VEHICLE STARTER

OWNER’S GUIDE

Lock Doors

Unlock Doors

Trunk Release

Car Finder

Panic Mode

Page 6

Optional Features...

OWNER’S GUIDE

2WAY REMOTE VEHICLE STARTER

1. Press and hold buttons #2 & #3 together for two seconds.

2. The park lights will flash and the horn (optional) will honk five times.

3. The remote will beep and display the systems current status.

1.Press and hold Button #2 (Optional to button #4*) for three seconds.

2.The doors will unlock and the trunk release will activate. The Trunk

Release will be confirmed by 2 park light flashes.

3.For safety reasons, the Trunk Release output will be disabled and will not

activate when the ignition key is in the on position

*The trunk release output may be programmed to operate on button #4.

1.Press and release button #1 on the remote transmitter. The park lights will

flash, the horn (optional) will honk one time and the doors will lock.

3. The remote will beep once to confirm. The Lock icon will appear on the

LCD display of the remote.

4.The LEDs on the antenna will start flashing within five seconds.

Note: If installed the starter disable will activate.

*To Lock without horn honks, press buttons #1 and #2 at the same time.

1.Press and release button #1 on the remote transmitter. The park lights

will flash, the horn (optional) will honk twice and the doors will lock.

3. The remote will beep once to confirm. The Unlock icon will appear on the

LCD display of the remote.

4.The LEDs on the antenna will stop flashing.

Note: If installed the starter disable will deactivate.

*To Unlock without horn honks, press button #1 and #2 at the same time.

ACTIVATE PANIC MODE

1. Press and hold Button #1 for three seconds.

2. The park light will begin to flash and the horn will activate,

PANIC MODE DISABLE

- Press and release Button #1 to disable Panic Mode and lock the doors.

- Press and release Button #2 to disable Panic Mode and unlock the doors.

Note :Panic Mode will stay activated until disable by the remote transmitter.

123

Page 7

2WAY REMOTE VEHICLE STARTER

OWNER’S GUIDE

Cold Start Mode will start the vehicle at a user selectable start interval or

temperature setting. The vehicle can be set to start once every 1, 2, 3 or

4 hours in Timer Mode or to start at 0,-5,-15 or -25 Celsius in Temperature

Mode (LT Models Only) for a maximum 12 starts. The vehicle will start at

the selected start interval/ temperature and run for the programmed runtime

(Normally15min). Cold Start Mode must be set each time the user wishes to

Use this feature.

Example- Timer Mode. If the 4 hour start cycle was selected, the

vehicle will start once every 4 hours and run for the programmed runtime

then turn off. This setting will keep the vehicle in Cold Start Mode for up

to 2 days before deactivating.

Example- Temp Mode (LT models only). If the -15 Celsius start cycle

was selected, the system will monitor the temperature until it falls below

-15, at this time the remote starter will activate for the programmed runtime.

The system will then wait 2 hours before checking the temperature again.

To Enter Cold Start Mode.

Method 1- Press and release button #4, then press and hold Button #3 for 6

seconds or until park lights turn on.

Method 2 - Press and hold buttons #1 and #3 at the same

time for 3 seconds. The park lights will turn on.

While the park lights are on the start cycle can be selected.

1 hour or 0C Press button #1 1 Park light flash

2 hour or -5C Press button #2 2 Park light flashes

3 hour or -15C Press button #3 3 Park light flashes

4 hour or -25C Press button #4 4 Park light flashes

Note: The optional Low Temp sensor must be installed for the temperature

settings to be available. (LT Models only)

To Cancel Cold Start Mode

Method 1- Press and release the button #4, then press and hold button #4

for six seconds.

Method 2- Press and hold buttons #1 and #3 at the same time for 3 seconds.

Note: Stepping on the brake or turning on the ignition will cancel Cold Start.

cancellation of Cold Start Mode will be confirmed with two park light flashes

and two horn honks (optional).

*****Never remote start or set the Cold Start Mode if the vehicle

is parked in a Garage or Attached Carport!******

Cold Start Mode

123

Page 8

OWNER’S GUIDE 2WAY REMOTE VEHICLE STARTER

LCD DISPLAY

TELEPHONE ICON- When the vehicle starts in Timer Mode, this icon will appear

in conjunction with the usual icons that indicate that the vehicle is running by the

remote starter.

KEY ICON- This icon will begin to flash when the remote starter button is first

pressed. After the vehicle has started this icon will stay on solid. The wheels on the

car will begin to rotate.

HORN ICON- This icon indicates that the alarm has been triggered. The remote

will start to beep and the siren icon will come on solid at the same time as the icon

for the violated zone. The remote will stop beeping after one minute. Both icons will

continue to flash until the system is disarmed.

ANTENNA ICON- This icon will be visible on the LCD whenever the remote

is within transmitting range of the vehicle. The icon will disappear when the remote

leaves that transmitting range.

STATUS ICONS These icons are located at the top of the LCD screen.

STATUS CHECK MODE This feature is used to check the status of the alarm system or

the remote starter.

1. To check the status press and release Button #4 on the remote transmitter.

2. The remote will display the icons of the active features on the LCD screen.

TRUNK ICON- This icon will be displayed on the LCD screen when the trunk

release output is activated by the remote transmitter. This icon will be displayed on

the screen until the system is armed or if the status button is pressed

BATTERY ICON- This icon is always present when the LCD screen. This icon will

indicate the current battery level for the remote transmitter. The black area of the

icon will disappear as the battery level decreases.

RUN TIMER- This icon activates during remote starting. The bar graph will count

down in 2 minute increments, indicating how much time is left on the remote starter’s

runtime.

Page 9

OWNER’S GUIDE 2WAY REMOTE VEHICLE STARTER

To Enter Clock Adjust Mode

Press and hold buttons #1 and #4 until the minute portion of the clock located on

the LCD begins to flash

To Adjust The Time of day

To set the minute, press and release button #3 to increase the minute or press

button #2 to decrease the minute. To set the hour, press and release button #1

and the hour portion of the clock will begin to flash. To set the hour, press and

release button #3 to increase the hour and button #2 to decrease the hour. To set

the AM/ PM icon, continue changing the hour until the appropriate icon is

displayed.

Note: The remote will exit clock adjust if there is no activity for 20 seconds.

Setting The Digital Clock

When the Battery Icon on the remote transmitter indicates that the

battery is low the battery should be changed promptly. Replace with a

quality 1.5volt “AAA” battery.

Battery Replacement

123

Bteat ry

Slide

att rBey

Lift

Slide

Batt rey

Positive

Negative

Note- Avoid reinstalling the battery in the wrong direction

Page 10

OWNER’S GUIDE 2WAY REMOTE VEHICLE STARTER

ATTENTION: TO AVOID SERIOUS INJURY, this remote start system must be set into

Service Mode before any under hood servicing is started. Service Mode will prevent

the vehicle from starting while the vehicle is being serviced. It is the sole

responsibility of the vehicle’s owner to place the system into Service Mode. The

manufacture accepts no responsibility for accidental starting of the vehicle while the

vehicle is being serviced.

Emergency Service Mode - (Valet)

This feature will disable the system except for locking and unlock functions.

This mode can also used if a remote is lost, damaged or if the system malfunctions.

ENTERING SERVICE MODE

1.Turn the ignition key to the “On” position then press and hold the Program Button on

the antenna for 5 seconds or the horn (optional) honks 5times.

EXITING SERVICE MODE

1.Turn the ignition key to the “On” position then press and hold the Program Button for 5

seconds or until the horn (optional) honks 2 times.

Note: Remote starter functions will be disabled and the LED will be “on” steady.

The door locks and the trunk release will still be operational.

System Service Mode(Valet) - By Remote

This feature will disable the system from the remote transmitter. Use this feature must be

used when having the vehicle serviced. ( Oil change, Tune-up etc.)

ACTIVATE Service Mode

Press and release then press and hold button #4 for 5 seconds.

The park lights will flash and the horn (optional) will honk 5 times to confirm that

the system has entered Service Mode.

Note: Remote starter functions will be disabled and the LEDs will be “on” steady. The

door locks and the trunk release will still be operational.

DEACTIVATE Service Mode

Press and release then press and hold button #4 for 5 seconds.

The park lights will flash and the horn (optional) will honk 2 times to confirm that the

system has exited Service Mode.

Note: Remote starter functions will be disabled and the LEDs will be “on” steady. The

door locks and the trunk release will still be operational.

Service Mode

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arranque remoto de Ultra Start

Ultra Start

Ultra Start 90 Series Manual de usuario

Ultra Start

Ultra Start 72 Series Manual de usuario

Ultra Start

Ultra Start 2250 Series Manual de usuario

Ultra Start

Ultra Start 25 SERIES Manual de usuario

Ultra Start

Ultra Start 80 Series Manual de usuario

Ultra Start

Ultra Start 2250 Series Manual de usuario

Ultra Start

Ultra Start 72 SERIES 1272 Manual de usuario

Ultra Start

Ultra Start 3250 SERIES Manual de usuario

Ultra Start

Ultra Start 15 SERIES Manual de usuario

Ultra Start

Ultra Start 1655XR Manual de usuario

Ultra Start

Ultra Start 1172 SERIES Manual de usuario

Ultra Start

Ultra Start PRO Series Manual de usuario

Ultra Start

Ultra Start 32 SERIES Manual de usuario

Ultra Start

Ultra Start 12xx Series Manual de usuario

Ultra Start

Ultra Start 1250 SERIES Manual de usuario

Ultra Start

Ultra Start 1350 SERIES Manual de usuario

Ultra Start

Ultra Start 1250 SERIES Manual de usuario

Ultra Start

Ultra Start 1155 Series Manual de usuario

Ultra Start

Ultra Start 2250M Manual de usuario

Ultra Start

Ultra Start 3295Series Manual de usuario

Ultra Start

Ultra Start 15 SERIES Manual de usuario

Ultra Start

Ultra Start 15xx Manual de usuario

Ultra Start

Ultra Start 4500 Manual de usuario

Ultra Start

Ultra Start 1150 Series Manual de usuario

Manuales populares de Arranque remoto de otras marcas

AstroStart

AstroStart 803U Manual de usuario

Durite

Durite 0-649-20 Manual

EINHELL

EINHELL BT-PS 1000 Manual

Linear

Linear ACCESS AK-21 Especificaciones técnicas

Soundstream

Soundstream TARANTULA RS.2 Manual de usuario

Jaycar Electronics

Jaycar Electronics MB3752 Manual de usuario

ADS

ADS FLASHLOGIC FLRSVW1 Manual de usuario

Selecta

Selecta JS012 Manual de usuario

Black Widow Security

Black Widow Security BW RAS 400 Manual de usuario

Vector

Vector Power City DK080706 Suplemento

Code Alarm

Code Alarm CA-535 Manual de usuario

Ozito

Ozito OJS-800 Manual de usuario

Profi-Partner

Profi-Partner 46387 Manual de usuario

EZ STARTER

EZ STARTER EZ-45 Manual de usuario

Viper

Viper 4204 Manual de usuario

Essex Electronics

Essex Electronics KE-1701 Manual de usuario

EINHELL

EINHELL EGS 3600 Manual

Rooboost

Rooboost RB-1750WP Manual de usuario
