User Manual

GEE810E-868U

Enterprise Gateway

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

1.!Introduction

Enterprise LoRa indoor gateway is designed to meet the needs of IoT services. This Enterprise

indoor gateway allow theusers to setupthis in indoor environment as an aggregator of LoRa sensors to

the internet for the related services. Tomorrow's connected devices will control everything from indoor

temperatures to air conditioner, from the flow of energy through our cities to the flow of critical

healthcare data, unlocking hidden value in unconnected machines. So the connectivity is critical to

generate intelligence, except the WiFi, LoRa is also an alternatively solution for indoor applications.

2.!Hardware Specifications

Item

Technical Information

Processor

Cortex A8

Storage/Memory

8GB eMMC/ 4Gb DDR3

WiFi

IEEE 802.11 b/g/n 2.4 GHz

Ethernet

10/100/1000 Mbps/ RJ45

Interface

USB 2.0 for 2G/3G/4G

DC PWR

DC 12V / 2.065A & PoE 48V/0.5208A (802.3 AT

compliant)

Power Consumption

25W

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

Antenna (Internal)

WiFi: 3.51 dBi Peak Gain

LoRa: 1.4 dBi Peak Gain.

Operation Temperature &Humidity

-10~50 , 10%~90%

Storage Temperature & Humidity

-40~70, 5%~90%

Dimension

200 x 200 x 49.5 mm

Weight

280g

Regulatory

CE/TELEC/JATE

3.!Accessory and Setup

3.1 Accessory

3.2 Setup Quick Guide

3.2.1 Wall Mount & Ceiling Mount Installation Support

This product provides the wall mounting support. For this function, 2 sets of tapping

screws & expansion pipes in accessories should be used. I/O Port cables can be at upward

or downward direction.

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

3.2.2 USB Dongle (not included)

3.3 LEDs Specification

Type

Status

Comment

WAN

Constant Off

All WAN interfaces do not enable.

WAN

Constant Light Red

The connection relationship with Lrr server by Actility

is not available.

WAN

Constant Light Blue

The connection relationship with Lrr server by Actility

is available.

LAN

Constant Off

Ethernet link down. (connect to eth phy, SW can NOT

control)

LAN

Constant Light Blue

Ethernet link up. (connect to eth phy, SW can NOT

control)

LAN

Blinking Blue

There is the traffic in the ethernet connection

relationship. (connect to eth phy, SW can NOT control)

WLAN

Constant Off

Wifi AP does not enable.

WLAN

Constant Light Blue

Wifi AP is enabled.

LPWAN

Constant off

LoRa radio is off. ( ret= -1 in the radioparams.txt )

LPWAN

Constant Light Blue

LoRa radio is on. ( ret= 0 in the radioparams.txt )

4.!Software Setup

4.1 Use web interface to setup LoRa Indoor GW under

Ethernet DHCP client mode ( Defult Primary WAN type )

4.1.1 Plug in Ethernet cable in GW and the other end of cable should plug into where is DHCP

server existing.

4.1.2 Power up Indoor GW.

4.1.3 Make sure Indoor GW gets a valid IP Address from DHCP server.

4.1.4 Based on iptables rules, pleasse use PC/NB/smart-phone to connect to the same network

(91.134.250.x/32), and assign PC ip as 91.134.250.101 to access GW with ssh connection.

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

For GW BS ID, username and password information, please ask Foxconn contact

window directly.

Web UI is not allowed to access by default. If user tries to acces Web UI, please enetr the

command as below.

am335x-evm:~# /usr/bin/firewall-reset.sh

After applying the command as above, then user can access to Web UI by the following

steps. Open a browser with the assigned GW IP address to access its web interface.

For example, GW gets 91.134.250.102 from DHCP server, then access web page by

“http://91.134.250.102/”

The login information is like:

Username: bsconfig

Password: aup6g/t;3

4.1.5 Required a web browser

Chrome version “55.0.2883.87 m” web browser to access Indoor LoRa GW web page.

4.1.6 MP FW version:

LoRa module: HAL 5.0.1

LRR version: fcpico_2.4.20

T77I914.02: UBoot (Oct 18 2018 - 17:14:32), Linux ( #5 Sat Jun 3 17:17:29 CST 2017),

PCG020C_20181009_TI1003TP

4.1.7 Connection to Indoor LoRa GW web UI

FW Version – Display current FW version

HW Revision – Display current HW reversion (should not change)

Wan Status – Display current backhaul connection state in the following format:

<WAN Type>,<Current IP address> or NO (if WAN connection is not

ready)

Forwarding – “bs_pkt_fwd” process is running.

“bs_pkt_fwd” forwards RF packets receive by the concentrator to a

server through a IP/UDP link, and emits RF packets that are sent by

the server.

The default value: pkt_fwd_start=false (Disable).

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

This Status is used for “U-Thing” server.

•!Ping GW – Display the ping test result to default gateway

PASS (default GW is okay)

FAIL (default GW is unreachable or ICMP-blocked)

•!Ping DNS Server – Display the result to ping “8.8.8.8” or “168.95.1.1”

PASS (ping test to ping “8.8.8.8” or “168.95.1.1” is okay)

FAIL (ping test to ping “8.8.8.8” or “168.95.1.1” is failed)

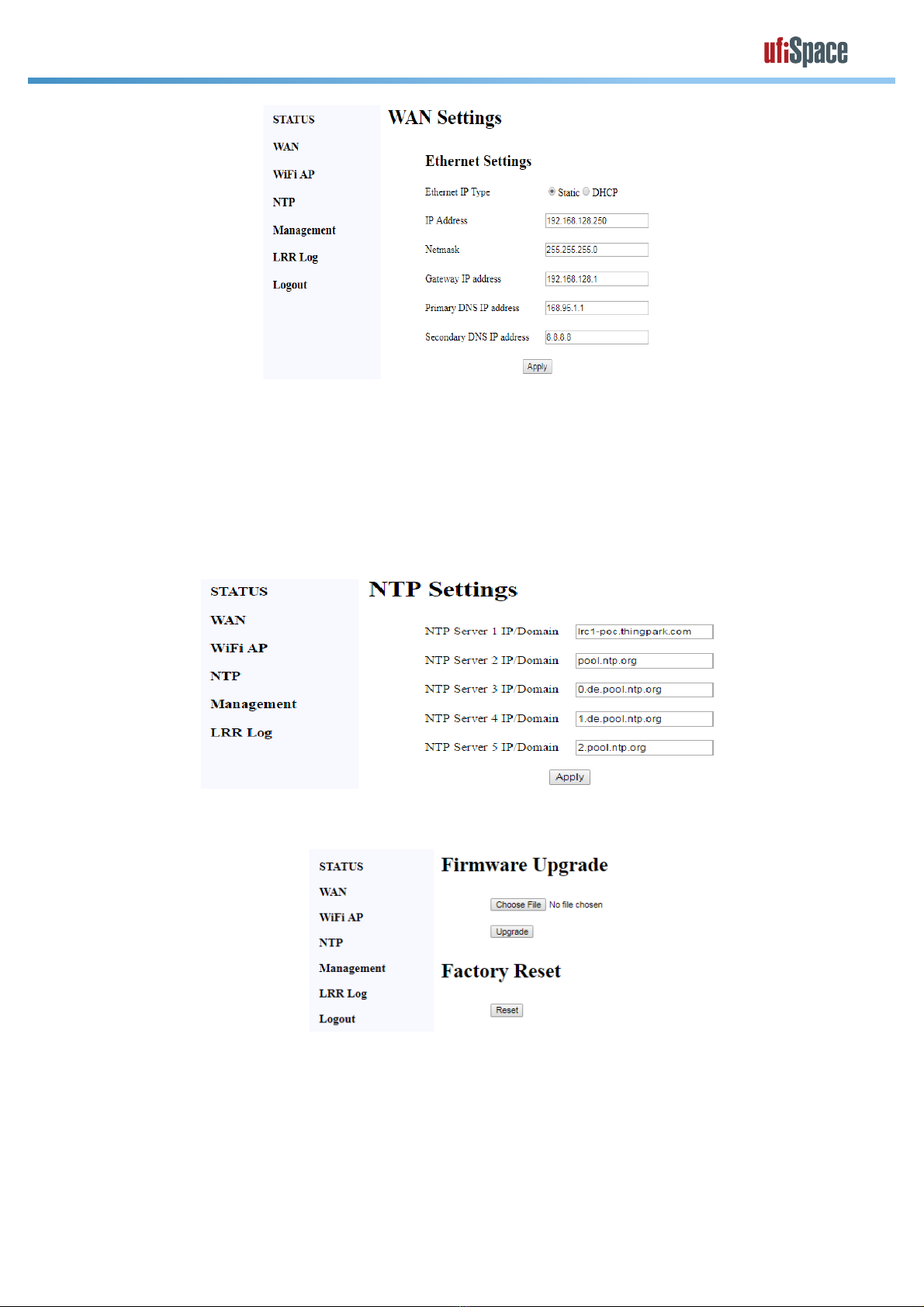

4.2 Set WAN interface

Select [WAN] page for setting WAN configuration

The LoRa service on Indoor GW will start automatically when backhaul connection is ready.

Hence, user needs to take the backhaul (WAN) connection per network environment that

Indoor GW is installed.

4.2.1 Select “Ethernet” as WAN

4.2.1.1 Use DHCP Mode to get IP address automatically

A.!Set Primary WAN type as “Ethernet”

B.!Set Ethernet IP Type under Ethernet Settings as “DHCP”

C.!Press Apply button

4.2.1.2 Use static IP Mode

A.!Set Primary WAN type as “Ethernet”

B.!Set Ethernet IP Type under Ethernet Settings as “Static”

C.!Configure proper settings in IP address / Netmask / Gateway / Primary DNS /

Secondary DNS under Static IP Settings

D.!Press Apply button

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

4.3 Set Time Server !

Select [NTP] page for setting NTP configuration. You will need to change this setting if LoRa

Indoor GW will be used in a private network with its own time server and Internet is not

available. GW will query NTP server from the first one until GW get the response from NTP

server.

4.4 Management Page



Firmware Upgrade

Before performing FW upgrade, please check the Status page for current firmware version.

You need to be aware that only firmware for the same production could be used. Using

invalid firmware or firmware from other products will get a “FW Upgrade Fail” message.

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

The firmware file usually has a name in following format:

PCG020C_[Date Code]_TI1003TP

Where [Date Code] is the release date of this firmware. You may refer the release note for

version information.

For firmware upgrade, first use [Choose File] button to select firmware file, then press

[Upgrade] to start the upgrade process. After a success upgrade, the device will reboot

automatically.

Factory Reset

If the device is not function as expected, or the release note of new firmware request to do

factory reset due to configuration adjustment, you may use [Reset] to reset all

configurations to default value of firmware. After completion of reset operation, a message

“Factory reset is done!! Waiting for rebooting..” will be shown and the device reboots

automatically.

4.5 LRR Log Page

With integrated ThingPark Wireless client application - LRR, both LoRa traffic and control

can be observed via the application log. This page provides an easy way to do filtering,

selection and saving on the log. On page loading, the current date information of device is

shown before the radio selection, and week day of today is selected as default. Since LRR log

on device is preserved as the last 7 week days, please do selection before further operation if

you want to view log of the other past day.

Confidential!/!All!product!specifications!are!subject!to!change!without!notice.! !

GEE810E-868U

View log in web browser

The Filter command controls a simple content filter in log, you may enter keyword (case

sensitive) to it, and only a line contained such keyword will be displayed. If keyword

contained white space, double quota (“) must be used around the whole keyword. You will

still need to enter (“”) in Filter command to display full log without filtering. Then, press

[Apply] button and the log content will be displayed below. Log output maybe truncated if it

is too big for browser to show.

Download log as a file

After selecting week day, you can use [Download] button to download log of selected day as

a file in your local space. The Filter command is not used because full log is retrieved.

Warning:

1) This product is only to be connected to PoE networks without routing to outside plants.

2) To reduce potential safety issues, only the AC adapter provided with the product, a

replacement AC adapter provided by Hon Lin Technology Co Ltd., or an AC adapter

purchased as an accessory from Hon Lin Technology Co Ltd. should be used with the

product.
