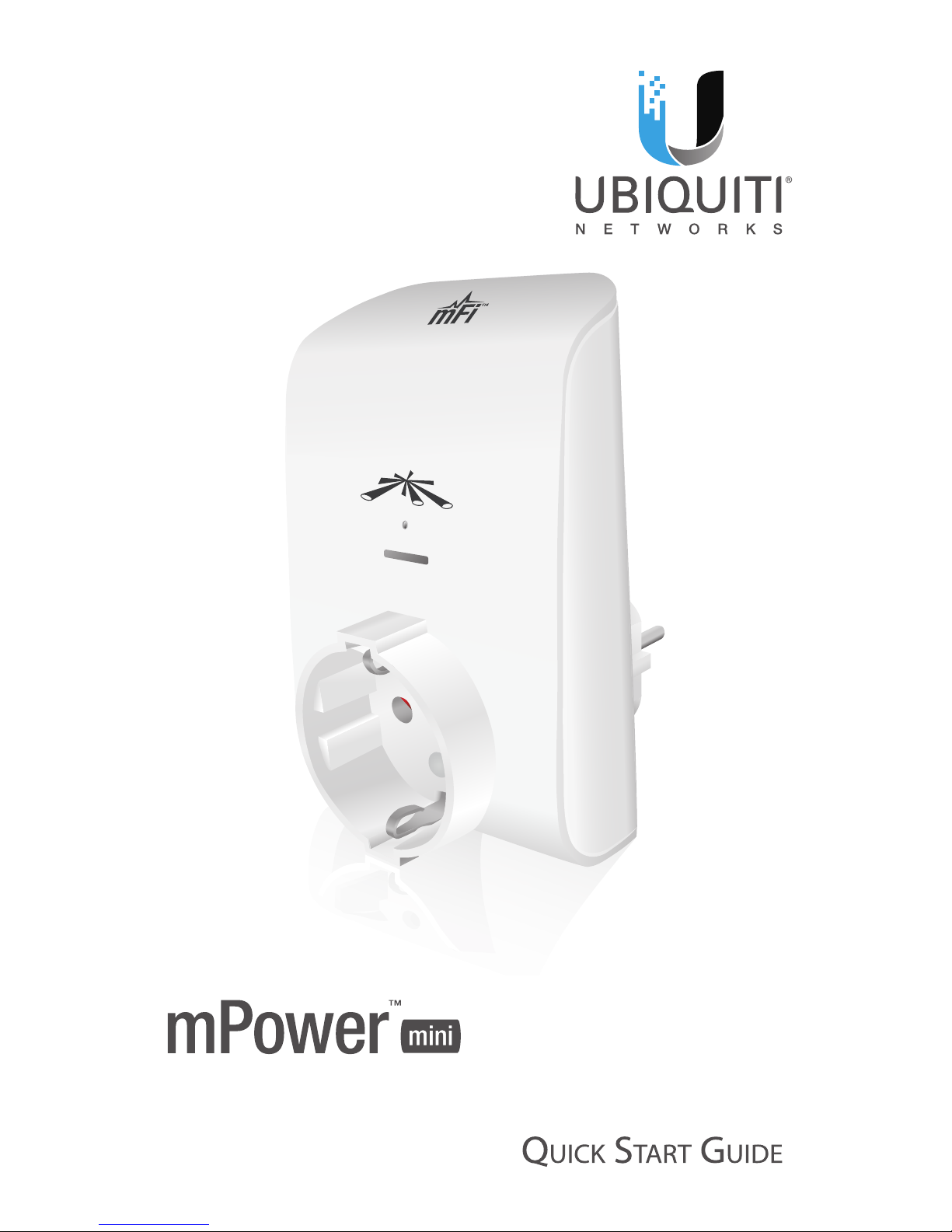

Ubiquiti mPower mini Manual del operador
mFi Power Adapter with
Wi-Fi Connectivity
Model: mPower mini (EU)
Introduction
Thank you for purchasing the Ubiquiti Networks® mFi®
mPower™ mini (EU). The mPower mini (EU) is a European
power adapter with Wi-Fi capability that is designed for use
with the Ubiquiti mFi platform. Once connected, you can use
the mFi Controller software to monitor the energy usage of
the attached device and define automation rules using your
web browser. Rules detail what actions occur when trigger
conditions are met. This Quick Start Guide is designed to guide
you through the installation and also includes the warranty
terms.
Package Contents
mFi Power Adapter with
Wi-Fi Connectivity
Model: mPower mini (EU)
mPower mini (EU) Quick Start Guide
System Requirements
• Wi-Fi Network
Hardware Overview
Front
Status
LED
Device Reset
Button
Status LED The Status LED has four primary states:
• Solid yellow When first
powered on in factory
default mode.
• Flashing yellow
Connecting to a Wi-Fi
network.
• Solid blue Successfully
connected to mFi
Controller.
• Flashing blue
Connecting to mFi
Controller.
Device Reset Button The Device Reset button serves two
functions:
• Restart Restarts the device when you press and release it
quickly.
• Restore Factory Defaults Press and hold until the LED
alternates colors to restore the device to the factory default
settings.
Hardware Installation
The mPower mini (EU) plugs into a European power outlet.
IMPORTANT: This product should be used on a circuit
with a circuit breaker (rated current 20A max.), which is
certified by a European notified body.
Software Download and Installation
For local mFi Controller installations, the mFi Controller
software is installed just once when you initially create a
mFi network. It is not necessary to go through the software
installation process every time you add another mFi device.
The mFi Controller software can be downloaded from the
Ubiquiti Networks website.
1. Go to downloads.ubnt.com/mfi
2. Mac users should download mFi.dmg and Windows users
should download mFi-installer.exe.
3. Follow the instructions for your computer type.
Mac Users
1. Open the mFi.dmg file.
2. Click the Install icon.
3. Click Continue and follow the on-screen instructions to
install the software.
4. Go to Go > Applications and double-click the mFi icon.
Proceed to the Configuring the mFi Controller Software section.
*640-00091-02*
640-00091-02
PC Users
1. Launch mFi-installer.exe.
2. Click Install.
3. If your computer doesn’t have Java 1.6 or above installed,
you will be prompted to install it. Click Install to continue.
4. Ensure the Start mFi Controller after installation option is
checked and click Finish.
Note: The mFi Controller software can also be
launched from Start > All Programs.
Configuring the mFi Controller Software
1. The mFi Controller software startup will begin. Click
Launch a Browser to Manage the Network.
2. The mFi Configuration Wizard will appear the first time you
launch the mFi Controller software. On the Welcome screen,
select your language and country.Click Next.
3. Select the device(s) that you want to configure. The Refresh
button can be used to refresh the list of devices. Click Next
to continue.
4. Enter an administrator name in the Admin Name field. Enter
a password in the Password and Confirm fields. Click Next.
