USER GUIDE

Introduction 1

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations

of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American

leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete global product collection includes modular Wine Cellars, Drinks Cabinets, Clear Ice Machines, Glass &

Solid Door Refrigerators, Drawer Models, and Freezers.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over

two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance

Documentation, and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

SERVICE INFORMATION

Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our

Customer Care group directly, contact information below.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm UTC/GMT - 5

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm UTC/GMT - 5

T: +1.414.354.0300

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

USER GUIDE

Integrated Panel Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

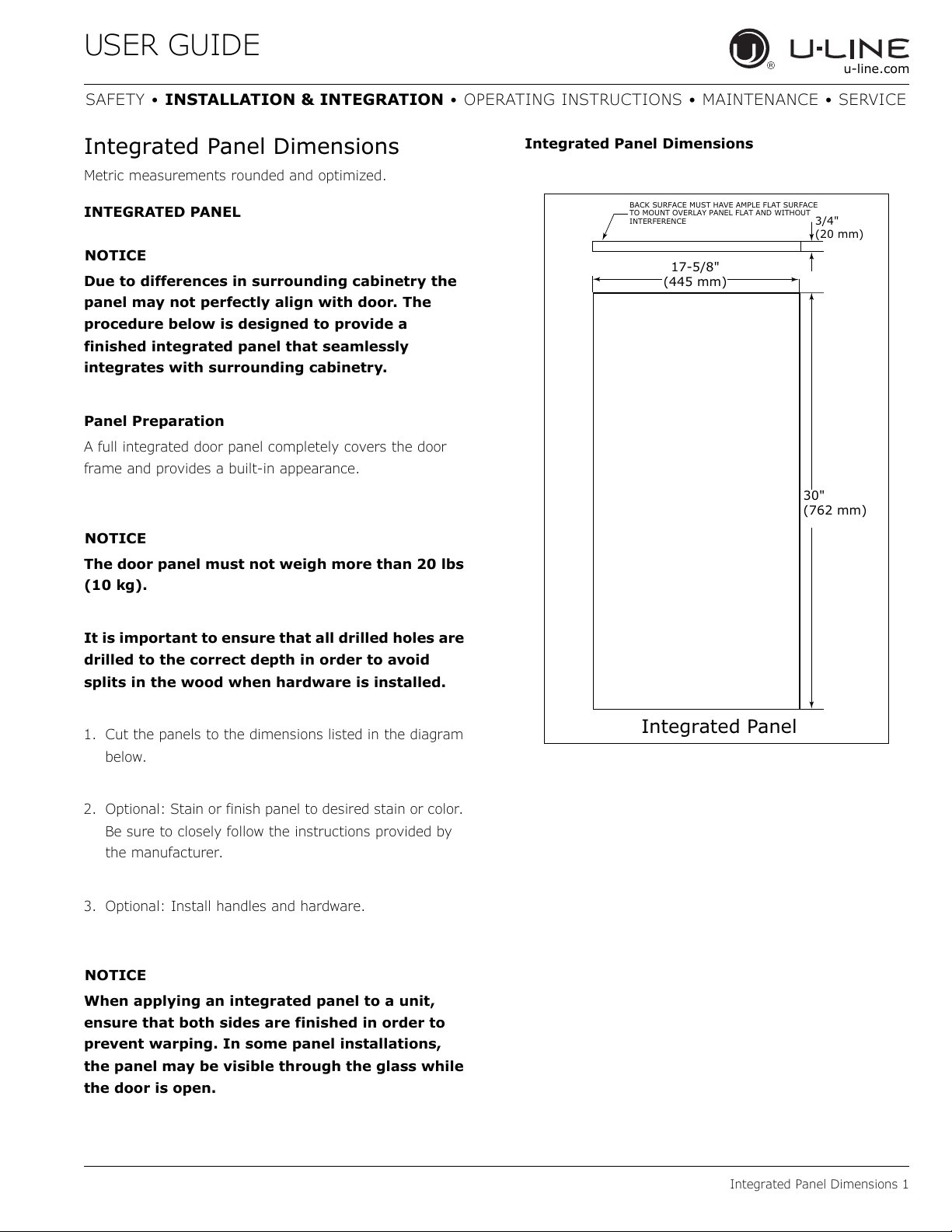

Integrated Panel Dimensions

Metric measurements rounded and optimized.

INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished integrated panel that seamlessly

integrates with surrounding cabinetry.

Panel Preparation

A full integrated door panel completely covers the door

frame and provides a built-in appearance.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

1. Cut the panels to the dimensions listed in the diagram

below.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some panel installations,

the panel may be visible through the glass while

the door is open.

Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE 3/4"

(20 mm)

Integrated Panel

17-5/8"

(445 mm)

30"

(762 mm)

USER GUIDE

Integrated Panel Dimensions 2

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

HANDLELESS INTEGRATED DOOR PANEL

The following procedure is designed to provide a finished,

handleless solid panel for an 18" (450 mm) door that

seamlessly integrates with its surrounding cabinetry.

NOTE: Many cabinet manufacturers provide a ready

solution for a handleless, integrated design that can be

easily applied to your U-Line 3000 Series model. Consult

your cabinet manufacturer for applicable design and

installation details. The cabinet manufacturer’s solution to

this design and integration detail will often result in an

integrated panel solution wherein the size of the panel

may result in a height dimension taller than what we

specify. This can be achieved provided the additional

height is positioned above the appliance door.

NOTICE

The integrated panel aligns with the surrounding

cabinetry and, due to differences in cabinetry,

may not align perfectly with the door.

The appliance will need up to 34-1/2" (876 mm)

to the underside of the counter to leave room for

leveling adjustments.

A single prepared panel with insert must not

weigh more than 20 lbs (10 kg).

Integrated Panel Preparation

1. Cut the main panel to the dimensions below. For

details, see the drawings on the next page.

2. Create the top design for the handleless feature and

the 1/8" (3 mm) notch for the insert(s) indicated on

the Top Detail drawing, on the next page.

3. Prepare the insert(s) that will back up the handleless

design. Wooden Insert – Cut 1/8" (3 mm) thick

wooden insert(s) to the dimensions below.

4. Optional: Stain or finish panel and wooden insert to

desired stain or color. Be sure to closely follow the

instructions provided by the manufacturer.

NOTICE

If finishing panel or wooden insert, all sides

must be finished to prevent warping.

5. Attach the insert to the panel. Wood glue or equivalent

adhesive should be used to attach insert to panel.

Main panel width Main panel height

17-5/8" (445 mm) 28-13/16" (732 mm)

Wooden insert width Wooden insert height

17-5/8" (445 mm) 3-1/2" (89 mm)

Top Design

and Insert Notch

Wooden Insert

Main Panel

Integrated Panel

Attach Wooden Insert

USER GUIDE

Integrated Panel Dimensions 3

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

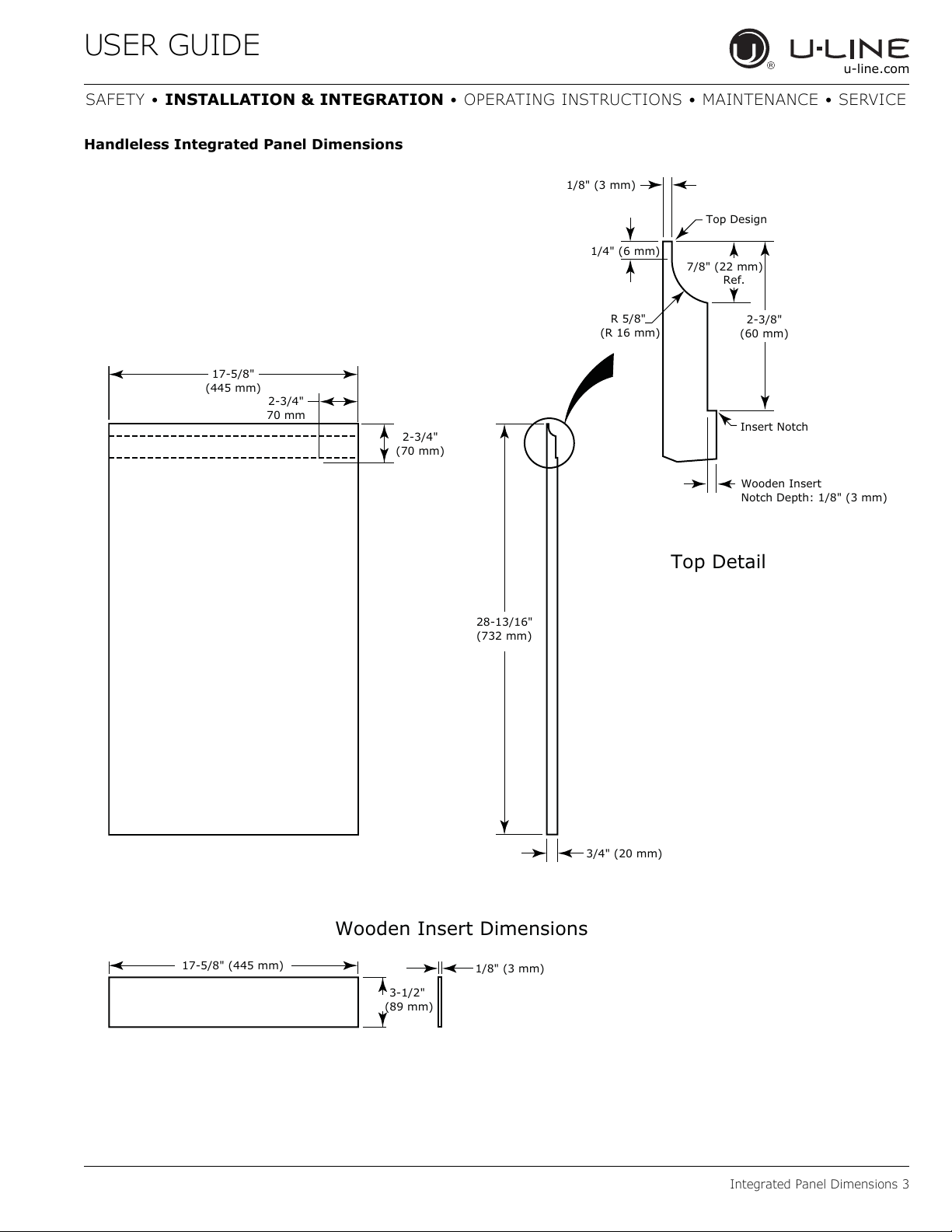

Handleless Integrated Panel Dimensions

3/4" (20 mm)

28-13/16"

(732 mm)

2-3/4"

(70 mm)

2-3/4"

70 mm

R 5/8"

(R 16 mm)

1/8" (3 mm)

1/4" (6 mm)

Wooden Insert

Notch Depth: 1/8" (3 mm)

2-3/8"

(60 mm)

7/8" (22 mm)

Ref.

Top Detail

Insert Notch

Top Design

1/8" (3 mm)

3-1/2"

(89 mm)

17-5/8" (445 mm)

Wooden Insert Dimensions

17-5/8"

(445 mm)

USER GUIDE

Integrated Panel Dimensions 4

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

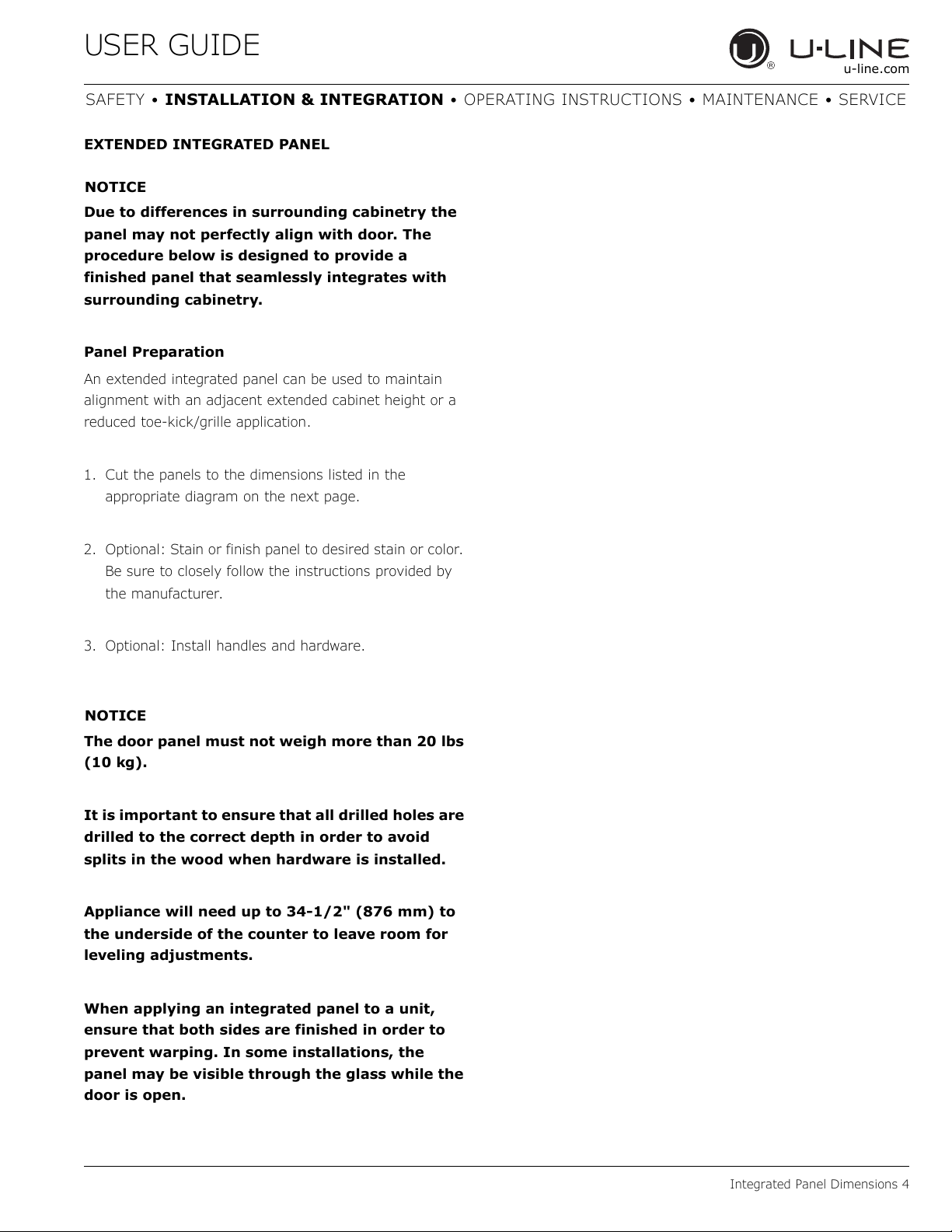

EXTENDED INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished panel that seamlessly integrates with

surrounding cabinetry.

Panel Preparation

An extended integrated panel can be used to maintain

alignment with an adjacent extended cabinet height or a

reduced toe-kick/grille application.

1. Cut the panels to the dimensions listed in the

appropriate diagram on the next page.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

Appliance will need up to 34-1/2" (876 mm) to

the underside of the counter to leave room for

leveling adjustments.

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some installations, the

panel may be visible through the glass while the

door is open.

USER GUIDE

Integrated Panel Dimensions 5

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

3-5/16" (89 mm)

4-5/16" (114 mm)

U-Line

Unit

U-Line

Unit

Integrated Panel

Integrated Panel/Integrated Frame

Front Side

3-5/16" (89 mm)

4-5/16" (114 mm)

Floor

Cabinet

> 3-5/16"

(> 89 mm)

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Extended Integrated Panel/Extended Integrated Frame

Floor

Cabinet

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Integrated Panel

* Panel can extend beyond the door frame.

** A minimum of 1" (25 mm) from the floor

is required for proper ventilation.

USER GUIDE

Integrated Panel Dimensions 6

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Extended Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT INTEGRATED PANEL FLAT AND

WITHOUT INTERFERENCE 3/4"

(20 mm)

Integrated Panel

17-5/8"

(445 mm)

30.0" -

33-7/8"

(762 mm -

860 mm)*

* A minimum of 1" (25 mm) is required from the

floor to the bottom of the extended integrated

panel/frame for proper ventilation.

USER GUIDE

Integrated Grille - Plinth Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

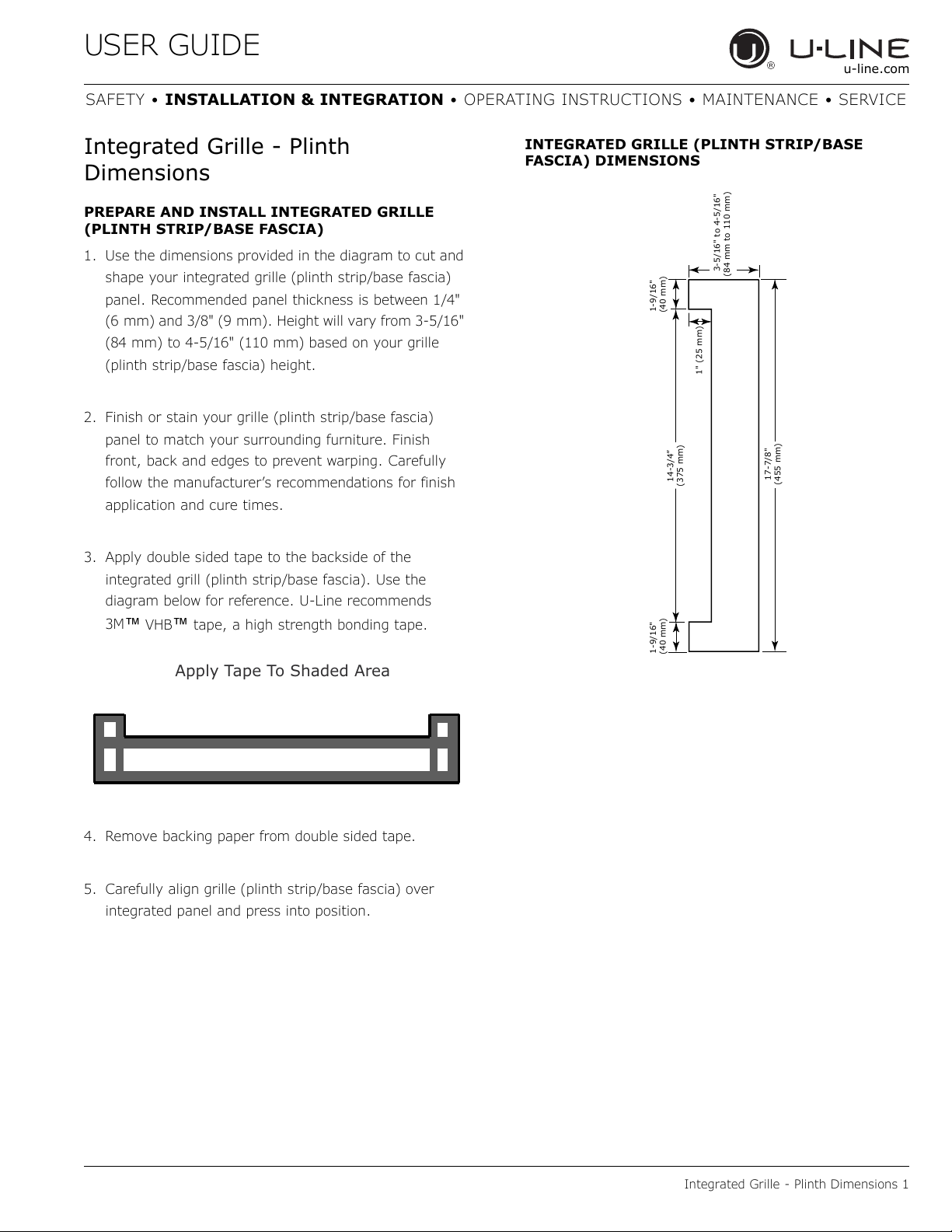

Integrated Grille - Plinth

Dimensions

PREPARE AND INSTALL INTEGRATED GRILLE

(PLINTH STRIP/BASE FASCIA)

1. Use the dimensions provided in the diagram to cut and

shape your integrated grille (plinth strip/base fascia)

panel. Recommended panel thickness is between 1/4"

(6 mm) and 3/8" (9 mm). Height will vary from 3-5/16"

(84 mm) to 4-5/16" (110 mm) based on your grille

(plinth strip/base fascia) height.

2. Finish or stain your grille (plinth strip/base fascia)

panel to match your surrounding furniture. Finish

front, back and edges to prevent warping. Carefully

follow the manufacturer’s recommendations for finish

application and cure times.

3. Apply double sided tape to the backside of the

integrated grill (plinth strip/base fascia). Use the

diagram below for reference. U-Line recommends

3M™VHB™tape, a high strength bonding tape.

4. Remove backing paper from double sided tape.

5. Carefully align grille (plinth strip/base fascia) over

integrated panel and press into position.

INTEGRATED GRILLE (PLINTH STRIP/BASE

FASCIA) DIMENSIONS

Apply Tape To Shaded Area

1" (25 mm)

1-9/16"

(40 mm)

17-7/8"

(455 mm)

3-5/16" to 4-5/16"

(84 mm to 110 mm)

1-9/16"

(40 mm)

14-3/4”

(375 mm)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enfriador de vino de U-Line

U-Line

U-Line 2260WC Manual de instalación

U-Line

U-Line 2260ZWC Manual de usuario

U-Line

U-Line Echelon 2015WC Wine Captain Manual de usuario

U-Line

U-Line Echelon 2275DWRWS Manual de usuario

U-Line

U-Line UHWC115 Manual de instalación

U-Line

U-Line 2175DWRWC Manual de usuario

U-Line

U-Line Wine Captain 2260ZVVC Manual de instalación

U-Line

U-Line Echelon 2015WC Wine Captain Manual del propietario

U-Line

U-Line WINE CAPTAIN 2175WCC Guía de configuración

U-Line

U-Line 2000 SERIES Manual de usuario

U-Line

U-Line 2224BEV Manual de usuario

U-Line

U-Line U-3018RFOL-00 Manual de usuario

U-Line

U-Line Wine Captain UHWC518 Manual de instalación

U-Line

U-Line Echelon Wine Captain 2075WC Manual de usuario

U-Line

U-Line 3018WC Manual de usuario

U-Line

U-Line Captain 1000 Series Manual de usuario

U-Line

U-Line 2075DWRWC Wine Captain Manual de usuario

U-Line

U-Line Wine Captain 2275ZWCSSL Manual de usuario

U-Line

U-Line 2115WCOL Manual de usuario

U-Line

U-Line Wine Captain Manual de usuario

U-Line

U-Line 2218WC 18 inch Wine Captain Manual de usuario

U-Line

U-Line Wine Captain 2218WC Manual de usuario

U-Line

U-Line Wine Captain UHWC518 Manual de instalación

U-Line

U-Line Echelon Wine Captain 2075WC Manual del propietario

Manuales populares de Enfriador de vino de otras marcas

Haier

Haier WS50GA Manual de usuario

Cavist

Cavist 62 Manual de usuario

Kenmore

Kenmore 461.99130 Manual de usuario

Miele

Miele KWT 6422 iG Manual de usuario

Danby

Danby DWC113BLSDB Manual de usuario

Caple

Caple Wi6128 Manual de usuario

Avanti

Avanti WC1001 Manual de usuario

Frigidaire

Frigidaire FFWC38F6LS Manual de usuario

Titan

Titan TT-W2454SZ Manual de instalación

Klarstein

Klarstein Botella 166 Uno Manual de usuario

Costway

Costway FP10130WL Manual de usuario

Lemair

Lemair LWC59 Manual de usuario

Haier

Haier JC-125GEA Manual de usuario

Caple

Caple WCi46B Manual de usuario

Climadiff

Climadiff CLI24 Guía rápida

Viking

Viking VCWB301LSS Manual de usuario

Caple

Caple WC6511 Manual de usuario

Vinvautz

Vinvautz VZ08BHK Manual de usuario
