PAGE 1 OF 3 1211 IH-2708
OPERATION
TECHNICAL DATA
WARNING! Operator must read and understand
instructions here and on truck prior to use.
On the handle of the pallet truck, you will find the control
lever, which can be set in three positions.
(See Figure 1)
- LOWER = to lower the forks
- NEUTRAL = to move the load
- RAISE = to raise the forks
1. If the forks elevate while pumping in the NEUTRAL
position, turn the setting screw clockwise until
pumping the handle does not raise the forks and the
NEUTRAL position functions correctly.
2. If the forks descend while pumping in the NEUTRAL
position, turn the setting screw counter-clockwise until
the forks do not lower.
3. If the forks do not descend when the control lever is in
the LOWER position, turn the setting screw clockwise
until raising the control lever lowers the forks. Then
check the NEUTRAL position as per step 1 and 2.
4. If the forks do not lift while pumping in the RAISE
position, turn the setting screw counter-clockwise
until the forks elevate while pumping in the RAISED
position. Then check the NEUTRAL and LOWER position
as per steps 1, 2 and 3.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump above the right wheel. The
truck will lower faster or slower depending on
how far in or out the screw is adjusted.
Figure 1
H-2708, H-2900
H-3045
INDUSTRIAL
PALLET TRUCKS
MODEL H-2708/H-2900/H-3045
Capacity (Lbs) 5,500
Max. Fork Height (In) 7.5
Min. Fork Height (In) 3.0
Fork Length (In) 48
Width Overall Forks (In) 27
Fork Wheel Diameter (In) 3" Polyurethane
Steering Wheel Diameter (In) 7" Polyurethane
Net Weight (Lbs) 186
PAGE 2 OF 3 1211 IH-2708
OIL
Please check the oil level every six months. The oil ca-
pacity is about 0.3L. Restore the fluid level in the rubber
reservoir to 5mm below the top; this must be
done with the forks in the lowered position.
Use the hydraulic oil ISO-VG32 or equivalent.
Oil viscosity should be 30cSt at 104°.
HOW TO EXPEL AIR FROM THE PUMP UNIT
Air may enter the unit over time or when the seals are
replaced. To expel the air, lift the control lever to the
LOWER position and move the handle up and down
several times.
DAILY CHECK AND MAINTENANCE
Daily checks of the pallet truck can limit wear and tear
on the unit. Pay special attention to the wheels, the axles,
the handle, the forks and lift and lower control.
LUBRICATION
Use motor oil or grease to lubricate all moveable parts.
MAINTENANCE
SAFETY
For safe operation of the Hand Pallet Truck, please read
all warning signs and instructions here and on the pallet
truck prior to use.
1. Do not operate the pallet truck unless you are familiar
with it and have been trained and authorized to do so.
2. Do not use the truck on sloping ground.
3. Never place any part of your body in the lifting
mechanism or under the forks or load. Do not carry
passengers.
4. We advise that operators should wear gloves and
safety shoes.
5. Do not handle unstable or loosely stacked loads.
6. Do not overload the truck.

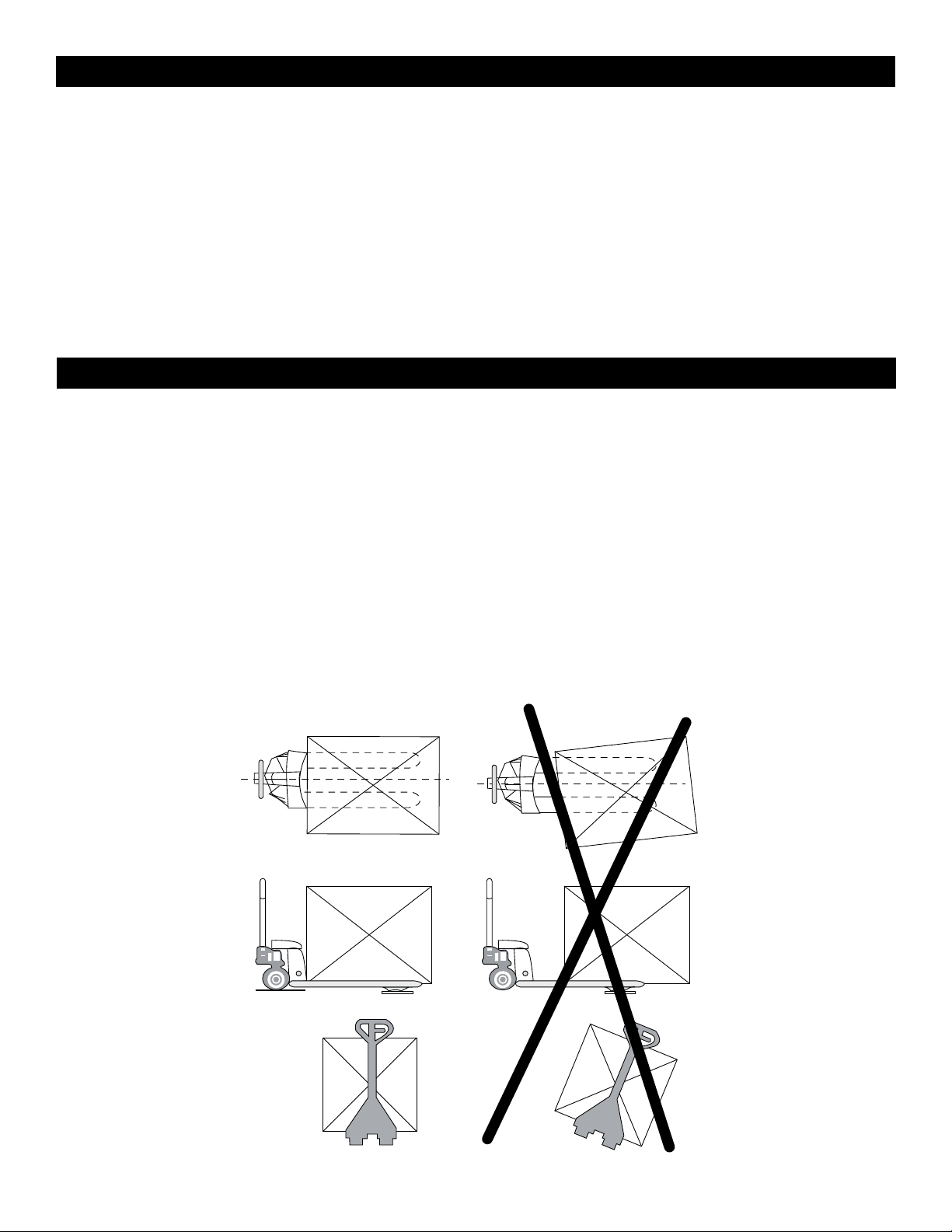

7. Always center loads on the forks, not at the end of the
forks. (See Figure 2)
8. The capacity of the truck assumes an evenly
distributed load with the center of the load being at
the halfway point of the length of the forks.
9. Make sure that length of the forks matches the length
of the pallet load.
10. Lower the forks to lowest height when the truck is not
being used.
Figure 2
A B
PAGE 3 OF 3 1211 IH-2708
OPERATING ISSUE CAUSES RECOMMENDATIONS
The forks do not lift to maximum height. Not enough hydraulic oil. Add more oil.
The forks do not raise. Not enough hydraulic oil.
The oil has impurities.
Discharge valve is out of adjustment.
Air in the hydraulic oil.
Add more oil.
Change the oil.
Adjust the setting screw. (As noted in
Operation)
Expel the air. (As noted in Maintenance)
The forks do not descend. The rod and the cylinder are deformed resulting
from a seriously unbalanced load.
A part has been broken or been deformed resulting
from an unbalanced load.
The setting screw is not in the correct position.
Replace the rod or cylinder.
Repair or replace component.
Adjust the setting screw. (As noted in
Operation)
Leaks Seals worn out or damaged.
Some parts may be cracked or worn out.
Replace seals with new ones.
Check and replace with new ones.
The forks descend without being
lowered.
Impurities in the oil cause the discharge valve to fail
to close.
Air in the oil.
Seals worn or damaged.
Discharge valve is out of adjustment.
Change the oil.
Expel the air. (As noted in Maintenance)
Replace with new ones.
Adjust the setting screw. (As noted in
Operation)
TROUBLESHOOTING
NOTE: Do not attempt to repair the pallet truck unless you are trained and authorized to do so.
