USER GUIDE & SERVICE MANUAL

Model: UCBR592-SG01A

USER GUIDE & SERVICE MANUAL

Table of Contents

Click on any section below to jump directly there

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

General Installation

Grille Installation

Door Swing

Door Adjust

Interior Adjustments

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Airflow and Product Loading

Service

Wine Rack Installation

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Defrost

Remove Fan and Cover

Warranty

USER GUIDE

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and

inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA

height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean

integrated look are what makes our products Built-In to Stand Out®. Since 2014, U-Line has been part of the Middleby family

of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available

worldwide.

U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.®

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty

information are available digitally on u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

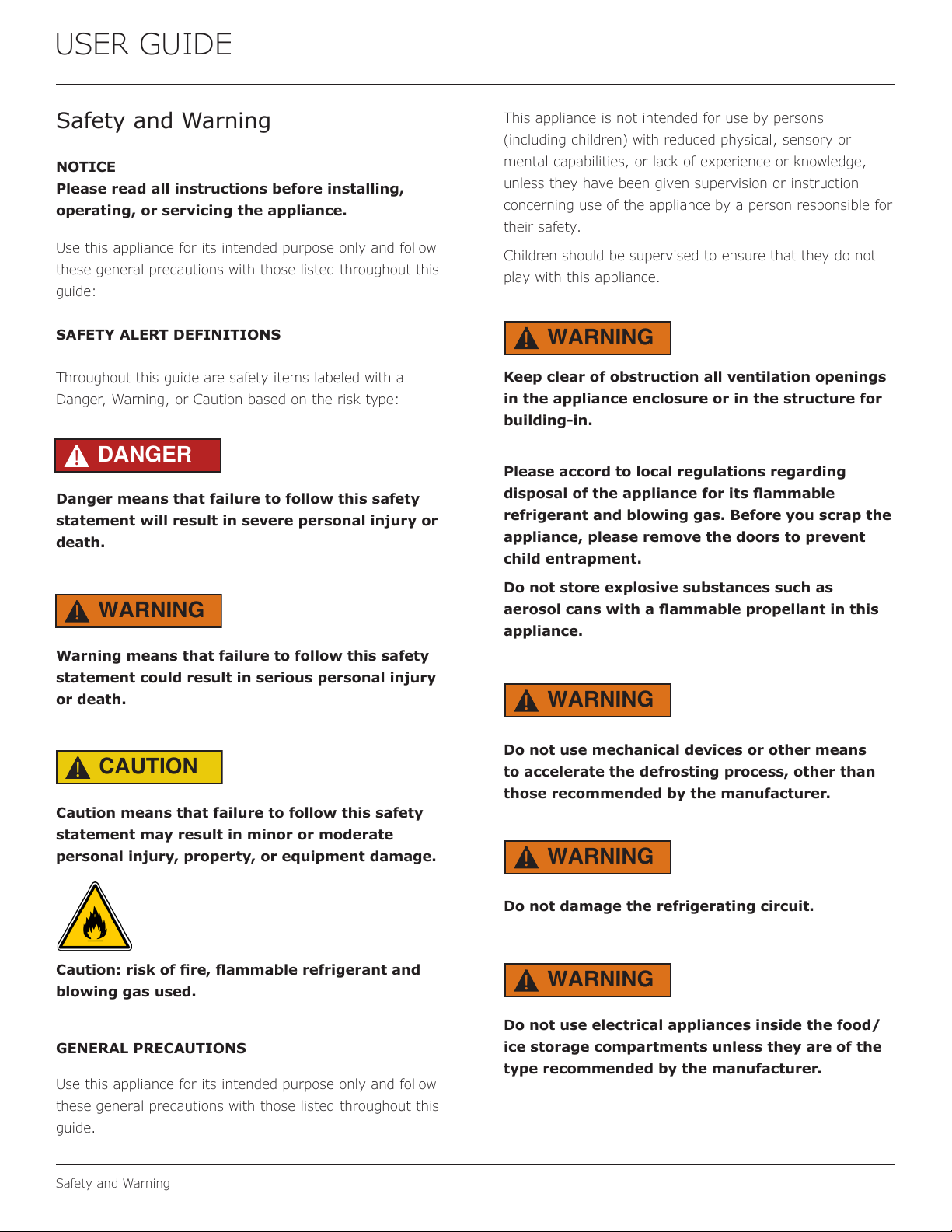

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

Caution: risk of re, ammable refrigerant and

blowing gas used.

GENERAL PRECAUTIONS

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not

play with this appliance.

Keep clear of obstruction all ventilation openings

in the appliance enclosure or in the structure for

building-in.

Please accord to local regulations regarding

disposal of the appliance for its ammable

refrigerant and blowing gas. Before you scrap the

appliance, please remove the doors to prevent

child entrapment.

Do not store explosive substances such as

aerosol cans with a ammable propellant in this

appliance.

Do not use mechanical devices or other means

to accelerate the defrosting process, other than

those recommended by the manufacturer.

Do not damage the refrigerating circuit.

Do not use electrical appliances inside the food/

ice storage compartments unless they are of the

type recommended by the manufacturer.

DANGER

WARNING

CAUTION

USER GUIDE

Safety and Warning

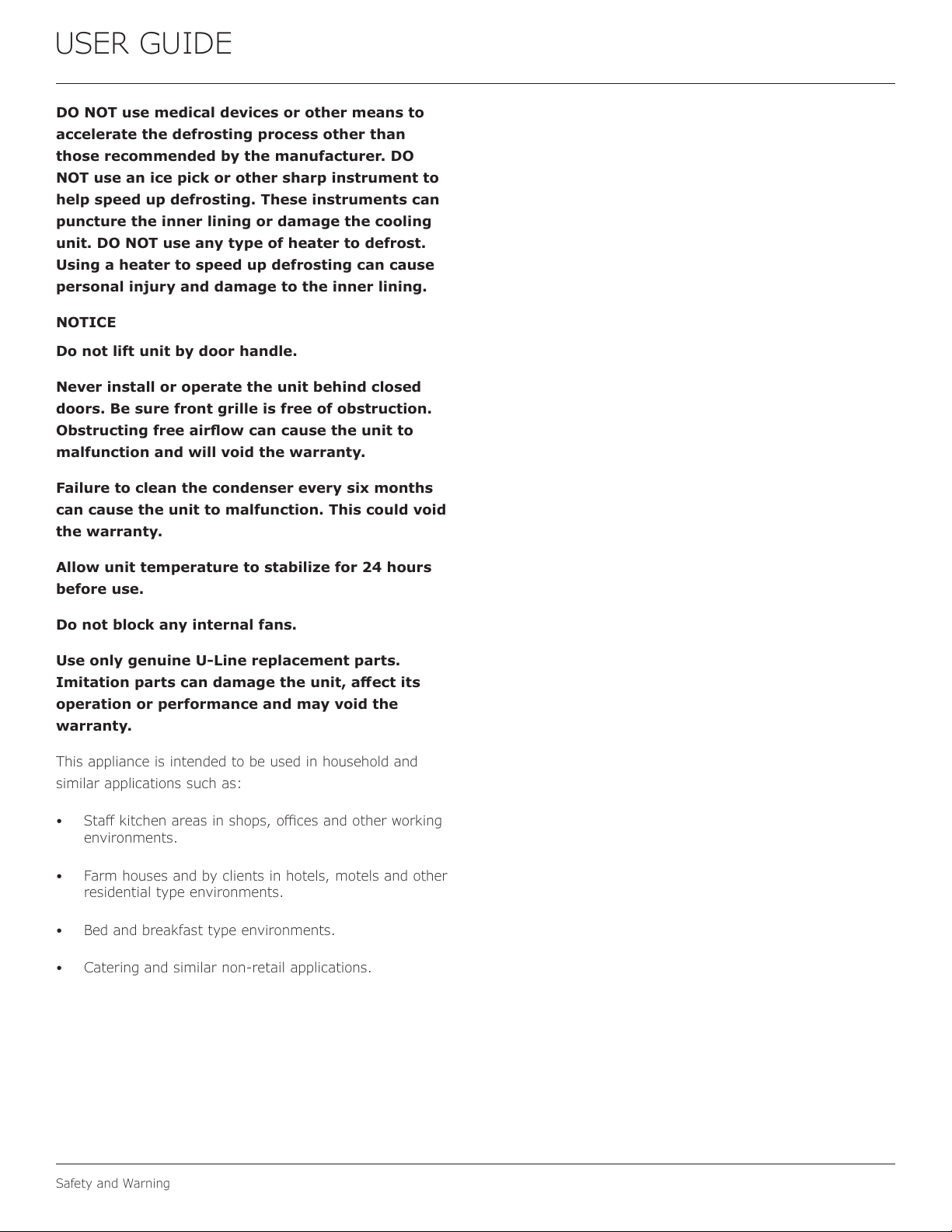

DO NOT use medical devices or other means to

accelerate the defrosting process other than

those recommended by the manufacturer. DO

NOT use an ice pick or other sharp instrument to

help speed up defrosting. These instruments can

puncture the inner lining or damage the cooling

unit. DO NOT use any type of heater to defrost.

Using a heater to speed up defrosting can cause

personal injury and damage to the inner lining.

NOTICE

Do not lift unit by door handle.

Never install or operate the unit behind closed

doors. Be sure front grille is free of obstruction.

Obstructing free airow can cause the unit to

malfunction and will void the warranty.

Failure to clean the condenser every six months

can cause the unit to malfunction. This could void

the warranty.

Allow unit temperature to stabilize for 24 hours

before use.

Do not block any internal fans.

Use only genuine U-Line replacement parts.

Imitation parts can damage the unit, aect its

operation or performance and may void the

warranty.

This appliance is intended to be used in household and

similar applications such as:

• Sta kitchen areas in shops, oces and other working

environments.

• Farm houses and by clients in hotels, motels and other

residential type environments.

• Bed and breakfast type environments.

• Catering and similar non-retail applications.

USER GUIDE

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

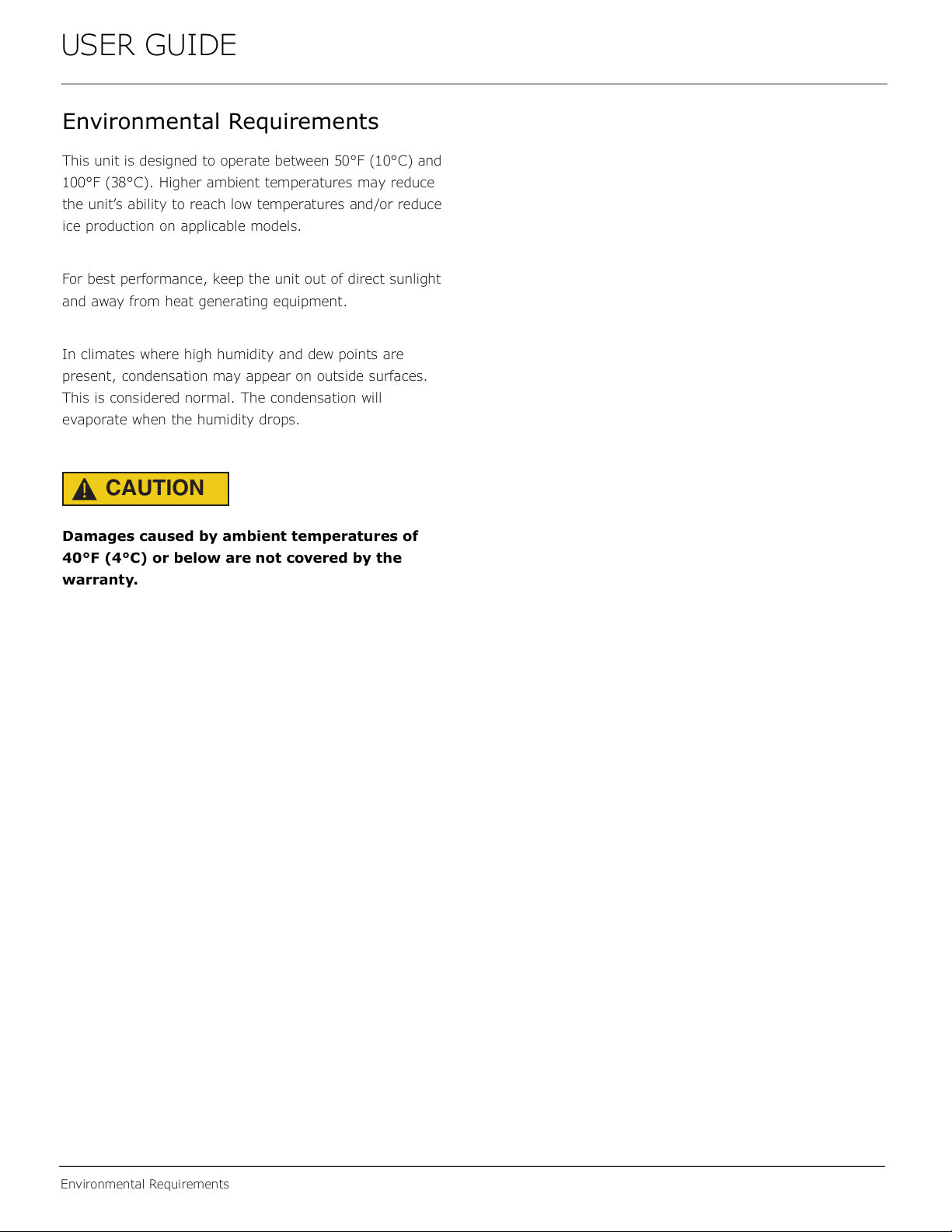

Environmental Requirements

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE

Cutout & Product Dimensions

CUTOUT & PRODUCT DIMENSIONS -

UCBR592/UCBR692

NOTE:

THE HOLE CUTOUTS ON TOP SURFACE APPLY

TO THE UCBR692 ONLY AND ARE CUTOUT

AT THE FACTORY.

FRONT

TOP

SIDE

24 3/4"

(628mm)

92"

(2337mm)

21 7/8"

(556mm)

36 1/4"

(921mm)

12 31/32"

(329mm)

(178mm)

2 3/4"

(70mm)

(25mm)

92"

(2337mm)

19 1/4"

(489mm)

34 9/16"

(878mm)

30 7/16"

(773mm)

28"

(711mm)

24 3/4"

(630mm)

26 19/32"

(676mm)

93"

(2362 mm)**

Preferred location for electrical

outlet is in an adjacent cabinet

on the mechanical side of the unit.

34 7⁄8”

(886 mm)*

25"

(635 mm)

Power cord length is

approx. 71⁄2 feet (2289 mm)

* If Unit has Legs, Add 6” - 6 3⁄4”, if Casters Add 5”

** For Proper Airow, 1” Clearance Required on Mechanical Side

24 3/4"

(629mm)

43 1/4"

(1098mm)

18 1/2"

(469mm)

USER GUIDE

Cutout & Product Dimensions

TAP TOWER KITS

This template is to be used as reference if you want to add

your own tap tower kit.

NOTES

• Dotted box shows safe drill area.

• Dotted holes show reference tap holes in air duct

below lid.

• It is recommended to insulate any tubing inside of

the air duct to avoid freezing.

• Left-hand units are dimensionally opposite left-to-

right.

DRILL AREA

4”

(102mm)

15 3⁄4”

8 5⁄8”

(400mm)

13 5⁄8”

(346mm)

(219mm)

52”

DRILL AREA

4”

(102mm)

15 3⁄4”

8 5⁄8”

(400mm)

13 5⁄8”

(346mm)

(219mm)

72”

DRILL AREA

4”

(102mm)

15 3⁄4”

8 5⁄8”

(400mm)

13 5⁄8”

(346mm)

(219mm)

92”

DRILL AREA

4 1⁄4”

4”

(108mm)

(102mm)

8 5⁄8”

(219mm)

32”

15 3⁄4”

(400mm)

Otros manuales de Refrigerador de U-Line

U-Line

U-Line UHRE524 Manual de instalación

U-Line

U-Line 2175RF Manual de usuario

U-Line

U-Line U-CLR2160B-00 Manual de usuario

U-Line

U-Line Echelon 2015R Manual de usuario

U-Line

U-Line U2218RGLINT00B Manual de instalación

U-Line

U-Line 1 Class UHRE124 Manual de instalación

U-Line

U-Line U-2224R-00B Manual de instalación

U-Line

U-Line Commercial UCBR572-SG01A Manual de instalación

U-Line

U-Line WINE CAPTAIN 2175BEVC Manual de usuario

U-Line

U-Line 1175RS15 Manual de usuario

U-Line

U-Line 2175RSOD Manual de usuario

U-Line

U-Line Combo U-CO29FB-00A Manual de usuario

U-Line

U-Line WINE CAPTAIN 2115R Manual de usuario

U-Line

U-Line 2224RGL Manual de instalación

U-Line

U-Line 3000 SERIES Manual de instalación

U-Line

U-Line 1000 Series CO1224F 24" Combo Manual de usuario

U-Line

U-Line 2115WCO200 Manual de usuario

U-Line

U-Line Wine Captain UHWD524SG01A Manual de instalación

U-Line

U-Line Commercial UCRE518-SG33A Manual de instalación

U-Line

U-Line UHRE524SS01A Manual de instalación

U-Line

U-Line Origins BI-95 Manual

U-Line

U-Line 1224BEV Manual de usuario

U-Line

U-Line 1000 SERIES Manual de instalación

U-Line

U-Line Echelon 2175BEV Manual del propietario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
