U-Line U-BI98B-00A Manual de instalación

USER GUIDE & SERVICE MANUAL

SAFETY •INSTALLATION & INTEGRATION •OPERATING INSTRUCTIONS •MAINTENANCE •SERVICE

ADA Series •BI98 •15" Crescent Ice Maker

RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout Dimensions

Product Dimensions

Water Hookup

General Installation

Integrated Panel Dimensions

Integrated Panel Installation

Grille / Plinth Installation

Door Swing

Door Adjust

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Ice

Airflow and Product Loading

Service

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Defrost

Warranty

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

Safety and Warning 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

USER GUIDE

Disposal and Recycling 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Disposal and Recycling

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

USER GUIDE

Environmental Requirements 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

u-line.com

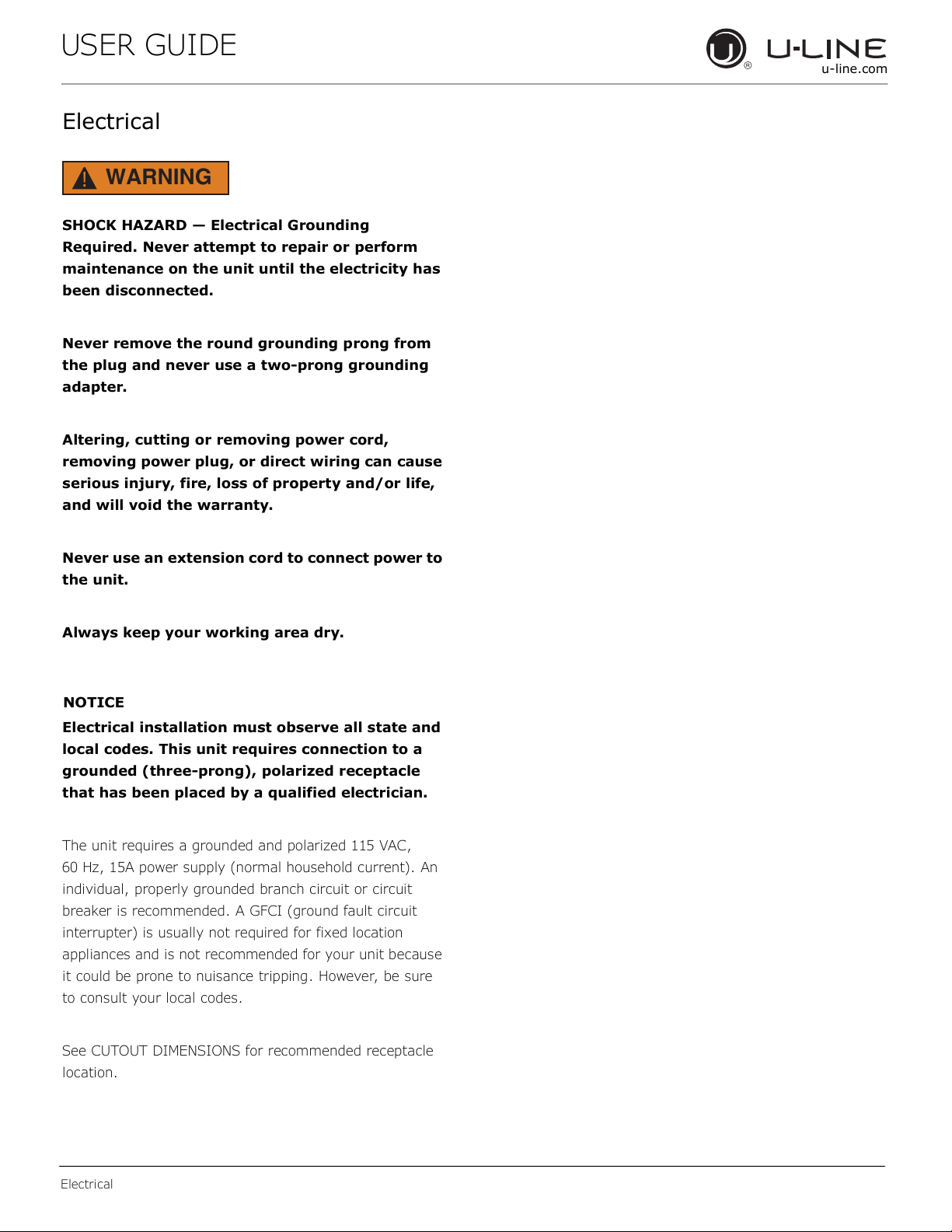

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT DIMENSIONS for recommended receptacle

location.

USER GUIDE

Cutout Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical and water

connection in the rear.

CAUTION

Units can NOT be installed behind a closed

cabinet door.

CUTOUT DIMENSIONS

NOTICE

It is extremely important that this unit sits on a

level surface, as it does not have feet levelers. If

it is not level, the ice mold will not fill evenly.

Typical

Counter

Height

34-1/4"

(870 mm)

35-1/8"

(892 mm)

Cutout

Height

27-3/8"

(695 mm)

Filler Panel (Not Provided by U-Line) –

May Be Added Above or Below Unit

to Enclose for a Built-In Look

15-3/16"

(386 mm)

21-1/2"

(546 mm)

Minimum

See Electrical

6SHFLɟFDWLRQV

for Power Supply

(102 mm)

(178 mm)

Preferred location

for water line and

electrical outlet is

in adjacent cabinet.

5/8"

(16 mm)

USER GUIDE

Product Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Dimensions

27-3/8"

(695 mm)

14-15/16"

(379 mm)

20" (508 mm)*

*Add 1-1/2" For For Water Line Clearance

8-15/16"

(227 mm)

USER GUIDE

Door Swing 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4" (6.35 mm)

compression fitting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes a

10' (3 m) braided flexible water supply line and a brass

hose fitting.

CAUTION

Plumbing installation must observe all state and

local codes. All water and drain connections

MUST BE made by a licensed/qualified plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between 20 and 120 psi

(138 and 827 kPa).

• The water line MUST have a shut-off valve in the

supply line.

• The water line should be looped into 2 coils. This will

allow the unit to be removed for cleaning and servicing.

Make certain that the tubing is not pinched or damaged

during installation.

WARNING

Connect to potable water supply only.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the grille (plinth strip/base fascia) and access

panel (if equipped) along with back panel.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de U-Line

U-Line

U-Line Echelon BI 2015 Manual de usuario

U-Line

U-Line UACP115-SS01A Manual de instalación

U-Line

U-Line U-CLR1215SOD-00B Manual de instalación

U-Line

U-Line 1000 SERIES Manual de usuario

U-Line

U-Line Marine Combo Series Manual de instalación

U-Line

U-Line U-CLR1215SOD-00A Manual de instalación

U-Line

U-Line ADA UACR115 Manual de instalación

U-Line

U-Line UHRI124 Manual de instalación

U-Line

U-Line U-CLR1215B-00B Manual de instalación

U-Line

U-Line UHNPB115 Manual de instalación

U-Line

U-Line UACR015-S01A Manual de instalación

U-Line

U-Line UONP115 Manual de instalación

U-Line

U-Line ECHELON CLR2060 Manual de usuario

U-Line

U-Line Outdoor Series Manual de instalación

U-Line

U-Line U-CLR1215W-40B Manual de instalación

U-Line

U-Line U-BI1215B-00A Manual de usuario

U-Line

U-Line UOCP115-SS01B Manual de instalación

U-Line

U-Line UONP115SS01B Manual de instalación

U-Line

U-Line Marine Series WH95FC Manual de usuario

U-Line

U-Line BCM-95 Manual de usuario

U-Line

U-Line CLR2160 Manual de usuario

U-Line

U-Line ADA 1000 Series Manual de usuario

U-Line

U-Line UHNP315-IS02A Manual de instalación

U-Line

U-Line 1200 series Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario

Electrolux

Electrolux E15IM60GP Manual de usuario

Cornelius

Cornelius UC150 ICE ONLY Manual de usuario
