U-Line UHCL115 Manual de instalación

USER GUIDE & SERVICE MANUAL

1 Class ●UHCL115 ●15” Clear Ice Machine

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Water Hookup

Drain

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Ice

Airflow and Product Loading

Service

Troubleshooting

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Defrost

Warranty

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE u-line.com

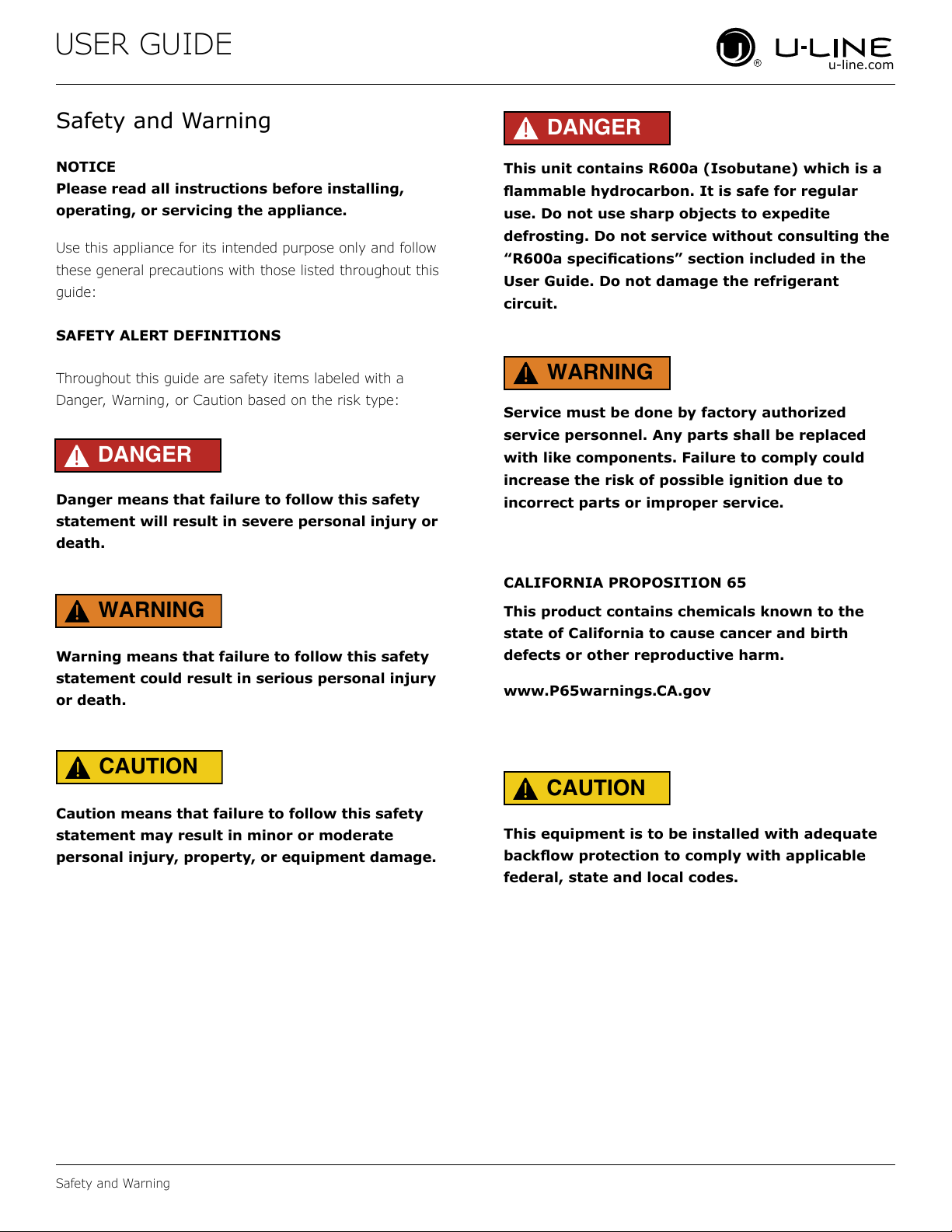

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE u-line.com

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

Environmental Requirements

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE

Cutout & Product Dimensions

u-line.com

4”

(102 mm)

”

(38 mm)

⁄

”

(73 mm)

4”

(102 mm)

Drain

Power Cord

Water Line

”

(102 mm)

8”

(203 mm)

6 ft (183 cm)

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed

cabinet door.

If you would like to align the face of the unit

with other adjacent cabinet doors, you may need

to alter the wall just behind the drain connection

on the unit to accommodate the drain.

CUTOUT DIMENSIONS

*15” cutout width sufficient if door protrudes beyond

adjacent cabinetry

PRODUCT DIMENSIONS

REAR

1 ΍ȟȭ" (38 mm)

(178 mm)

15 ΍ȟȯ"

(387 mm)

34 ΍ȟȯ"

(870 mm)

35 ΍ȟȯ"

(889 mm)

Preferred location

for electrical outlet

is in an adjacent

cabinet.

24"

(610 mm)

ΑȟΞ"

(16 mm)

14 ⁄”

(379 mm)

3 ⁄”

(91 mm)

28”

(711 mm) 34 ⁄” to 35 ⁄”

(867 mm to

892 mm)

1 ⁄”

(48 mm)

11 ⁄”

(291 mm)

15 ½”

(394 mm)

20 ⁄”

(525 mm)

TOP

FRONT

SIDE

12 ⁄”

(306 mm)

22 ¼”

(562 mm)

24 ⁄”

(613 mm)

1“ (25 mm)

USER GUIDE

Side-by-Side Installation

u-line.com

Side-by-Side Installation

Two units may be installed side-by-side.

Cutout width for a side-by-side installation is the cutout

dimension of a single unit times two.

No trim kit is required. However, 1/4" (6 mm) of space

needs to be maintained between the units to ensure

unobstructed door swing.

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Side-by-Side Installation with Bracket

1. Slide both units out so screws on top of units are easily

accessible.

2. Remove screws as shown below.

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push units into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

USER GUIDE

Water Hookup

u-line.com

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)

compression fitting.

U-Line recommends using accessory water hookup kit -

Part # ULAWATERHOOKUP. The kit includes a 10’ (3 m)

braided flexible water supply line and a brass hose

fitting.

WARNING

Prior to installation, determine if this product

contains a gravity style drain or factory installed

drain pump. Products without a drain pump may

only use a gravity style drain. Failure to connect

water supply or drain line connections properly

may result in water leakage, personal injury,

and/or property damage. Disconnect power and

turn off water to the unit before attempting to

alter these connections. These connections are

the responsibility of the owner and must be

connected per local plumbing code. If you are

uncertain of how to safely and properly install

this product, contact a licensed plumber.

Water Supply Connection

WARNING

Connect to potable water supply only.

CAUTION

Review, obey, and understand the local

plumbing codes before you install your unit.

Connect to the cold water supply. The water

pressure should be between 20 and 120 psi (138

and 827 kPa). The water line MUST have a shut-

off valve on the supply line.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the grille/access panel in the front and the

back panel.

Tabla de contenidos

Otros manuales de Máquina de hielo de U-Line

U-Line

U-Line Marine Combo Series Manual de instalación

U-Line

U-Line UHNPB115 Manual de instalación

U-Line

U-Line UONP115-SS01A Manual de instalación

U-Line

U-Line UOCR115-SS01A Manual de instalación

U-Line

U-Line SS1095 Manual de usuario

U-Line

U-Line U-CLR1215SOD-00A Manual de instalación

U-Line

U-Line BI95FCB Manual de usuario

U-Line

U-Line UACR014-SS01A Manual de instalación

U-Line

U-Line Modular 3045CLR Manual de usuario

U-Line

U-Line 1000 SERIES Manual de usuario

U-Line

U-Line UACP115-SS01A Manual de instalación

U-Line

U-Line Modular 3000 Series Manual de usuario

U-Line

U-Line SP Manual de usuario

U-Line

U-Line 95 Icemaker Instrucciones de construcción

U-Line

U-Line UHCL115IS01A Manual de instalación

U-Line

U-Line UHRI124-SS01A Manual de instalación

U-Line

U-Line UOCR115-SS01B Manual de instalación

U-Line

U-Line UHNB315 Manual de instalación

U-Line

U-Line UMCR014-WC02A Manual de instalación

U-Line

U-Line UACR015-S01A Manual de instalación

U-Line

U-Line UOCP115-SS01B Manual de instalación

U-Line

U-Line UMCR014-BC01A Manual de instalación

U-Line

U-Line UMCR014-SD01A Manual de instalación

U-Line

U-Line ADA Height Compliant Series Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario

Electrolux

Electrolux E15IM60GP Manual de usuario

Cornelius

Cornelius UC150 ICE ONLY Manual de usuario
