Tyco Fire Product Star E Manual de usuario

Std. Response - Std. Coverage

400°F and 520°F

Upright and Pendent Sprinklers

Model E, K=5.6, 1/2" NPT

GENERAL DESCRIPTION

The Star Model E, 5.6 K-Factor, Upright and Pendent

Sprinklers are standard response - standard coverage,

solder type spray sprinklers designed for use in occupan-

cies where the ambient temperature necessitates the use

of extra high or very extra high temperature rated sprin-

klers.

Lead coatings are utilized to extend the life of copper al-

loy sprinklers beyond that which would otherwise be ob-

tained when exposed to corrosive atmospheres. Although

lead coated sprinklers have passed the standard corro-

sion tests of the applicable approval agencies, the testing

is not representative of all possible corrosive atmos-

pheres. Consequently, it is recommended that the end

user be consulted with respect to the suitability of these

corrosion resistant coatings for any given corrosive envi-

ronment. The effects of ambient temperature, concentra-

tion of chemicals, and gas/chemical velocity, should be

considered, as a minimum, along with the corrosive na-

ture of the chemical to which the sprinklers will be ex-

posed.

WARNINGS

The Model E Sprinklers described herein must be in-

stalled and maintained in compliance with this document,

as well as with the applicable standards of the National

Fire Protection Association, in addition to the standards

of any other authorities having jurisdiction. Failure to do

so may impair the integrity of these devices.

The owner is responsible for maintaining their fire protec-

tion system and devices in proper operating condition.

The installing contractor or sprinkler manufacturer should

be contacted relative to any questions.

OPERATION

A bronze tube sealed by a steel ball holds a fusible alloy.

The tube is compression loaded and via the tension

mechanism, the cap seals the sprinkler orifice. When the

rated temperature is reached, the alloy melts, the ball is

forced inward, and the tension mechanism releases the

cap, which then allows the sprinkler to activate and flow

water.

TECHNICAL DATA

Approvals

UL and ULC Listed. FM, LPC, NYC Approved.

(Refer to Table A. The approvals apply only to the service

conditions indicated in the Design Criteria section.)

Maximum Working Pressure

175 psi (12,1 bar)

Pipe Thread Connection

1/2 inch NPT

Discharge Coefficient

K=5.6GPM/psi

1/2 (80,7 LPM/bar1/2)

Temperature Ratings

400°F/204°C or 520°F/271°C

(Refer to Table A)

Finishes

Chrome Plated, Natural Brass, Lead Coated,

(Refer to Table A)

Physical Characteristics (Ref. Figure 1)

The Model E utilizes a dezincification resistant (DZR)

bronze frame with a brass deflector. The waterway is

sealed with copper gasket. The fusible assembly is con-

structed of bronze and stainless steel components.

DESIGN CRITERIA

The 5.6 K-Factor, Model E Upright and Pendent Sprin-

klers are intended for fire protection systems designed in

accordance with the standard installation rules recog-

nized by the applicable Listing or Approval agency (e.g.,

UL Listing is based on NFPA 13 requirements). Installa-

tion of Model E Sprinklers in recessed escutcheons will

void all sprinkler warranties, as well as possibly void the

sprinkler’s Approvals and/or Listings.

SIN S5001

Upright

SIN S5000

Pendent

Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010

Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500 3-01

1-1.2.81

TYCO FIRE PRODUCTS

OBSOLETE

INSTALLATION

The 5.6 K-Factor, Model E Sprinklers must be installed in

accordance with the following instructions:

NOTES

A leak tight 1/2 inch NPT sprinkler joint should be ob-

tained with a torque of 7 to 14 ft.lbs. (9,5 to 19,0 Nm). A

maximum of 21 ft. lbs. (28,5 Nm) of torque may be used

to install sprinklers with 1/2 NPT connections. Higher lev-

els of torque may distort the sprinkler inlet with conse-

quent leakage or impairment of the sprinkler.

The Model E Pendent and Upright Sprinklers must be in-

stalled in accordance with the following instructions.

1. Pendent sprinklers are to be installed in the pendent

position, and upright sprinklers are to be installed in the

upright position.

2. With pipe thread sealant applied to the pipe threads, hand

tighten the sprinkler into the sprinkler fitting.

3. Tighten the sprinkler into the sprinkler fitting using only the

Model E Sprinkler Wrench (Ref. Figure 2). With reference

to Figure 1, the Model E Sprinkler Wrench is to be applied

to the sprinkler wrench flat area.

CARE AND MAINTENANCE

Model E Sprinklers must be maintained and serviced in

accordance with the following instructions:

NOTE

Before closing a fire protection system main control valve

for maintenance work on the fire protection system which

it controls, permission to shut down the affected fire pro-

tection systems must be obtained from the proper authori-

ties and all personnel who may be affected by this action

must be notified.

Sprinklers which are found to be leaking or exhibiting vis-

ible signs of corrosion must be replaced.

Automatic sprinklers must never be shipped or stored

where their temperature will exceed 100°F/38°C and they

must never be painted, plated, coated, or otherwise al-

tered after leaving the factory.

Care must be exercised to avoid damage to the sprinklers

— before, during, and after installation. Sprinklers dam-

aged by dropping, striking, wrench twist/slippage or the

like, must be replaced.

Frequent visual inspections are recommended to be in-

itially performed for lead coated sprinklers, after the instal-

lation has been completed, to verify the integrity of the

lead coating. Thereafter, annual inspections per NFPA 25

should suffice; however, instead of inspecting from the

floor level, a random sampling of close-up visual inspec-

tions should be made, so as to better determine the exact

sprinkler condition and the long term integrity of the lead

coating, as it may be affected by the corrosive conditions

present.

The owner is responsible for the inspection, testing, and

maintenance of their fire protection system and devices in

compliance with this document, as well as with the appli-

cable standards of the National Fire Protection Associa-

tion (e.g., NFPA 25), in addition to the standards of any

other authorities having jurisdiction. The installing contrac-

tor or sprinkler manufacturer should be contacted relative

to any questions.

It is recommended that automatic sprinkler systems be in-

spected, tested, and maintained by a qualified Inspection

Service.

STAR SPRINKLER

Page 2 1-1.2.81

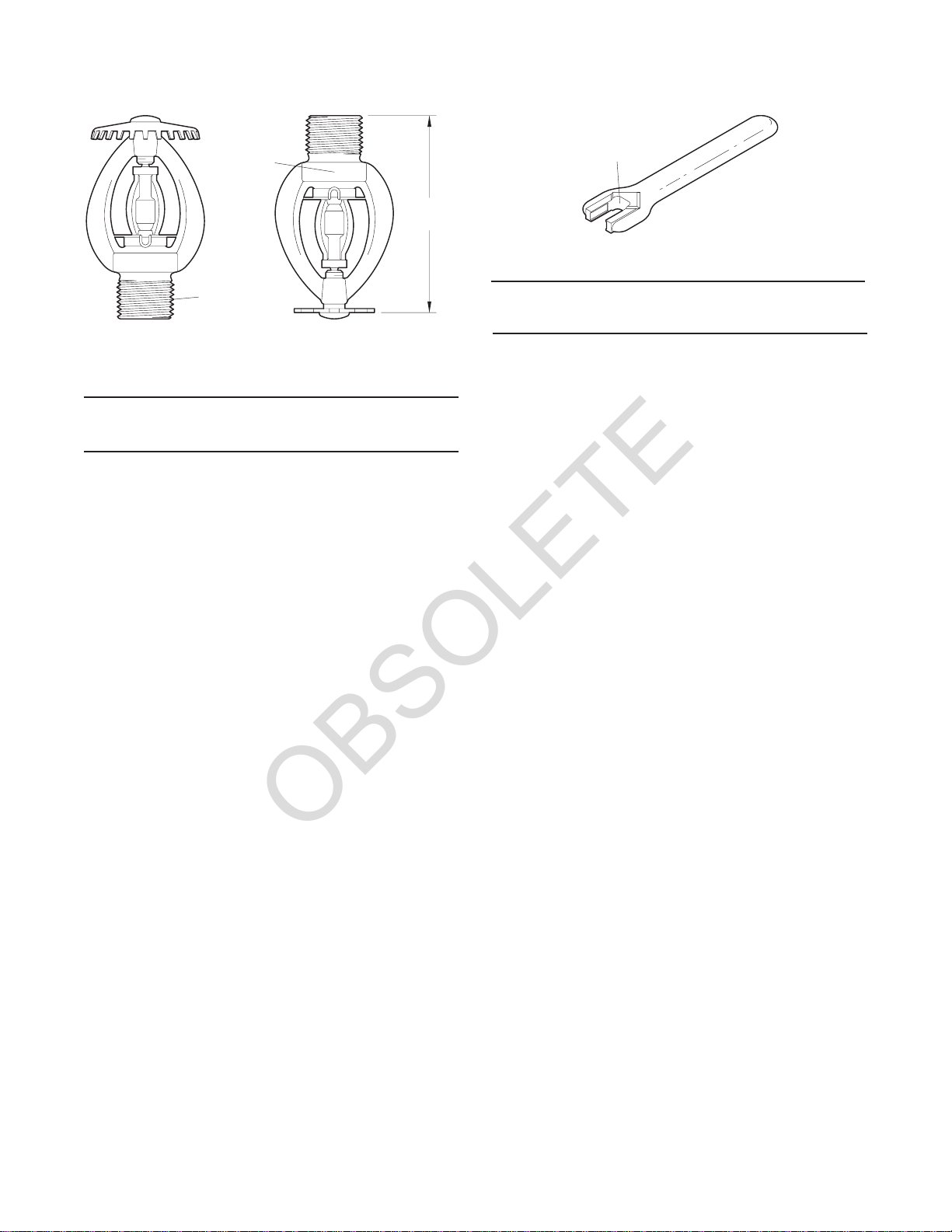

FIGURE 1

5.6 K-FACTOR, MODEL E

STANDARD RESPONSE

PENDENT AND UPRIGHT SPRINKLERS

1/2" NPT

(73.0 mm)

2-7/8"

7/16" (11.1 mm)

NOMINAL

WRENCH

FLATS

FIGURE 2

MODEL E (#5207) SPRINKLER WRENCH

RECESS

WRENCH

OBSOLETE

LIMITED WARRANTY

Products manufactured by Tyco Fire Products are war-

ranted solely to the original Buyer for ten (10) years

against defects in material and workmanship when paid

for and properly installed and maintained under normal

use and service. This warranty will expire ten (10) years

from date of shipment by Tyco Fire Products. No warranty

is given for products or components manufactured by

companies not affiliated by ownership with Tyco Fire Prod-

ucts or for products and components which have been

subject to misuse, improper installation, corrosion, or

which have not been installed, maintained, modified or re-

paired in accordance with applicable Standards of the Na-

tional Fire Protection Association, and/or the standards of

any other Authorities Having Jurisdiction. Materials found

by Tyco Fire Products to be defective shall be either re-

paired or replaced, at Tyco Fire Products’ sole option.

Tyco Fire Products neither assumes, nor authorizes any

person to assume for it, any other obligation in connec-

tion with the sale of products or parts of products. Tyco

Fire Products shall not be responsible for sprinkler sys-

tem design errors or inaccurate or incomplete information

supplied by Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE PRODUCTS BE LI-

ABLE, IN CONTRACT, TORT, STRICT LIABILITY OR UN-

DER ANY OTHER LEGAL THEORY, FOR INCIDENTAL,

INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES,

INCLUDING BUT NOT LIMITED TO LABOR CHARGES,

REGARDLESS OF WHETHER TYCO FIRE PRODUCTS

WAS INFORMED ABOUT THE POSSIBILITY OF SUCH

DAMAGES, AND IN NO EVENT SHALL TYCO FIRE

PRODUCTS’ LIABILITY EXCEED AN AMOUNT EQUAL

TO THE SALES PRICE.

THE FOREGOING WARRANTY IS MADE IN LIEU OF

ANY AND ALL OTHER WARRANTIES EXPRESS OR IM-

PLIED, INCLUDING WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE.

ORDERING PROCEDURE

Please Specify:

5.6 K-Factor, Model E

Standard Response Upright Sprinkler (#5001)

5.6 K-Factor, Model E

Standard Response Pendent Sprinkler (#5000)

Model E Sprinkler Wrench (#5207)

Refer to Price List for for complete listing of Part Num-

bers with respect to temperature ratings, sprinkler fin-

ishes, recessed escutcheon finishes, etc.

STAR SPRINKLER

1-1.2.81 Page 3

SPRINKLER FINISH

Temperature

Rating

Frame

Color Code

Natural

Brass

Chrome

Plated

400°F/204°C

520°F/271°C Orange

Orange

Pendent (S5000)

1, 2, 3, 4

Notes:

1. Listed by Underwriters Laboratories, Inc.

2. Listed by Underwriters’ Laboratories of Canada.

3. Approved by Factory Mutual Research Corporation.

4. Approved by the City of New York under MEA 395-91-M.

TABLE A

LABORATORY LISTINGS AND APPROVALS

Lead

Coated

Upright (S5001)

Natural

Brass

Chrome

Plated

Lead

Coated

OBSOLETE

STAR SPRINKLER

Page 4 1-1.2.81

7071 S. 13th Street • Suite 103

Oak Creek, WI 53154

www.starsprinkler.com

PRINTED IN U.S.A. 3-01

OBSOLETE

Otros manuales de Sistema de riego de Tyco Fire Product

Tyco Fire Product

Tyco Fire Product Star Stealth S240 Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL K17-231 Manual de usuario

Tyco Fire Product

Tyco Fire Product TY300-FRB Manual de usuario

Tyco Fire Product

Tyco Fire Product RAPID RESPONSE LFII Series Manual de usuario

Tyco Fire Product

Tyco Fire Product Star Galaxy SG-RES Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL ELO SW-20 Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL BV Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem F892QR Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem F892X Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL ELOC Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem TFP1 Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem F898 Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL EC-25 Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem DS-1 Series Manual de usuario

Tyco Fire Product

Tyco Fire Product Star Celeste S140 Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12 PRO Prohibitor Manual de usuario

Tyco Fire Product

Tyco Fire Product Star SG-R Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL TY-B Manual de usuario

Tyco Fire Product

Tyco Fire Product Star Luminous S170 Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-GB QR Dry Pendent Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL BV-EC Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-16 GB FR Manual de usuario

Tyco Fire Product

Tyco Fire Product Star StarMax S102 Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem ISSUE D QUARTZOID Manual de usuario

Manuales populares de Sistema de riego de otras marcas

Hunter

Hunter Institutional Series Manual de usuario

Cellfast

Cellfast 52-305 Manual de usuario

Oral Care Technologies

Oral Care Technologies Hydro Floss Manual de usuario

Reliable

Reliable F1-300 Manual de usuario

Netafim

Netafim NETBEAT Manual de usuario

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manual de usuario

Tyco

Tyco CC3 Manual de usuario

Reliable

Reliable F4FR Manual de usuario

OpenSprinkler

OpenSprinkler OSPi Manual de usuario

EINHELL

EINHELL GE-WW 5537 E Manual de usuario

Valley

Valley Bender160 Manual de usuario

Reliable

Reliable F1FR42 Series Manual de usuario

Reliable

Reliable F1FR-300 Manual de usuario

Toro

Toro 730 Series Guía rápida

Eden

Eden 97063-EDAMZ Manual de usuario

Tyco

Tyco TY-L Series Manual de usuario

Johnson Controls

Johnson Controls tyco ESFR-17 Manual de usuario

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manual de usuario
