TV One CORIOview MWP Series Manual de usuario

Firmware versionM409and above

QSG-MWP-V1.20

Feb 2020

CORIOview™ Multi-window Processor

Classic mode

Dynamic mode

CORIOgrapher™V2.9 and above

Quick Start Guide V1.20

In this guide

Quick start 2

About your CORIOview™ 11

About the buttons of your CORIOview™ 12

Using the buttons of the front panel in dynamic mode 12

Using the buttons of the front panel in classic mode 16

Hardware recommendations 18

About CORIOgrapher™ 19

CORIOgrapher™ system requirements 19

Start a simple meeting 22

QSG-MWP-V1.20 1

Get more help

You can read more online. To open the online help, select in CORIOgrapher,

or visit help.tvone.com/products/mwp-series/corioview.

Thanks for buying this CORIOview multi-window processor. CORIOview

works with CORIOgrapher software to support your needs with an easy-to-

use interface and front panel buttons.

CORIOview now runs in two modes. This Quick Start Guide covers setting

up your CORIOview in either mode.

About modes:

nClassic mode

Classic mode gives you more control over features like audio,

transitions, borders, and rotating your output. You can more fully

customize your layout, choose your output resolution, and even rotate

your displays into portrait mode. Use classic mode for more

sophisticated activities, such as broadcast management and medical

applications.

If you’ve had a CORIOview for a while running a firmware version below

409, you’re already using classic mode.

nDynamic mode

Dynamic mode automates more of the features of your CORIOview. It

has a simplified interface, automatic layouts, and is easier to use, even

if you’re not very experienced. As a result, dynamic mode is better for

activities like running meetings and lectures, and security monitoring.

2 tvONE

Quick start

This Quick Start Guide gives you an overview of the steps involved in

setting up your CORIOview™ hardware and CORIOgrapher™ software.

It's easy to get started with your CORIOview, but if you want more help with any

of these steps, or with using the features of CORIOgrapher, select in

CORIOgrapher and search, or ask a question. Or visit

help.tvone.com/products/mwp-series/corioview.

1. Install your hardware.

a. Connect your display or displays to your output module.

Connect a source to each port of your input modules. If you intend

to use classic mode, we recommend you label your cables 1 up to 8.

If you intend to use dynamic mode, we recommend you label your

cables A up to H, from left to right.

Connect the LAN port of the CPU module to your network.

Video tearing

Using a mixture of frame rates and/or resolutions can cause video

tearing. For best results, make sure your display and sources use the

same frame rate.

b. OPTIONAL: Connect a digital audio device to the S/PDIF audio

output.

c. Power on your CORIOview.

2. Check your display looks correct for each source.

QSG-MWP-V1.20 3

Press PRESET, and then select the highest number button that is lit. For

example, if buttons 1-4 are dimly lit, press button 4.

Make sure your sources are playing, check that each picture looks

correct.

Not the source you were

expecting

Blue screen

Display keeps dropping signal

No image

Possible causes:

nSource connected incorrectly

nInput ports named incorrectly

nSource not playing

nSource resolution not

supported

nDisplay does not support HDCP

nSource does not support the

required number of HDCP keys

nPoor quality or damaged cables

Sources and display connected

correctly

3. Optional: test the audio from each source.

a. Press AUDIO, then press button 1 and check you can hear your

source.

b. If you can hear your source, repeat this step for buttons 2-8.

c. If you can't hear your source, check it's not muted, at the source

device or in CORIOgrapher.

4 tvONE

Read more about controlling audio with CORIOgrapher in tvONE Help. In

CORIOgrapher, select and search, or ask a question.

4. Install CORIOdiscover and CORIOgrapher.

Download the latest version of CORIOdiscover and CORIOgrapher from

tvone.com/tech-support/software.

5. Open CORIOgrapher and select your CORIOview.

Enter your username and password to log in, and select Read to load

your configuration.

nThe first time you log in, make sure the Secure option is cleared.

nThe default username is admin, and the default password is

adminpw.

QSG-MWP-V1.20 5

If you aren't connected to a CORIOview, you can create an offline

configuration for your device.

The media player of the Streaming media and 4K playback input module is

not available when you work in an offline configuration.

6. Choose your operating mode.

You can use your CORIOview in two modes. Classic mode gives you

more control. Dynamic mode has a simplified interface, and some

functions are automated. Classic mode is better for more sophisticated

activities like broadcast management and medical applications, dynamic

mode is better for running meetings and lectures, and for security

monitoring.

You can change the operating mode later.

Read about changing your operating mode in tvONE Help.

If you selected classic mode, continue on page 6.

If you selected dynamic mode, continue on page 8.

6 tvONE

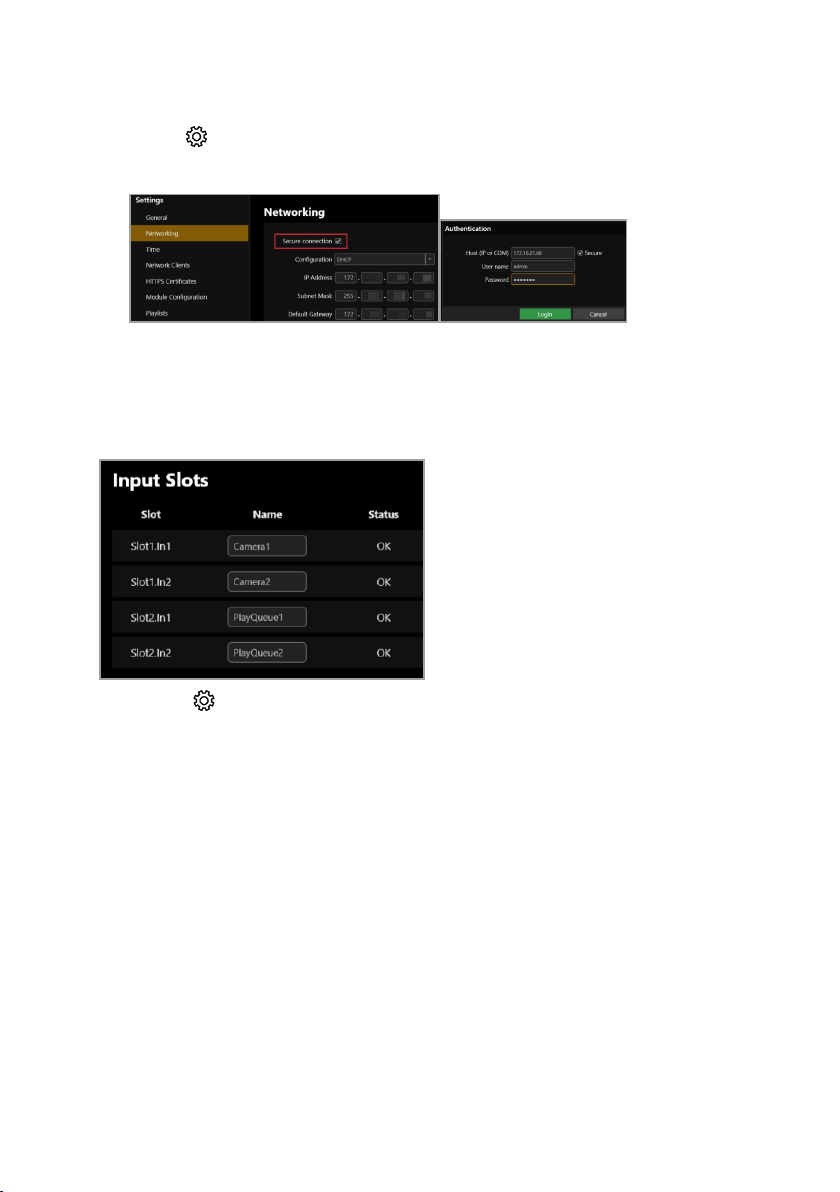

If you selected classic mode

1. Optional: enable secure mode.

a. Select > Networking.

b. Select Secure connection.

c. Select Save >Save.

CORIOview restarts.

d. Select Secure and log in.

2. Optional, but recommended: name your input and output ports.

nSelect > Slot Status. Give each port a name that describes the

device connected to it.

3. Optional: If you want to use more than one display, enable output

cloning.

QSG-MWP-V1.20 7

a. From Dashboard, select .

b. From Properties< (Clone Output) select On.

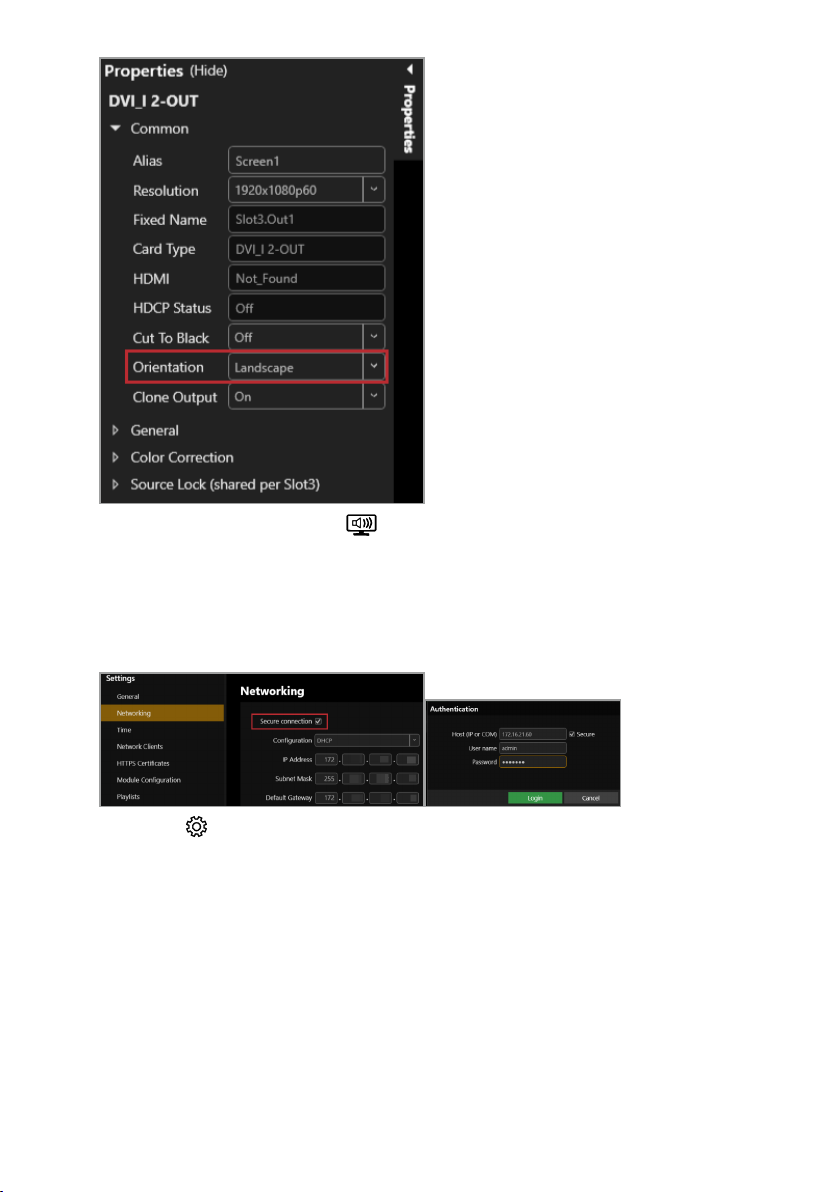

4. Optional: If you want your displays in portrait orientation, enable

output rotation.

8 tvONE

a. From Dashboard, select .

b. Select an option from Properties >Orientation.

If you selected dynamic mode

1. Optional: enable secure mode.

a. Select > Networking.

b. Select Secure connection.

c. Select Save >Save.

CORIOview restarts.

d. Select Secure and log in.

2. Optional: If you want to use more than one display, enable output

cloning.
