TS-market Edic-mini Tiny 16 Manual de usuario
Short Operating Instruction
for Digital Recorder Edic-mini Tiny 16
Witness
Overlook
The recorder Witness provides constant
monitoring of service quality. The device produced
with a «badge» xture to be attached to the clothing
with a magnetic clip. There is the option to apply
information about the company (name, logo, etc.)
on the front panel of the recorder. The recorded
information can be downloaded to the PC via USB
port and stored using the «RecManager» program.
The «SoundProcessor» program is designed to
process records and to facilitate the conversion of
records to text. Programs operate under Windows
XP (SP2, SP3), Vista, 7.
2
Manufactured in two models that differ
in dimensions, weight and availability of pockets.

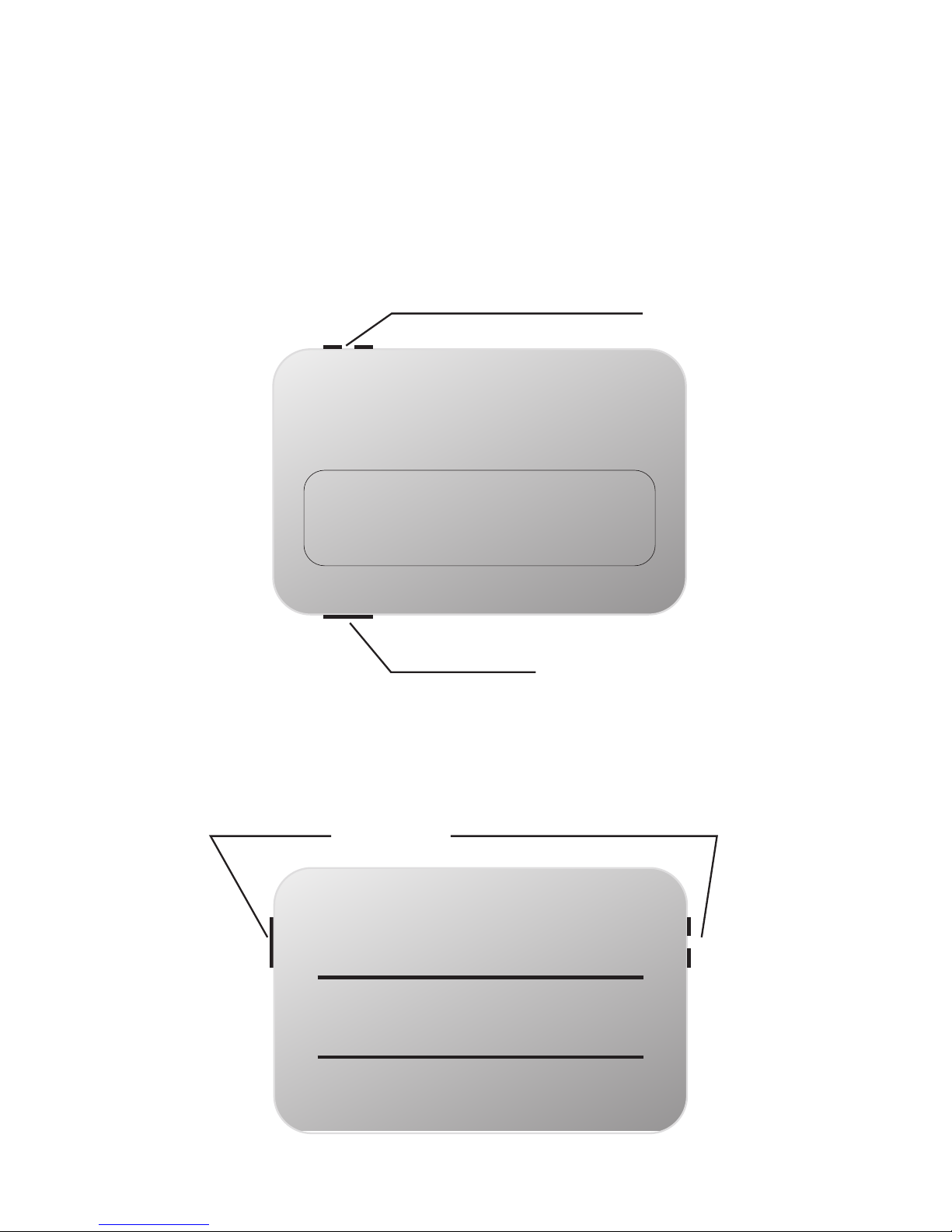

USB port
USB port
Control button and LED
Control button and LED
Model 1, dimensions 7×60×90 mm, weight 25g
Model 2, dimensions 7×40×60 mm, weight 18g
“Witness” audio recorder
Distribution of miniature
digital voice recorders
Ivan Ivanov
marketing manager
TS-Market Company
“Witness” audio recorder
Miniature digital audio recorders
TS-Market Ltd.
3
Main technical characteristics
•Power supply: rechargeable battery charged
via USB port of the PC or any charger with
USB connector.
•Autonomy operation: up to 40 hours
•Record time:
- up to 300 hours with compression;
- up to 75 hours without compression.
•Acoustic sensitivity up to 10-12m (preset
value up to 8m)
•Built-in Automatic Gain Control (AGC)
and Voice Activation System (VAS)
•Control - one button, record indication - LED
•Built-in clock, calendar, timers
•Records made are attached to the time
and date
•Password protection of records
•Interface with the PC: USB
•Built-in markers to provide reliability of
records
•Built-in VAS and AGC system
•Warranty period: 1year, operation life: 5 years.
The manufacturer reserves the right to refuse in
repair after the expiration of recorder operation
life.
4
Operating the Recorder
Record Start
To start or stop recording keep the Record button
pressed for about 2 seconds until the LED ashes
ve times and starts recording. When the recording
stops the LED ashes once. While recording
the LED ashes from time to time, the number of
ashes indicating battery charge and free memory
capacity. The internal memory of the recorder
is sufcient to cover 99% of the applications, so
to achieve best recording quality and more solid
reliability it is recommended to use default settings:
record mode without compression, sampling rate
20 kHz, VAS and AGC off. All the necessary post-
processing of records (AGC, VAS) can be fullled
using the «SoundProcessor» program.
Record Playback
Connect USB cable to the Recorder, then to the
USB port of the PC. The system recognizes a new
storage device. Launch «RecManager.exe» from it.
The content of the Recorder is on the left side of the
window. Select the recording, right-click and select
“Copy to PC”. The recording will be converted to
WAV and appears at the right side of the window. To
5
play back the recording left-click it twice.
Battery charging
Simply connect the recorder to the USB of the
PC or any charger via cable. During charging, the
LED ashes with the interval of 5 seconds, after
its completion - frequently. Charging takes about
2.5 hour.
Reset
In case of inappropriate operation of the
recorder use sharp object (a match, etc.) to press
the reset button located on the back of the recorder.
Update. New versions of software, rmware,
documentation for the recorder are available for
free on our site www.ts-market.com
Important! In order to avoid deep discharge and
related damage of the rechargeable battery the
recorder must be charged at least once a month.
The failure of the battery due to its deep discharge
is a violation of the rules of operation.
Please note! Magnetic clip can affect the
operation of pacemaker. If you are using a
pacemaker, consult your doctor before using
6
the clip together with your pacemaker.
Delivery set
•Audio recorder
•USB cable
•CD with software and instructions
7
Manufacturer Warranty Coupon
Warranty: The Telesystems Company provides
warranty repair for 1 year from the selling date,
but not more than 2 years from the
manufacturing date (warranty does not cover
batteries). Paid repair is provided within recorder’s
operation lifetime (5 years).
This warranty is voided if the recorder is:
• improperly used;
• mechanically damaged;
• received without supplier warranty tag on this
document.
All questions regarding product exchange and
return must be solved with the seller’s company
according to Protection of Consumers Law.
Digital Recorder EDIC-mini Tiny 16 Witness
Model 1
Model 2
Number: ________________________________
QC:____________________________________
Selling date: _____________________________
Seller: __________________________________
Address:
TS-Market Ltd.
Building 10/1 SosnovayaAlleya, Zelenograd, Moscow,
The Russian Federation, 124489
Tel: +7 (495) 638-8800; +7 (495) 651-91-51
(Cell) +7(903) 530-10-01, +7 (909) 638-88-00
Fax: +7 (495) 535-0491
E-mail: [email protected]
http://www.ts-market.com
GPS coordinats :
55.98065 N
37.25224 E
