TS-market EDIC-mini Tiny16 B43 Manual de usuario

Short Operating Instruction

for Digital Recorder EDIC-mini Tiny16

В43-300h/600h/1200h

Overlook

Miniature digital voice recorder Edic-mini Tiny16

B43 is intended for professional audio voice

recording into built-in ash memory. The recordings

can be further uploaded onto a computer. The

recorder can be used simultaneously as a voice

recorder when recording messages and a ash

media when storing and transferring data of any

standards.

Specications:

• Metallic case;

• VAS (Voice Activating System) to compress

pauses while recording;

• Circular recording mode;

• Built-in real time clock;

• Timers to turn the recorder on at the preset

time;

• Information protection system;

• AGC system to adjust the amplication

according to the external acoustic conditions.

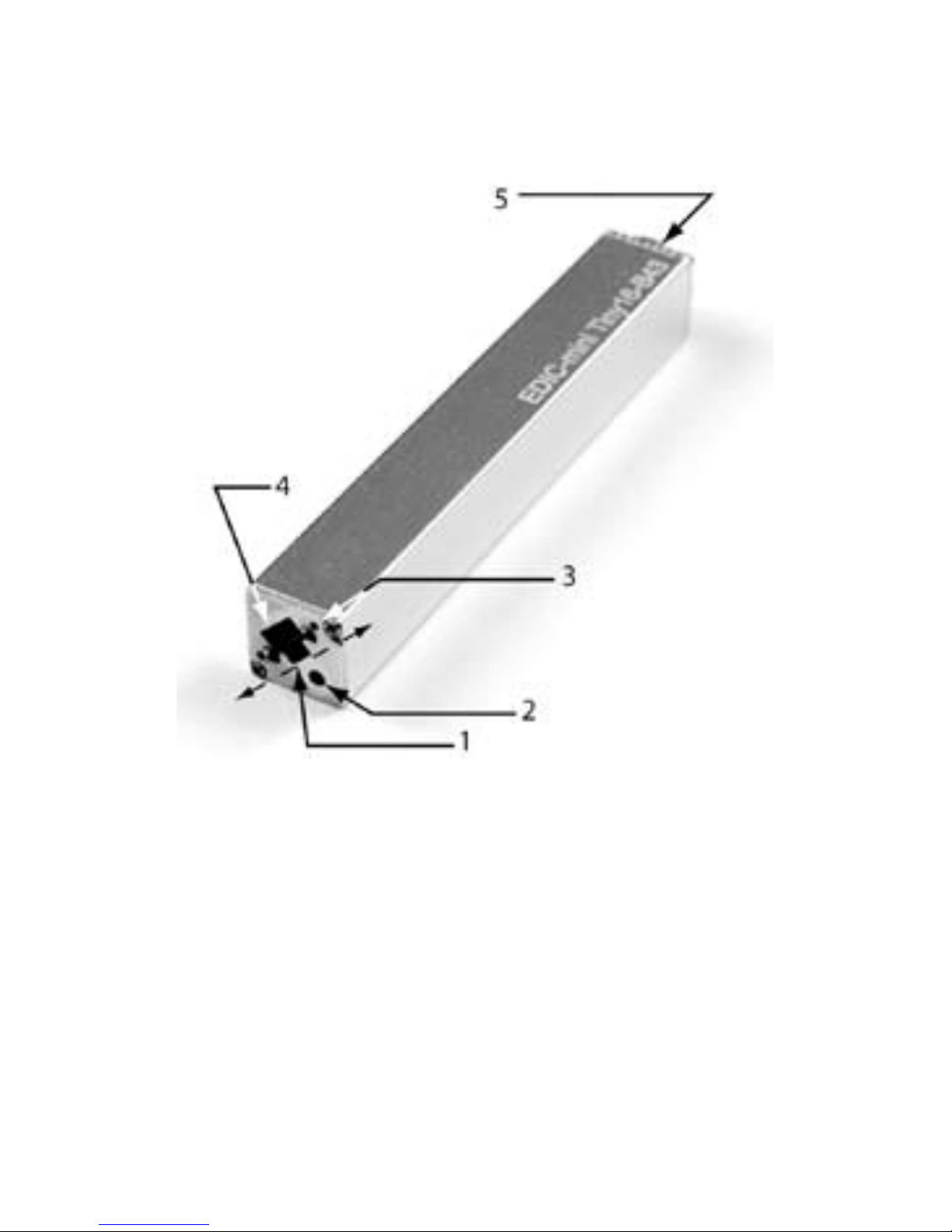

Recorder’s Appearance

1. Switch: – «Stop»; – «Record»

2. Microphone

3. LED

4. USB connector

5. Lid

Supplied Software makes it possible to:

• Save the recorded messages onto the PC as

standard sound les;

• Restore compressed pauses when uploading

les onto the drive;

• Set the DVR parameters;

• Apply password protection of the access to the

recorder’s settings;

• Update software.

Technical Characteristics:

• Battery life in record mode (8 KHz, without

compression) at the battery capacity 1000

mAh: up to 80 hours;

• Battery life in stand-by mode: up to 9 months;

• Battery life in record mode with VAS (audio

signals below threshold): up to 11 days;

• Last digits in the models’ names specify the

maximum recording duration in hours (built-

in memory capacity) for the recording mode:

sample rate 8 kHz, and 2 bit ADPCM:

• – 300h: 300 hours (2 Gb);

– 600h: 600 hours (4 Gb);

– 1200h: 1200 hours (8 Gb).

• Exchange rate: up to 0, 7 Mb/s;

• Frequency band: 0,1-10 kHz;

• Signal-to-noise ratio: 80 dB;

• Built-in microphone sensitivity: 10–12 m;

• Storage life of built-in ash memory: up to

10 years;

• Battery: AAA;

• Operating temperature range» 0–40 ºС;

• Dimensions: 85х13х13 mm;

• Weight (battery not included): 11 g;

• Operating lifetime: 5 years.

Recorder’s Functional Testing

Trial Recording.

Snap the Switch (position 1) to “Record” position.

When the recorder starts recording, the LED

(position 3) ashes ve times. While recording,

two series of LED ashes show the battery charge

and free memory size (see Operational Manual

on the shipped CD for more details). To stop the

recording, snap the Switch (position 1) to “Stop”

position. When the recorder stops recording, the

LED (position 3) ashes once. The duration of the

last ash can be a dozen seconds depending on

the recorder’s memory size.

To play back the recording upload the recording

onto a hard drive with the help of “Rec Manager”

program (located on the shipped CD).

Battery installation. To install the battery unscrew

the lid (position 5) and insert the battery into the

case (carefully observe the polarity – the positive

battery contact is to be upward). Screw the lid

(position 5).

Accessories:

1. Programmable remote microphone with AGC

system;

2. RecAdapter (telephone conversation

recorder);

3. Knowles-based remote microphone (+10dB).

In Box

1. Recorder;

2. USB cable;

3. Flash drive with Software and Instructions;

4. 2 AAA batteries.

For more details see Operational Manual on the

shipped CD (or ash drive). It is also available on

our website www.ts-market.com

Manufacturer Warranty Coupon

Warranty: The Telesystems Company provides

warranty repair for 1 year from the selling date,

but not more than 2 years from the manufacturing

date.

This warranty is voided if the recorder is:

• improperly used

• mechanically damaged

• received without supplier warranty tag on this

document

All questions regarding product exchange and

return must be solved with the seller’s company

according to Protection of Consumers Law.

Digital Recorder EDIC-mini Pro В43

300h

600h

1200h

Number: ________________________________

QC:____________________________________

Selling date: _____________________________

Seller: __________________________________

Address:

TS-Market Ltd.

Building 10/1 Sosnovaya Alleya, Zelenograd, Moscow,

The Russian Federation, 124489

Tel: +7 (495) 638-8800; +7 (495) 651-91-51

(Cell) +7(903) 530-10-01, +7 (909) 638-88-00

Fax: +7 (495) 535-0491

E-mail: [email protected]

http://www.ts-market.com

GPS coordinats :

55.98065 N

37.25224 E
