Trust Sight Fighter Digital Plus Manual de usuario
Sight Fighter Digital Plus
SIGHT FIGHTER DIGITAL PLUS
User's manual
Version 1.0
Sight Fighter Digital Plus
Thank you
Thank you very much for purchasing this product from the Trust range. We wish you
hours of fun with it. Please read this manual carefully before using the product.
Registration
Register your purchase now at the Trust Internet site (www.trust.com) and you could
win one of the fabulous prizes. The web site is also the place to look for dealer
addresses, comprehensive product information, drivers, and FAQ (Frequently Asked
Questions) sheets.
Copyright Statement
No part of this manual may be reproduced or transmitted, in any form or by any
means, electronic or mechanical, including photocopying, recording, or information
storage and retrieval systems, for any purpose other than the purchaser's personal
use, without the prior written permission of the manufacturer.
Disclaimer Statement
The manufacturer specifically disclaims all warranties, either express or implied,
including but not limited to implied warranties of merchantability and fitness for a
particular purpose, with respect to the software, the product manual(s) and written
materials, and any other accompanying hardware. The manufacturer reserves the
right to revise or make improvements to its product at any time and without obligation
to notify any person of such revisions or improvements.
In no event shall the manufacturer be liable for any consequential or incidental
damages, including any loss of business profits or any other commercial damages,
arising out of the use of its product.
All company or product names are trademarks or registered trademarks or service
marks of their respective owners.
01 UK 11373 SFDigPlus.doc
Sight Fighter Digital Plus
1
Contents
1. Introduction ........................................................................................................2
1.1 Conventions used in this manual .................................................................2
1.2 Contents of the package ..............................................................................3
1.3 Minimum system requirements ....................................................................3
2. Safety ..................................................................................................................4
3. Installation..........................................................................................................5
3.1 Game port connection..................................................................................5
3.2 USB connection............................................................................................6
3.3 Software installation .....................................................................................9
3.4 Adding the joystick .....................................................................................13
4. Use of the game pad........................................................................................14
5. Programming the buttons ...............................................................................15
5.1 Profile editor ...............................................................................................15
5.2 Extra settings..............................................................................................19
6. Uninstalling the driver .....................................................................................20
7. Troubleshooting...............................................................................................21
8. Trust Service Centres......................................................................................23
Sight Fighter Digital Plus
2
1. Introduction
This manual is intended for users of the Trust Sight Fighter Digital Plus. No specific
prior knowledge is needed to install and use this product.
If you have any questions after reading this manual, please contact one of the
Trust service centres. You will find information on the service centre nearest to
you at the back of this manual. You can also visit the Trust website
(www.trust.com) for support, comprehensive product information, drivers, and
FAQs (Frequently Asked Questions).
1.1 Conventions used in this manual
The following conventions have been used in this manual to indicate instructions:
<key> Here you should press a key. The name of the key is given between
brackets.
‘System’ This is a specific term used in a program. These are the terms used
by, for example, Microsoft Windows 98.
[DIR] Key in the text shown in square brackets [….].
(term) The text between the parentheses (….) is the English term, e.g.
(File) used in the figure referred to.
Additional information will be shown as follows:
Note: The USB connection for the Sight Fighter Digital Plus only works in
Windows 98.
The example assumes that the letter “D” has been assigned to your CD-ROM drive. If
your system uses a different drive letter for your CD-ROM drive, for example “E”, you
should replace “D” by “E”.
Sight Fighter Digital Plus
3
1.2 Contents of the package
Before reading the manual, please check the contents of the package. It should
contain the following:
•Game pad
•Game port to USB conversion cable
•CD-ROM containing the drivers, software and instruction manuals
•Quick installation manual
Please contact your dealer if anything is missing or damaged.
1.3 Minimum system requirements
•Pentium 100 CPU
•Windows 95 or 98
•16 MB RAM
•20 MB free hard disk space
•4 Speed CD-ROM
•Sound card
•Free USB or Game connection
Sight Fighter Digital Plus
4
2. Safety
Before using the product, please read the following instructions carefully.
1. Do not use this product is a damp environment.
2. Do not try to repair the apparatus yourself.
3. Under the following circumstances, have the apparatus repaired by qualified
personnel:
a) The cable is damaged or worn;
b) Fluid has entered into the apparatus;
c) The apparatus has been dropped and/or the housing is damaged.
d) Position the apparatus so that the cables cannot be damaged.
Sight Fighter Digital Plus
5
3. Installation
Note: The Sight Fighter Digital Plus does not work in DOS or Windows 3.11.
Note: To use the game pad, DirectX 6.0 (or higher) must be installed onto your
system before installing the game pad. This is included on the CD-ROM.
Note: Remove all existing joysticks from the 'Game Controllers' before starting
the installation of the Sight Fighter Digital Plus.
If you use Windows 95, the game pad must be connected to your sound card's game
port. For Windows 98, you can either connect the game pad to your sound card's
game port or to the USB connection. It is recommended that you use the USB port for
Windows 98.
3.1 Game port connection
1. Turn off your computer.
2. Connect the 15 pin game pad connection (figure 1, A) to your sound card's game
port.
3. Turn on the computer and start Windows. See chapter 3.3 to install the software.
Sight Fighter Digital Plus
6
3.2 USB connection
1. If it has not already been done, connect the USB conversion cable (B) to the
Sight Fighter Digital Plus game port plug (A) (see figure 1).
Figure 1: Connecting the game pad to the USB conversion cable
2. Start Windows 98.
3. Insert the USB plug (C) on the conversion cable into a free USB port on your
computer.
4. Windows will detect new hardware. Figure 2 will appear.
Figure 2: New hardware detected
Sight Fighter Digital Plus
7
5. Click on 'Next'. Figure 3 will appear.
Figure 3: Searching for the best driver
6. Select the first option: 'Search for the best driver for your device (Recommended)'
and click on 'Next'. Figure 4 will appear.
Figure 4: Selecting the location of the driver
Sight Fighter Digital Plus
8
7. Tick the check box for 'CD-ROM drive' and click on 'Next'. Figure 5 will appear.

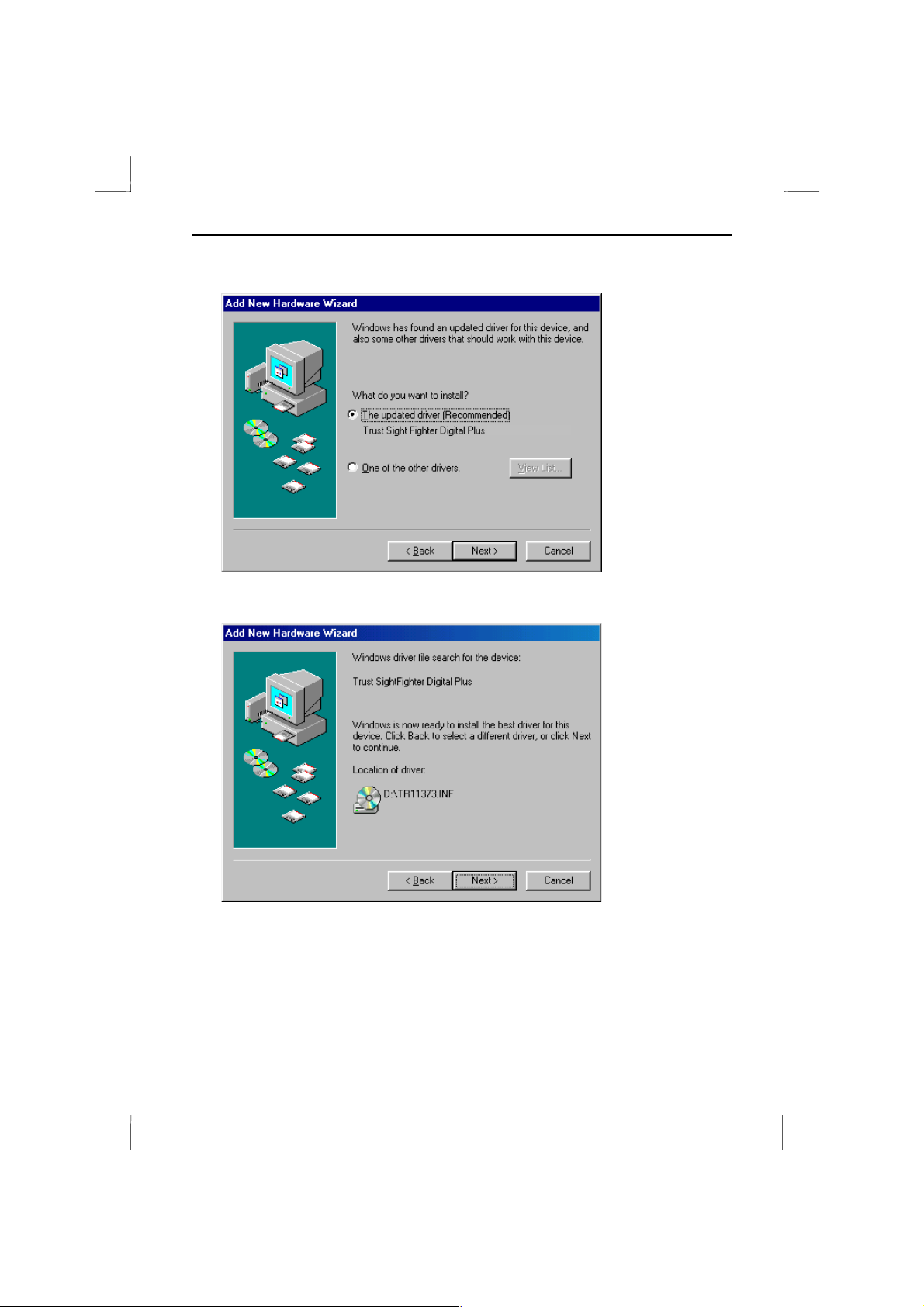

Figure 5: Driver found
8. Click on 'Next'. Figure 6 will appear.
Figure 6: Driver found
9. Click on 'Next'. A number of files will be copied to your computer. When
completed, figure 7 will appear. Continue the installation at point 3 in chapter 3.3.
