Trust MD-4100 Manual de usuario

MD-4100 ADSL MODEM-ROUTER

Product information

A: Power indicator

B: LAN port 1 indicator

C: LAN port 2 indicator

D: LAN port 3 indicator

E: LAN port 4 indicator

F: ADSL data indicator

G: ADSL connection indicator

H:Modem ready indicator

I: ADSL line connection

J: Reset switch

K: LAN port 1

L: LAN port 2

M: LAN port 3

N: LAN port 4

O: Power connector

P: Power switch

I P

Connect modem

Connect ADSL cable to ADSL line connection ‘I’

ADSL

MD-4100 ADSL MODEM-ROUTER

Connect a splitter/filter (not included) to telephone

line

Connect modem to splitter/filter

Connect phone to splitter/filter

Splitter/filter only needed for correct phone

functionality

Connect power adapter to Power connector ’O’

Plug power adapter into the wall outlet.

Power on modem

POWER

MD-4100 ADSL MODEM-ROUTER

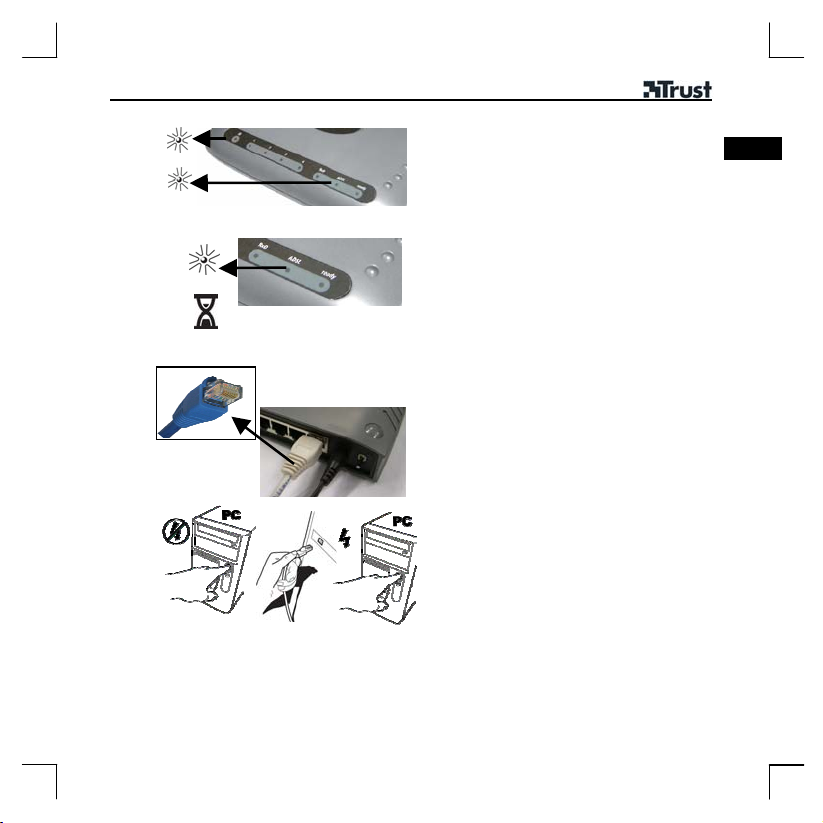

Power indicator (A) will lid continuously

ADSL connection indicator flashing

Wait max. 5 minutes for ADSL indicator to lid

continuously. If it keeps blinking, the ADSL line is

not properly connected or the ADSL service is not

(yet) activated. Check with your internet service

provider.

Connect the supplied network cable to input (N~K).

Shut down computer

Connect the network cable to computer

Start your computer again.

___

- - - -

___

5 Min

Shutdown Connect Start

MD-4100 ADSL MODEM-ROUTER

Configure modem

Open an Internet browser on the computer and go

to site http://10.0.0.2

OK Æ12

ERROR: Check Appendix A

Fill in username and password

me = admin er

Default :

1. Userna

2. Password = epicrout

3. OK

MD-4100 ADSL MODEM-ROUTER

‘Automatic Setup’

Select your Country

If country not listed follow steps appendix C

15 Select your ISP

If ISP not listed follow steps appendix C

MD-4100 ADSL MODEM-ROUTER

Depending on ISP or setting this window

will appear. When there is no field for

username or password Æ17

1. Fill in internet account ‘username’ and 2x

‘password’

2. ‘Save Setting’ Æ18

For correct username and password check

ISP information

‘Save Setting’

If fixed/static IP is needed by your ISP

choose IP mode ‘static IP’ and fill in the IP

address, subnet mask and gateway

specified by your ISP.

18 Wait…

19 ‘Back To Home’ (Back to main menu)

Finish configuring modem

MD-4100 ADSL MODEM-ROUTER

Change modem username/password

It is recommended to change the

modem username and password

This is not the username and password

from your ISP account

1. ‘Advanced Setup’

2. ‘ADMIN PRIVILEGE’

3. ‘Admin Password Configuration’

1. Specify current password (default:

‘epicrouter’)

2. Specify Administrator name

3. Specify New Password (2x)

4. Submit

5. Save Configuration

22 Save & Reboot

Modem Username and password are

changed.

MD-4100 ADSL MODEM-ROUTER

1. Specify new username

2. Specify new password

3. OK

You entered the modem configuration menu

again

Browse Internet

Open Internet Explorer

Enter a website (example) www.trust.com

Modem is working and connected to internet.

If no page appears check out appendix B

Internet Explorer settings

Notes

This modem only works on analogue (POTS, PSTN, Annex A) ADSL or DSL/TDSL line

The built in firewall is enabled by default. If you want to disable it see the English LAN manual on CD-

ROM.

Before installation make sure your ADSL line and account are activated.

This modem is not compatible with SDSL standard.

To share you files and printer between the computers connected to the modem/router see the English

LAN Manual on CD-ROM.

To play games over the LAN it must be supported by the game refer to the instructions from the game

how to configure it.

To configure the advanced router options from the modem/router see the English advanced manual on

CD-ROM.

If you have any problems, go to www.trust.com/14357 (also for UK version item no. 14358) for FAQ, firmware

and manuals.

MD-4100 ADSL MODEM-ROUTER

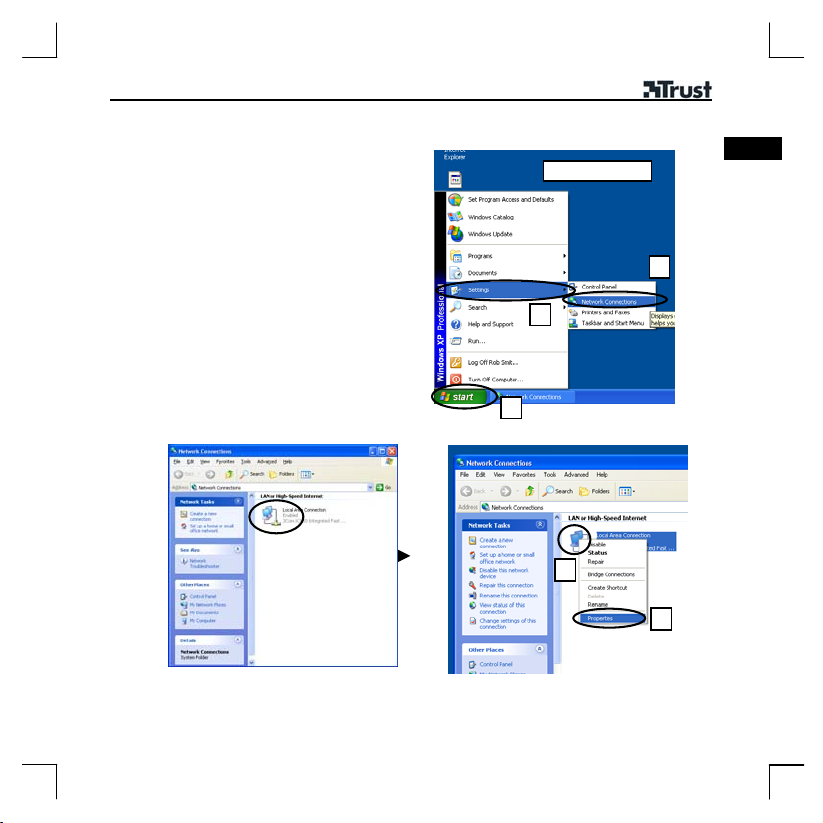

Appendix A: Check network settings Windows XP

Set up your network card for automatic

TCP/IP address assignment:

A. Click ‘Start’.

B. Select ‘Settings’.

C. Choose ‘Network Connection’.

D. Right-click the network adapter

connected to the modem.

E. Choose ‘Properties’.

F. Click the ‘Internet Protocol’ item.

G. Click ‘Properties’.

H. Set two options to automatic.

I. Close all screens by clicking the OK

buttons. No need for restart.

J. Read the ‘Internet Explorer’ appendix

Windows XP

MD-4100 ADSL MODEM-ROUTER

Appendix A: Check network settings Windows 2000

Set up your network card to TCP/IP address

assignment:

A) Right click ‘My Network Places’.

B) Choose ‘Properties’.

C) Right-click the network adapter

connected to the modem.

D) Choose ‘Properties’.

E) Click TCP-IP item

F) Click ‘Properties’.

G) Set two options to automatic.

H) Close all screens by clicking the OK

buttons. No need for restart.

I) Read the ‘Internet Explorer’ Appendix

Windows 2000
