Troy Built Models Do-335 Manual de usuario

Do-335

Specification:

Length: 2140mm(84.3＂)

Wing span: 2121mm(83.5＂)

Wing area: 76.1sq.dm(8.2sq.ft)

Wing loading: 144.5g/sq.dm(47.4oz/sq.ft)

Flying weight: 11kg(24.2lbs)

Radio: 6ch & 11servos（including 4 medium-size servos）

Or 6ch & 13servos(When assemble two engines)

Engine: 50cc gasoline (Factory’s recommendation)

Or one 1.20(frant) & one ．91(rear)

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

First-time builders should seek advice from people having building

experience.If misused or abused,it can cause serious bodily injury

and damage to property.

Fly only in open areas and preferably at a dedicated R/C flying site.

We suggest having a qualified instructor carefully inspect your

airplane before its first flight.Please carefully read and follow all

instructions included with this airplane,your radio control system

and any other components purchased separately.

(The people under 18 years old is forbidden from flying this model)

This R/C airplane is not a toy!

: 50cc

(with 11 servos)

6 channel radio for aiplane is highly recommended for this model.

Warning

Remove the covering with proper

pressure to cut through only the covering itself.Otherwise,

cutting down into the balsa structure may weaken the

model part and cause accident.

The pre-covered film on ARF kits may wrinkle due to

variations of temperature.Smooth out as explained right.

Pre-cover the covering with clean cloth!

Start at low setting. Increase the setting if

necessary.If it is too high,you may damage

the film.

Iow setting

with cover(cloth)

4 inch Front spinner

4 inch Rear spinner

Powerer

We strongly recommend you use the thread lock for all the screws when you build your model.

Gasoline

(Option accessories)

3-way

pressure inlet

Air tank

3-way

pressure inlet

3-way

pressure inlet

3-way

pressure inlet

3-way

pressure inlet

Switch

Air inlet

Strut

Quick release connector

Make sure to assemble retracts as instructed below.

Three wheel retract system

Quick release connector

Pressure reduction inlet

Ø1.7mm

Ø0.2mm

Pleas notice the inner diameter

of eachside the pressure reduction inlet.

Please insure the sealing of theretract

system before flight .

The status when the

gear up

Pull out length of 8mm

to make gear down

Air valve Air valve

3-way pressure inlet 5

Air tank

Air inlet

Air line (3000mm)

Quick release connector

Strut

( 90 )

Strut ( 110 )

Switch

Clevis

Rod (2X300mm)

Retainer

TP Screw(2.6x14mm) 2

1mm

Aileron

Trailing

edge

Make sure they are in

the right position while

installing.

Pin hinge(24x24mm)

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Glue the pin hinges to the aileron with C A instant glue.

Keep some space about 1mm width between

the trailing edge and aileron.

Glue the aileron to the main wing with C A glue.

Make sure hinges are

mounted in the same line.

Clevis

Rod (2.5x300mm)

TP Screw (2.3x12mm)

Wooden Block(20x20x8mm)

Servo tray(69x58x2mm)

Screw (4x45mm)

Washer(4x15mm)

Lock Nut (4mm )

Collar (3mm)

Rod (2.5x300mm)

Washer

Lock Nut (4mm )

Clevis

Nut (3mm )

Collar (3mm)

Screw (3x10mm)

Screw (4x45mm)

Washer(4x15mm)

Lock Nut (4mm )

Clevis

Screw (3x10mm)

Nut (3mm )

Collar (3mm)

Rod (2.5x300mm)

Pin hinge(24x24mm)

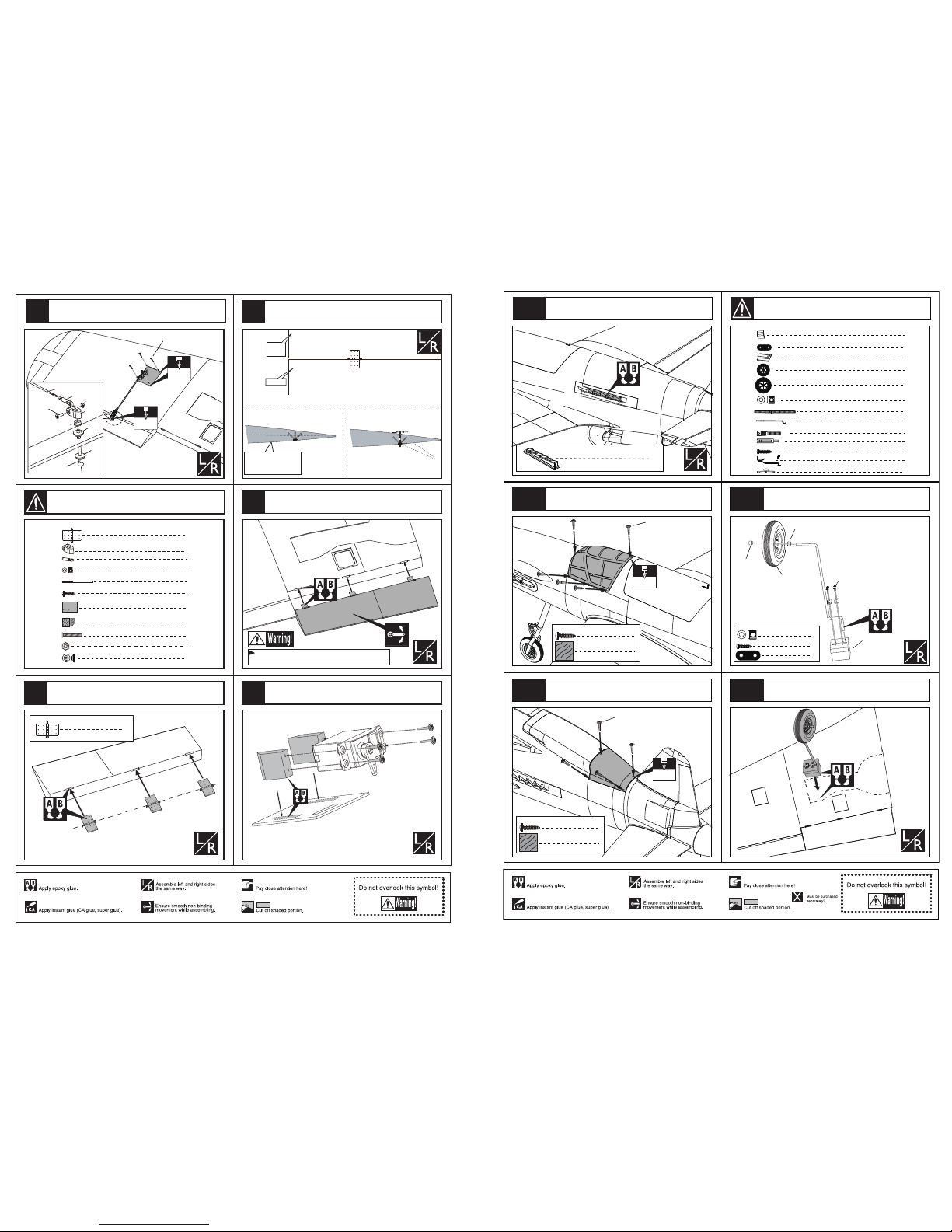

Install the servo of the flap as the illusration below.

Install the nylon control horn and connect the linkage.

Accessory list for the coming installation steps.

Steel wire

Copper joiner

Aluminum tube

Clevis

Add a rubber ring to the

clevis for insuring safety

Collar (6mm)

Collar (5mm)

Collar 6mm 3

Install the nose landing gear as below.

Wheel (90 mm)

Epoxy the nose landing gear to appropriate position

inside the fuselage.

AILERON

30mm

FLAP

20mm

Side View

Top view

Side View

25mm

RUDDER

Top view

Position for

right diagram.

ELEVATOR

Side View

20mm

151mm

Adjustment.

The centre of the Gravity.

FLAP

AILERON

106

107

108

109

105

110

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Pin hinge (36x20x1mm)

Flap

1mm

Make sure they are in

the right position while

installing.

Trailing

edge

Keep some space about 1mm width between

the trailing edge and flap.

Epoxy the flap to the mid wing.

TP Screw (2.3x12mm)

1.5mm

4mm

Pin hinge (36x20x1mm)

Install the servo of aileron as the illustation below.

Rod (2.5x300mm)

Clevis

Lock Nut (3mm )

Screw (3x10mm)

Nut (3mm )

Screw (4x45mm)

Washer

Clevis

Rod (2.5x300mm)

TP Screw (2.3x12mm)

Wooden Block(20x20x8mm)

Servo tray(69x58x2mm)

Screw (4x45mm)

Washer(4x15mm)

Lock Nut (4mm )

Collar (3mm)

Secure the servo,install the nylon control horn

and connect the linkage.

Epoxy the pin hinges to flap for the mid wing.

Accessory list for the coming installation steps.

Landing gear (6mm) 1

Copper joiner

Clevis 2

Collar (6mm) 7

Steel wire (0.5x1500mm)

Wheel (90 mm)

Wheel (115 mm)

TP Screw(3x20mm) 8

Landing gear (6mm)

Wooden Block(56x29x26mm)

Wooden Block(89x29x14mm) 1

Landing gear straps 4

Ally nose arm

Collar (6mm)

Wooden supporter

Collar (6mm)

TP Screw (3x20mm)

3x20mm TP Screw

Landing gear straps 4

Collar 6mm 4

Install the main landing gear and fix the

wooden supporter steadily.

Wheel (115 mm)

TP Screw (2.3x8mm)

Ply (15x15x3mm) 6

1.5mm

TP Screw (2.3x8mm)

Assemble the cover to the fuselage with TP

screw as illustration. Epoxy the main landing gear to the wings.

TP Screw (2.3x8mm)

Ply (15x15x3mm) 8

1.5mm

TP Screw (2.3x8mm)

Pvc part

Epoxy the exhaust to the fuselage as illustration below.

Assemble the canopy to the fuselage with TP screws.

101

102

103

104

100

Accessory list for the coming installation steps.

All these parts below are for option .

Main wing joiner(30x800mm)

Ply (15x15x3mm) 22

Wood dowel (6x50mm)

Rib template (2mm ply)

Bushing (8X4mm)

Nut (4mm)

6mm

Wheel (115mm)

Note:rubber wheels oleo struts

and retracts are optional.

Wheel (115 mm)

Plastic screw (6x50mm)

TP Screw (3x20mm) 8

Washer (3x6mm) 8

Rod (2.5x300mm)

Washer

Lock Nut (4mm )

Clevis

Nut (3mm )

Collar (3mm)

Screw (3x10mm)

Screw (4x45mm)

Washer(4x15mm)

Lock Nut (4mm )

Clevis

Screw (3x10mm)

Nut (3mm )

Collar (3mm)

Rod (2.5x300mm)

Clevis

Lock Nut (3mm )

Screw (3x10mm)

Nut (3mm )

Screw (4x45mm)

Washer

Install the nylon control horn and connect the linkage.

Secure the servo,install the nylon control horn

and connect the linkage.

TP Screw (2.3x12mm)

1.5mm

4mm

Epoxy the wheel house to the wings carefully.

5mm

Cut away the surplus parts of plastic cover

carefully along the shaded line.

Note:Please fix the air tube before

assemble the wheel house to the wing.

3mm

Assemble the rear wheels to theh landing gears,epoxy the

gear pants to the landing gear and trim the surplus parts.

12 14

Accessory list for the coming installation steps.

176mm

15mm

80mm

1.8mm

TP Screw(3x20mm)

Washer (3x6mm)

Assemble the cowling to fuselage with screw.

According to the engine cut off the suplus part from the

former and glue it to the fuselage.as illustration..

Former

Cut away the surplus parts of the canopy

carefully along the shaded line.

Pvc part

Epoxy the cowl frame into the cowl steadily.

Epoxy the exhaust to the fuselage as illustration below.

Assemble the cowl to appropriate position in the fuselage

and trim the relevent position in the cowl and fuselage.

Former

94 97

TP Screw (3x20mm)

1.8mm

TP Screw (3x20mm) 8

Washer (3x6mm) 8

Washer (3x6mm)

A=A'

Make sure to glue securely.

If not properly glued, a failure in flight may occur.

Securely glue together.If coming off during flights,

you'll lose control of your airplane which leads

to accidents!

The sketch map when the main wing

assembled completely.

According to the rib template drill holes in one wing and

epoxy wood dowel in them.

6mm

Wood dowel (6x50mm)

Rib template (2mm ply)

Wood dowel (6x50mm)

Rib template (2mm ply)

Main wing joiner(30x800mm)

6mm

Rib template (2mm ply)

Plastic screw Blind Nut

Plastic screw (6x50mm)

According to the rib template and drill holes to the fuselage.

Assemble the wing to the fuselage steadily and keep

the surface of model cleanly.

Fix the main wing to the fuselage with plastic screw.

Assemble the landing gear to the wheel house.

2mm

32mm

20mm

2mm

Push the hatch thimble to front when assemble

the canopy to fuselage.

3mm

20mm

145mm

15mm

32mm

110mm

Ply (15x15x6mm)

Collar(2mm) Wooden Block

Screw

2mm

Epoxy the hatch thimble to appropriate position inside

to top hatch.

15mm

3mm

Screw (2x25mm)

Wooden Block (15x15x10mm)

Collar (2mm)

Thimble

Pvc part

Metal dowel (3X30mm)

Ply (15x15x3mm) 22

Metal dowel (3X30mm)

Ply (15x15x6mm) 1

Metal dowel (3X30mm)

Drill holes in the relevant position in the fuselage.

TP Screw (2.3x8mm)

fairing

TP Screw(3x20mm)

Washer (3x6mm)

Former

Metal dowel (3X30mm)

Ply (15x15x3mm) 4

Ply (15x15x3mm)

Epoxy plies to appropriate position inside the top hatch

and drill holes in them.Epoxy metal dowel in them.

Epoxy plies to appropriate position inside the top hatch

and drill holes in them.Epoxy metal dowel in them.

Accessory list for the coming installation steps.

Washer (4x8mm)

Screw (4x35mm)

Washer (4x8mm)

Screw (4x25mm)

Nut (4mm)

Spring Washer (4mm)

4mm

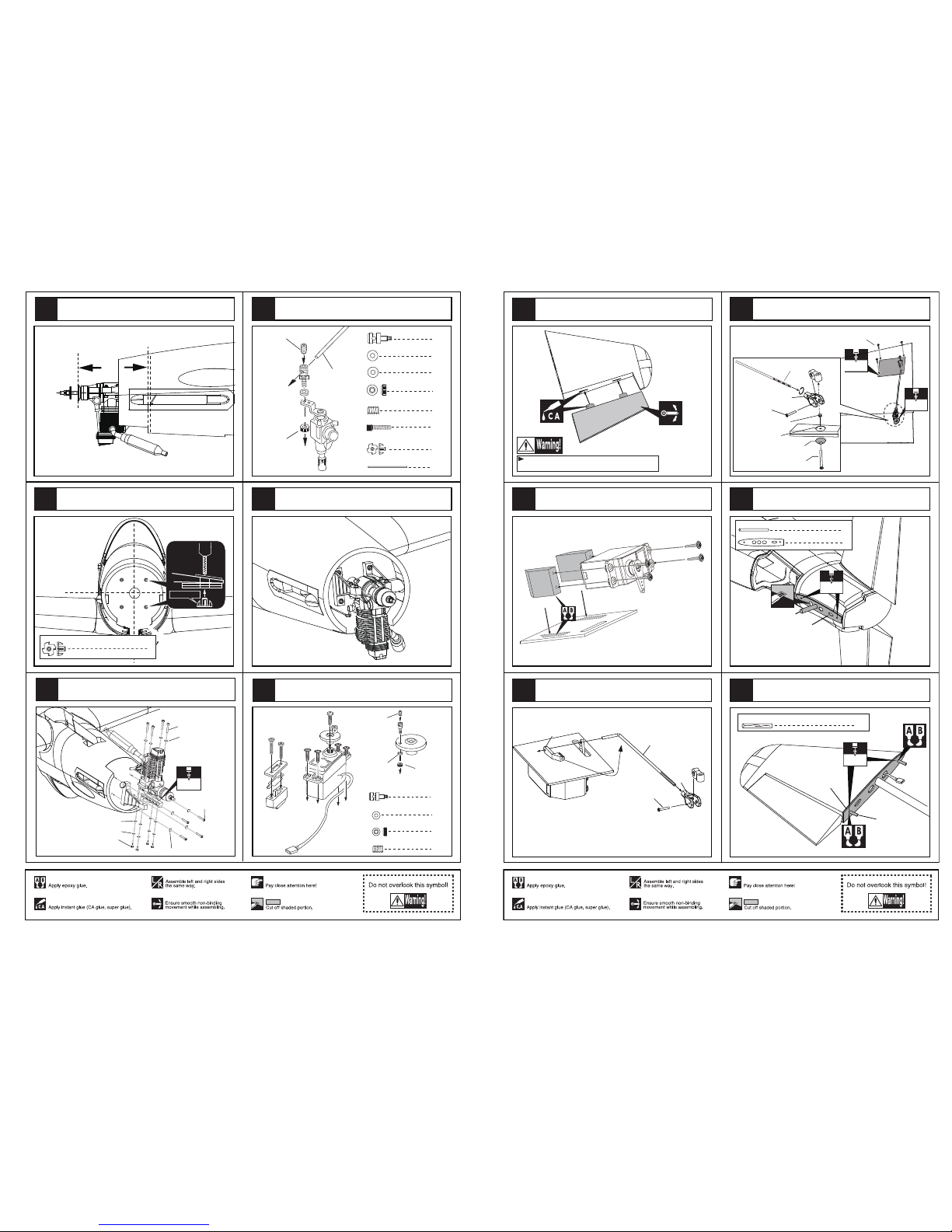

Assemble the engine.

Set Screw (3x4mm)

Set Screw (2mm)

Rod (2x500mm)

Set Screw (2mm)

Washer (2mm)

Linkage Stopper

Washer (4x8mm)

Rod (2x500mm)

Blind Nut (4mm)

Screw (4x25mm)

Set Screw (3x4mm)

Assemble the rear throttle linkage.

Mount the fuel tank into the fuselage.

Linkage Stopper

Washer (2mm)

Nut (2mm)

Set screw (3x4mm)

Washer (2mm)

Set screw (3x4mm)

Assemble the servos and switch .

Fuel tank (550cc) 1

Connecting the rear engine and the rear throttle

servo via throttle linkage.

Assemble the switch servo to appropriate position

in the fuselage.

Stab Joiner(12x360mm)

Stab Joiner(12x300mm)

Clevis

Rod (2x300mm)

Retainer

TP Screw (2.3x12mm)

Wooden Block(10x13x8mm)

Servo tray(56x50x2mm)

Pin hinge(24x24mm)

Screw (3x40mm)

Rib template (2mm ply)

1mm

Elevator

Tailing

edge

Make sure they are in

the right position while

installing.

Keep some space about 1mm width between

the tailing edge and the elevator.

Glue the elevator to the stabilizer with CA glue.

Make sure hinges are

mounted in the same line.

Pin hinge(24x24mm)

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Clevis

Retainer

Rod (2x300mm)

Screw (2x10mm)

Install the servo of the elevator.

Install the nylon control horn and connect the linkage.

Rib template (2mm ply)

Wood dowel (4x30mm)

Glue the pin hinges to the elevate with CA glue.

Accessory list for the coming installation steps.

Rib template (2mm ply)

TP Screw (2.3x12mm)

1.5mm

3mm

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x40mm)

Screw (2x10mm)

Secure the servo in the stabilizer,install the control horn

and connect the linkage as illustration.

According to the rib template drill holes to

appropriate position in the fuselage.

According to the rib template drill holes to the stabilizer

root and epoxy the wood dowel in them.

Epoxy the stabilizer to the tail fuselage steadily.

4mm

Wood dowel (4x30mm)

Rib template (2mm ply)

Wood dowel (4x30mm)

Stab Joiner(12x360mm)

Rib template (2mm ply)

Stab Joiner(12x360mm)

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Pin hinge(24x24mm)

Make sure hinges are

mounted in the same line.

1mm

Upper rudder

Upper vertical fin

Make sure they are in

the right position while

installing.

Glue the pin hinges to the upper rudder with CA glue.

Keep some space about 1mm width between the

upper rudder and the upper vertical fin.

Assemble the accelerator push rod to the engine.

The sketch map when the engine install completion.

Install the servo of throttle.

Assemble the throttle servo in the fuselage.

Assemble the fuel tank as below.

Epoxy the fuel tank to the side fuselage.

Fuel supply line

Fuel spray line

Air pressure line

Mount the fuel tank into the fuselage.

Assembly of the fuel tank.

Fuel tank (550cc) 1

Assemble the switch servo to in the fuselage.

158mm

5 .2mm

Blind Nut

Blind Nut (4mm)

The side view of the engine install completion.

Drill four holes at the diameters as shown

for engine mount.

If you assemble a 120 engine in the nose,then you need

assemble a 91 engine in the rear.Please be kind to find

the front view of the 91 rear engine install completion.

Accessory list for the coming installation steps.

Blind Nut (4mm)

Engine mount (68x105mm)

Linkage Stopper

Washer(4x8mm)

Screw (4x35mm)

Spring Washer (4mm)

Nut (4mm)

Screw (4x25mm)

Plastic tube (2x500mm)

Fuel tank (550cc) 1

5 .2mm

Blind Nut

153mm

Washer (4x8mm)

Screw (4x35mm)

Washer (4x8mm)

Screw (4x25mm)

Nut (4mm)

Spring Washer (4mm)

4mm

Assemble the engine.

The side view of the 120 engine install completion.

Drill four holes at the diameters as shown

for engine mount.

Blind Nut (4mm)

Set Screw (3x4mm)

Set Screw (2mm)

Rod (2x500mm)

Set Screw (2mm)

Washer (2mm)

Linkage Stopper

Washer (4x8mm)

Rod (2x650mm)

Blind Nut (4mm)

Screw (4x25mm)

Set Screw (3x4mm)

Assemble the throttle linkage.

Linkage Stopper

Washer (2mm)

Nut (2mm)

Set screw (3x4mm)

Washer (2mm)

Set screw (3x4mm)

Assemble the servos and switch .

Connecting the engine and the throttle servo

via throttle linkage.

71 74

Accessory list for the coming installation steps.

Glue the upper rudder to the vertical fin steadily.

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Clevis

Retainer

Rod (2x300mm)

Screw (2x10mm)

Install the servos for the upper rudder in upper vertical fin.

Install the nylon control horn and connect the linkage.

TP Screw (2.3x12mm)

1.5mm

3mm

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x40mm)

Screw (2x10mm)

Wood dowel (4x30mm)

Rib template (2mm ply)

4mm

Rib template (2mm ply)

Stab Joiner(12x300mm)

Stab Joiner(12x310mm)

4mm

Wood dowel (4x30mm)

Rib template (2mm ply)

Secure the servo in the upper vertical fin,install the

control horn and conncet the linkage as illustration.

According to the rib template drill holes to the

appropriate position in the fuselage.

According to the rib template drill holes to the appropriate

position in vertical fin root and epoxy the wood dowel in them.

Accessory list for the coming installation steps.

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Pin hinge(24x24mm)

Make sure hinges are

mounted in the same line.

1mm

Bottom rudder

Bottom vertical fin

Make sure they are in

the right position while

installing.

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Clevis

Retainer

Rod (2x300mm)

Screw (2x10mm)

Install the servos for the bottom rudder in the

bottom vertical fin.

Install the nylon control horn and connect the linkage.

Epoxy the upper vertical fin to the fuselage steadily

as illustration.

Glue the pin hinges to the bottom rudder with CA glue.

Keep some space about 1mm width between the bottom

rudder and the bottom vertical fin.

Glue the bottom rudder to the bottom vertical fin steadily.

Washer (4x8mm)

Screw (4x25mm)

Washer(4x8mm) 4

Screw (4x25mm)

1.5mm

TP Screw (2.3x8mm)

Ply (15x15x3mm) 8

Fix the propeller shaft to the frame steadily as illustration.

Epoxy plies to relevant position inside the rear engine cover and

assemble the engine cover to the fuselage as illustration.

Open blades in the fiberglass spinner and epoxy it to the

spinner mount as illustration.

After assemble the wood spinner mount to the propeller

shaft,fix the propeller to the shaft with hex nut.

Nut (10mm)

wood spinner mount 1

Washer (10x20mm)

Fiberglass spinner 1

wood spinner mount

Not including

Washer (10x20mm)

Nut (10mm)

In case of 2-cycle & 4-cycle engine.

Customers can also use one front 120 engine and 90 rear

engine,please be kind to find the installation steps followed,

the front view of the 120 engine install completion.

Blind Nut (4mm)

Engine mount (68x105mm)

Linkage Stopper

Washer(4x8mm)

Screw (4x35mm)

Spring Washer (4mm)

Nut (4mm)

Screw (4x25mm)

Plastic tube (2x650mm)

Fuel tank (550cc) 2

177mm

104.5mm

91mm

To make sure the propeller

can circle freely.

Accessory list for the coming installation steps.

The accesories below will not included in our package.

Tabla de contenidos

Otros manuales de Juguete de Troy Built Models

Troy Built Models

Troy Built Models Ki84 Hayate Manual de usuario

Troy Built Models

Troy Built Models 105” Curtiss JN-4 Manual de usuario

Troy Built Models

Troy Built Models Electric Beaver Manual de usuario

Troy Built Models

Troy Built Models Memphis Belle B-17 Manual de usuario

Troy Built Models

Troy Built Models ROBIN DR400 Manual de usuario

Troy Built Models

Troy Built Models P-39 Airacobra Manual de usuario

Troy Built Models

Troy Built Models ME - 109 Manual de usuario

Troy Built Models

Troy Built Models Hawker Typhoon Manual de usuario

Troy Built Models

Troy Built Models Fw-190 D9 Manual de usuario

Troy Built Models

Troy Built Models Stinson 108 Manual de usuario

Troy Built Models

Troy Built Models B-25 Mitchell Manual de usuario

Troy Built Models

Troy Built Models FAIREY SWORDFLSH Manual de usuario

Troy Built Models

Troy Built Models F86D DOG SABRE Manual de usuario

Troy Built Models

Troy Built Models Hawker hurricane MK.IIa Manual de usuario

Troy Built Models

Troy Built Models P-51B Mustang Manual de usuario

Troy Built Models

Troy Built Models Bonanza V-35 Manual de usuario

Troy Built Models

Troy Built Models DC-3 Manual de usuario

Troy Built Models

Troy Built Models PA-25 Manual de usuario

Troy Built Models

Troy Built Models 50cc SPITFIRE Manual de usuario

Troy Built Models

Troy Built Models P-40 warhawk Manual de usuario

Troy Built Models

Troy Built Models F-4u Corsair Manual de usuario

Troy Built Models

Troy Built Models T-28 Trojah Manual de usuario

Troy Built Models

Troy Built Models SPITFIRE MK.XIV Manual de usuario

Troy Built Models

Troy Built Models BF-110C ZERSTORER Manual de usuario

Manuales populares de Juguete de otras marcas

marklin

marklin 37321 Manual de usuario

Canon

Canon PAPER CRAFT Manual de usuario

GREAT PLANES

GREAT PLANES Pitts M-12S Manual de usuario

NOCH

NOCH 14261 Manual de usuario

Hausler

Hausler 450 SE V2 Manual de usuario

Dynaflite

Dynaflite Daydream Manual de usuario

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manual

Kenner

Kenner Batman 63651 Manual de usuario

LEGO

LEGO 8527 Manual de usuario

iKarus

iKarus ECO 8 Manual de usuario

Multiplex

Multiplex EasyStar II Manual de instrucciones

Walkera

Walkera 38 Manual de instrucciones

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manual de usuario

MD MXION SWD Manual de usuario

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manual de usuario

marklin

marklin 39671 Manual de usuario

Meccano

Meccano 15103 Manual de usuario

LEGO

LEGO TECHNIC 8735 Manual de usuario
