Troy-Bilt 1905 Manual de usuario

Owner’s Manual / Manual del Propietario

Questions? Preguntas?

Helpline - 1-888-611-6708 M-F 8-5 CT

Manual No. 192114GS Revision 4 (05/15/2003)

Pressure Washer / Lavadora de Presión

Model / Modelo 01905

Printed in USA

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

IMPORTANTE: LEYO LA SEGURIDAD LAS ORDENESY LAS INSTRUCCIONES DETENIDAMENTE

Troy-Bilt® is a registered trademark of MTD and is used under license to Briggs & Stratton Power Products.

Troy-Bilt® es una marca registrada registrada de MTD y se usa abajo licencia a Briggs & Stratton Power Products.

Item Part # Description

1 B191938GS BASE

2 B191942GS HANDLE

3 B4805GS HOSE

4 30809GS GROMMET

5 192134GS KIT, Engine Mounting Hardware

6 192132GS KIT, Pump Mounting Hardware

7 B2516GS VINYL CAP

8 B2203GS KIT, Handle Fastening

9 192310GS KIT,Vibration Mount

10 95458GS QUICK CONNECT

11 192135GS KIT, Garden Hose Inlet

Item Part # Description

12 191265GS E-RING

13 186301GS KIT, Nozzle

14 B1436BGS GUN

15 190779GS EXTENSION

16 192317GS KIT,Wheel

17 63281GS KEY

18 B2126AGS ASSY, Pump (see pages 18-21)

19 192796GS KIT, Chemical Hose/Filter

20 192136GS KIT,Thermal Relief

900 NSP ENGINE

EXPLODED VIEW AND PARTS LIST — UNIT

Section

Exploded Views and Parts Lists

Items Not Illustrated:

Part # Description

192114GS MANUAL, Owner’s

192887GS KIT, Decals

BB3061GS OIL, Engine

191922GS KIT, O-RING MAINT & NZZL CLNNG

Section 8: Exploded Views and Parts Lists

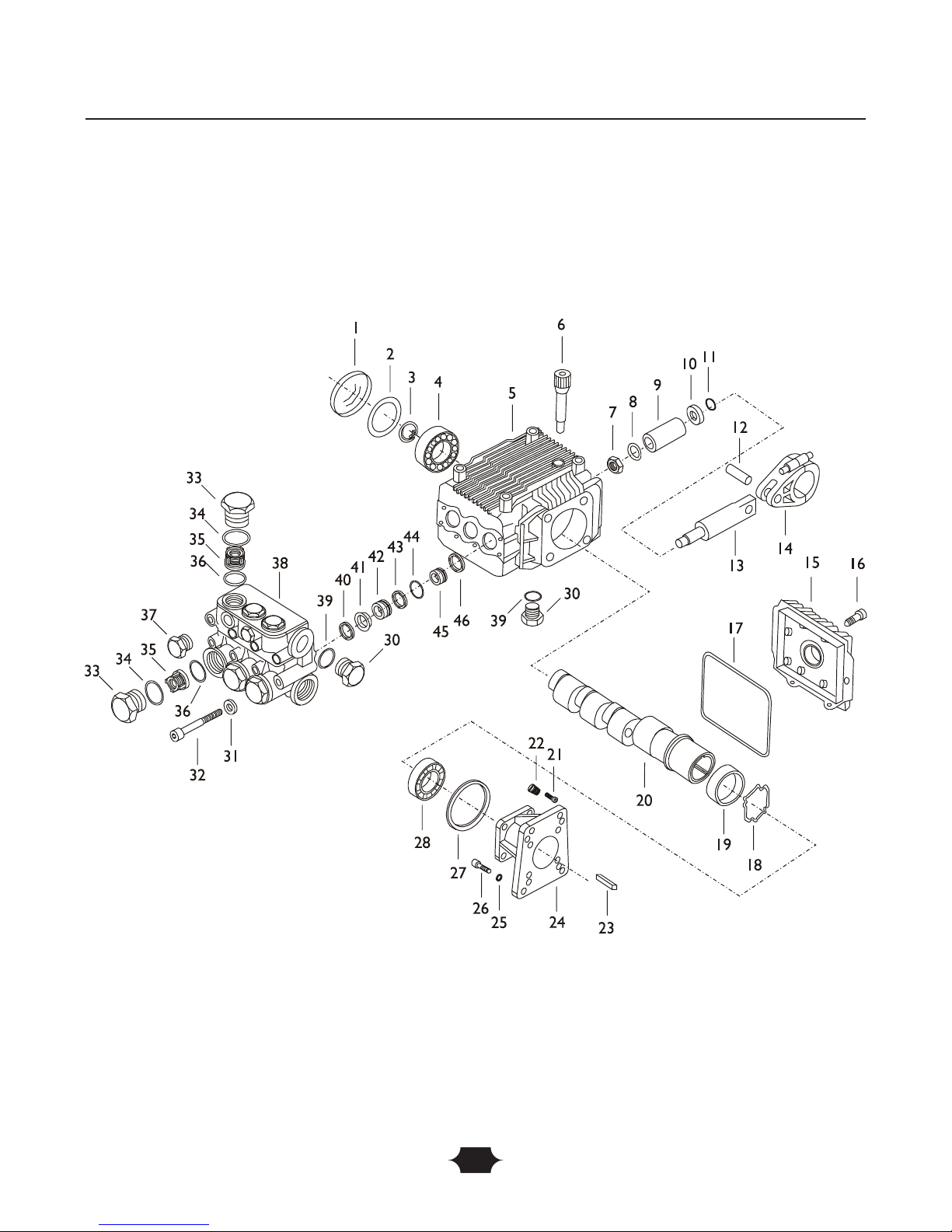

EXPLODED VIEW — PUMP

Section 8: Exploded Views and Parts Lists

PARTS LIST — PUMP

Item Part # Qty Description

1 110B2126GS 1 Cap

2 10887628PGS 1 Circlip

3 112B2126GS 1 Snap Ring

4 113B2126GS 1 Bearing

5 109B2126GS 1 Pump Body

6 11287628PGS 1 Oil Cap/Dipstick

7 11087822PGS 3 Nut

8 11187822PGS 3 Piston Washer

9 123B2126GS 3 Piston

10 11687628PGS 3 Spacer Disc

11 11587628PGS 3 O-Ring

12 115B2126GS 3 Piston Pin

13 120B2126GS 3 Guiding Piston

14 119B2126GS 3 Con Rod

15 118B2126GS 1 Complete Rear Cover

16 117B2126GS 6 Screw

17 116B2126GS 1 O-Ring

18 12687628PGS 1 Snap Ring

19 12587628PGS 1 Bearing

20 149B2126GS 1 Hollow Shaft

21 155B2327GS 4 Screw

22 152B2126GS 1 Grub Screw

23 63281GS 1 Key

Service Kits:

Item Part # Qty Description

24 150B2126GS 1 Gas Engine Flange

25 22237GS 4 Washer, Lock

26 23645GS 4 Screw

27 151B2126GS 1 Bushing

28 12187822PGS 1 Seal

30 10487628PGS 2 Plug

31 137B2126GS 8 Washer

32 10087822PGS 8 Screw

33 102B2126GS 6 Plug

34 10187822PGS 6 O-Ring

35 10287822PGS 6 Complete Valve

36 10387822PGS 6 O-Ring

37 11193360PGS 1 Plug

38 136B2126GS 1 Head

39 10387628PGS 2 O-Ring

40 106B2126GS 3 Support Ring

41 10587822PGS 3 Gasket

42 108B2126GS 3 Piston Guide

43 10393360PGS 3 Gasket

44 10493360PGS 3 O-Ring

45 131B2126GS 3 Rear Piston Guide

46 16593360PGS 3 Seal

500-87628PGS

Valve Kit

201-B2126GS

Piston Kit

202-B2126GS

Oil Seal Kit

203-B2126GS

Water Seal Kit

204-B2126GS

Support Ring

Kit

Item

Qty.

Item

Qty.

Item

Qty.

Item

Qty.

Item

Qty.

Section 8: Exploded Views and Parts Lists

EXPLODED VIEW — UNLOADER

Section 8: Exploded Views and Parts Lists

PARTS LIST — UNLOADER

Item Part # Qty Description

0 153B2126GS 0 Complete Unloader

4 210B2327GS 1 Hose Tail

5 95458GS 1 Quic Disconnect

6 231B2327GS 3 O-Ring

7 211B2327GS 1 Stainless Ball

8 212B2327GS 1 Spring

9 186833GS 1 Injection Body

10 215B2327GS 1 Injector Nut

11 137B2327GS 1 O-Ring

12 216B2327GS 1 Spring

13 217B2327GS 1 Plunger

14 218B2327GS 1 O-Ring

15 220B2327GS 1 Spacer Plate

16 221B2327GS 1 Spring

17 222B2327GS 1 Spring, Spacer Plate

18 219B2327GS 1 Upper Piston

19 223B2327GS 1 Pin

20 224B2327GS 1 Ring

21 225B2327GS 1 O-Ring

22 228B2327GS 1 Valve Housing

23 227B2327GS 1 Washer

Service Kits:

Item Part # Qty Description

24 226B2327GS 1 Inlet Bolt

25 248B2327GS 1 Plug

26 155B2327GS 1 Screw

27 246B2327GS 1 Nut

28 245B2327GS 1 Knob

29 243B2327GS 1 Housing

30 244B2327GS 1 Pin

31 242B2327GS 1 Spring Guide

32 229B2327GS 2 Ring

33 232B2327GS 1 Lower Piston

34 234B2327GS 1 O-Ring

35 233B2327GS 1 Piston Guide

36 235B2327GS 1 O-Ring

37 238B2327GS 1 Bypass Fitting

38 236B2327GS 1 Inlet Bolt

39 237B2327GS 1 Washer

40 239B2327GS 1 Washer

41 95320GS 1 Conn, Gdn Hse

42 230B2327GS 1 Washer

43 28739GS 1 Wrap,Tie

250-B2327GS

Item

Qty.

Item

Qty.

Item

Qty.
