SPEEDY 300 LASER MANUEL

SPEEDY 300

The laser machine Speedy 300 in different version of Autocad makes it possible to cut and engrave

different materials with great accuracy (+/- 0.05mm). It is a good way to create an accurate model of your

design. This manual provides information on what should be done before using Speedy 300 and how to use

Speedy 300. Please read this manual carefully before start using Speedy 300. Note that the use of Speedy

300 is allowed only under supervision of qualified staff of the workshop.

Start with the machine setup!

Powering On:

After turning on the power, the table will drop to

the “zero” Z axis position. Do not interfere with the

laser while it’s doing this.

XYZ Controls:

• The red arrow keys control XY movement

• The black arrow keys control the Z axis

• The only other button you may use on this

control pad is the “Pause” button. DO NOT USE

AUTOFOCUS, IT DOES NOT WORK

Power switch

Sheridan College

Install the sheet on the table and position to the top-

left corner. Find the focusing probe that has a pin color

that matches the lens color and rest in on the edge of

the laser head. Bring the Z axis up until it’s about 2mm

above the surface and tap it the rest of the way until

the focusing probe just falls off.

Open Autocad and your drawing (dwg, dxf).

The machine is able to do two operations and they are differentiated by colors.

Cutting operation: Color RED, Line weight=0

Engraving operation: Color BLACK

You can address more colors for these operations later.

Focusing on your material:

To be cut

To be engraved

Sheridan College

Click on PRINT (PLOT) and define the parameters

Process Mode = Standard Minimize to Jobsize = Checked

Width = max 29 in.

Cut Line = As you desire

Height = max 17 in.

Resolution = As you desire

Keep the lid open when you send the printing job from ACAD to Job control. From some reason it starts to print

instantly if the lid left open.

Define printing area

Define custom paper size

Define material

Sheridan College

Before final plot click on Preview, make sure everything is on the page you want to process and print after.

Job Control automatically pops up.

Your job is here

DRAG YOUR JOB TO THE

PRINTING AREA AND LOCATE

ON THE HONEYCOMB TABLE

Showing the

drawing

Material

templates

Match the

operation to

the color

Sheridan College

For the acrylic apply these parameters

Connecting the laser (Job Control):

Click the plug and socket button!

Make sure the ventilation filter system is

turned on!

Sheridan College

Close the lid before print!

Troubleshooting

•If Speedy 300 won’t cut and/or engrave in the right way, press ‘pause’ on your screen. Check in the

AutoCAD file if you have drawn all lines as polylines, splines or circles. Check if you placed all lines

on the same layer in the layer control. Check if there are no overlapping lines

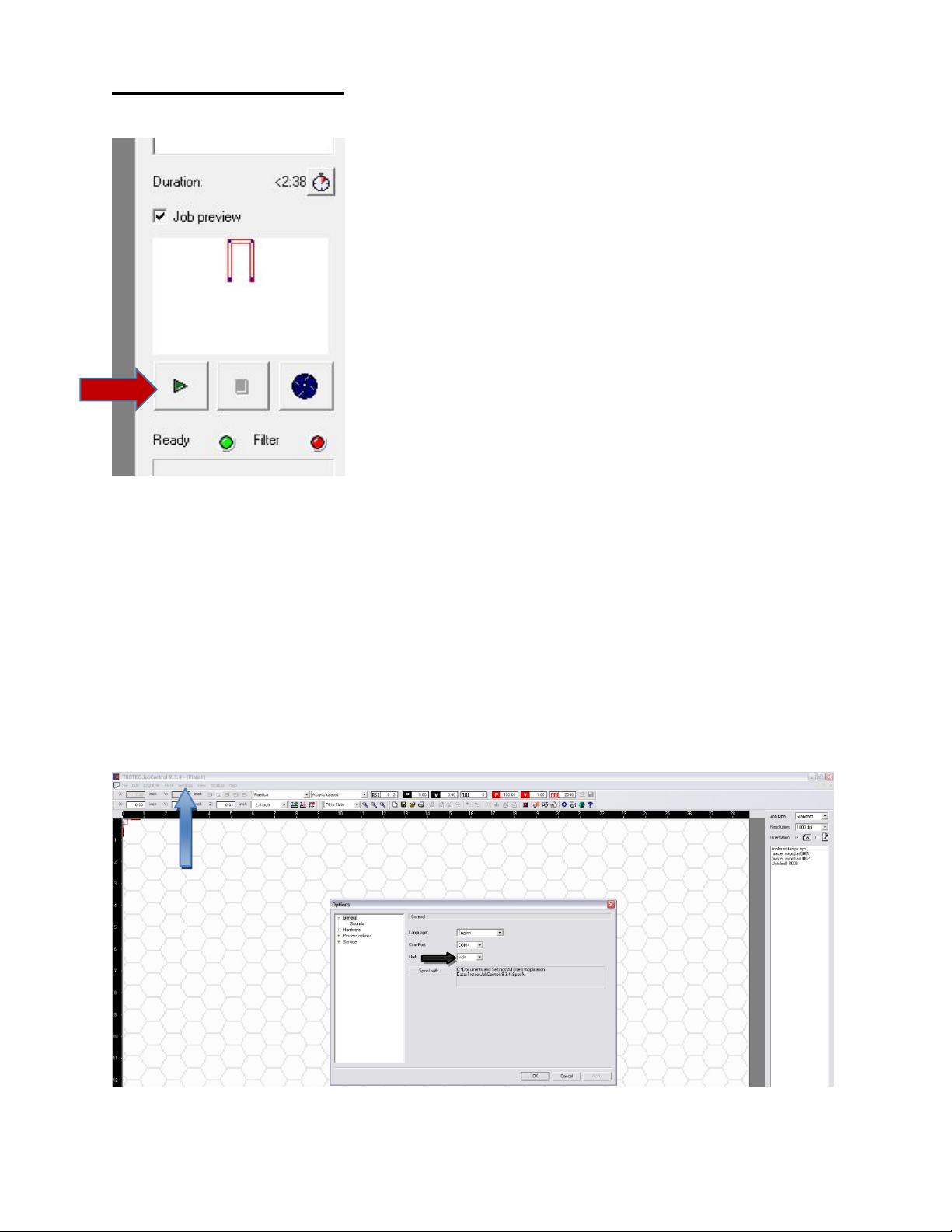

Units in Job Control:

Click “Settings” “Options”

Select units in pull down menu and press “OK” (Note: If units are in inches, it will tell you to select a

number within some range, this is a bug in the software so ignore it and exit out, the changes will still be

made)

Sheridan College

Materials we can laser cut:

We can cut the following materials. If you do not see your material listed, please ask a ULI if the material is

okay to use.

• Plastics:

oABS (acrylonitrile butadiene styrene) oAcrylic (also known as Plexiglas, Lucite, PMMA)

oDelrin (POM, acetal) — for a supplier, try www.mcmaster.com.

oKapton tape (Polyimide)

oMylar (polyester)

oNylon — melts badly

oPETG (polyethylene terephthalate glycol)

oPolyethylene (PE) — melts badly

oPolypropylene (PP) — melts somewhat

oStyrene

oTwo-tone acrylic — top color different than core material, usually for custom

instrumentation panels, signs, and plaques.

• Foam:

oDepron foam — often used for RC planes.

oEPM

oGator foam — foam core gets burned and eaten away compared to the top and bottom

hard shell.

Sheridan College

• Other:

oCloths (leather, suede, felt, hemp, cotton)

oMagnetic sheets

oPapers

oRubbers (neoprene)— for a supplier, try www.mcmaster.com.

oTeflon (PTFE, Polytetrafluoroethylene) — for a supplier, try www.mcmaster.com.

oWoods (MDF, balsa, birch, poplar, red oak, cherry, holly, etc.) — for a supplier, try

www.midwestproducts.com.

Materials we cannot laser cut:

We do not or cannot cut the following materials:

• Metals — We cannot cut through any metals. We do stock an acrylic-based, dual-tone plastic with

a faux-metal finish on one side. If you need metal parts, www.dcwaterjet.com might be able to

help you.

• Polycarbonate (PC, Lexan) — we stopped cutting Lexan due to the fumes.

• Any material containing chlorine

• PVC (Cintra) — contains chlorine

• Vinyl — contains chlorine

• Glass — you can engrave glass, but trying to cut it will cause cracking or breakage

• Fiberglass

• Printed circuit board (FR4 and other material types)

• Carbon fiber
