TriStar PD-8779 Manual de usuario

PD-8779

EN| Instruction manual

NL| Gebruiksaanwijzing

FR | Mode d’emploi

DE| Bedieningsanleitung

PL | Instrukcja obsługi

CS | Návod na použití

SK | Návod na použitie

ES | Manual de usuario

IT | Manuele utente

DK| Brugervejledning

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES /TEILEBESCHREIBUNG /

OPIS CZĘŚCI / POPIS SOUČÁSTÍ / POPIS SÚČASTÍ / DESCRIPCIÓN DE LAS PIEZAS / DESCRIZIONE DELLE

PARTI / BESKRIVELSE AF BESTANDDELE

Instruction manual

SAFETY

• Please read this user’s manual carefully to

ensure proper use, maintenance and

installation.

• By ignoring the safety instructions the

manufacturer cannot be held responsible for

the damage.

• The appliance is for indoor use only.

• Do not use the unit on a socket that is

damaged or that has not been installed

correctly.

• Do not use the unit:

– near a source of fire.

– in an area where oil is likely to splash.

– in an area exposed to direct sunlight.

– in an area where water is likely to

splash.

– near a bath, a shower or a swimming

pool.

• Never insert your fingers or objects into the

air outlet. Take special care to warn children

of these dangers.

• Keep the unit upright during transport and

storage.

• Before cleaning the unit, always turn off or

disconnect the power supply.

• Always turn off and disconnect the power

supply before moving the unit.

•WARNING: To avoid the risk of fire, do

not cover the unit.

• All the unit sockets must comply with the

local electric safety requirements. If

necessary please check.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualified persons in order

to avoid a hazard.

• If the supply cord is damaged, it must be

replaced by the manufacturer, service agent

or qualified person(s) in order to avoid a

hazard.

• This appliance can be used by children aged

8 years and above, persons with reduced

physical, sensory, and mental capabilities or

persons with a lack of experience and

knowledge if they have been given correct

supervision or instruction concerning the use

of the appliance in a safe way and

understand the hazards involved. Children

should not play with the appliance. Cleaning

and user maintenance should not be carried

out by children without supervision.

Instruction manual

• This appliance is only to be used for

household purposes and only for the

purpose it is made for.

• Notes:

– In the case of any damage, please

disconnect the power supply and contact

the dealer or a designated repair shop.

– In any case, the power cord shall be

firmly grounded.

– To avoid the possibility of danger, if the

power cord is damaged, please

disconnect the power supply. It must be

replaced by the dealer or a designated

repair shop.

Warning

• Please use the recommended defrosting and

cleaning process from the manufacturer

only. Do not accelerate the defrosting or

cleaning process in any other way.

• The appliance shall be stored in a room

without continuously operating ignition

sources (for example: open flames , an

operating gas appliance or an operating

electric heater).

• Do not pierce or burn.

• Be aware that refrigerants may not contain

an odor.

• The appliance should be installed, operated

and stored in a room with a floor area larger

than X m2. (X=4 for 5000Btu/h, 7000Btu/h,

8000Btu/h; X=7.7 for 9000Btu/h. 10000Btu/

h, 10500Btu/h)

• Only contact an authorized service

technician for repair or maintenance of this

unit.

• Do not pull , deform or modify the power

supply cord or immerse in water . Pulling or

misuse of the power supply cord could result

in damage to the unit and cause an electrical

shock.

• Compliance with national gas regulations

should be observed.

• Keep ventilation openings clear of

obstructions.

• Any person who is involved with working on

or opening a refrigerant circuit should hold a

current valid certificate from an industry

accredited assessment authority which

authorizes their competence to handle

refrigerants safely in accordance with an

industry recognized assessment

specification.

Instruction manual

• Servicing should only be performed as

recommended by the equipment

manufacturer. Maintenance and repair

requiring the assistance of other skilled

personnel should be carried out under the

supervision of a person(s) competent in the

use of flammable refrigerants.

• Do not stop the unit by pulling out the power

plug whilst in operation as this may cause

an electric shock or fire due to heat

generation unless strange sounds are heard

or if strange smells or smoke appear from

the unit.

Specific information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.

• When defrosting and cleaning the

appliance , do not use any tools other than

those recommended by the manufacturing

company.

• The appliance should not be stored in a

room with continuously operating ignition

sources (for example: open flames , an

operating gas appliance or an operating

electric heater).

• Do not puncture and do not burn.

• Appliance shall be installed, operated and

stored in a room with a floor area larger than

X m2. (X=4 for 5000Btu/h, 7000Btu/h,

8000Btu/h; X=7.7 for 9000Btu/h. 10000Btu/

h, 10500Btu/h)

• This appliance contains Y g (see rating label

back of unit ) of R290 refrigerant gas.

• R290 is a refrigerant gas that complies with

the European directives on the environment.

Do not puncture any part of the refrigerant

circuit.

• If the appliance is installed, operated or

stored in a non-ventilated area, the room

must be designed to prevent to the

accumulation of refrigerant leaks that could

result in a fire risk or explosion due to

ignition of the refrigerant caused by electric

heaters, stoves, or other sources of ignition.

• The appliance must be stored in such a way

as to prevent mechanical failure.

Instruction manual

• Individuals who operate or work on the

refrigerant circuit must have the appropriate

certification issued by an accredited

organization that ensures competence in

handling refrigerants according to a specific

evaluation recognized by associations in the

industry.

• Repairs must be performed based on the

recommendation from the manufacturing

company. Maintenance and repairs that

require the assistance of other qualified

personnel must be performed under the

supervision of an individual specified in the

use of flammable refrigerants.

Batteries

• Do not expose the battery to high

temperatures or direct sunlight. Never throw

batteries into the fire. There is a danger of

explosion!

• Keep batteries away from children. Batteries

are not a toy!

• Do not open the batteries by force.

• Avoid contact with metallic objects.(Rings,

nails, screws et cetera) there is a danger of

short-circuiting!

• As a result of a short-circuit batteries may

heat up consider-ably or even catch fire. this

may result in burns.

• For your safety the battery poles should be

covered with adhesive strips during

transport.

• Do not touch a ruptured and/or leaking

battery. If the liquid from the battery gets into

your eyes, rinse your eyes as soon as

possible with clean water, without rubbing

your eyes. Immediately go to the hospital. If

it is not treated properly, it can cause eye

problems.

Refrigerant

(CE) N 842/2006: This unit contains the refrigerant R290. The amount

of refrigerant is less than 1kg, and is in a closed cooling circuit. The

coolant does have zero ozone depletion potential, but is a so-called

greenhouse gases under the Kyoto Protocol and may thus contribute

to global warming, if it is released to the atmosphere. Therefore only

trained technicians with refrigerant certificate make a filling or

emptying. Your appliance does not have be refilled with refrigerant if

used properly and has an undamaged coolant circuit. GWP: R290: 3

Instruction manual

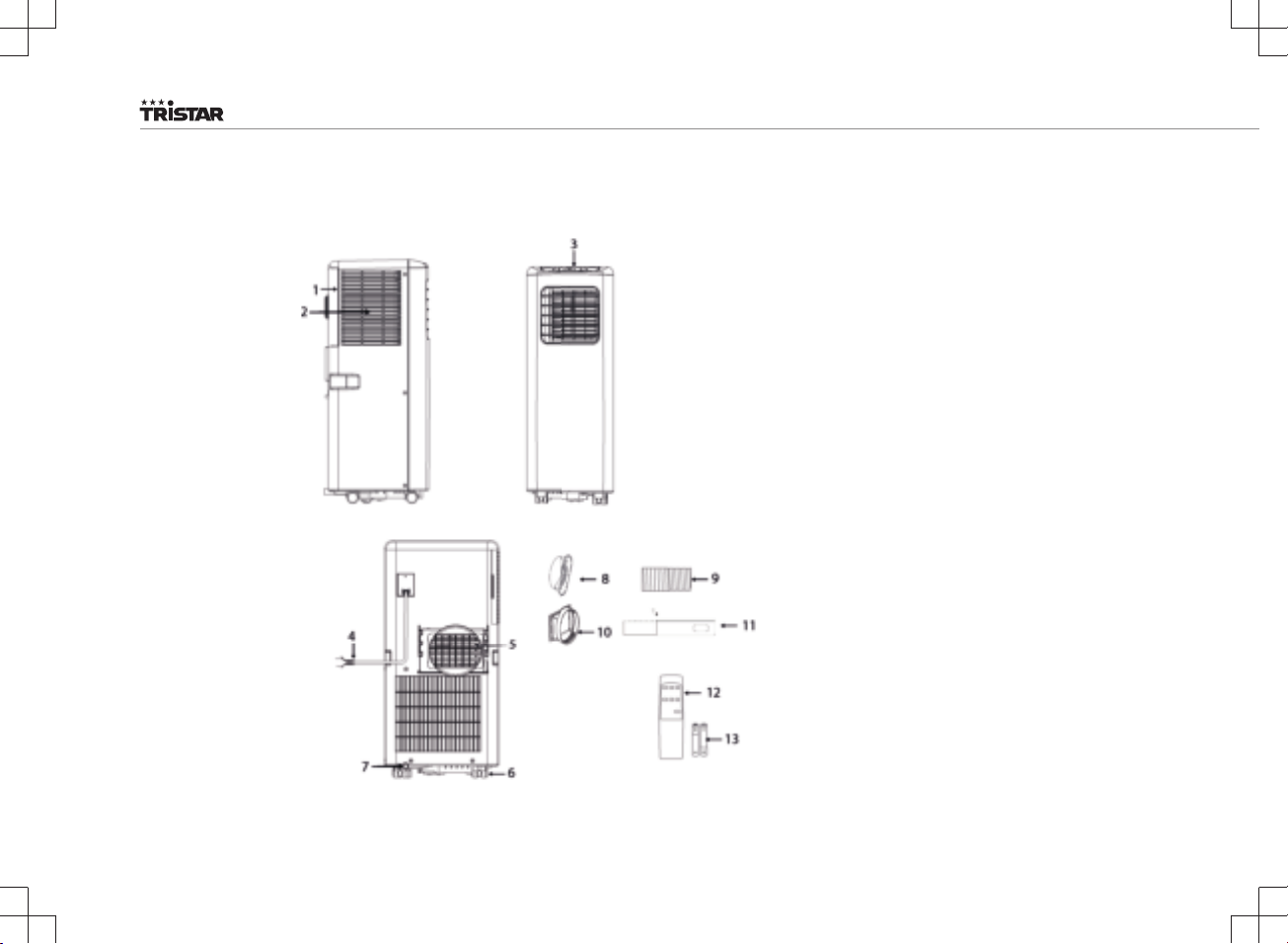

PARTS DESCRIPTION

1. Air inlet 8. Hose connector (window end)

2. Air filter 9. Hot-air exhaust hose

3. Control panel 10. Hose connector (Air conditioner end)

4. Power cord 11. Windows slider kit + fixing plugs

5. Air outlet 12. Remote control

6. Castor 13. Batteries

7. Drainage hole

Instruction manual

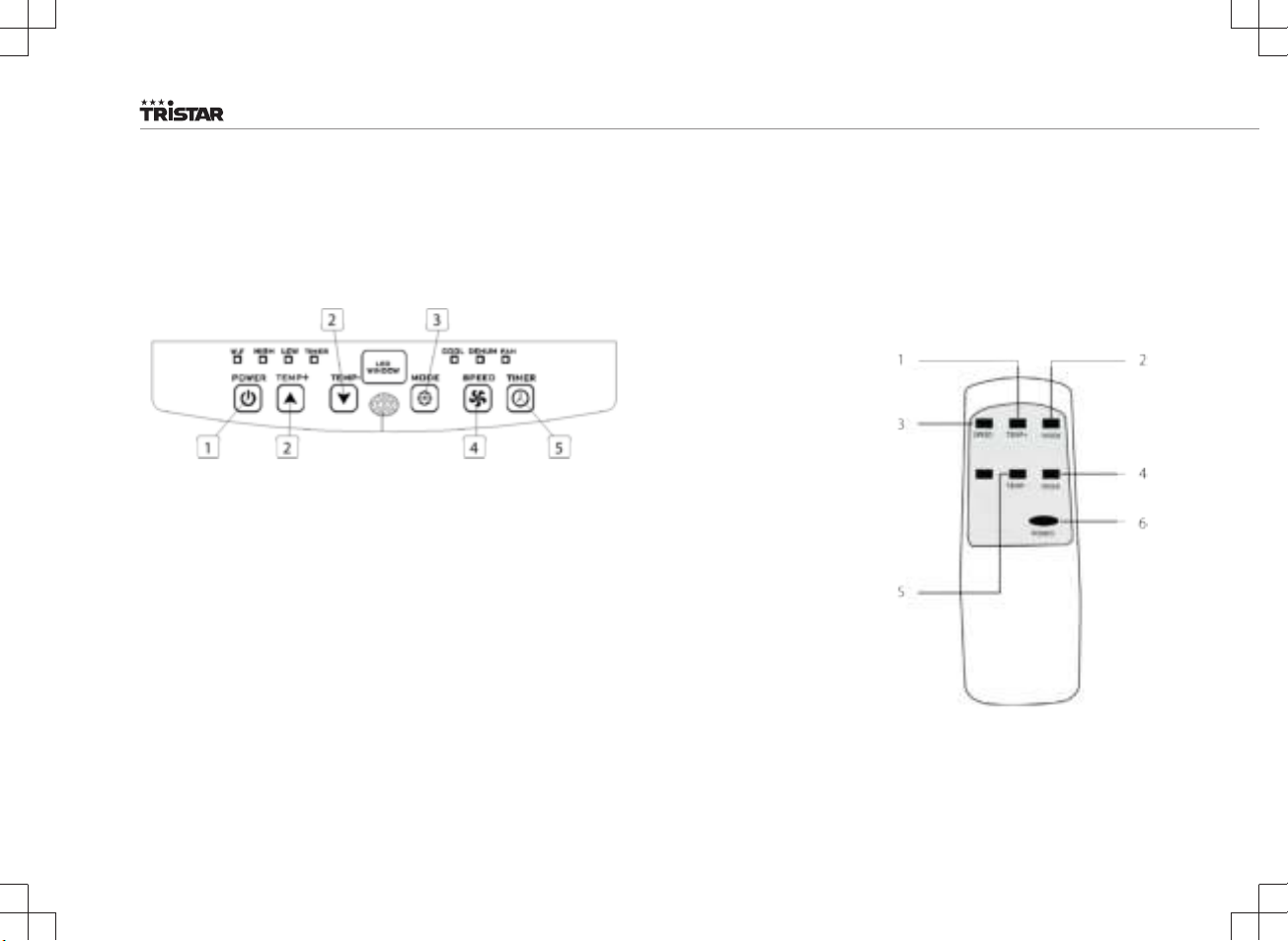

FUNCTION OF CONTROL PANEL

1. Power (on/off) button

2. Temperature buttons

3. Mode button

4. Fan speed adjustment button

5. Timer (on/off) button

REMOTE CONTROL

1. Temperature up button

2. Mode button

3. Fan speed adjustment button

4. Timer (on/off) button

5. Temperature down button

6. Power (on/off) button

Instruction manual

BEFORE THE FIRST USE

Before starting operations in this section:

• Find a place where there is power supply nearby.

• Install the exhaust hose and adjust the window position well.

• The supplied small white clips must be mounted on the window

kit.

• Insert the power cord into a grounded AC220~240V/50Hz socket.

• Press the power button to turn on the air-conditioner.

• Set the temperature range: 16°C-31°C.

• Check whether the exhaust hose has been mounted properly.

• When using functions on cooling and dehumidifying, allow at

least 3 minutes between powering off and powering on.

USE

Cooling operation

• Press the “mode“ button till the “Cool“ icon appears.

• Press the or button to select a desired room

temperature.

• Allow around 5 minutes for the cooling to start.

• Press the “fan speed” button to adjust airflow.

Dehumidifying operation

• Press the “Mode“ button until the “dehumidify indicator lamp“

blinks.

• The temperature will automatically be selected.

• The fan speed will automatically be selected.

Timer operation

Timer ON setting

• When the air-conditioner is OFF, press the “Timer“ button and

select a desired ON time and adjust using the temperature

buttons.

• The ON time can be adjusted to anytime in 0-24 hours.

Timer OFF setting

• When the air-conditioner ON, press “Timer“ button and select a

desired OFF time through the temperature buttons.

• The OFF time can be adjusted to anytime in 0-24 hours.

Drainage

• After a lengthy operation and before storage, you will need to

drain the water that has been collected. Please prepare a

suitable location or tray to collect the water and remove the

Instruction manual

rubber stop from the drainage hole at the bottom of the unit. The

water will then begin to drain. After this has stopped, you can

insert the drain stop.

Internal Tank Water Full Alarm Function

• The inner water tank in the air-conditioner has one water level

safety switch that controls the water level. When the water level

reaches an anticipated height, the water full indicator lamp lights

up. Follow above steps to drain the water.

INSTALLATION

• The air-conditioner should be installed on a flat and stable

surface. Do not block the air outlet and allow at least 30cm

around the unit.

• Socket wiring should be in accordance with the local electric

safety requirements.

Exhaust Hose Installation

• Twist both ends of the hot-air exhaust hose into the hose

connector window end and the hose connector air conditioner

end.

• Insert the hose connector air conditioned end into the openings at

the back of the air conditioner.

• Fix the hose connector window end to the nearest windowsill.

Tabla de contenidos

Idiomas:

Otros manuales de Acondicionador de aire de TriStar

TriStar

TriStar AT-5464BS Manual de usuario

TriStar

TriStar AC-5521 Manual de usuario

TriStar

TriStar AC-5564CH Manual de usuario

TriStar

TriStar AC-5474 Manual de usuario

TriStar

TriStar AC-5500B Manual de usuario

TriStar

TriStar AC-5493 Manual de usuario

TriStar

TriStar AC-5560 Manual de usuario

TriStar

TriStar AC-5502AM Manual de usuario

TriStar

TriStar AC-5492 Manual de usuario

TriStar

TriStar AC-5552 Manual de usuario

TriStar

TriStar AC-5477 Manual de usuario

TriStar

TriStar AT-5465 Manual de usuario

TriStar

TriStar AT-5433 Manual de usuario

TriStar

TriStar AT-5464 Manual de usuario

TriStar

TriStar AC-5517 Manual de usuario

TriStar

TriStar AC 5490 Manual de usuario

TriStar

TriStar AC-5493 Manual de usuario

TriStar

TriStar AC-5413 Manual de usuario

TriStar

TriStar AC-5560 Manual de usuario

TriStar

TriStar AT-5461 Manual de usuario

TriStar

TriStar AC-5491 Manual de usuario

TriStar

TriStar AT-5450 Manual de usuario

TriStar

TriStar AT-5451 Manual de usuario

TriStar

TriStar AC-5527PR Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
