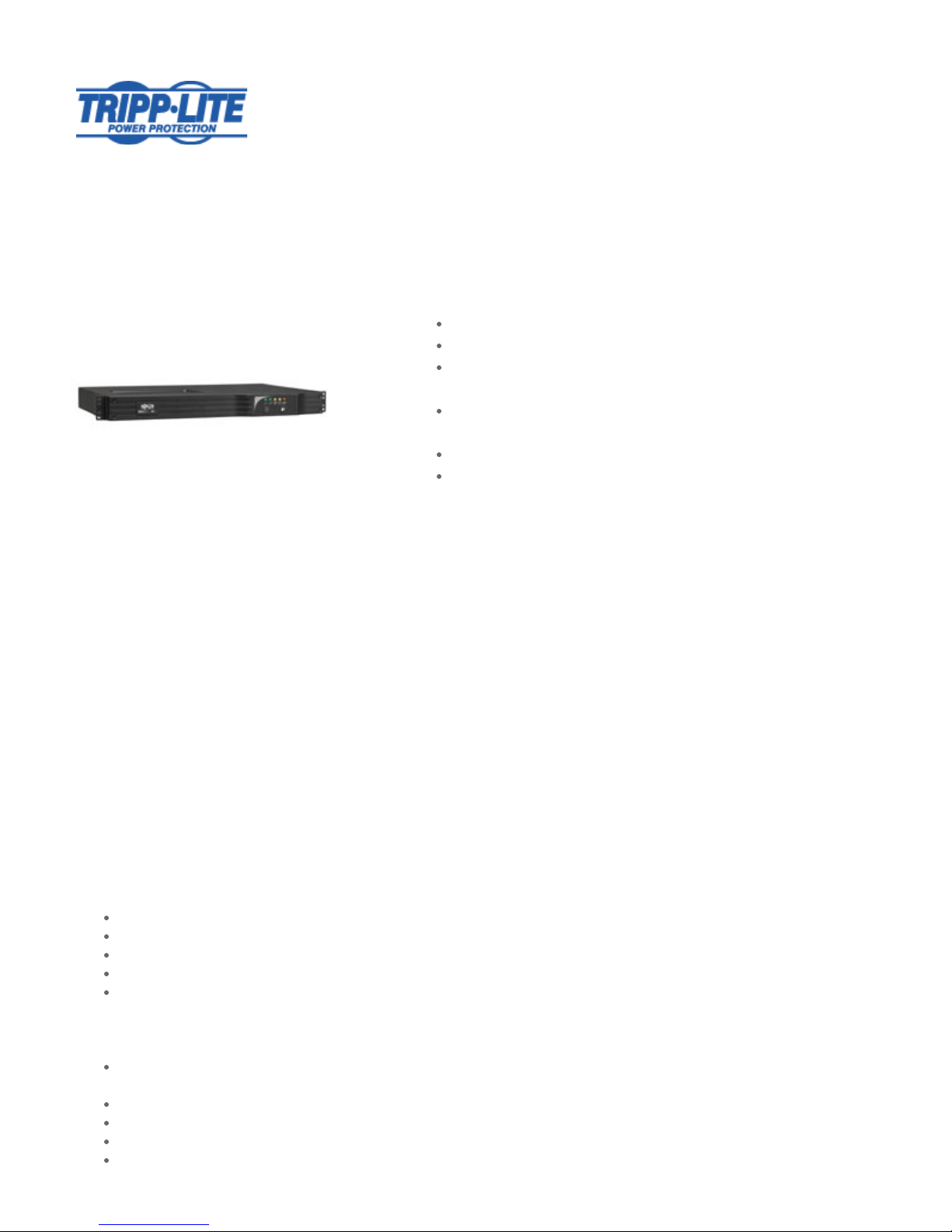

Model #: SM500RMNAFTA

Smart Pro Line Interactive Rack/Tower UPS - NAFTA assembled version of SMART500RT1U

Highlights

500VA line interactive 1U rack/tower UPS

6 outlets with 1 switchable load bank

Simultaneous communications via SNMPWEBCARD slot, USB and DB9 serial

ports

Included PowerAlert UPS monitoring software manages an unlimited number

of network UPS systems

Built-in voltage regulation corrects brownouts to 90V

$250,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Description

Tripp Lite's SM500RMNAFTA intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment

damage due to power outages, voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack, with included

accessories for upright tower placement. Large internal batteries offer 8 minutes half load runtime and 3 minutes at full load. Maintains regulated

120V nominal output without using battery power during brownouts as low as 90V. 500VA/300 watt power handling capability is compatible with

networking, telecom and other sensitive electronic applications. Includes 6 UPS supported outlets with a single outlet load bank that can be

individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more

critical equipment. Includes 1 surge-only outlet for peripherals not requiring battery backup. Supports simultaneous remote monitoring of UPS and

site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with

complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers

option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set

of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from

damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. $250,000 connected equipment

insurance (USA and Canada Only).

Package Includes

SM500RMNAFTA UPS System

Mounting hardware

Cabling for USB & DB9 monitoring and EPO switching

PowerAlert unattended shutdown and UPS/Power monitoring software

Warranty information and instruction manual

Features

SM500RMNAFTA line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during

brownouts, plus network-grade AC surge suppression

500VA/300 watt power handling capability compatible with networking, telecom and other sensitive electronic devices

Supports 1U rackmount installation in 2 or 4 post rack enclosures, upright tower placement also supported - mounting accessories included

Large internal batteries offer runtimes of 17 minutes at half load (250VA/150 watts) and 5 minutes at full load (500VA/300 watts)

Maintains regulated 120V nominal output during brownouts as low as 90V

Includes 6 UPS-supported outlets, with one pair of individually controllable outlets that can be powered off and back on again via software

interface

PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email

notification, event logging and running user-defined script commands

Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional

SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free

PowerAlert enterprise management software is also available for select opportunities

Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage,

DC battery voltage and remaining battery capacity

Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate

reboot of connected devices

Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating

systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires

optional WATCHDOGSW)

Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter

Emergency Power Off (EPO) interface with cable

Multi-function audible alarms and set of 5 front panel LEDs

Network-grade AC surge suppression

Attractive all-black color scheme

UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary

$250,000 connected equipment insurance (USA and Canada Only)

Specifications

OUTPUT

Output Volt Amp

Capacity (VA)

500

Output Watt Capacity

(watts)

300

Output power factor 0.6

Nominal Output

Voltage(s) Supported

120V

Frequency compatibility 60 Hz

Output voltage

regulation (line mode)

-15%, +13%

Output voltage

regulation (Battery mode)

+/- 5%

Built-in UPS output

receptacles

7 5-15R outlet(s)

Built-in controllable

switched load banks

One switchable single-outlet 5-15R load bank

Basic PDU options PDU1215 (1U / 13 5-15R outlets); PDUNV (1U / 2 C19, 12 C13 outlets); PDU1415 (0U / 14 5-15R outlets);

PDUV15 (0U / 12 5-15R outlets)

Metered PDU options PDUMH15 (1U / 13 5-15R outlets); PDUMH15AT (1U / 8 5-15R outlets)*; PDUMV15 (0U / 16 5-15R outlets)

Switched PDU options PDUMH15ATNET (1U / 8 5-15R outlets)*; PDUMV15NET (0U / 16 5-15R outlets)

External PDU

redundancy options

*Auto Transfer Switch features utilizing the secondary PDU input cord are compatible with Smart Online UPS

models only

Output AC waveform (AC

mode)

Sine wave

Output AC waveform

(battery mode)

PWM sine wave

INPUT

Rated input current (at

maximum load)

5.6A

Nominal Input Voltage(s)

Supported

120V AC

UPS input connection

type

5-15P

Input circuit breaker 15A

UPS Input cord length

(ft.)

10 ft., 14 gauge, Black

UPS Input cord length

(m)

3.05

Recommended Electrical

Service

15A 120V

BATTERY

Full load runtime

(minutes)

3 min. (300w)

Half load runtime

(minutes)

8 min. (150w)

DC system voltage (VDC) 12

Battery recharge rate

(included batteries)

Less than 4 hours from 10% to 90%

Replacement battery

cartridge (internal UPS

battery replacement)

RBC62-1U

Battery Access Battery access door

Battery replacement

description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation

description

Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90

Undervoltage correction Input voltages between 90 and 108 are boosted by 14%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression

joule rating

480 joules

EMI / RFI AC noise

suppression

Yes

AC suppression

response time

Instantaneous

PHYSICAL

Installation form factors

supported with included

accessories

4 post 19 inch rackmount (mounting rail kit included)

Included mounting

accessory description

Adjustable mounting rail kit included

Primary form factor Rackmount

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / inches)

1.7 x 17.5 x 11.8

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / cm)

4.4 x 44.4 x 29.8

Installed whole system

total rack space height

(rack spaces)

UPS / Power Module

weight (lbs)

17.6

UPS / Power Module

weight (kg)

UPS Shipping

dimensions (height x

width x depth / inches)

5 x 22.5 x 16

UPS Shipping

dimensions (height x

width x depth / cm)

12.7 x 57.2 x 40.6

Shipping weight (lbs) 19.9

Shipping weight (kg) 9

UPS housing material Steel

ENVIRONMENTAL

Operating Temperature

Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature

Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full

load)

65.1

Battery mode BTU / hr.

(full load)

287.7

COMMUNICATIONS

Communications

interface

USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port

description

Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable USB and DB9 cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to

battery power (setpoint)

High voltage transfer to

battery power (setpoint)

136

SPECIAL FEATURES

Grounding lug Back panel grounding lug

Cold Start (startup in

battery mode during a

power failure)

Cold-start operation supported

High availability UPS

features

Hot swappable batteries

Green & high efficiency

features

Individually controllable load banks

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B

(EMI); ROHS (Restriction of Hazardous Substances)

WARRANTY

Product Warranty Period

(Worldwide)

2-year limited warranty

Connected Equipment

Insurance (U.S., Canada

& Puerto Rico)

$250,000 Ultimate Lifetime Insurance

Related Items

Optional Products

Product Type Related Model Description Qty.

Audio Cables CT120 Instant-Read- AC Outlet Circuit Tester 1

Extended Warranties WEXT3-500-1500 3-Year Extended Warranty - For Smart Line-Interactive and Online

Tower or Rack models, 1500VA or less

Extended Warranties WEXT5-500-1500 5-Year Extended Warranty - For Smart Line-Interactive and Online

Tower or Rack models, 1500VA or less

Power Distribution PDU1215 Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

Power Distribution PS7224 Tripp Lite Power Strip - Multiple outlets wherever you need them 1

SNMP Accessories ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires

SNMPWEBCARD or switched PDU.)

SNMP Accessories SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1

Software WATCHDOGSW WatchDog Service Monitoring / Reboot Software 1

Surge Protectors DCATV Network Surge Suppressor - Essential protection for TV/VCR coaxial

lines

Surge Protectors DNET1 Network Surge Suppressor - Essential protection for data and

communication lines

Surge Protectors DTEL2 Network Surge Suppressor - Essential protection for data and

communication lines

UPS Accessories MODBUSCARD For remote monitoring and control via MODBUS protocol 1

USB Hubs/Accessories U022-010 10-ft. USB2.0 A/B Gold Device Cable

(A Male to B Male)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3531.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.

Otros manuales para SmartPro SMART1500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite SmartPro SMART2600RM2U Guía de instalación

Tripp Lite

Tripp Lite SmartPro SMART750RMXL2U Manual de usuario

Tripp Lite

Tripp Lite HT1000UPS Manual de usuario

Tripp Lite

Tripp Lite AGSM5060 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SLT Manual de usuario

Tripp Lite

Tripp Lite OmniSmart Manual de usuario

Tripp Lite

Tripp Lite OmniSmart Manual de usuario

Tripp Lite

Tripp Lite SmartPro Series Manual de usuario

Tripp Lite

Tripp Lite HT850UPS Manual de usuario

Tripp Lite

Tripp Lite OmniSmart OMNIVSINT500 Manual de usuario

Tripp Lite

Tripp Lite 120V AC Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL2U Manual de usuario

Tripp Lite

Tripp Lite Internet Office 700 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000XLNAFTA Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU12000RT4UHW Manual de usuario

Tripp Lite

Tripp Lite SmartPro Series Manual de usuario

Tripp Lite

Tripp Lite SMART600PSGLCD Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1050 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU6000RT4UHVHW Guía de instalación

Tripp Lite

Tripp Lite ECO550UPS Manual de usuario

Tripp Lite

Tripp Lite Digital UPS Systems 200703079 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART3000RM2UN Guía de instalación

Tripp Lite

Tripp Lite SmartOnline SU16KRTHW Guía de instalación

Tripp Lite

Tripp Lite AGOM5516 Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
