Owner'sManual

SmartPro®INT

Rackmount

RackmountIntelligentNetwork

UPSSystems (230V)

ESPAÑOL: p. 8

FRANÇAIS:p.15

DEUTSCH:p.21

Installation: p. 3 - 4

Basic Operation: p. 4 - 7

Storage & Service: p. 7

Specifications: p. 7

Safety: p. 2

Warranty & Insurance: p. 6

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM1

This manual contains important instructions and warnings that should be followed

during the installation, operation and storage of all Tripp Lite UPS Systems.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture, heat, dust and direct sunlight.

• For best performance, keep the indoor temperature between 0° C and 40° C

(between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS to a grounded AC power outlet. Do not modify the the UPS's

plug to eliminate its connection to ground. Do not use adaptors that will

eliminate the UPS's connection to ground.

• Do not plug the UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator

must provide clean, filtered computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a

failure or malfunction of a Tripp Lite UPS System could cause the failure of a

life support device or significantly alter the performance of a life-support device.

• Do not connect surge suppressors to the output of your UPS. This may damage

your UPS and will void both the surge suppressor and UPS warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS for any

reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel. Because

the batteries present a risk of electrical shock and burn from high short-circuit

current, observe proper precautions. Unplug and turn off the UPS before

performing battery replacement. Use tools with insulated handles and replace

the existing batteries with the same number and type of new batteries (Sealed

Lead-Acid). Do not open the batteries. Do not short or bridge the battery termi-

nals with any object.

• The UPS batteries are recyclable. Refer to local regulations for disposal

requirements. Do not dispose of the batteries in a fire.

• Do not attempt to add external batteries unless your UPS is equipped with

External Battery Connectors. Connect only Tripp Lite battery packs with the

correct voltage (see voltage requirements label on the rear of your UPS) and a

connector that matches the color of your UPS’s External Battery Connector.

• Observe proper polarity when connecting replacement batteries. Only connect

Negative (black) wires to Negative (black) terminals. Only connect Positive (red)

wires to Positive (red) terminals.

• During “hot-swap” battery replacement (when the UPS and connected equipment

are turned ON) your UPS will not be able to provide battery backup in the event

of a blackout because the batteries will be momentarily disconnected as they are

exchanged.

Safety

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM2

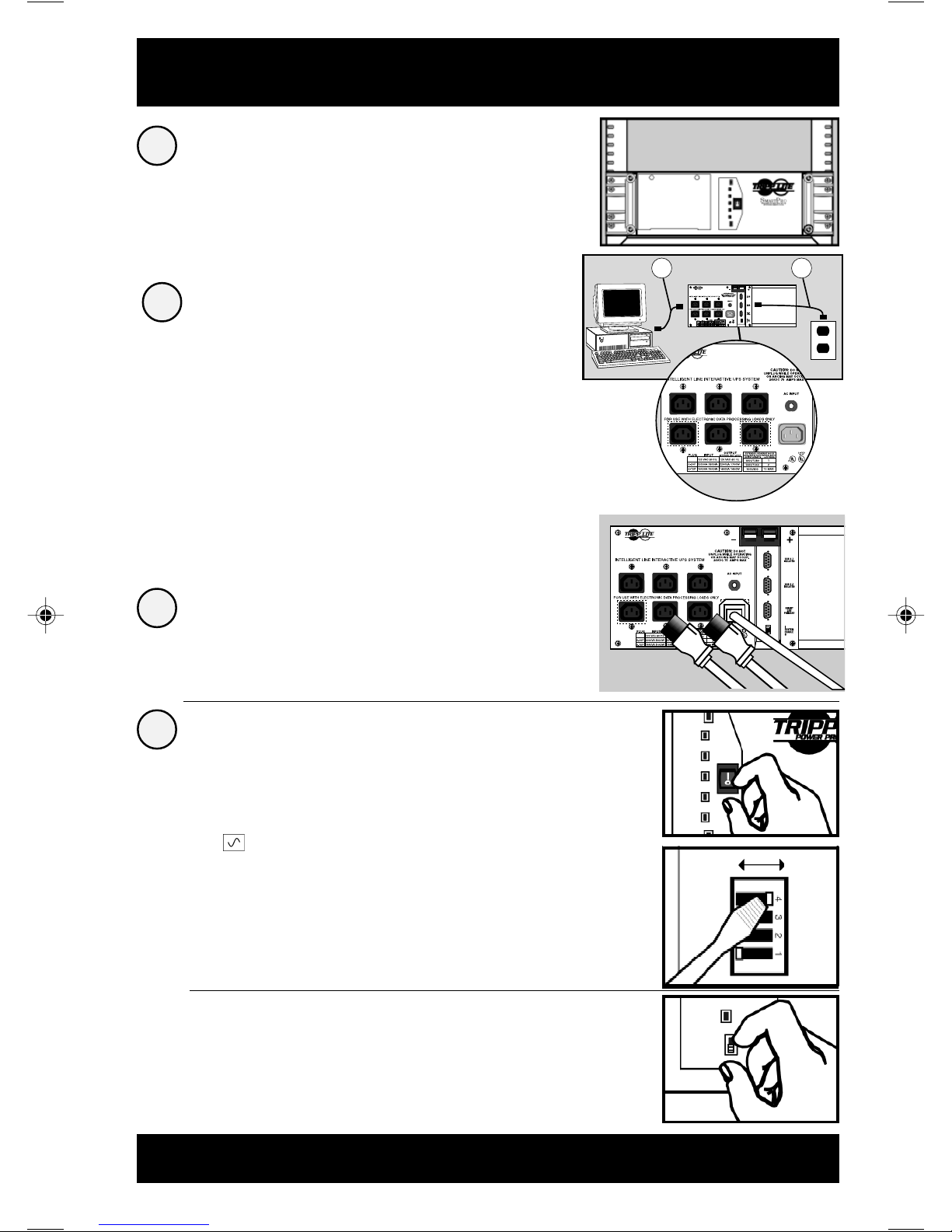

Install rack handles (supplied)

and mount UPS in standard

19 in. rack using standard rack

hardware (user supplied).

Install your UPS in the lowest rack position possible.

Connect your UPS to your

computer and an electrical outlet.

See “Suggested Circuit” in Specifications section

to determine if your model should occupy a 15-amp

or 20- or 30-amp dedicated circuit.

Plug your equipment into

your UPS.

Installation

Turn your UPS ON.

Set the System Enable Switch (the

location varies by model, see Figures 1

and 2) to the “ENABLE” position.

This switch activates the battery charger and

microprocessor.

The “XXX” light will flash until you engage the

ON/Standby Switch to activate the “ON”

mode.

Engage the momentary ON/Standby

Switch (UPS front panel) and release it

to activate the “ON” mode and supply

power to the UPS receptacles.

(See Figure 3)

DB9 Port Connection (Optional) On Next Page . . .

Your UPS is designed to support only computer equipment.

Connecting household appliances, laser printers or surge

suppressors is not recommended.

•

Figure 3

ON/Standby Switch

(All models)

Front Panel

Figure 2

System Enable Switch

(2200 - 3000 VA models)

Back Panel

DIP Switch #4

DISABLE ENABLE

1. Unplugyourcomputer’spower cord frombothyour

ACoutlet and yourcomputer’sAC input.

2. Find the power cord that came with your UPS (A).

Insert the UPS cord’s female plug into your

computer’s AC input. Insert the UPS cord’s male plug

into any of your UPS’s female output receptacles.

3. Insert the female plug of your computer’s cord (B)

into your UPS’s AC input. Insert the male plug of your

computer’scord into your AC outlet.

Figure 1

System Enable Switch

(1400 VA model)

Front Panel

("I" = ENABLE;

"O" = DISABLE)

A B

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM3

Switches

System Enable Switch*

This switch activates the battery charger and intelligent

microprocessor. Always leave it in the “ENABLE” position

when your UPS is plugged in. Set the switch to “DISABLE”

only if you store or ship your UPS (to reduce battery drain).

2200-3000VA models: DIP switch #4 is the system

enable switch.

*Note: the location of the switch varies by model. The “ ” light will flash until you engage the

ON/Standby Switch to activate the “ON” mode (power ON at the UPS receptacles).

DB9 Port Connection

–Optional–*

Using Tripp Lite cable #73-0743,

connect your primary server’s DB9

port to the single DB9 port labeled

“SMART” (which provides complete

intelligent RS-232 communications).**

If your UPS model has

multiple DB9 ports and

you have additional

computers:

AllModels

ConnectadditionalcomputerstotheDB9

portslabeled “BASIC” (whichprovide

basic,contact-closureshutdown

capabilities) using Tripp Lite cabling.

See Figure 1.

2200 - 3000 VA Models

SettheUPS's corresponding LANInterface

DIPSwitchesto the ACTIVATE(LEFT)

position. See Figure 2 to determine which

switch controls which port.***

* Serial port connections are optional. Your UPS will function properly without these connections.

** The “SMART” DB9 port is always enabled and is not controlled by the LAN Interface DIP Switches.

*** If you do not connect a computer to either of the “BASIC” DB9 ports, set their corresponding LAN Interface DIP Switches to the

DEACTIVATE (RIGHT) position. Note: DIP Switch #3 has no function.

Basic Operation

Figure 1

LAN INTERFACE DIP

SWITCHES #2 & #1

(2200 - 3000 VA models)

1400 VA

model

2200 - 3000 VA

models

Figure 2

Load software and run the installation

program appropriate for your operating system.

DEACTIVATE

ACTIVATE

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM4

On/Standby Switch

This momentary switch controls power to the UPS receptacles.

Engage it momentarily and release it to toggle between the “ON” mode

(power ON at the UPS receptacles) and “Standby” mode (power OFF at

the UPS receptacles).

Mute/Test Switch

Use this momentary switch to do two things:

Silence the blackout alarm

Engage this switch and release it. Note: when the battery is nearly

depleted, the alarm resumes (and cannot be silenced) to alert you to

immediately shut down connected equipment.

Test your UPS’s battery charge

Leave your connected equipment ON. With your UPS plugged in and

completely turned ON, engage this switch; hold it there for 5 seconds

and release it. The UPS will momentarily switch to battery to test its

charge. The “XXX” light will turn ON and the alarm may sound if your

UPS fails a self-test and/or the UPS battery is less than fully charged.

Let the UPS charge for 12 hours and perform a second self-test. If the

light continues to stay on, contact Tripp Lite for service. CAUTION:

Do not unplug your UPS to test its batteries. This will remove safe

electrical grounding and may introduce a damaging surge into your

network connections.

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet and

turned ON.

This green light will shine constantly to indicate AC power is available

at the receptacles. It will flash to indicate AC power is not available. (See

“System Enable Switch” and “ON/Standby Switch” descriptions above.)

This multi-colored light displays 7 separate UPS battery charge

conditions. It will turn from red (low) to yellow (medium) to green (full)

to show you the level of battery charge. If the light is constant, then your

UPS is operating from line power and the battery is charging. If the light

is flashing, then your UPS is operating from battery power and the

battery is discharging. When the light flashes red, your battery will

soon be depleted; close any files you are working on and shut down

your computer.

Whenever your UPS is automatically correcting high or low AC line

voltage, this green light will turn ON and the UPS will gently click. The

more the UPS has to correct voltage, the more the green light will turn

ON and the more the UPS will click. These are both normal, automatic

operations of your UPS, and no action is required on your part.

This red light will turn ON if your UPS fails a self-test and/or the UPS

battery is less than fully charged. Let the UPS charge for 12 hours and

perform a second self-test. If the light continues to stay on, contact

Tripp Lite for service.

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM5

This multi-colored light displays 4 separate UPS load conditions. It

will turn from green (low) to yellow (medium) to red (high) as you

connect equipment to show you the load level your UPS is supporting.

When the light is red your UPS is supporting a load above 85% of its

capacity. If the red light begins flashing, your UPS is severely

overloaded. Remove overload immediately until light stops flashing.

Other UPS Features

AC Receptacles

The receptacles provide your connected equipment with AC line power

during normal operation and battery power during blackouts and

brownouts. They also protect your equipment against damaging surges

and line noise. You can remotely reboot connected equipment by

turning all of the receptacles OFF and ON at once using Tripp Lite UPS

software. Select models, however, feature unique “Remote Reboot

Outlets” (identified on the back panel of your UPS) which allow you to

use Tripp Lite UPS software to remotely reboot equipment connected

to these outlets without interrupting power to equipment connected to the

other outlets.* See software instructions for details.

* Note: constant power is available at the Remote Reboot Outlets (and all other outlets)

unless controlled through Tripp Lite UPS software.

“SMART” RS-232 Port

The RS-232 port connects your UPS to any workstation or server. Use

with Tripp Lite software and #73-0743 cable to monitor and manage

network power and automatically save open files and shut down

equipment during a blackout. This port uses RS-232 communications

to transmit UPS and power conditions (Pin 7 = Transmit; Pin 8 =

Common; Pin 9 = Receive). Contact Tripp Lite Customer Support for

more information and a list of available SNMP, network management

and connectivity products.

“BASIC” Contact-Closure Ports

The contact-closure ports connect your UPS to any workstation or

server. Use with Tripp Lite software and #73-0844 cabling to automati-

cally save open files and shut down equipment during a blackout. This

port sends contact-closure signals to indicate line-fail and low-battery

status. Contact Tripp Lite Customer Support for more information.

LAN Interface DIP Switches (available on select models)

DIP Switches #1 and #2 activate or deactivate remote shutdown

through the “BASIC” Contact-Closure Ports. See “DB9 Port Connection”

on page 4 for which switch controls which port. Note: DIP Switch #3

has no function. DIP Switch #4 serves as the UPS’s “System Enable

Switch.”

External Battery Connector (available on select models)

Use this to connect additional Tripp Lite battery packs for additional

runtime. Refer to the label next to the connector for

appropriate Tripp Lite battery pack to connect. Refer to instructions

available with the battery pack for complete connection information

and safety warnings.

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM6

Battery Replacement Door

Under normal conditions, the original batteries in your UPS will last

several years. Battery replacement should only be performed by

qualified service personnel. Refer to “Battery Warnings” in the Safety

section on page 2. When replacing batteries, qualified service

personnel should follow this procedure: 1) turn UPS OFF; 2) remove

the battery door located on the front panel; 3) pull batteries partially

out of the case; 4) make a detailed sketch of the batteries and the

polarity, color and connection of all cables; 5) disconnect battery

terminals; 6) dispose of used batteries; 7) reconnect replacement

batteries exactly as original batteries were; 8) push batteries back into

case and replace cover.*

* You may not receive full runtime until your replacement batteries have fully charged.

Specifications

Storage & Service

Storage

Turn your UPS OFF: first, engage the ON/Standby Switch and release it to place your

UPS in the “Standby” mode; then set the System Enable Switch* to “DISABLE”; finally,

disconnect the UPS power cord from the wall outlet. If you plan on storing your UPS

for an extended period of time, recharge the UPS batteries once every three months.

Follow steps #1 and #3 in the Installation section and allow the UPS to charge from

4 to 6 hours. If you leave your UPS batteries discharged for an extended period of time,

they will suffer permanent loss of capacity.

* The location of the switch varies by model. See page 3.

Service

If returning your UPS to Tripp Lite, please carefully pack the UPS using the

ORIGINAL PACKING MATERIAL that came with the unit. Enclose a letter describing

the symptoms of the problem. If the UPS is within the 2 year warranty period, enclose

a copy of your sales receipt.

SMARTINT1400RM SMARTINT2200RM

Output Capacity (VA/Watts): 1400/940 2200/1750

Battery Runtime (Half Load/Full Load) Min.: 26/10 29/13

Battery Recharge Time: 2-4 hrs. 2-4 hrs.

Suggested Circuit: 15 amp 15- or 20- amp dedicated

Approvals: UL, CE UL, CE

SMARTINT2200 RM XL SMART INT 3000 RM

Output Capacity (VA/Watts): 2200/1750 3000/2400

Battery Runtime (Half Load/Full Load) Min.: 29+/13+ 23+/7+

Battery Recharge Time: 2-4 hrs. 2-4 hrs.

Suggested Circuit: 20-amp dedicated 30-amp dedicated

Approvals: UL, CE UL, CE

ALL MODELS:

Input Voltage/Frequency (230V/50-60 Hz); On Line Input Voltage Range (168 - 271 Volts); Voltage-Regulated Output Voltage Range

(230V± 9%); On BatteryOutput Voltage Range (230V ±5%); Output Waveform LineMode(filtered sinewave); Output WaveformBatteryMode

(PWM sine wave); AC Surge Suppression (exceeds IEEE 587 Cat. A & B standards); AC Noise Attenuation (>40 dB); AC Protection Modes

(H to N, H to G, N to G).

The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change.

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM7

Este manual de operación contiene instrucciones y advertencias importantes que deben

seguirse durante la instalación, operación y almacenamiento de los sistemas UPS Tripp Lite.

Advertencias Sobre la Ubicación del Sistema UPS

• Instale este sistema UPS bajo techo, en un lugar sin humedad o calor excesivo y sin polvo

o luz solar directa.

• Para obtener mejores resultados, mantenga la temperatura ambiental entre 32° F y 104° F

(entre 0° C y 40° C).

• Permita suficiente espacio alrededor de esta unidad para facilitar la ventilación apropiada

de la misma.

Advertencias Sobre la Conexión del Sistema UPS

• Conecte este sistema UPS a una toma de corriente de CA con conexión a tierra de tres

patas. No remueva o modifique la conexión a tierra del enchufe del sistema UPS.

• No conecte adaptadores de dos patas al enchufe de este sistema UPS. No conecte el

enchufe del sistema UPS a sus propios receptáculos; esto dañará la unidad y anulará su

garantía.

• Si usted desea conectar este sistema UPS a un generador del CA motorizado, asegúrese

que dicho generador proporcione energía de salida limpia y filtrada.

Advertencias Sobre la Conexión de Equipos

• No use sistemas UPS Tripp Lite en aplicaciones de soporte de la vida humana cuando una

falla en la operación del sistema UPS Tripp Lite podría causar fallas o alterar

significativamente el funcionamiento de un dispositivo de soporte de la vida humana.

• No conecte supresores de sobrentensiones transitorias a los receptáculos de salida del

sistema UPS. Esto puede dañar el sistema UPS y anular las garantías del supresor de

sobretensiones transitorias y del sistema UPS.

Advertencias Sobre la Batería

• Este sistema UPS no requiere mantenimiento rutinario. No abra el sistema UPS bajo

ninguna circunstancia. No hay partes que puedan ser reparadas por el usuario dentro de

esta unidad.

• El reemplazo de la batería debe ser realizado por personal técnico capacitado. Deben

obervarse todas las precauciones apropiadas ya que las baterías presentan riesgos de

choques eléctricos y quemaduras por la alta corriente de cortocircuito. Apague y

desenchufe el sistema UPS antes de realizar el reemplazo de la batería. Use herramientas

con asas aisladas y reemplace las baterías del sistema UPS con el mismo número y tipo de

baterías nuevas (Selladas de plomo). No abra las baterías. No corte ni conecte los

teminales de la batería con ningún objeto.

• Las baterías del sistema UPS pueden reciclarse. Consulte en los códigos locales los

requisitos para la disposición de bateríasas. No ponga las baterías en el fuego.

• No intente agregar baterías externas excepto cuando el sistema UPS incluya conectores

para bancos externos de baterías. Conecte solamente bancos de baterías Tripp Lite y de

acuerdo al voltaje correcto (refiérase a la etiqueta de requisitos de voltaje ubicada en la

parte posterior del sistema UPS), y un conector de igual color al Conector de Baterías

Externas del sistema UPS.

• Observe la polaridad apropiada al reemplazar las baterías. Siempre conecte los alambres

Negativos (negros) a los bornes Negativos (negros).

• Durante el intercambio instantáneo de las baterías (“hot-swap”), con el sistema UPS y los

equipos conectados encendidos, el sistema UPS no suministrará energía de batería en

caso de un apagón ya que las baterías estarán momentáneamente desconectadas

mientras se lleva a cabo su intercambio.

Seguridad

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM8

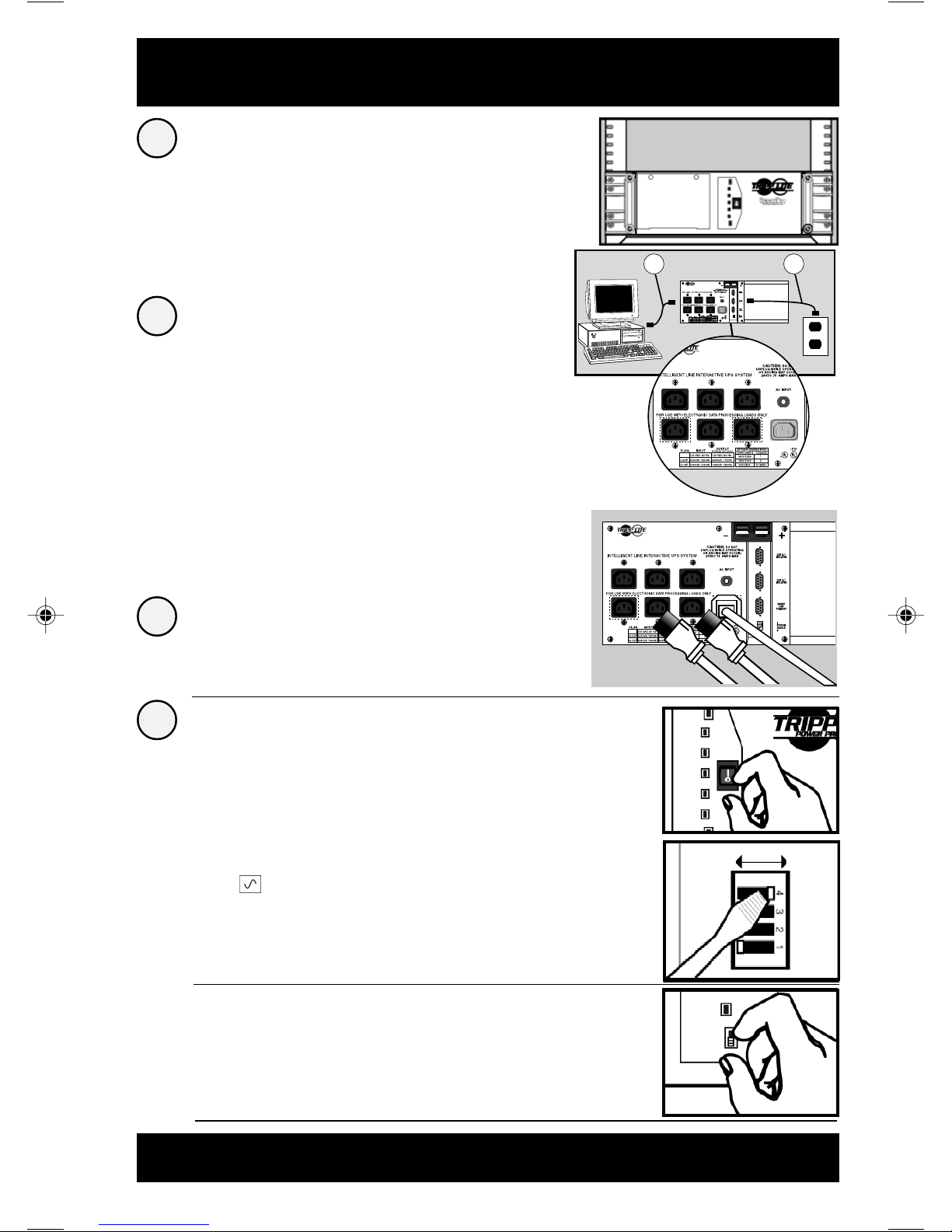

Instalación

Instrucciones Para la Conexión Opcional del Puerto DB9 en la Próxima Página...

Instale las asas para rack

(proveídas) e instale el UPS en

un rack estándar de 19 pulgadas

usando el material apropiado

(proveído por el usuario).

Instale el sistema UPS en el estante más bajo del rack.

Conecte sus equipos al UPS

Este sistema UPS ha sido diseñado para respaldar equipos de

computación solamente. No se recomienda la conexión a este

sistema UPS de dispositivos electrodomésticos, impresoras láser o

supresores de picos.

Encienda el sistema UPS

Diagrama 1

Interruptor "System Enable"

(El modelo 1400 VA)

Panel Fronte

["I" = ENABLE (Habilitar);

"O" = DISABLE (Inhabilitar)]

Coloque el Interruptor “System Enable”

(Habilitador del Sistema) en la posición

“ENABLE” (Habilitar). (La ubicación del

interruptor “System Enable” variá de

acuerdo al modelo. Vea el Diagrama

1 o 2)

Este interruptor activa el microprocesador y el

cargador de baterías.

La luz “XXX” parpadeará hasta que usted

coloque el interruptor “ON/Standby”

(Encendido/Reserva) en la posición correcta

para activar el modo “ON” (Encendido).

Engrane el interruptor momentáneo

“ON/Standby” (Encendido/Reserva) en

el panel frontal del sistema UPS, y

suéltelo para activar el modo “ON”

(Encendido) y suministrar energía a los

receptáculos del sistema UPS.

(Vea el Diagrama 3)

Diagrama 2

Interruptor "System Enable"

(Los modelos 2200 - 3000 VA)

Panel Posterior

Interruptor "LAN Interface

Jumper" #4

Diagrama 3

Interruptor "ON/Standby"

(Todos los modelos)

Panel Fronte

•

Conecte su computadora al

sistema UPS y conecte el sistema

UPS a una toma eléctrica.

1. Desconecte elcable de energíade sucomputadora

del receptáculo de CA y de la entrada de su

computadora.

2. Inserte el enchufe hembra del cable del sistema

UPS (A) en la entrada de CA de su computadora. Inserte

el enchufe macho del cable del sistema UPS en uno de

los receptáculos hembra de salida del sistema UPS.

3. Inserte el enchufe hembra del cable de su

computadora (B) en la entrada de CA del sistema UPS.

Inserte el enchufe macho del cable de su computadora

en una toma de energía de CA.

A B

DISABLE ENABLE

(Inhabilitar) (Habilitar)

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM9

Conexión del Puerto DB9

—Opcional—*

Usandoel cable suministradopor Tripp

Lite, conecte el puerto DB9 de su servidor

principal de archivos al puerto DB9

rotulado“SMART” (Inteligente), elcual

proveecomunicacionescompletase

inteligentestipo RS-232.**

Si su sistema UPS incluye

puertos DB9 múltiples y

usted desea conectar

computadoras adicionales:

Todoslosmodelos

Conéctelasalos puertos DB9rotulados

“BASIC”(Básicos) los cualesincluyen

capacidad básica de cierre.

Vea el Diagrama 1.

Los modelos 2200 - 3000 VA

Coloquelosinterruptores “LAN Interface

Jumper”(Conexionesde Interfases para

Redes)correspondientesalospuertos

básicoso secundarios enla posición

“ACTIVATE” (ACTIVAR).Refiérase al

Diagrama 2 para determinar los puertos

quecontrola cada interruptor.***

* La conexión a los puertos seriales es opcional. Este sistema UPS funcionará adecuadamente aún sin estas conexiones.

** El puerto DB9 “SMART” (Inteligente) está siempre activado y no es controlado por los interruptores “LAN Interface Jumper”

(Conexiones de Interfases para Redes).

*** Si usted no desea conectar computadoras a todos los puertos DB9 “BASIC” (Básicos), coloque los interruptores “LAN Interface Jumper”

(Conexiones de Interfases para Redes) correspondientes a los puertos secundarios en la posición “DEACTIVATE” (DESACTIVAR). Nota:

“Jumper #3” (Conexión No. 3) no cumple función alguna.

Diagrama 1

Diagrama 2

Interruptores

"LAN INTERFACE

JUMPER" #2 & #1

(Los Modelos 2200 -

3000 VA)

Instale el software ejecutando el programa de

instalación apropiado para su sistema operativo.

DEACTIVATE

(DESACTIVAR)

ACTIVATE

(ACTIVAR)

9905247 SmartPro Rackmount Owners Manual 230V.p65 4/13/00, 4:16 PM10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manual de usuario

Tripp Lite

Tripp Lite SU7500RT3U1TF Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU20KX Manual de usuario

Tripp Lite

Tripp Lite OmniSmart & SmartPro USB Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU5000RT3UHV Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART5000RT3U Manual de usuario

Tripp Lite

Tripp Lite Audio/Video On-Line UPS System Manual de usuario

Tripp Lite

Tripp Lite BCINTERNET500 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manual de usuario

Tripp Lite

Tripp Lite Omni VS Manual de usuario

Tripp Lite

Tripp Lite SMX1500LCD Manual de usuario

Tripp Lite

Tripp Lite OMNIPOWER PRO550 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU10KRT3U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL3UHV Manual de usuario

Tripp Lite

Tripp Lite SM3000RMNAFTA Manual de usuario

Tripp Lite

Tripp Lite OmniSmart550MX Manual de usuario

Tripp Lite

Tripp Lite SMART1000LCDU Manual de usuario

Tripp Lite

Tripp Lite SmartPro SmartPro Rackmount Manual de usuario

Tripp Lite

Tripp Lite Internet Office & BC Personal UPS System Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU2200XLA Manual de usuario

Tripp Lite

Tripp Lite SMART750 Manual de usuario

Tripp Lite

Tripp Lite SMART1500LCDT Manual de usuario

Tripp Lite

Tripp Lite SmartOnline 3-Phase UPS System SU30K3/3XR5 Manual de usuario

Tripp Lite

Tripp Lite 120V AC Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
