Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Mounting 3

Connection 6

Basic Operation 8

Storage and Service 11

Español

SmartPro®2U Rackmount

120V Input/Output UPS Systems • Intelligent • Line-Interactive • Extended Run

Models: 1400—3000 VA

Battery Replacement 12

Specifications 12

Français 25

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:21 PM Page 1

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation,

operation and storage of all Tripp Lite UPS Systems. Failure to heed these warnings will void

your warranty.

UPS Location Warnings

• Use caution when lifting UPS. Because of the considerable weight of all Rackmount UPS

systems, at least two people should assist in lifting and installing them.

• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near your UPS should be between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its

vents or fan openings.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug

in a way that would eliminate the UPS's connection to ground. Do not use adapters that

eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting your UPS to a generator will

void its Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction or

failure of a Tripp Lite UPS System could cause failure or significantly alter the performance

of a life-support device.

• Do not connect surge suppressors to the output of your UPS. This may damage your UPS and

will void both the surge suppressor and UPS warranties.

Battery Warnings

• Except for battery replacement, your UPS does not require routine maintenance. Do not open

your UPS for any reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel. Because batteries

present a risk of electrical shock and burn from high short-circuit current, qualified service

personnel should observe proper precautions: Use tools with insulated handles and replace

the existing batteries with the same number and type of new batteries (Sealed Lead-Acid).

Do not open the batteries. Do not short or bridge the battery terminals with any object.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of

a blackout or other power interruptions.

• Do not operate UPS without batteries.

• Do not dispose of the batteries in a fire. The UPS batteries are recyclable. Refer to local codes

for disposal requirements, or in the USA only, refer to these sources for recycling information:

• 1-800-SAV-LEAD (1-800-728-5323)

• 1-800-8-BATTERY (1-800-8-228-8379)

• www.rbrc.com

• When adding external battery packs, connect only Tripp Lite-recommended battery packs of

the correct voltage and type. Do not connect or disconnect battery packs when the UPS is

operating on battery power.

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:21 PM Page 2

Mounting

Your equipment may be rackmounted in 4-post rack enclosures using the included rack shelves

(UPSRMRII Adjustable Rackmount Shelf Kit) and the following suggested mounting procedures.

These procedures are for common enclosure types and may not be appropriate for all rack enclosures.

You must determine the fitness of rackmount hardware and procedures before mounting. If this

hardware or these procedures are not suitable for your application, contact your rack enclosure’s

manufacturer for a solution.

Mount one piece of equipment in a 4-post rack section using the Single Unit Installation procedure,

or one piece of equipment in a 2-post rack using the 2-Post (Telecom) Installation procedure. If you have

two UPSRMRII shelf kits and a sufficiently deep rack, you may mount two pieces of equipment in

a 4-post rack section using the Back-to-Back Installation procedure.Your UPS also may be positioned

safely in an upright position without mounting screws with the addition of a 2U Tower Stand, sold

separately from Tripp Lite.

Single Unit Installation

Connect the two segments of each shelf (A) using the

included screws and nuts (B). Leave the screws slightly

loose so that the shelves can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount them in

the lowest available space of your rack with the

screws, nuts and washers provided (C). Note that the

support ledges should face inward. Tighten the screws

that connect the shelf segments (B).

Attach mounting ears (D) to the front mounting holes

of your equipment (E) using the screws provided (F).

The ears should face forward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by passing the screws, nuts and

washers provided (G) through its mounting ears and

into the rack rails.

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:21 PM Page 3

Mounting

Back-to-Back Installation

Connect the shelved sections from two UPSRMRII

kits (A) to the unshelved sections (B) using the included

screws and nuts (C). Note: Two unshelved sections

will be left over. Leave the screws slightly loose so

that the shelves can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount them in

the lowest available space of your rack with the

screws, nuts and washers provided (D). Note that the

support ledges should face inward. Tighten the screws

that connect the shelf segments (C).

Attach mounting ears (E) to the front mounting holes of

your equipment (F) using the screws provided (G). The

ears should face forward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by passing the screws, nuts and

washers provided (H) through its mounting ears and

into the rack rails.

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:22 PM Page 4

Color Selection

Select UPS systems can be configured to match black or grey equipment. To match grey equipment,

mount the grey mounting ears in front. To match black equipment, switch the grey front panel on the

unit for the black front panel (included with select models), and mount the black mounting ears in

front. (See mounting instructions for exact mounting ear placement.)

To switch the front panel of the UPS, first unscrew the six screws on the front face of the unit, then

remove the front panel. Next, unscrew the two screws that attach the LED board to the inside of the

front panel, then remove the LED board without disconnecting the ribbon cable that connects it to

the UPS. Screw the LED board to the new front face and screw the new front face to the UPS.

Mounting

2-Post (Telecom) Installation

Mount the shelved sections (A) of your UPSRMRII kit

on the back side of your rack. Mount them in the lowest

available space of your rack with with the screws, nuts

and washers provided (B). Note that the support ledges

should face inward.

Attach mounting ears (C) to the front mounting holes of

your equipment (D) using the screws provided (E). The

ears should face backward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by passing the screws, nuts and

washers provided (F) through its mounting ears and

into the rack rails.

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:22 PM Page 5

Connection

Plug your UPS’s Line Cord into

an electrical outlet.

Once your UPS is plugged in, the UPS will enter STANDBY

mode. The fan will activate and the “ ” LED will

begin flashing. The UPS system’s outlets will not be

active until the UPS is turned ON.

SMART1400RM2U and SMART1500RMXL2U

models require connection to a 15-amp dedicated circuit.

SMART2200RMXL2U and SMART2600RM2U models

are fitted with plugs for connection to a 20-amp dedicated

circuit, but may be reconfigured for use with a 15-amp

dedicated circuit (see “Switching Plugs” below).

SMART3000RM2U models are fitted with twist-lock

plugs for connection to a 30-amp dedicated circuit, but

may be reconfigured for use with a 20-amp dedicated

circuit (see “Switching Plugs” below).

Switching Plugs: Plug switching should only be done

by a qualified electrician. Switching plugs will change

the output capacity of your UPS; see Specifications.

Plug your equipment into your UPS.

Your UPS is designed to support only computer equipment.

You will overload your UPS if you connect household

appliances, laser printers or surge suppressors to the

UPS’s Outlets.

Turn your UPS ON

• Press the “POWER” button

• Hold the button for a moment, until the “ ”

LED stops flashing and illuminates constantly

• Release the button

Your UPS is now ON and its AC outlets are active.

SMART2200RMXL2U plug

(NEMA 5-20P) shown

SMART3000RM2U shown

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:22 PM Page 6

Connection (optional)

Your UPS will function properly without these connections.

Serial Port Connection

Using the serial cable provided, connect a serial port from a

computer to a serial port on your UPS. Install on the computer

the Tripp Lite power protection software appropriate to its

operating system. If your UPS features two serial ports, a

second serial computer may be connected.

USB Port Connection

Using the USB cable provided, connect a USB port from a

computer to a USB port on your UPS. Install on the comput-

er the Tripp Lite power protection software appropriate to

its operating system. If your UPS features two USB ports,

a second USB computer may be connected.

EPO Port Connection

Using the RJ-11 cable provided, connect the Emergency

Power Off (EPO) port of your UPS to a user-supplied normally

closed or normally open switch according to the circuit diagram

at the right. The EPO port is not a phone line surge

suppressor; do not connect a phone line to this port.

External Battery Pack Connection

Since your UPS has internal batteries, external batteries are

only needed to extend runtime. Adding external batteries

will increase recharge time as well as runtime.

The diagram to the right shows the location of your UPS’s

External Battery Connector, where you will insert the cable that

is attached to your battery pack. Complete installation and

mounting instructions for your battery pack appear in the

battery pack’s owner’s manual. Make sure that cables are fully

inserted into their connectors. Small sparks may result during

battery connection; this is normal.

Serial Connection: SMART3000RM2U shown

USB Connection: SMART3000RM2U shown

EPO Connection: SMART3000RM2U shown

EPO Circuit Diagram

External Battery Connection:

SMART3000RM2U shown

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:22 PM Page 7

Use the POWER button to switch your UPS between its four modes of operation.

OFF: No indicator lights are on. The UPS is completely shut down for storage

or shipping. If the UPS is connected to AC power, it will start up in STANDBY

mode. If the UPS is not connected to AC power and the POWER button is

pressed for two seconds, the UPS will “cold start” into INVERT mode.

STANDBY: The “ ” light is flashing. The UPS is receiving AC power and

using it to charge its internal batteries, but its outlets are not active. Pressing the

POWER button while the UPS is in STANDBY will put the UPS in the ON

mode. Unplugging the UPS or cutting AC power while the UPS is in STANDBY

will put the UPS in the OFF mode.

ON: The “ ” light is on. The UPS is receiving AC power, charging its bat-

teries and delivering power to connected equipment. If AC power is lost while

the UPS is ON (i.e. a blackout occurs), the UPS will switch into INVERT

mode. Pressing the POWER button while the UPS is ON will put the UPS in

STANDBY mode.

INVERT: The “ ” light is flashing. The UPS is powering connected equip-

ment from battery backup. If AC power is restored, the UPS will switch to the

ON mode. Pressing the POWER button while the UPS is in INVERT will put

the UPS into the OFF mode. If the UPS is in INVERT and its batteries are

drained, the UPS will switch to the OFF mode until AC power is restored, then

switch to the ON mode.

Use the MUTE/TEST button to do two things:

Silence Alarm:Your UPS has three alarms. The first, the INVERT alarm, emits

four short beeps every ten seconds when the UPS is in INVERT mode, to warn

you that AC power has failed. The second, the OVERLOAD alarm, emits short,

rapid beeps when the UPS is in INVERT mode if the total power draw of con-

nected equipment exceeds the UPS's output capacity, to warn you to reduce the

load. The third, the Low Battery alarm, emits a constant beep when the UPS is

in INVERT mode and its batteries are very nearly depleted, to warn you that

connected equipment must shut down. To silence the INVERT or OVERLOAD

alarms, press the MUTE/TEST button. The LOW BATTERY alarm will only

stop when the UPS switches to the OFF or ON mode.

Self-Test Batteries and Alarms: If your UPS is in the ON mode and has a load

connected, you may test its batteries by pressing the MUTE/TEST button for

two seconds. The UPS will switch to INVERT mode for several seconds.

Normally, the INVERT alarm (four short beeps) will sound, indicating that the

system is working properly. If the OVERLOAD alarm (short, rapid beeps)

sounds, reduce the load on the UPS. If the LOW BATTERY alarm (a constant

beep) sounds, your UPS's batteries may need replacing or they may simply be

less than fully charged. Let the UPS charge for 12 hours, then perform a second

self-test. If the LOW BATTERY alarm sounds again, contact Tripp Lite for

service. Do not unplug your UPS to test its batteries, or you will remove safe

electrical grounding and may introduce a damaging surge into your network

connections.

Basic Operation

Buttons (Front Panel)

+–

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:23 PM Page 8

Basic Operation

continued

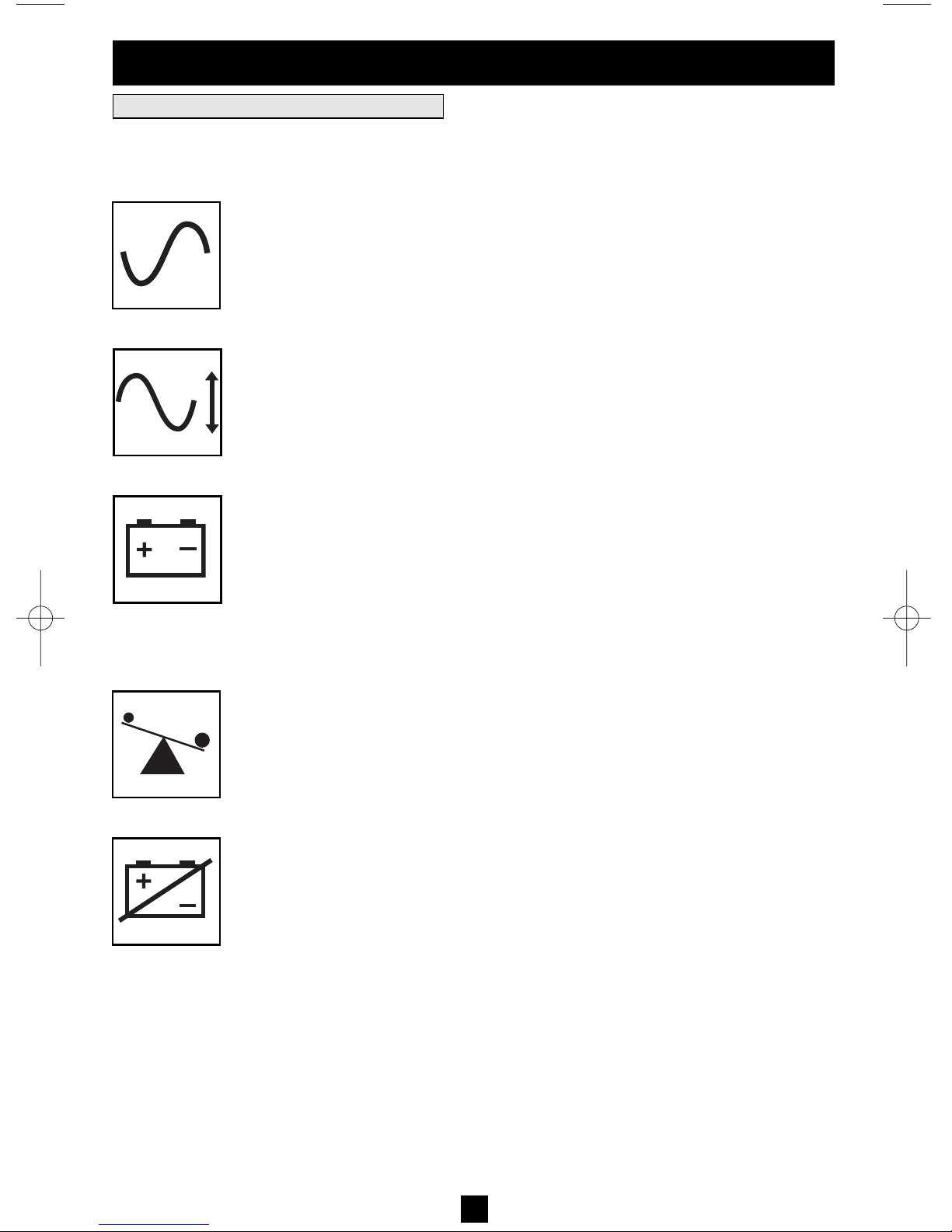

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

POWER: Lights green when the UPS is receiving AC power. Illuminates con-

stantly when the UPS is in the ON mode, indicating that batteries are charging

and connected equipment is receiving filtered AC power. Flashes while in

STANDBY mode to indicate that batteries are charging but connected equip-

ment is not receiving power.

VOLTAGE CORRECTION: Lights green whenever your UPS is automatically

correcting high or low AC line voltage. The UPS will also click gently. These

are normal, automatic operations of your UPS, and no action is required on your part.

BATTERY CHARGE: This multicolored light displays 7 separate UPS battery

charge conditions. It will turn from red (low) to yellow (medium) to green (full)

to show you the level of battery charge. If the light is constant, your UPS is in

the ON or STANDBY mode, operating from line power, and the battery is

charging. If the light is flashing, your UPS is in the INVERT mode, operating

from battery, and the battery is discharging. If the light is flashing red, your UPS

is in INVERT and is nearly out of power: you should save files and shut down

your equipment immediately.

OUTPUT LOAD: This multicolored light shows how heavy your UPS’s load

is. Steady green indicates a light load, steady yellow a medium load. When the

light is red, your UPS is supporting a load above 85% of its capacity. If the red

light begins flashing, then your UPS is severely overloaded. Immediately

remove load from the UPS until the light stops flashing.

BATTERY WARNING: Lights red if your UPS’s self-test (initiated with the

Mute/Test Switch) reveals a low battery charge or internal fault. If this light

turns on, let the UPS charge for 12 hours then perform a second self-test. If the

light stays on, contact Tripp Lite for service.

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:23 PM Page 9

Basic Operation

continued

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features 15-amp AC outlets, and select models also

feature 20-amp and 30- amp AC outlets. These output receptacles provide your

connected equipment with AC line power during normal operation and battery

power during blackouts and brownouts. The UPS protects equipment connected

to these receptacles against damaging surges and line noise. If you have a seri-

al or USB connection to your UPS, you can remotely reboot connected equipment

by turning the receptacles OFF and ON using Tripp Lite's PowerAlert Software.

Select models have their receptacles divided into one or more load banks

(labelled “LOAD 1,” etc.) which maybe be remotely switched OFF and ON using

Tripp Lite UPS software without interrupting power to equipment connected to

the other outlets. Select models also feature outlets labelled “UNSWITCHED”,

which may not be remotely switched off. See software instructions for details.

Smart Serial Port(s): Your UPS features 1 or more serial ports that may be

used to connect the UPS to a serial port on any workstation or server. Use with

Tripp Lite cabling and PowerAlert Software to monitor and manage network

power and automatically save open files and shut down equipment during a

blackout. See Connection section.

Smart USB Port(s): Your UPS features 1 or more USB ports that may be used to

connect the UPS to a USB port on any workstation or server. Use with Tripp Lite

cabling and PowerAlert Software to monitor and manage network power and

automatically save open files and shut down equipment during a blackout. See

Connection.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may

be used to connect the UPS to a contact closure switch to enable emergency

inverter shutdown. See Connection.

Accessory Slot: Remove the small cover panel from this slot to install optional

accessories to remotely monitor and control your UPS. Refer to your accessory’s

manual for installation instructions. Contact Tripp Lite Customer Support at

(773) 869-1234 for more information, including a list of available SNMP, network

management and connectivity products.

15 amp/120V

NEMA 5-15R

20 amp/120V

NEMA 5-20R

30 amp/120V

NEMA L5-30R

20 amp/120V

NEMA L5-20R

200212046 93-2107 SmartPro 2U Owner’s Manual.qxd 1/6/2003 2:23 PM Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite G1010USB Manual de usuario

Tripp Lite

Tripp Lite Internet Office & BC Personal UPS System Manual de usuario

Tripp Lite

Tripp Lite INTERNET600U Manual de usuario

Tripp Lite

Tripp Lite LCDT Series Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1500RM2U Manual de usuario

Tripp Lite

Tripp Lite BC Internet Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU1000XL Manual de usuario

Tripp Lite

Tripp Lite SMART1500CRMXL Manual de usuario

Tripp Lite

Tripp Lite ECO550UPS Manual de usuario

Tripp Lite

Tripp Lite SMART700HG Manual de usuario

Tripp Lite

Tripp Lite AGOM5516 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART500USB Manual de usuario

Tripp Lite

Tripp Lite Internet Office 700 Manual de usuario

Tripp Lite

Tripp Lite OMNIVSX450D Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SV Series Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU60KX Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMX1200XLHG Manual de usuario

Tripp Lite

Tripp Lite OMNISMART OMNIVS500 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000RTXLCD2U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU12000RT4UHW Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU50K3/3INTPM Manual de usuario

Tripp Lite

Tripp Lite TE600 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART2600RM2U Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite OmniSmart550MX Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
