Tripp Lite NFI-U05A Manual de usuario
1
5-Port Unmanaged Industrial Fast
10/100 Ethernet Switch with EIP
QoS, DIN or Wall-Mountable
Model: NFI-U05A
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2023 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 17 • Français 33 • Русский 49 • Deutsch 65
2
Package Contents
Product Features
• NFI-U05A Ethernet Switch
• DIN Rail-Mounting Clip (Preinstalled)
• Wall-Mount Mask (Preinstalled)
• Owner’s Manual
• 5 auto-negotiable 10/100 Mbps RJ45 ports
• Supports 10/100Base-T, Full Duplex and auto MDI/MDI-X
crossover function
• Rugged high-strength case
• Industrial temperature switch models support operating
temperature range of -40°F to 167°F (-40°C to 75°C)
• Easy-to-read LEDs indicate connection and activity status for
each port
• Meets the following IEEE standards:
o IEEE 802.3 10Base-T
o IEEE 802.3u 100Base-T
o IEEE 802.3 Auto Negotiation
o IEEE 802.3x Flow Control
o IEEE 802.1p Class of Service
• Supports MAC address auto-learning and auto-aging
• Preinstalleddurablerailclipmountsrmlytoanystandard
35 mm DIN rail
3
Optional Accessories
Product Overview
• N001-Series Cat5e 350 MHz Snagless UTP Cables
• N002-Series Cat5e 350 MHz UTP Ethernet Cables
• N200-Series Cat6 Gigabit Molded UTP Ethernet Cables
• N201-Series Cat6 Gigabit Snagless Molded UTP Ethernet
Cables
5-Port Unmanaged Industrial Fast 10/100 Ethernet Switch with
EIP QoS, DIN or Wall-Mountable
Top View Front View
100 Mbps
LNK/ACT
Grounding
Screw
Power
4
ATTENTION: The NFI-U05A is an open-type
device and shall be DIN-rail mounted or wall
mounted (optional) in a cabinet or rack enclosure.
The ambient temperature should not exceed
75°C (167°F).
Mounting the Switch
Place the switch on the DIN rail from above using the built-in
slot. Push the front of the switch toward the mounting surface
until it snaps into place. You will hear a “click” to indicate it has
successfully snapped into place.
DIN-Rail Mounting and Dismounting Instructions
5
Mounting the Switch Removing the Switch
Click
Push Push
Click
DIN-Rail Mounting and Dismounting Instructions
Dismounting the Switch
Press the switch from the top, then pull out the lower edge of
the switch to remove it from the DIN rail.
6
ATTENTION: A corrosion-free DIN mounting rail
is advisable. When mounting the switch, be sure
to allow enough space between devices to install
thecablingandtoensureproperairow.
Wall-Mounting Installation
1. Mount the switch by using mounting holes on the wall at the
appropriate places.
Mounting holes for
NFI-U05A
Mounting Holes for Drawing
of NFI-U05A Screw Installation Distance
50 mm
1.5 mm - 3 mm
50 mm
DIN-Rail Mounting and Dismounting Instructions
7
2. The switch can be wall mounted either vertically or
horizontally.
Grounding the Switch
Groundingandwireroutinghelplimittheeectsoflinenoise
caused by electromagnetic interference (EMI). Run the ground
connection from the ground screw to the grounding surface,
then connect the ground connection from the terminal block to
the grounding surface prior to connecting devices.
ATTENTION: This switch is intended for mounting on a well-
grounded surface, such as a metal panel.
Horizontal Direction InstallationStraight Direction Installation
Mounting direction
with screw
Mounting direction
with screw
DIN-Rail Mounting and Dismounting Instructions
8
WARNING: Safety measures should be taken
beforeconnectingthepowercable.Turnothe
power before connecting modules or wires. The
correct power supply voltage is listed on the product
label. Check the voltage of your power source to
make sure you are using the correct voltage. DO
NOTuseavoltagegreaterthanwhatisspecied
on the product label. Calculate the maximum
possible current in each power wire and common
wire.Conrmallelectricalcodesdictatingthe
maximum current allowable for each wire size. If
current exceeds the maximum rating, the wiring
can overheat causing serious damage to your
equipment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross, make sure
the wires are perpendicular at the intersection point.
Note: Do not run signal or communications wiring and power wiring
through the same wire conduit. To avoid interference, wires with
dierent signal characteristics should be routed separately.
• You can use the type of signal transmitted through a wire
to determine which wires should be kept separate. Wiring
that shares similar electrical characteristics can be bundled
together.
• You should separate input wiring from output wiring.
Wiring Requirements
9
Wiring Requirements
• Be advised that you should label the wiring to all devices in
the system.
Wiring Power Input

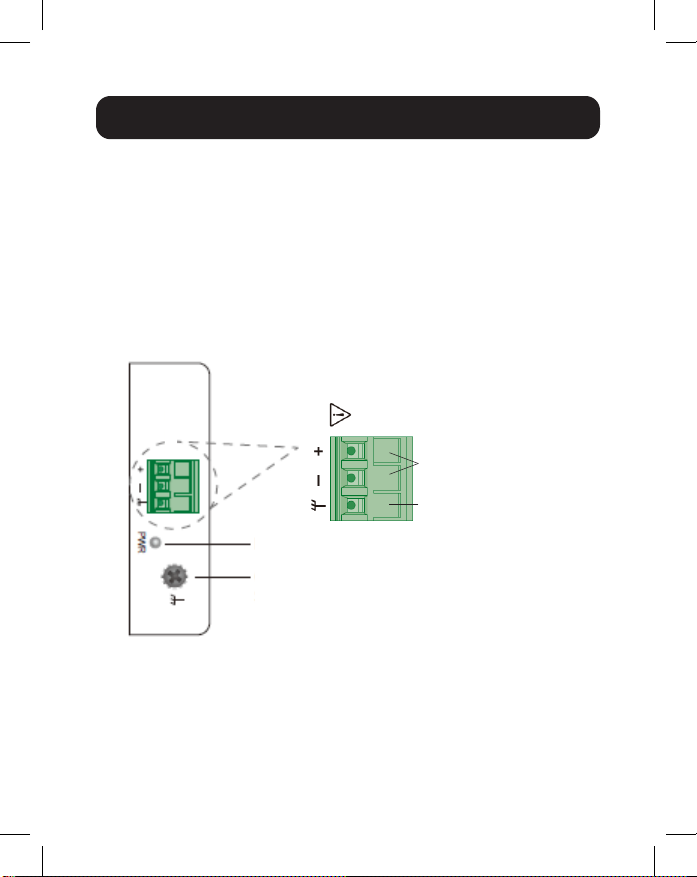

NFI-U05A with 3-Pin Terminal Block
Check the polarity while connecting. Top view of the Terminal
Blockisshowninthegurebelow:
Power
12~48V DC
Grounding
Screw
Power Input Terminals
Grounding Terminals
12~48V DC
10
Wiring Requirements
CAUTION:
• Use copper conductors only.
•Wiringcabletemperatureshouldsupportatleast105˚C
(221˚F).
• The wire gauge for the terminal block should range between
12~24 AWG.
To insert the power wire and connect the 12~48V DC at a
maximum of 0.2A DC power to the power terminal block, follow
the steps below:
•Useaatheadscrewdrivertoloosenthewire-clampscrews.
• Insert the negative/positive DC wires into the ( - / +)
terminals, respectively.
• Tighten the wire-clamp screws to prevent the wires from
loosening.
ATTENTION: Use a power supply from 12~48V DC. The
device power shall be supplied by an LPS circuit.
