Tripp Lite B006-DP2UA2 Manual de usuario
1
2/4-Port USB 3.0 4K DisplayPort
Dual Display KVM Switch
Models: B006-DP2UA2 (2-Port),
B006-DP2UA4 (4-Port)
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Quick Start Guide
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 13 • Français 25
2
• B006-DP2UA2 or B006-DP2UA4 DisplayPort Dual Display
KVM Switch
• Power Adapter
• Foot Pads (x4)
• Quick Start Guide*
* The complete Owner’s Manual is available on
Tripp Lite’s website: tripplite.com/support.
Package Contents
Product Features
B006-DP2UA2
Front
Rear
6 7
9
10 11
8
1
23245
3
Product Features
1
32 2 4 5
B006-DP2UA4
Front
1LED Status Panel
2Port Selection
Pushbuttons
3Mode Selection
Pushbutton
4Audio Ports
5USB 3.1 Gen 1
Peripheral Port
6DCC port (Daisy Chain
Control)
7Console Ports Section
8KVM Ports Section
9Power Jack
10
USB 3.1 Gen 1
Peripheral Port
11
DCC Switch
6 7
9
10 11
8
Rear
4
Installation
123
4
8
8
6
75
Note: B006-DP2UA4 shown. Installation steps are the same for the
B006-DP2UA2 model.
To prevent damage to your installation from
power surges or static electricity, it is important
that all connected devices are properly grounded.
Rear
DisplayPort Cable
5
Installation
1Plug your USB keyboard and USB mouse into the USB
console ports in the Console Ports Section located on the
unit’s rear panel.
2Plug your monitors into the DisplayPort console ports in the
Console Ports Section located on the unit’s rear panel and
power on the monitors.
3Plug your microphone and speakers into the Audio Jacks
located on the unit’s front panel. Audio cables are required
to connect to the CPU for this connection to work.
4Plug your secondary microphone and speakers into the
Audio Ports located on the unit’s rear panel.
Note: The microphone and speakers plugged into the front panel
have priority over those plugged into these jacks.
5With a user-supplied DisplayPort cable, plug the
DisplayPort connector into any available DisplayPort port
in the KVM Ports Section of the switch (CPU1, CPU2,
etc.). Then, plug the USB 3.0 cable, microphone cable and
speaker cable into their corresponding ports. With a second
user-supplied DisplayPort cable, plug the DisplayPort
connector into the DisplayPort in the same KVM Ports
Section of the switch.
Note: Verify that all the connectors are in the same KVM Ports
Section (all in CPU1, all in CPU2, etc.).
6
Installation
6At the other end of the cables from step 5, plug the
DisplayPort cables, USB 3.0 cable, microphone cable and
speaker cable into their respective ports on the computer.
Repeat steps 5 and 6 for each dual-screen PC system you
are installing.
7(Optional) Plug your USB peripherals into the front or rear
USB 3.1 Gen1 Peripheral Ports.
8Plug the power adapter included with the KVM switch into
an AC power source, then plug the power adapter cable
into the switch’s Power Jack.
9Power on the computers.
7
Operation
Manual Switching
To bring complete focus (audio, KVM, and USB) to a computer,
either:
• Press the Port Selection Pushbutton that corresponds to that
computer; or
• Press the Mode Selection Pushbutton once (the Mode icons
will illuminate), then press the Port Selection Pushbutton
that
corresponds to that computer (all three port icons will
illuminate)
Mouse Switching
For mouse port selection: Double-click the scroll wheel of your
USB mouse to cycle through the ports.
Notes:
• Mouse switching is only supported by USB 3-key scroll wheel mice.
• Mouse switching is disabled by default (see Hotkey Setting
• Mode to enable mouse switching).
•
Mouse switching is only supported when Mouse Emulation is enabled.
8
Operation
Hotkey Switchin
All hotkey port switches begin with tapping the [Scroll Lock]
key twice. The table below describes the actions that each
combination performs.
Note: If using the [Scroll Lock] key conicts with other programs
running on the computer, the [Ctrl] key can be used instead.
Hotkey Action
[Scroll Lock] [Scroll Lock]
[Enter]
Brings the KVM, USB hub, and
audio focus from the port that
currently has the KVM focus to
the next port on the switch.
(1 to 2, 2 to 1 for the 2-port
B006-DP2UA2; 1 to 2, 2 to 3,
3 to 4, 4 to 1 for the 4-port
B006-DP2UA4).
[Scroll Lock] [Scroll Lock]
[n] [Enter]
Brings the KVM, USB hub and
audio focus to the computer
attached to the port corresponding
to the specied Port ID.
Note: [n] represents the computer’s Port ID number
(B006-DP2UA2: 1 or 2; B006-DP2UA4: 1, 2, 3 or 4).
9
Operation
Hotkey Setting Mode (HSM)
Hotkey Setting Mode is used to set functions on the switch.
Follow the steps below to invoke HSM and perform a hotkey
function.
1. Press and hold down the [Num Lock] key.
2. Press and release the [-] key.
3. Release the [Num Lock] key.
4. Press the hotkey to perform the desired function. Refer to
the table below for the function.
Key Function
[H] Toggles between the default
([Num Lock] [-]) and alternate
([Ctrl] [F12]) HSM invocation
keys.
[R] [Enter] Resets the hotkey settings to
their default status.
[T] Toggles between the default
([Scroll Lock] [Scroll Lock])
and alternate ([Ctrl] [Ctrl]) Port
Switching keys.
[U] [P] [G] [R] [A] [D] [E]
[Enter]
Invokes Firmware Upgrade
Mode.
10
Operation
Key Function
[F1] Sets the keyboard and mouse
to use SPC mode so that
it can work under special
operating systems as a
standard (104 key) keyboard
and mouse.
[F2] Enables Mac keyboard
emulation.
[F4] Prints the switch’s current
settings via text editor or word
processor.
[F10] Enables Windows keyboard
emulation.
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Cambiar de Tripp Lite
Tripp Lite
Tripp Lite B119-303-R Manual de usuario
Tripp Lite
Tripp Lite B022-004-R Manual de usuario
Tripp Lite
Tripp Lite B007-008 Manual de usuario
Tripp Lite
Tripp Lite B127A-4X2-BH2PH Manual de usuario
Tripp Lite
Tripp Lite NetController B042-004 Manual de usuario
Tripp Lite

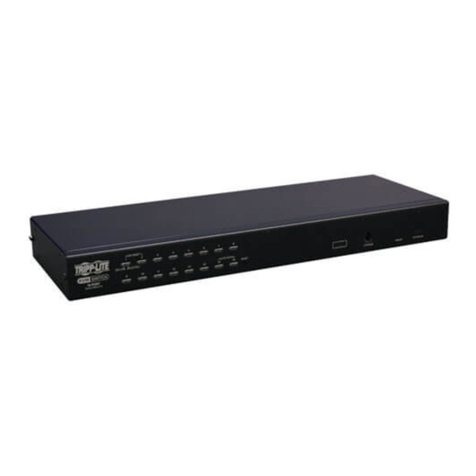

Tripp Lite B064-016 Manual de usuario
