Owner’s Manual
3-Phase Switched 0U Power
Distribution Units
(Phase, Bank and Outlet Measurements)
208V MODELS
PDU3VSR6L2120 • PDU3VSR6L2130 • PDU3VSR6H50
(Series Number: AG-00BC) (Series Number: AG-00BA) (Series Number: AG-00BA)
PDU3VSR6L1530 • PDU3VSR6G30
(Series Number: AG-00BA) (Series Number: AG-00BA)
400V MODELS
PDU3XVSR6G20
(Series Number: AG-00BD)
Important Safety Instructions 2
Installation 3
Digital Display 6
Using the Digital Display 8
Features 15
Configuration and Operation 17
Service 17
Warranty and Warranty 18
Registration
Español 19
Français 37
Русский 55
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2014 Tripp Lite. All rights reserved.
14-04-275-9332F8.indb 1 4/30/2014 4:29:16 PM
2
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that should be followed during
the installation, operation, and storage of this product. Failure to heed these
instructions and warnings may affect the product warranty.
• The PDU provides convenient multiple outlets, but it DOES NOT provide surge or line noise
protection for connected equipment.
• The PDU is designed for indoor use only in a controlled environment away from excess
moisture, temperature extremes, conductive contaminants, dust or direct sunlight.
• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that
eliminate the connection to ground.
• The power requirement for each piece of equipment connected to the PDU must not exceed
the individual outlet’s load rating.
• The total power requirement for equipment connected to the PDU must not exceed the
maximum load rating for the PDU.
• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable
parts inside.
• Do not attempt to modify the PDU, including the input plugs and power cables.
• Do not attempt to use the PDU if any part of it becomes damaged.
• Do not attempt to mount the PDU to an insecure or unstable surface.
• Use of this equipment in life support applications where failure of this equipment can
reasonably be expected to cause the failure of the life support equipment or to signicantly
affect its safety or effectiveness is not recommended. Do not use this equipment in the
presence of a ammable anesthetic mixture with air, oxygen or nitrous oxide.
• Never attempt to install electrical equipment during a thunderstorm.
• Keep indoor ambient temperature between 32°F and 122°F (0°C and 50°C).
• Connect the PDU to an outlet that is in accordance with your local building codes and that is
adequately protected against excess currents, short circuits and earth faults.
• The PDU must be installed by a qualied technician only.
• Install in accordance with National Electrical Codes. Be sure to use the proper over current
protection for the installation, in accordance with the plug rating/equipment rating.
• The electrical sockets supplying power to the equipment shall be installed near the equipment
and be easily accessible.
• Be sure to provide a local disconnect device on any models that are permanently installed
without a plug that is easily accessible.
14-04-275-9332F8.indb 2 4/30/2014 4:29:16 PM
1-1 1-2
1-4
1-3
1-5
A
B
3
Installation
Mounting the PDU
Note: The illustrations may differ somewhat from your PDU model. Regardless of configuration, the user must
determine the fitness of hardware and procedures before mounting. The PDU and included hardware are designed
for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting
configurations may vary. Screws for attaching the mounting brackets to the PDU are included. Use only the screws
supplied by the manufacturer or their exact equivalent.
Note: Mounting buttons come preinstalled to the PDU for toolless mounting.
1-1 To attach the mounting brackets to the
PDU, remove the mounting buttons.
1-2 Attach the mounting brackets to the
PDU with the included screws.
1-3 Attach the PDU to a vertical rail in
your rack or rack enclosure. (Use the
mounting hardware that came with your
rack or rack enclosure to attach the
mounting brackets to the rail.)
1-4 To reinstall the mounting buttons for
toolless mounting, remove the mounting
brackets then install the mounting
buttons onto the PDU. Position the PDU
as desired in the rack enclosure, align
the buttons with the rack mounting
slots, and slide the PDU into position.
Note: Be sure to insert the 2 buttons into either
the upper hole at each end of the PDU or into
the lower hole at each end of the PDU.
1-5 To install the PDU with its outlets facing
the rear of the rack, use the included
PDUMVROTATEBRKT accessory. First,
attach the mounting button Ato the
V-shaped bracket B using the included
screw and washer. Then, use the
button-mount slot to attach the bracket
to the PDU and the mounting button to
attach the PDU to the rack. The bracket
effectively repositions the mounting
brackets allowing for the PDU outlets to
face the rear of the rack.
14-04-275-9332F8.indb 3 4/30/2014 4:29:18 PM
4
Installation
Connecting the PDU
2-1 Each model is equipped with 1 of 6 different input plugs.
Model Name Input Plug
Max Input
Amps (Limited
by Input Cord
and Plug)
Input
Voltage
Range
Output
Voltage
Range Breakers
Cord
Length Outlets
PDU3VSR6L2120 L21-20P 16A 200-
240V 200-
240V N/A
6 ft.
(1.8M) 30 Total: 3 Banks of
(2) C19 and (8) C13
PDU3VSR6L1530 L15-30P 24A 200-
240V 200-
240V
3 x Double
Pole, 20A
Branch-Rated
PDU3VSR6L2130 L21-30P 24A 200-
240V 200-
240V
3 x Double
Pole, 20A
Branch-Rated
PDU3VSR6G30 30A Blue IEC 309
3P + E 24A 200-
240V 200-
240V
3 x Double
Pole, 20A
Branch-Rated
PDU3VSR6H50 HUBBLE CS8365C 35A 200-
240V 200-
240V
3 x Double
Pole, 20A
Branch-Rated
PDU3XVSR6G20 16A Red IEC 309
3P + N + E 16A 360-
415V 208-
240V N/A
L21-30P 16A Red IEC 309
3P + N + E
30A Blue IEC 309
3P + E
HUBBLE
CS8365C
L21-20PL15-30P
14-04-275-9332F8.indb 4 4/30/2014 4:29:19 PM
2-2
2-3
2-4
B
A
5
Installation
2-2 Connect the input plug to your facility’s
compatible AC power source.
2-3 Connect your equipment’s input plugs to
the appropriate outlets on the PDU. The
LED near each outlet illuminates when
the outlet is ready to distribute live
AC power.
Note: It is recommended that you do not
connect a live load to the PDU. If the load you
intend to connect has an ON/OFF switch, please
turn the switch to OFF prior to connection.
2-4 Optional Cord Retention Procedure
Option 1: Use the bridge lances located
near each receptacle to retain power
cords. Tie each equipment power cord
to a bridge lance by looping the cord
and securing it with one of the included
cable ties A. Make sure each cord can
be unplugged from the PDU without
removing the cable tie.
Option 2: Use the included C14 and
C20 plastic sleeves to secure plugs to
receptacles. Attach the sleeve to the
plug, making sure that the pull tabs B
remain outside the plug and that the t
is secure. To unplug equipment properly,
use the pull tabs to remove the plug
and sleeve from the receptacle.
For Installation
Purposes Only
Networking the PDU
Your PDU can receive IP address assignments via DHCP server (dynamic) or static (manual)
addressing methods. See the SNMPWEBCARD installation guide for an explanation of
these methods. You can nd the guide by going to www.tripplite.com/support and typing
“SNMPWEBCARD” in the search eld. If you are uncertain which method to use, contact your
network administrator for assistance before continuing the conguration process.
Note: The MAC address of the PDU (12-digit string in this format: 000667xxxxxx) is printed on a label attached
to the PDU enclosure. For static IP address assignments, use the RJ-45 to DB9 configuration cable (part
number 73-1243) included with the PDU.
14-04-275-9332F8.indb 5 4/30/2014 4:29:20 PM
A
BC DE
6
Digital Display

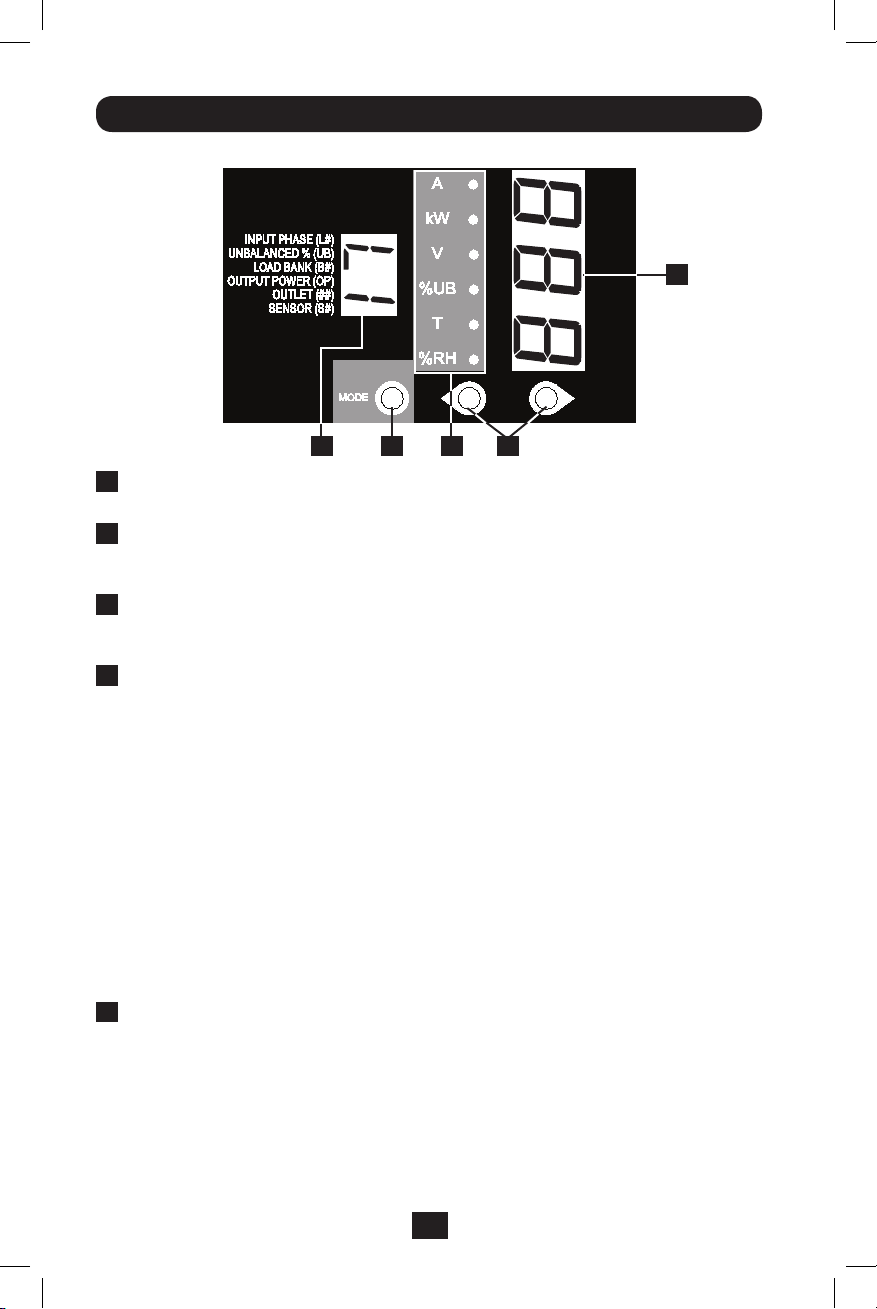

A 3-Digit Display: Shows measured or calculated values such as Amperage, Kilowatts,
Voltage, Power Unbalance Percentage, Temperature and Humidity.
B Arrow Buttons: Scroll through indicated Outlet, Input, Bank, Power, Load Balance, Sensor
and Display Brightness options using these buttons. A long press of the up or down arrow
buttons allows the user to skip to the next sequential measurement category.
C Mode Button: When a menu option is selected using the Arrow Buttons, the Mode Button
scrolls through the sub-options within each category. Sub-options are shown by the
Indicator LEDs.
D Indicator LEDs: Lit LED indicates which value is being displayed on the 3-digit screen.
Amps (A): When selected, the load on the selected Input Phase (L#), Load Bank (B#)
or Outlet (##) is displayed in amps.
Wattage (kW): When selected, the load on the selected Load Bank (B#) or Total
Output Power (OP) is displayed in kW.
Voltage (V): Input Phase (L#), Load Bank (B#) or Outlet (##) voltage is displayed.
Unbalanced Load (%UB): When lit, the display shows the unbalanced load
percentage deviance from the average measured value. A value that is zero or closest
to zero is desirable.
Temperature (T): If Tripp Lite ENVIROSENSE is connected, the ambient temperature
will be displayed when this option is selected. The temperature is displayed in Celsius
by default, but can be switched to Fahrenheit.
Relative Humidity (%RH): If Tripp Lite ENVIROSENSE is connected, the relative
humidity percentage will be displayed when this option is selected.
E 2-Digit Display: This display indicates which Input Phase (L#), Load Balance (UB), Load
Bank (B#), Output Power (OP), Outlet (##) or Sensor (S#) is selected.
14-04-275-9332F8.indb 6 4/30/2014 4:29:20 PM
LINEL1-L2
1
23 4 5
6
7 8 9 10
11
12 13 14 15
16
17 18 19 20
21
22 23 24 25
26
27 28 29 30
STATUS
LINK
RESET
ENVIROSENSE
CONFIG
LINEL2-L3LINEL3-L1
L1-
L2
L3-
L1
L2-
L3
L3-
L1
L1-
L2
L2-
L3
L1-N
400V Models
L1-L2
208V Models
L3-N
L3-L1
L2-N
L2-L3
L2-N
L2-L3
L1-N
L1-L2
L3-N
L3-L1
7
Digital Display
Load Bank Receptacle Location
Display References
LOAD BANKS REFERENCE
SILKSCREEN LABEL DESCRIPTION 2-DIGIT DISPLAY REFERENCE
208V Models 400V Models 208V and 400V Models
L1-L2 L1-N B1
L2-L3 L2-N B2
L3-L1 L3-N B3
INPUT PHASE REFERENCE
INPUT PHASE REPORTED 2-DIGIT DISPLAY REFERENCE
208V Models 400V Models 208V and 400V Models
L1 – L2 L1-N L1
L2 – L3 L2-N L2
L3 – L1 L3-N L3
Button Response Denitions:
Conguration1Switch Action Control Function
Standard
Up Pushbutton
Depress ½ sec Sequentially moves up one selection in
the menu.
Depress 3 sec Advances up to the next measurement
category.
Down Pushbutton
Depress ½ sec Sequentially moves down one selection in
the menu.
Depress 3 sec Advances down to the next measurement
category.
Mode Pushbutton
Depress ½ sec Displays available options for a given
measurement category.
Depress 3 sec Selects the chosen available option for a given
conguration category.
Alternate
Up Pushbutton
Depress ½ sec Sequentially moves down one selection in
the menu.
Depress 3 sec Advances down to the next measurement
category.
Down Pushbutton
Depress ½ sec Sequentially moves up one selection in the
menu.
Depress 3 sec Advances up to the next measurement
category.
Mode Pushbutton
Depress ½ sec Displays available options for a given
measurement category.
Depress 3 sec Selects the chosen available option for a given
conguration category.
1 Congured via Conguration Category item “Outlet Indicator LED Color Code Options.”
14-04-275-9332F8.indb 7 4/30/2014 4:29:21 PM
i 5.5
L i
2 0 8
L i
i 5.5
L2
2 0 8
L2
i 5.5
L3
2 0 8
L3
8
Using the Digital Display
Scrolling Through Input Phases and Options
(Measurement Category)
Press Mode button to toggle between options and data within a menu. A momentary press of the
arrow buttons switches between menus. A long press skips between measurement categories.
The scrolling pattern of the display is outlined below. Note: Three dashes will be shown in
the 3-digit display when the input phase voltage is unknown, due to abnormal tripped
breaker conditions.
Input Phase 1
Input Phase 2
Input Phase 3
Amps
Amps
Amps
Volts*
Volts*
Volts*
To Unbalanced Load Detect
*Note: For 208V models,
voltages displayed are phase-to-
phase voltages (i.e., L1 display
will indicate L1-L2 voltage).
For 400V models, voltages
displayed are phase-to-neutral
voltages (i.e., L1 display will
indicate L1-N voltage).
14-04-275-9332F8.indb 8 4/30/2014 4:29:21 PM
2 0
i 0.5 2. i 8
2. i 8
2 0 8
i 0.5 2 0 8
i.2 3
OP
9
continued on next page
Using the Digital Display
Press Mode button to toggle between options and data within a menu. A momentary press of the
arrow buttons switches between menus. A long press skips between measurement categories.
The scrolling pattern of the display is outlined below.
Unbalanced Load Detect (Measurement Category)
Scrolling Through Load Banks and Options
(Measurement Category)
Scroll through the parameter display for each
Load Bank using Mode and buttons.
Amps
Amps
Kilowatts
Kilowatts
Volts*
Volts*
Phase Imbalance %
Bank #2
Bank #3
*Note: For 208V models, voltages displayed
are phase-to-phase voltages (i.e., b1 display
will indicate L1-L2 voltage). For 400V models,
voltages displayed are phase-to-neutral voltages
(i.e., b1 display will indicate L1-N voltage).
14-04-275-9332F8.indb 9 4/30/2014 4:29:22 PM
i 0.5 2. i 8
2. i 8
2 0 8
i 0.5 2 0 8
i.2 3
OP
i 0.5 2. i 8
2. i 8
2 0 8
i 0.5 2 0 8
i.2 3
OP
10
Using the Digital Display
Press Mode button to toggle between options and data within a menu. A momentary press of the
arrow buttons switches between menus. A long press skips between measurement categories.
The scrolling pattern of the display is outlined below.
Total Output Power (Measurement Category)
Kilowatts
To Total
Output
Power
Amps Kilowatts Volts*
continued on next page
14-04-275-9332F8.indb 10 4/30/2014 4:29:23 PM
Este manual sirve para los siguientes modelos
8
Tabla de contenidos
Idiomas:
Otros manuales de Unidad de distribución de energía de Tripp Lite
Tripp Lite
Tripp Lite AG-05F3 Series Manual de usuario
Tripp Lite
Tripp Lite PDUMVR30NET (AG-0045) Manual de usuario
Tripp Lite
Tripp Lite PDUNV Manual de usuario
Tripp Lite
Tripp Lite SUDC Series Manual de usuario
Tripp Lite
Tripp Lite PDUMNH30HV Manual de usuario
Tripp Lite
Tripp Lite PDUMNH20 Manual de usuario
Tripp Lite
Tripp Lite PDUV30-36 Manual de usuario
Tripp Lite
Tripp Lite SUPDM Modules 932645 932645 Manual de usuario
Tripp Lite
Tripp Lite AGIB6098 Series Manual de usuario
Tripp Lite
Tripp Lite PDU3VN-Series Manual de usuario
Tripp Lite
Tripp Lite PDU1215 Guía del usuario
Tripp Lite
Tripp Lite PDUMV30NET Manual de usuario
Tripp Lite
Tripp Lite PDUMH15AT Manual de usuario
Tripp Lite
Tripp Lite PDU3VSR10L1530 Manual de usuario
Tripp Lite
Tripp Lite PDU3VN10L2120 Manual de usuario
Tripp Lite
Tripp Lite Power Distribution Unit (PDU) PDU6K Manual de usuario
Tripp Lite
Tripp Lite PDUMNV30HVLX Manual de usuario
Tripp Lite
Tripp Lite PDUV20-60 Manual de usuario
Tripp Lite
Tripp Lite PDU Manual de usuario
Tripp Lite
Tripp Lite PDU3VSR10L2130 Manual de usuario
