Owner’s Manual

3-Phase 0U Power

Distribution Units

Switched PDU3VSR-Series & PDU3XVSR-Series

Monitored PDU3VN-Series & PDU3XVN-Series

Important Safety Insructions 2

Installation 2

Digital Load Meter 7

Features 9

Conﬁguration and Operation 11

Service 11

Warranty and Warranty Registration 12

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Español 13

Français 25

201104185 93-2906.indb 1 5/18/2011 1:35:57 PM

1-1

1-4

1-2 1-3

Important Safety Instructions

Installation

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during

the installation, operation, and storage of this product. Failure to heed these

instructions and warnings may affect the product warranty.

• The PDU provides convenient multiple outlets, but it DOES NOT provide surge or line noise

protection for connected equipment.

• The PDU is designed for indoor use only in a controlled environment away from excess

moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that

eliminate the connection to ground.

• The power requirement for each piece of equipment connected to the PDU must not exceed

the individual outlet’s load rating.

• The total power requirement for equipment connected to the PDU must not exceed the

maximum load rating for the PDU.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable

parts inside.

• Do not attempt to modify the PDU, including the input plugs and power cables.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signicantly

affect its safety or effectiveness is not recommended. Do not use this equipment in the

presence of a ammable anesthetic mixture with air, oxygen or nitrous oxide.

Mounting the PDU

Note: The illustrations may differ somewhat from your PDU model. Regardless of conﬁguration, the user must

determine the ﬁtness of hardware and procedures before mounting. The PDU and included hardware are designed

for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting

conﬁgurations may vary. Screws for attaching the mounting brackets and cord retention shelf to the PDU are

included. Use only the screws supplied by the manufacturer, or their exact equivalent (#6-32, ¼” ﬂat head).

1-1 Attach the mounting brackets to the PDU.

1-2 (Optional) Attach the cord retention

bracket(s) to the PDU.

1-3 Attach the PDU to a vertical rail in your

rack or rack enclosure. (Use the mounting

hardware that came with your rack or rack

enclosure to attach the mounting brackets

to the rail.)

1-4 For toolless mounting, attach the included

mounting buttons to the PDU. Position the

PDU as desired in the rack enclosure, align

the buttons with the rack mounting slots,

and slide the PDU into position.

201104185 93-2906.indb 2 5/18/2011 1:35:59 PM

Installation

Connecting the PDU

2-1 Each model is equipped with 1 of 8 different input plugs.

16A Red IEC

309 3P+N+E

30A Blue IEC

309 3P+E

60A Blue IEC

309 3P+E Hubbell

CS8365C

L15-30P L21-30P L21-20P L15-20P

PDU3VSR-Switched, Metered and Networked—0U, Vertical Strip Cabinet Style

Model # Input Plug

Max Amps

(Limited by

input plug)

Input

Voltage

Output

Voltage

Balanced

Output

Current

per Phase

Cord

Length Outlets

Outlet

Control

PDU3VSR3G30

PDU3VSR10G30 30A Blue IEC 309 3P+E 24 208 208 13.9 A

10 ft.

or 3 ft.

3 Banks of

(7) C13s and

(1) C19

Yes

PDU3VSR3G60

PDU3VSR10G60 60A Blue IEC 309 3P+E 35 208 208 20.0 A

PDU3VSR3H50

PDU3VSR10H50 Hubbell CS8365C 35 208 208 20.0 A

PDU3VSR3L1530

PDU3VSR10L1530 L15-30P 24

208 208 13.9 A

PDU3VSR3L2130

PDU3VSR10L2130 L21-30P 24

PDU3VSR3L2120

PDU3VSR10L2120 L21-20P 16

208 208 9.2 A

PDU3VSR3L1520

PDU3VSR10L1520 L15-20P 16

PDU3XVSR3G16

PDU3XVSR10G16 16A Red IEC 309 3P+N+E 16 230/

400 230 16.0 A

PDU3VN-Metered and Networked—0U, Vertical Strip Cabinet Style

Model # Input Plug

Max Amps

(Limited by

input plug)

Input

Voltage

Output

Voltage

Balanced

Output

Current

per Phase

Cord

Length Outlets

Outlet

Control

PDU3VN3G30

PDU3VN10G30 30A Blue IEC 309 3P+E 24 208 208 13.9 A

10 ft.

or 3 ft.

3 Banks of

(10) C13s

and (2) C19

PDU3VN3G60

PDU3VN10G60 60A Blue IEC 309 3P+E 35 208 208 20.0 A

PDU3VN3H50

PDU3VN10H50 Hubbell CS8365C 35 208 208 20.0 A

PDU3VN3L1530

PDU3VN10L1530 L15-30P 24

208 208 13.9 A

PDU3VN3L2130

PDU3VN10L2130 L21-30P 24

PDU3VN3L2120

PDU3VN10L2120 L21-20P 16

208 208 9.2 A

PDU3VN3L1520

PDU3VN10L1520 L15-20P 16

PDU3XVN3G16

PDU3XVN10G16 16A Red IEC 309 3P+N+E 16 230/

400 230 16.0 A

201104185 93-2906.indb 3 5/18/2011 1:36:00 PM

Connecting the PDU

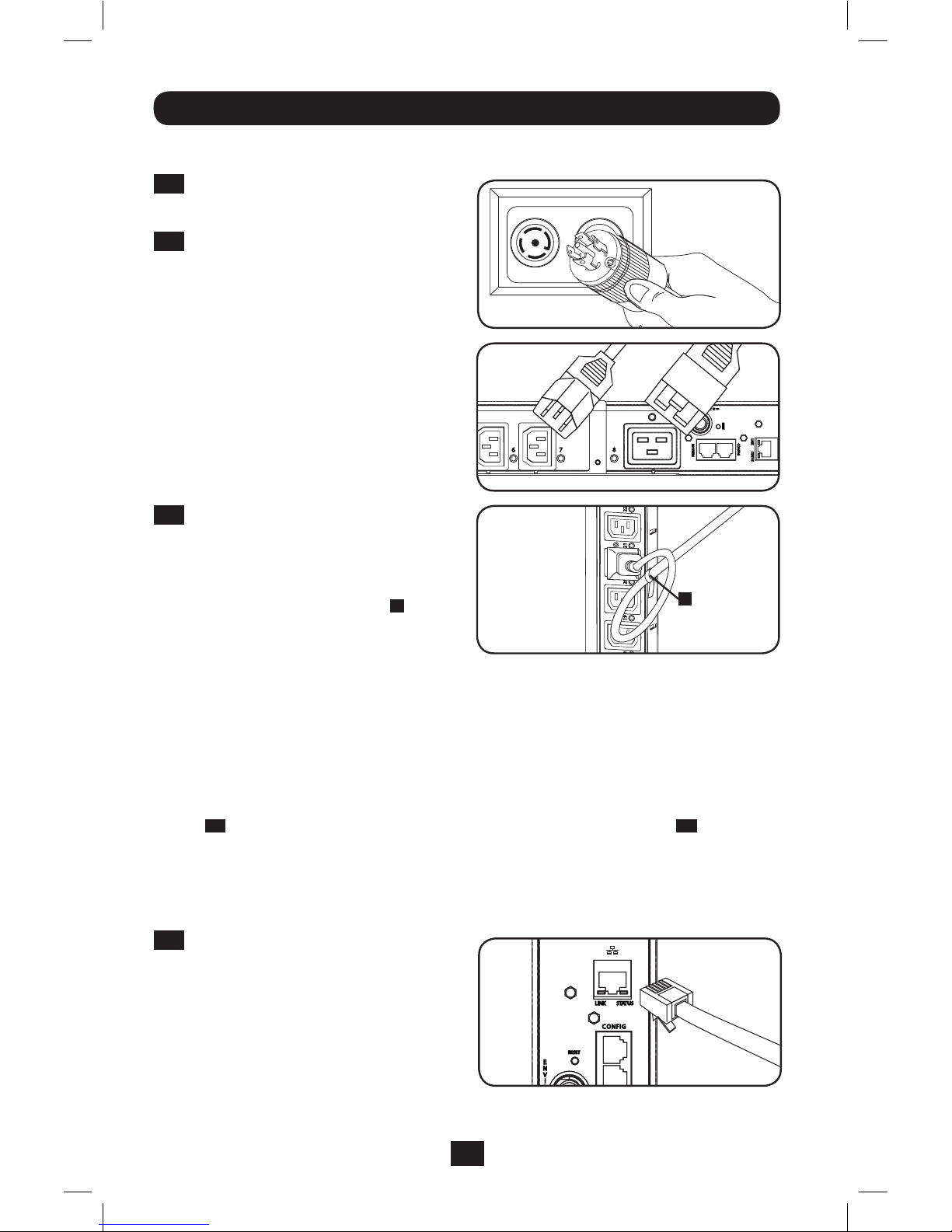

2-2 Connect the input plug to your facility’s

compatible AC power source.

2-3 Both models contain 3 banks of output

receptacles. PDU3VSR (3 banks of 7

C13s and 1 C19). PDU3VN (3 banks

of 10 C13s and 2 C19s). Connect

your equipment’s input plugs to the

appropriate outlets on the PDU. On the

Switched models, the LED near each

outlet illuminates when the outlet is

ready to distribute live AC power.

Note: It is recommended that you do not

connect a live load to the PDU. If the load

you intend to connect has an ON/OFF

switch, please turn the switch to OFF prior to

connection.

2-4 (Optional) If you attached the cord

retention bracket(s), tie each equipment

power cord to the retention bracket.

Attach each cord to the retention shelf

by looping the cord and securing it with

one of the included cable ties A. Make

sure each cord can be unplugged from

the PDU without removing the cable tie.

Installation

Networking the PDU

Note: The MAC address of the PDU (a 12-digit string in this format: 000667xxxxxx) is printed on a label

attached to the PDU enclosure.

If your network’s DHCP server will assign a dynamic IP address to the PDU automatically, go

to Step 3-1 . If you will assign a static IP address to the PDU manually, go to Step 4-1 . If you

are uncertain which method to use, contact your network administrator for assistance before

continuing the installation process.

Dynamic IP Address Assignment

3-1 Connect PDU to Network: While the

PDU is powered, connect a standard

Ethernet patch cable to the RJ-45

Ethernet port on the PDU.

Note: This port is not compatible with PoE

(Power over Ethernet) applications. The PDU

will attempt to obtain an IP address via DHCP.

This may take as long as several minutes,

depending on your network environment.

Some Models Will Vary.

201104185 93-2906.indb 4 5/18/2011 1:36:01 PM

Installation

Dynamic IP Address Assignment

3-2 Discover IP Address: Contact your network administrator to determine which dynamic IP

address has been assigned to the PDU by the DHCP server. The PDU can be identied on

the DHCP server by referring to its MAC address. (The MAC address is a 12-digit string in

this format: 000667xxxxxx. Refer to the MAC address label attached to the PDU.) You may

wish to request a long-term lease period for the IP address, depending on your application.

After you have discovered the IP address, skip Steps 4-1 through 4-6 and proceed directly

to Step 5-1 .

3-3 Alternate Method: Press and hold Button B on the Digital Load Meter (see page 8) for 4

seconds to display the IP Address. The default is no address assigned. If this is the case,

“no address” will display one letter at a time. If there is an IP Address programmed, the

address will display 1 digit at a time with dashes (-) representing dots or periods (.).

Static IP Address Assignment

4-1 Determine IP Information: Before assigning a static IP address, you’ll need to know the

IP address, gateway address and subnet mask. If you do not have this information, contact

your network administrator for assistance.

4-2 Conﬁgure Terminal Emulation Program: Open a VT100-compatible terminal emulation

program (such as the HyperTerminal program bundled with Microsoft®Windows®) on

a computer with an available DB9 serial port. (A notebook computer may be the most

convenient choice.) Set the terminal emulation program to use the COM port that

corresponds to the computer’s DB9 serial port. Specify the parameters required to

communicate with the PDU terminal interface:

Bits per second: 9600 Stop bits: 1

Data bits: 8 Flow Control: None

Parity: None

If the terminal emulation program supports multiple emulation modes, you may also need

to specify VT100 emulation.

4-3 Connect PDU to Computer: Use

the RJ-45 to DB9 conguration cable

(part number 73-1243) included with

the PDU to connect the PDU to the

computer. The connector at one end of

the cable attaches to the CONFIG RJ-45

port on the PDU. The DB9 connector at

the other end of the cable connects to

the computer’s serial port.

4-4 Press SNMP Reset Button: Press the

reset button for 3 seconds to reboot the

PDU’s network card. Rebooting the

network card will not erase network

settings or interrupt AC power.

201104185 93-2906.indb 5 5/18/2011 1:36:01 PM

Installation

Static IP Address Assignment

4-5 Conﬁgure PDU in Terminal Mode: After a brief pause, an initialization page should

appear in the terminal emulation program. Press any key on the keyboard within 10

seconds to change the PDU settings. (If the 10-second period has elapsed, you can reboot

the PDU by powering down completely and then restoring power.)

Follow the sequence of responses below in order to assign an IP address to the PDU. The

default terminal mode root password is TrippLite. Sample IP settings are shown - supply

your own IP information when you congure your PDU.

Press A to Accept the settings, or M to Modify? M

Enter the root password: *********

Reset conﬁguration to default values

(Y/N)? N

For each of the following questions, you

can press <Return> to select the value

shown in braces, or you can enter a new

value.

NETWORK INTERFACE PARAMETERS:

Should this target obtain IP settings from

the network?[N] N

Static IP address [192.168.1.19]?

192.168.0.123

Static IP address is 192.168.0.123

Subnet Mask IP address [255.255.0.0]? 255.255.255.0

Subnet Mask IP address is 255.255.255.0

Gateway address IP address [192.168.1.1]? 192.168.0.1

Gateway address IP address is 192.168.0.1

You can also change the root password, real-time clock and other settings. (Tripp Lite

recommends against changing the default settings unless you are an advanced user with

a specic purpose.) After you have nished entering settings, the PDU will save changes

to memory and reboot (this may take several minutes). After the PDU reboots, the

initialization page should display the new static IP settings.

4-6 Remove Serial Cable: Remove the serial cable from the PDU and proceed to Step 5-1 .

Network Connection

5-1 Connect PDU to Network: While the

PDU is powered, connect a standard

Ethernet patch cable to the RJ-45

Ethernet port on the PDU.

Note: This port is not compatible with PoE

(Power over Ethernet) applications.

201104185 93-2906.indb 6 5/18/2011 1:36:02 PM

DOWN

Installation

Digital Load Meter

Network Connection

5-2 Access PDU with Web Browser: After

an IP address has been assigned to the

PDU, attempt to access it with a Web

browser that supports frames, forms

and Java™. Open a Web browser on a

computer connected to the LAN and

enter the IP address assigned to the

PDU. You should be prompted for a

password A. The user name is admin

and the default password is admin.

After you enter the user name and

password, the PowerAlert status page B

will appear in the browser window. For

more information about conguration

and operation of the PDU via the

PowerAlert interface, refer to the

SNMPWEBCARD User’s Guide, included

on the CD-ROM bundled with the PDU.

Note for Network Management System

Users Only: Two MIB ﬁles - Tripplite.mib

and RFC1628.mib - must be loaded on

each Network Management Station that

will monitor the PDU via SNMP. The ﬁles are

provided on the CD-ROM included in the

product package.

1Phase Current/Flip Display Button:

This button A can be pressed to show

total current for each of the three outlet

groups or Phases. Pressing this button

once will display the total current for all

of the outlets on Phase Bank 1, located

nearest to the input cord. The LED for

Phase 1 Dwill illuminate and the total

current for Phase 1 outlets will display

in amps in the LED Amps display C

. Pressing this button Aa second time

will produce the same results for Phase

Bank 2 and a third time for Phase Bank

3. The appropriate LEDs Eor Fwill

also illuminate and amps will appear

in the display C . Pressing the button

additional times will repeat the cycle.

If you press and hold this button for

4 seconds, the numbers in the LED

Amps display Cwill ﬂip for mounting

versatility. The unit can be mounted with

the power cord facing the top or bottom

while still being able to read the display.

201104185 93-2906.indb 7 5/18/2011 1:36:02 PM

L 1 L 2 L 3

Digital Load Meter

2Receptacle Current/IP Show Button

(Model PDU3VSR & PDU3XVSR Only):

This button B can be pressed to show

the current for each individual outlet.

Pressing this button once will display

the current for the rst individual outlet,

located nearest the input cord. The

LED for Phase 1 D will ash (because

this outlet is included in the Phase 1

outlets) as will the LED located next to

the outlet itself and the total current

for that outlet will display in amps in

the LED Amps display C. Pressing this

button a second time will produce the

same results for outlet 2, pressing a

third time for outlet 3 and so on through

all the outlets.

Note: The LED for Phases 1, 2 and 3 D, E, and Fwill all ﬂash accordingly as you move between

outlets and their respective Phases. Outlets 1-8 will ﬂash Phase 1 LED D, outlets 9-16 will ﬂash

Phase 2 LED Eand outlets 17-24 will ﬂash Phase 3 LED F.

(For All Models): If you press and hold this button Bfor 4 seconds you can display the

IP Address assigned to the unit in the LED Amps display C. The default is no address

assigned. If this is the case, “no address” will display, one letter at a time. If there is an IP

Address programmed, the address will display 1 digit at a time with dashes (-) representing

dots or periods (.).

201104185 93-2906.indb 8 5/18/2011 1:36:03 PM

Features

Outlets: During normal operation, the outlets distribute AC power to

connected equipment.

Outlet LED: Once the unit is powered-on, each outlet individually ramps

up and each outlet LED will illuminate when the associated outlet is ready

to distribute live AC power (PDU3VSR & PDU3XVSR models only).

IEC-60320-C13

IEC-60320-C19

Circuit Breaker: Each phase has its own breaker labeled L1 (Phase 1),

L2 (Phase 2) and L3 (Phase 3). If the connected equipment load exceeds

the Maximum Load Rating for that phase of the PDU, the circuit breaker

will trip. Disconnect excess equipment and allow the breaker to cool before

resetting the breaker (models rated at 24A or greater input current only).

Cord Retention Bracket: Provides secure attachment points for

connected equipment cords.

Mounting Brackets: Use these brackets to mount the PDU.

SNMP Reset Button: Press the reset button for 3 seconds to reboot the

PDU’s network card. Rebooting the network card will not erase network

settings or interrupt AC power.

PS/2 Port: Use this port to connect a Tripp Lite ENVIROSENSE

environmental sensor to provide remote temperature/humidity monitoring

and a dry contact interface to control and monitor alarm, security and

telecom devices. Visit www.tripplite.com for ordering information. Note:

Do not connect a keyboard or mouse to this port.

201104185 93-2906.indb 9 5/18/2011 1:36:05 PM

CONFIG

A B

MODEM

RJ-45 CONFIG Port: The port is reserved for conguration by factory

authorized personnel only. Do not connect anything to this port.

RJ-45 Modem Port: Reserved for future use.

Ethernet Port: Use this RJ-45 jack to connect the PDU to the network

with a standard Ethernet patch cable. The Link LED A and Status LED B

indicate several operating conditions, as shown in the table below. This

port is not compatible with PoE (Power Over Ethernet) applications.

Network Operating Conditions

ALink LED Color

Off No Network Connection

Flashing Amber 100 Mbps Network Connection

Flashing Green 10 Mbps Network Connection

BStatus LED Color

Off Card Not Initialized

Steady or Flashing Green Card Initialized and Operational

Steady Amber Error - Card Not Initialized

Features

201104185 93-2906.indb 10 5/18/2011 1:36:05 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unidad de distribución de energía de Tripp Lite

Tripp Lite

Tripp Lite PDUH20DV Manual de usuario

Tripp Lite

Tripp Lite PDU3MV6L2120 Manual de usuario

Tripp Lite

Tripp Lite PDUNV Manual de usuario

Tripp Lite

Tripp Lite PDU3VSR10L1530 Manual de usuario

Tripp Lite

Tripp Lite PDUMV20HVNET Manual de usuario

Tripp Lite

Tripp Lite PDUMV40 Manual de usuario

Tripp Lite

Tripp Lite PDU Manual de usuario

Tripp Lite

Tripp Lite SUPDM Modules 932645 932645 Manual de usuario

Tripp Lite

Tripp Lite PDUMV30NET Manual de usuario

Tripp Lite

Tripp Lite PDU3V6H50 Manual de usuario

Tripp Lite

Tripp Lite PDUMNV30HVLX Manual de usuario

Tripp Lite

Tripp Lite PDU3VSR6H50A Manual de usuario

Tripp Lite

Tripp Lite PDUMH30NET Manual de usuario

Tripp Lite

Tripp Lite PDUMH20AT Manual de usuario

Tripp Lite

Tripp Lite PDUMH20NET2 Guía de configuración

Tripp Lite

Tripp Lite PDUMV30NET Manual de usuario

Tripp Lite

Tripp Lite PDUMH15S Manual de usuario

Tripp Lite

Tripp Lite PDUMH15 Manual de usuario

Tripp Lite

Tripp Lite PDUMH15AT Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SUPDMB20KHW Manual de usuario

Tripp Lite

Tripp Lite PDU40TDUAL Manual de usuario

Tripp Lite

Tripp Lite PDU3EVN10L2130 Manual de usuario

Tripp Lite

Tripp Lite PDU3EVN3L2130 Manual de usuario

Tripp Lite

Tripp Lite PDUMH15NET Manual de usuario

Manuales populares de Unidad de distribución de energía de otras marcas

hager

hager SP 015 Manual de usuario

Pakedge

Pakedge PowerPak 9 Manual de usuario

Pts

Pts 9042 Series Manual de usuario

Shure

Shure WA405 Manual de usuario

CORNING

CORNING CCH 4U Manual de usuario

Panamax

Panamax M4LT-EX Manual de usuario

PANCONNECT

PANCONNECT FLAT 3M Manual de usuario

Raytheon

Raytheon 138-118 Manual de usuario

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manual de usuario

Botex

Botex PSA 322-6 DL Manual de usuario

GE QuiXtra 4000 Guía de inicio rápido

RDL

RDL EZ Series Manual de usuario

StarTech.com

StarTech.com RKPW161915 Manual del sistema

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manual de usuario

ABB

ABB PSBS0065 Manual

Baumuller

Baumuller BFN 3-1-0007-001 Manual

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manual

GE GEK-45404F Manual de usuario
