Installation and

Quick Start Guide

SNMP/Web Management Accessory

Model: SRCOOLNET2LX

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Read this guide carefully before installation. A separate downloadable User’s

Guide can be found by going to www.tripplite.com/support and typing

SRCOOLNET2LX in the search field. Refer to the User's Guide for additional

information about configuration and operation.

Installation 2

Features 10

Tech Support 12

Warranty 12

Product Registration and 13

Regulatory Compliance

Español 14

Français 27

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

18-06-379-93387E.indb 1 7/26/2018 4:19:58 PM

The SRCOOLNET2LX allows a user to communicate with and control Tripp Lite’s

SRCOOL2KWM, SRCOOL7KRM, SRCOOL18K, SRCOOL24K (pre-installed in unit) spot

coolers, and compatible SRCOOL33K row-based cooler as manageable devices on a

network accessible via Web browser, network management station, telnet, SSH or

command line.

1 - Preparation

1-1 Confirm Package Contents: In addition to this manual, your package should

include the following:

• Micro-USB cable for remote temperature sensing and configuration

(part number: 73176E), 12 ft.

• EnviroSense2 E2MT Sensor Module

• E2MT User Manual

1-2 Locate MAC Address: The 12-digit MAC address (000667xxxxxx) is located on

the SRCOOLNET2LX.

Installation

2 – Installation

2-1 Insert the SRCOOLNET2LX into the front SNMP accessory slot on the

SRCOOL2KWM/7KWM/18K/24K spot coolers or compatible SRCOOL33K

row-based cooler (Figure 1 in section 4-2).

2-2 Connect SRCOOLNET2LX to Network: Connect a standard Ethernet patch

cable to the RJ45 Ethernet port on the SRCOOLNET2LX.

Note: This port does not support PoE (Power over Ethernet) applications.

2-3 Determine Network Installation Method: If your network's DHCP server will

assign a dynamic IP address to the SRCOOLNET2LX automatically, proceed to

3 - Dynamic IP Address Assignment. If you will assign a static IP address to

the SRCOOLNET2LX manually, proceed to 4 - Static IP Address Assignment. If

you are uncertain which method to use, contact your network administrator for

assistance before continuing the installation process.

18-06-379-93387E.indb 2 7/26/2018 4:19:58 PM

Installation

3 - Dynamic IP Address Assignment

3-1 Connect SRCOOLNET2LX to Network: By default, the SRCOOLNET2LX will

attempt to obtain an IP address via DHCP. This may take as long as several

minutes, depending on your network environment.

3-2 Discover IP Address: To identify the IP address assigned to the

SRCOOLNET2LX, contact your network administrator and provide the MAC

address of the SRCOOLNET2LX. You can also determine the IP address locally at

the card. If you do not already have the serial over USB driver installed on your

PC, you can download it from www.tripplite.com/support by typing

SRCOOLNET2LX in the search field. Select the driver named “TL-cdc”. To install,

follow the instructions provided with the driver.

Once the driver is installed and the COM port has been assigned, start a

terminal emulation program, such as Tera Term Pro. Configure it to use the

assigned COM port and use the following serial port settings: 115.2Kbps, 8,

NONE, 1. Connect the USB cable to the PC and the Micro-USB end to the

Micro-USB port on the SRCOOLNET2LX. When the login prompt appears, login as

localadmin / localadmin. When the Menu appears, navigate to "3- Network

Configuration", then to "1- IP Configuration". The assigned IP address will be

displayed. After you have determined the IP address, proceed to section 5 - Test

and Configure.

Notes:

• Usernames and passwords are case sensitive.

• You may wish to request a long-term lease period for the IP address, depending on your

application.

• PowerAlert®Device Manager and the WEBCARDLX support both IPv4 and IPv6. The card

is set up by default to receive a DHCP address for IPv4, IPv6 or both. Receiving both

addresses allows connection to the card via either the IPv4 or IPv6 address.

18-06-379-93387E.indb 3 7/26/2018 4:19:58 PM

Installation

4 - Static IP Address Assignment/Terminal Menu

Configuration Settings

4-1 Determine IP Information: The SRCOOLNET2LX can support a single static IPv4

address (requires setting the IP address, subnet mask and gateway) and/or a

single static IPv6 address. In addition, the SRCOOLNET2LX can support a single

static IPv4 or an IPv6 DNS address that is required to be entered.

4-2 Configure Terminal Emulation Program: If you have not already done so,

download the serial over USB driver (TL-cdc) from the Tripp Lite website. The

driver can be found by going to www.tripplite.com/support and typing

SRCOOLNET2LX in the search field. To install the driver, follow the instructions

provided. Once the driver is installed and a COM port has been assigned, set

your terminal emulation program to use the COM port that corresponds to the

USB port.

SRCOOL7KRM

SRCOOLNET2LX

SRCOOL18K / SRCOOL24KSRCOOL2KWM SRCOOL33K

COMPUTER

WITH USB PORT

4-3 Connect SRCOOLNET2LX to Computer: Using the provided cable, connect your

PC to the Micro-USB port on the SRCOOLNET2LX.

Figure 1

18-06-379-93387E.indb 4 7/26/2018 4:19:59 PM

Installation

4-4 The card will display a Linux-style login after boot up. Login as localadmin /

localadmin to access the standard menu.

Note: Usernames and passwords are case sensitive.

4-5 From the Main Menu:

a. Select Option 3: Network Configuration

b. Select Option 1: IP Configuration

c. Select Option 3: IPv4 setting on Option 4: IPv6 settings

d. Select Option 1: Method

e. Select Option 2: Static

Assign the address, subnet mask, gateway, etc. Save your settings by selecting

"A" (apply). Choose “y” to restart PowerAlert now. Close your terminal session.

4-6 Remove Configuration Cable: Remove the configuration cable that connects

the SRCOOLNET2LX to the computer.

18-06-379-93387E.indb 5 7/26/2018 4:19:59 PM

Installation

5 - Test and Configure

5-1 Test Network Connection: After an IP address has been assigned to the card,

try to access it with a Web browser. Open Firefox or Chrome on a computer

connected to the network and enter http:// or https:// followed by the IP address.

The login screen for the PowerAlert Device Manager will display. The default

username is localadmin and the password is localadmin. After you enter the

username and password, the PowerAlert Status page will appear in the browser

window. For more information about configuration and operation of the managed

device, refer to the User's Guide located in the support section of the

SRCOOLNET2LX product web page.

Note: Usernames and passwords are case sensitive.

18-06-379-93387E.indb 6 7/26/2018 4:19:59 PM

Installation

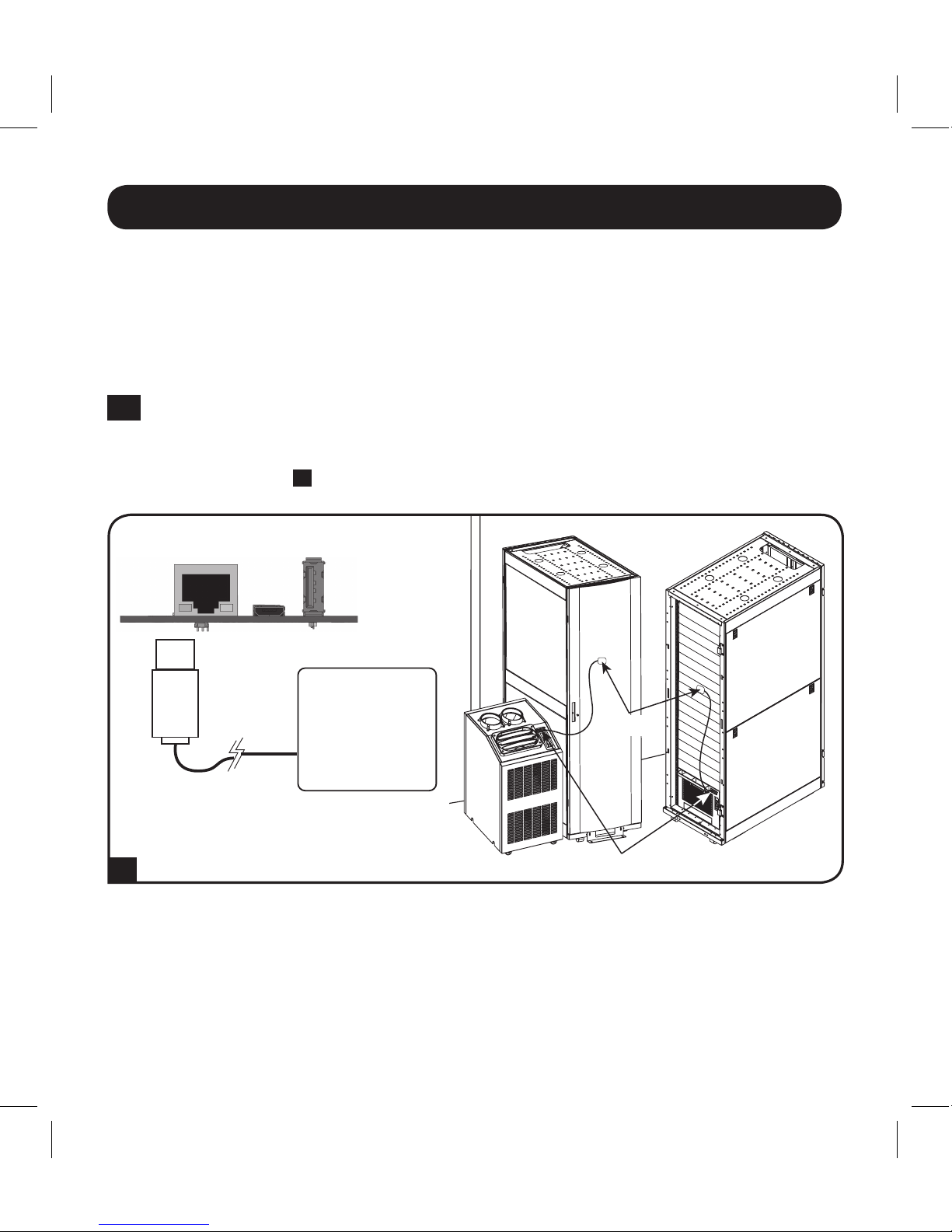

6 - Using E2MT as Remote Set Temperature Sensor

SRCOOLNET2LX supports the use of one E2MT environmental sensor (included) to

control the temperature, rather than the AC unit’s default internal temperature sensor

in the return airstream. The E2MT sensor can be located in the area you wish to

control to the specific set point.

6-1 Configuring SRCOOLNET2LX for Remote Set-Point Usage

To use the Remote Temperature Set-Point feature, ensure the E2MT device is

installed in the desired location for monitoring and also connected to the

SRCOOLNET2LX A.

SRCOOLNET2LX

E2MT Module

SRCOOLNET2LX

E2MT

Module

18-06-379-93387E.indb 7 7/26/2018 4:20:00 PM

Installation

From the PowerAlert Device Manager Interface, turn ON the cooling unit by

selecting the Control menu. Under the Control menu, check the "Turn On Device"

option and click the activation button to the right. Next, navigate to the

Configuration menu> Device Settings to ensure the E2MT sensor is selected.

Under the Function: Device Thresholds drop-down menu in the box labeled

“Value”, type in the temperature set-point you wish the SRCOOLNET2LX to target

Aand press activation button to the right B. The set point control on the device

display panel will be overridden.

18-06-379-93387E.indb 8 7/26/2018 4:20:00 PM

Installation

The cooling unit will now begin cooling when the temperature reading at E2MT

equals or exceeds the set point value you entered. When the temperature falls

below this set-point, the unit will stop cooling. If the “Always On” checkbox is

checked, the fans will remain running when the unit stops cooling. If the “Always

On” checkbox is unchecked, the fans will shut off and the unit will shut down. Once

the temperature reaches the set point again, the unit will restart and begin cooling

until the temperature reported by E2MT returns below the set point.

Note: This cycle will continue indefinitely until you select “Shutdown Cooler” from the

SRCOOLNET2LX user interface or turn the cooling unit off via the device display panel.

6-2 Important Considerations When Using Remote Temperature Setpoint

Mode

It is important to keep the following considerations in mind when using the

Remote Temperature Set-Point feature of SRCOOLNET2LX:

1The temperature being used for controlling the attached cooling device is the

E2MT sensor, NOT the return air temperature. The return air temperature

may be higher or lower than the temperature E2MT is reporting.

2The set point displayed on the attached cooling unit’s display panel should

be ignored when the SRCOOLNET2LX is set to Remote Temperature Set-

Point mode in the PowerAlert Device Manager.* The set point displayed on

the device display panel will be the minimum (when cooling) or maximum

(when not cooling) set point permissible by the cooling unit.*

*The SRCOOL2KWM and compatible SRCOOL33K will display the correct set point on

the cooling unit's display.

Note: When the Remote Set-Point Temperature feature is enabled, the unit will show

as "EXTERNAL" on the SRCOOL33K's LCD display. If there is no setting of external

temperature set-point within 60 seconds, the unit will measure the value internally and

the icon "EXTERNAL" will be off.

3If the power button on the cooling unit display panel is pressed while in

Remote Temperature Set-Point mode, the mode will be canceled.

18-06-379-93387E.indb 9 7/26/2018 4:20:00 PM

Features

AEthernet Port: RJ45 jack connects the SRCOOLNET2LX to the network using a

standard Ethernet patch cable. The Link LED A1 and Status LED A2 indicate the

operating conditions. See the LED Function Table for a description of LED

behavior.

BMicro-USB Port: Use this port to directly connect with a computer running a

terminal emulation program. A cable (part number: 73176E) is included with the

SRCOOLNET2LX. If you need to order a replacement cable, contact Tripp Lite

Customer Support at 773.869.1234.

CType-A USB Port: Use this port to connect the included E2MT module for

monitoring ambient temperature conditions.

Note: Do not connect a keyboard or mouse to this port.

DReset Button: The reset button is recessed, accessible through a small hole

under the RJ45 network port. Use a paper clip or other suitable object to press

the reset button for 3 seconds to reboot the network interface. Rebooting the

network interface will not erase network settings or interrupt AC power. Press and

hold the reset button for 20 seconds to restore the network interface to its factory

default settings. Restoring to the factory default will erase all previously saved

data—including network settings—without interrupting AC power.

EStatus LED: Shows SRCOOLNET2LX status. See the LED Function Table for a

description of LED behavior.

D EA1 A2

B C

18-06-379-93387E.indb 10 7/26/2018 4:20:00 PM

Tabla de contenidos

Idiomas:

Otros manuales de Unidad de control de Tripp Lite

Tripp Lite

Tripp Lite Power Accessory Module PAM-1 Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite Power Accessory Module PAM-3 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU5000RT4UTFTAA Manual de usuario

Tripp Lite

Tripp Lite B021-000-19-HD2 Manual de usuario

Tripp Lite

Tripp Lite IP Remote Access Unit Manual de usuario

Tripp Lite

Tripp Lite APS 1024 INT Manual de usuario

Tripp Lite

Tripp Lite Power Accessory Module PAM-2 Manual de usuario

Tripp Lite

Tripp Lite AG-0514 Series Manual de usuario

Tripp Lite

Tripp Lite SRCOOLNETLX Manual de usuario

Tripp Lite

Tripp Lite N482TAP-4SM73LC Manual de usuario

Tripp Lite

Tripp Lite HC350S Series Manual de instrucciones

Tripp Lite

Tripp Lite HC350S Series Manual de instrucciones

Tripp Lite

Tripp Lite PVXXXXFC Manual de usuario

Tripp Lite

Tripp Lite SmartOnline Series Manual de usuario

Tripp Lite

Tripp Lite SmartRack SRCABLEDUCT1UHD Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
