Tripp Lite P970-U2M2 Manual de usuario

M.2 to U.2 Adapter for M.2

PCIe NVMe SSD, SFF-8639

Model: P970-U2M2

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Quick Start Guide

Este manual está disponible en español en la página de Tripp Lite:

tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite :

tripplite.com

Русскоязычная версия настоящего руководства представлена на

веб-сайте компании Tripp Lite по адресу: tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website

verfügbar: tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

• Enhance your PC’s speed and increase internal storage by

adding an M.2 NVMe SSD via an available U.2 (SFF-8639)

compatible interface on your motherboard

• Supports B+M Key SATA M.2 SSD and M-Key NVMe M.2

SSD

• Compatible with 2242, 2260 and 2280 SSD sizes

• Compatible with Tripp Lite’s PCE-U2-PX4 (sold separately)

U.2 to PCIe adapter to assemble an NVMe M.2 SSD into a

motherboard’s PCIe port

• PCle M.2 SSD speeds provide ultra-fast data access to your

computer

• Compatible with PCle 3.0 motherboards; backward

compatible with PCle 2.0 and PCle 1.0

• Compatible with Windows 7 and above and macOS High

Sierra and above

• No external power required

Features

• P970-U2M2 M.2 to U.2 PCIe NVMe SSD Adapter

• SSD Mounting Hardware

• Quick Start Guide

• Computer with an available U.2 port on its motherboard (or

M.2 to U.2 adapter, such as Tripp Lite’s PCE-U2-PX4, sold

separately. See tripplite.com for details.)

• B-Key or B+M Key SATA M.2 SSD or M-Key NVMe M.2 SSD

• Computer running Windows 7 or above, or macOS High

Sierra and above

Optional Hardware

• PCE-U2-PX4 U.2 to PCIe Adapter (Sold Separately)

Package Contents

System Requirements

Notes:

• The following installation diagrams and instructions refer to the

P970-U2M2 being used with Tripp Lite’s PCE-U2-PX4 U.2 to

PCIe Adapter (sold separately) to establish an M.2 module in a

computer’s PCIe port. The P970-U2M2 can be used directly with a

motherboard that features an available U.2 port or other M.2-to-U.2

docks.

• PCI Express cards are static-sensitive devices that require proper

handling. An anti-static ESD wrist strap (such as Tripp Lite’s P999-

000, sold separately) or similar device should always be used when

handling.

• Handle the card with care when installing. Hold it by the edges and

not the interface connectors.

• When disconnecting the drive, go through the proper disconnection

steps of your operating system to safely remove it. Removing the

drive prior to proper disconnection can result in losing or corrupting

data stored on the drive.

• Ifyourdrivehasnotbeenformatted,youwillrstneedtoformatit

using your computer’s disk management utility to copy and access

les.

Installation

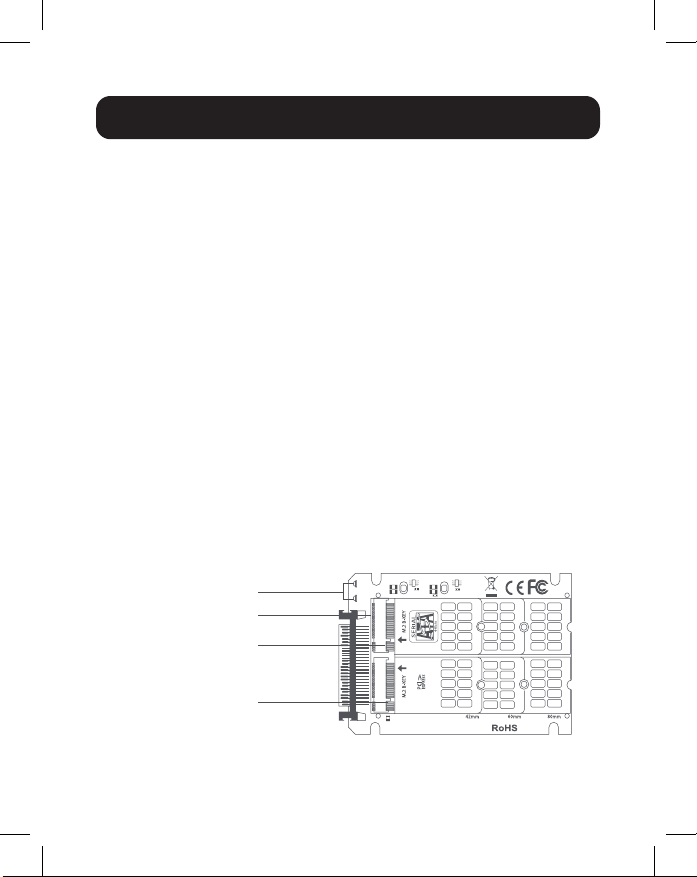

LED

M.2 B-KEY

U.2 Transport

interface

M.2 M-KEY

Installation

1. Connect an M-Key M.2 and/or B-Key M.2 SSD, or B+M Key

SSD, to the appropriate slots on the P970-U2M2.

2. Secure the SSD into place using the included SSD

mounting hardware.

Installation

3. Connect the U.2 connector of the P970-U2M2 into the U.2

input slot of the PCE-U2-PX4 (sold separately). Be sure

to follow the instructions in the notes above to ensure the

equipment is not damaged by static discharge or improper

handling.

Note: The P970-U2M2 inserts into the U.2 slot of the PCE-U2-PX4

with the M.2 SSD(s) facing downward.

U.2 connector

SATA interface

PCIe×4 interface

Installation

4. Secure the P970-U2M2 into place with the PCE-U2-PX4

using the mounting hardware that is included with the PCE-

U2-PX4 (sold separately)

5. Power down the desired computer and unplug its power

cord. Then, disconnect all peripheral devices (monitor,

keyboard, mouse, etc.).

6. Remove the cover from your PC to locate the motherboard

and available PCI Express ports.

Installation

7. Insert the PCIe x4 interface of the PCE-U2-PX4 into the

open PCI Express port of the computer’s motherboard.

8. Connect the 7-pin SATA cable included with the PCE-U2-

PX4 between the SATA interface port on the PCE-U2-PX4

and the 7-pin SATA port on the computer’s motherboard.

Installation

9. Fix the full-prole bracket of the PCE-U2-PX4 into place

in the computer’s tower panel using the bracket screws

included with the PCE-U2-PX4 (if applicable).

10. Place the cover back onto the computer and reconnect its

power cord and peripheral devices.

11. Your adapter is now ready for use.

Operation

1. After turning your computer back on, locate the

“Computer Management” system tool and go to the “Disk

Management” dropdown menu to nd the new disk.

2. Before formatting the new disk, make sure to delete the

volume.

3. Right-click the External Disk icon you want to format. Click

on “New Simple Volume”.

4. Follow the instructions on the screen, choose the partition

size and click “Next” to nish.

5. The new hard disk volume will be found in the list of drive

locations on your computer.

6. Once found, it is ready for use.
