FIRST ASSEMBLY (watch assembly video)
1) Remove the unit from the packing box
2) Unfold the frame, lock the folding levers.

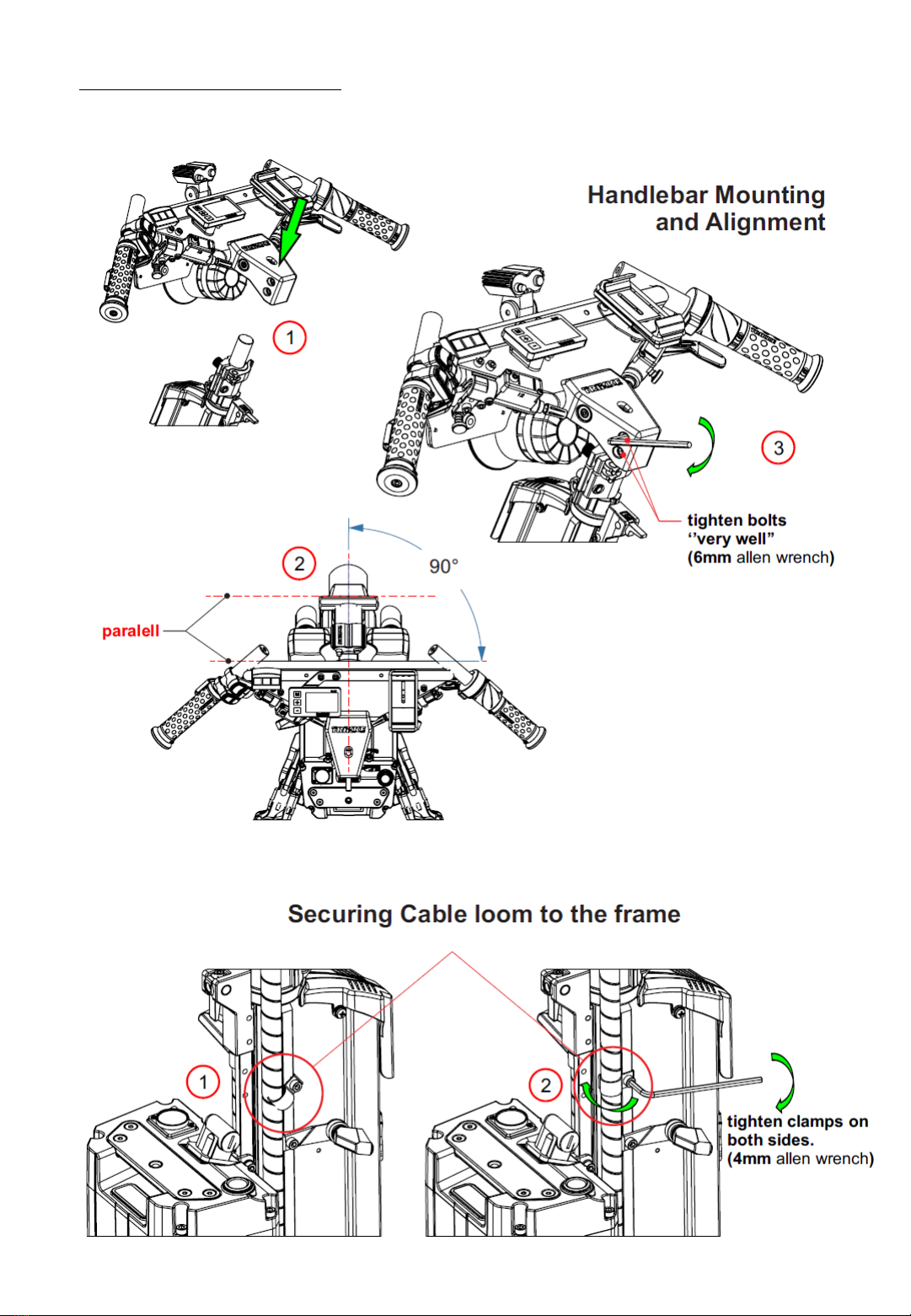

3) Attach handlebar (cables route in front of the handlebar post), align with front wheel,
tight handlebar clamp bolts really well.
4) Attach the siren to the top of front structure (60V model,72V does not need it).
5) Secure the cables loom to the side of the front structure with the small clamps.

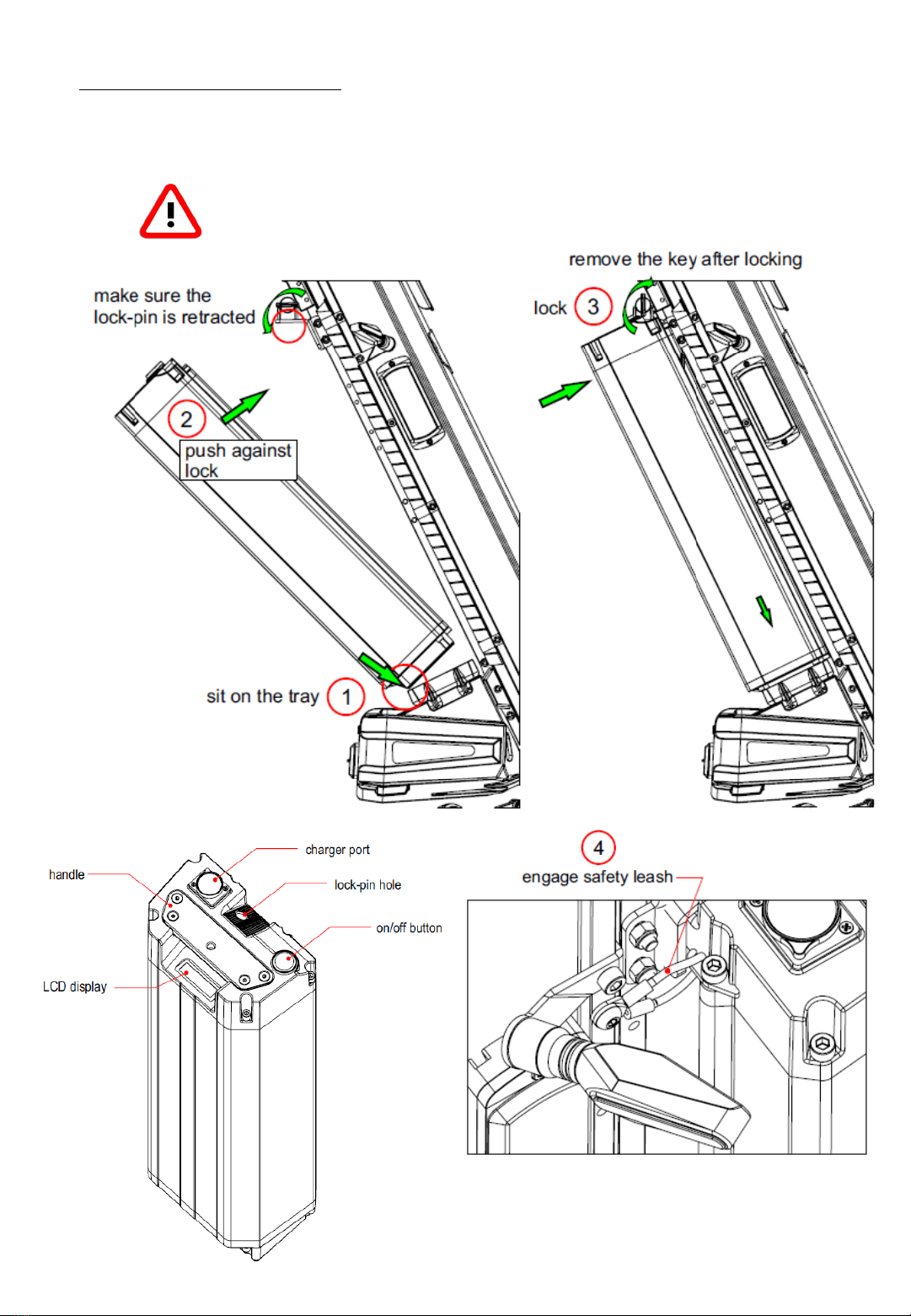

6) Install battery –a) battery must be switched OFF b) make sure the key-lock pin is
retracted (counterclockwise). c) identify front and back side of the battery d) place the
battery on the tray tilted to the back. e) push the battery forward against the lock all the
way and turn the key clockwise to lock. Remove the key from the lock and place in a safe
place.
7) Check/calibrate tires pressure. Use a floor pump or electric pump with a reliable gauge.
Front 50psi, Rear 65psi.
FOLDING
1) Retract the lock knob on each folding mechanism
2) Pull the knob up to unlock the tensioners (while leaning the vehicle to the opposite
side)
3) Fold the frame
4) Screw the knobs into the hole in order to lock the frame folded. This is imperative
for handling and transport.

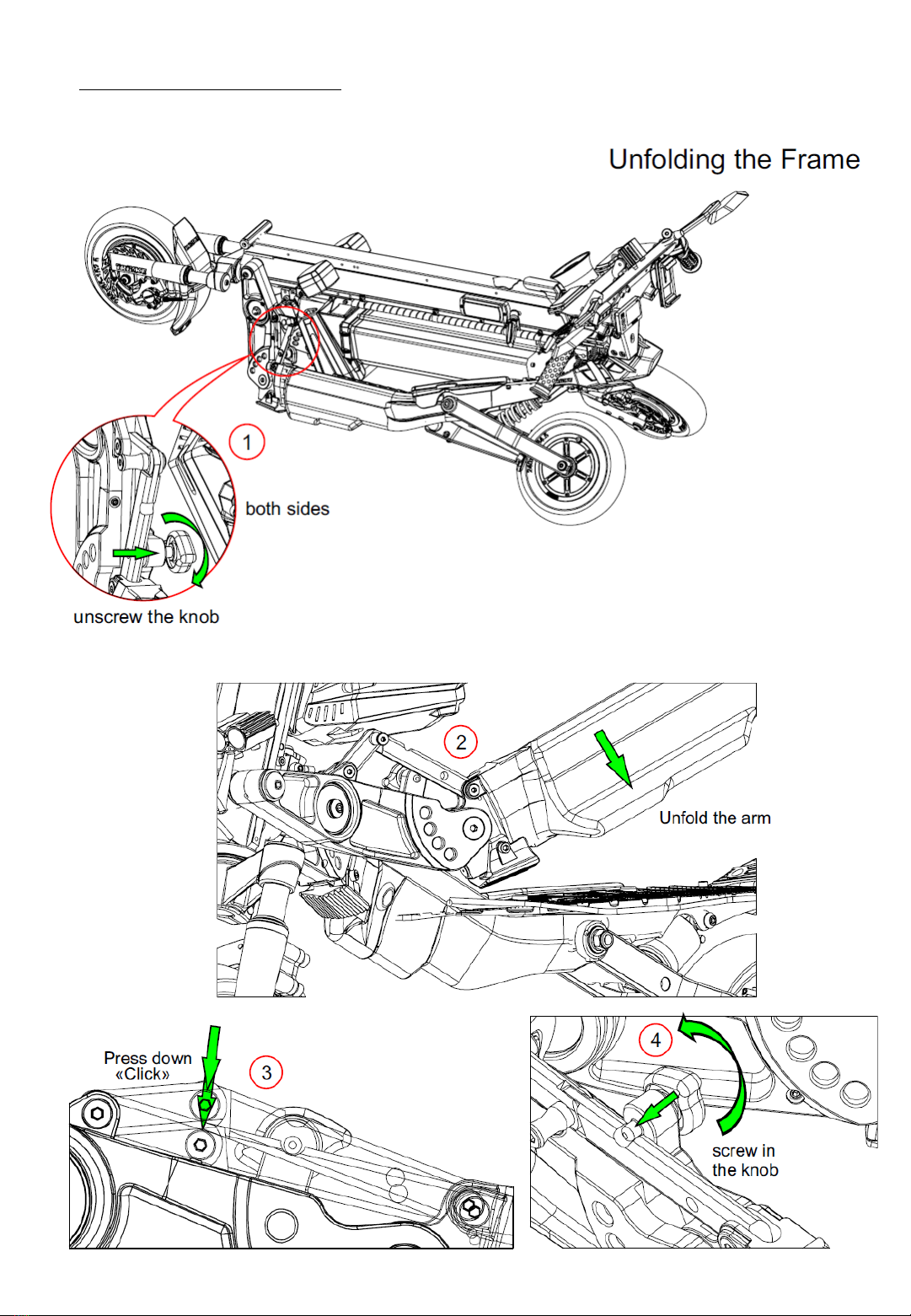

UNFOLDING
1) Retract the lock knob on each folding mechanism (about 1cm)
2) Unfold the frame
3) Press down the tensioners (while leaning the vehicle to the opposite side) until it
snaps into locked position
4) Screw the knobs in until it locks. These will be on top of the tensioners as a safety
pin.
DEFENDER / POSITRON Owner’s manual
Pg.03
