TRENDnet TK-423K - USB/PS/2 KVM Switch Manual de usuario

TEW-503PI (07-28-2005) TK-423K

rev:11.19.2007

• Manage up to 4 computers/servers with one set of console devices

• All required cabling included

• Cables from the KVM switch to the computers/servers feature VGA and PS/2 connectors

• Supported console connections are as follows: PS/2 or USB keyboard and mouse ports, VGA monitor port and

speaker/mic port

• Audio and microphone support

• Audio/mic port selection may be independent of keyboard, video and mouse port selection

• Control computer/server selection with front push buttons and keyboard hotkeys

• Supports Universal Host and Open Host Controller Interface (UHCI/OHCI)

• Multiple platforms supported: Windows 98, XP, Vista, Mac, Linux and more

• Port switching confirmed by LED status indicators and audio tone

• High quality VGA resolution up to 2048 x 1536

• 2-year warranty

FEATURES

kvm

The 4-Port USB PS/2 KVM Switch Kit with Audio (TK-423K)

provides control of 4 computers/servers with just one set of console

controls.

Manage 4 computers that have open VGA and PS/2 ports at the

touch of a button with one set of PS/2 or USB keyboard and mouse,

VGAmonitor, microphone and speakers.

No need for additional cabling, all required cables are included.

Independent audio/mic and PC port selection provide additional

flexibility. LED indicators show connection status and a buzzing

sound confirms port switching. With Hot-Plug, Auto-Scan and Hot-

Key operating features, this versatile device is the perfect choice for

managing 4 computers/servers.

TK-423K

4-Port USB PS/2 KVM Switch Kit with Audio

PC Port connection

Dimensions (L x W x H)

Console port connectors

Certification

PC selection

LED

Auto Scan Interval

Weight

Temperature

Humidity

• 4 computers

• 5V DC 2A external power adapter

• 4 x VGA HDB 15-pin female • 4 x 3.5mm audio in/out jack • 4 x 3.5mm microphone in/out jack

• 255 x 117.5 x 45 mm (10.04 x 4.63 x 1.77 inches)

• CE, FCC

• 2 x USB 1.1 type A for keyboard/ mouse • 1 x PS/2 keyboard 6-pin mini DIN female

• 1 x 3.5mm audio in/out jack • 1 x 3.5mm microphone in/out jack

• 0%~ 90%RH, Non-Condensing

• Hotkey/ push button

• 1000 g (35.2 oz.)

• 4 x LED Green

• Programmable 5-99 seconds

• 2048 x 1536

• 0C° ~ 40C° (32F° ~104F°)

VGA Resolution

Power Adapter

Management

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

4-Port USB PS/2 KVM Switch Kit with Audio

TK-423K

RELATED PRODUCTS

PACKAGE CONTENTS

TK-403KR

TK-409K

TK-401R 4-Port Rack Mount KVM Switch

• Power adapter (5V DC, 2A)

4-Port Audio KVM Switch

• TK-423K

4-Port USB KVM Switch Kit with Audio

• Multi-language quick installation guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

SPECIFICATIONS

NETWORKING SOLUTIONS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

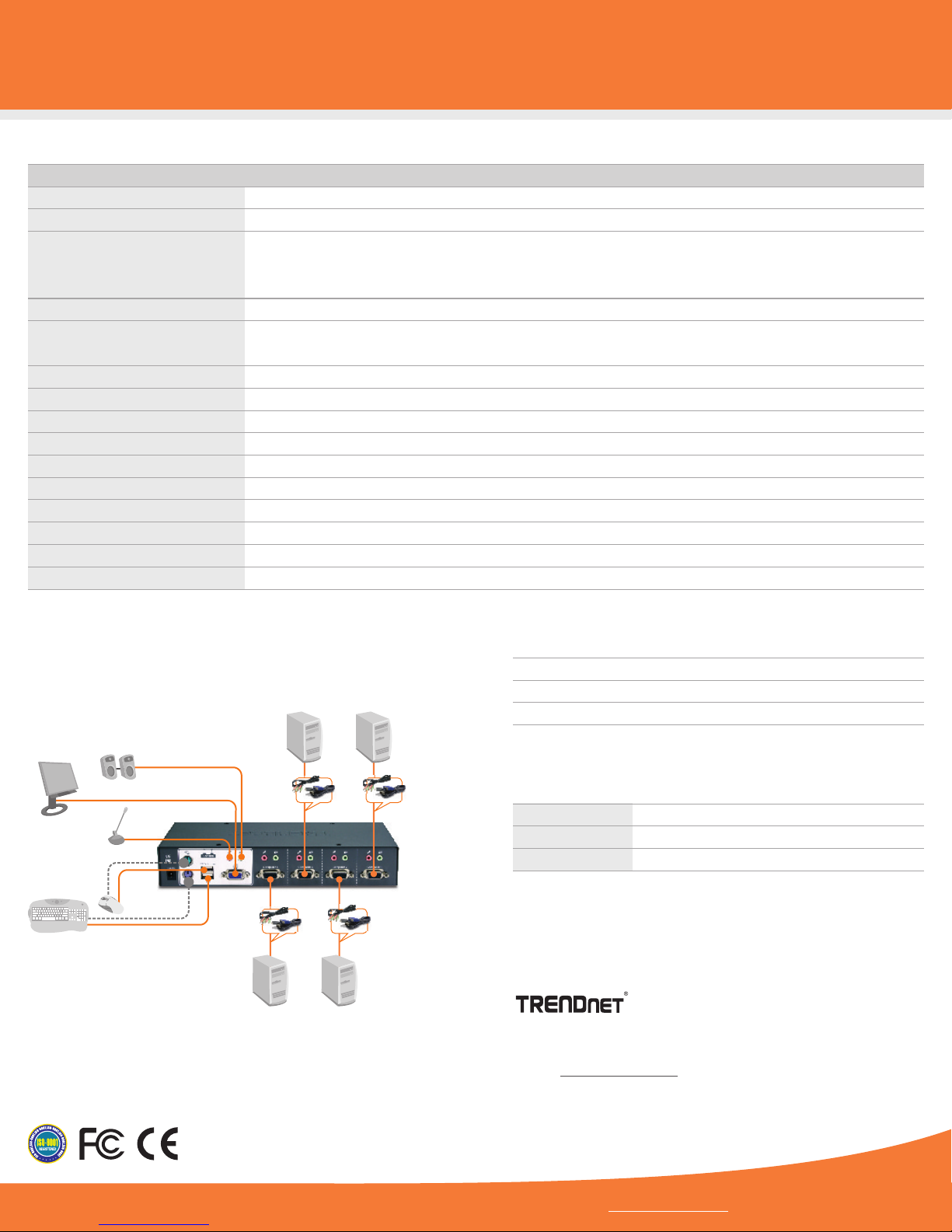

LCD Monitor

4-Port USB PS/2 Audio

KVM Switch Kit

(TK-423K)

USB or PS/2

Keyboard

Microphone

Speakers

PC 4

PC 3

PC 2

PC 1

USB or PS/2

Mouse

• 1 x PS/2 mouse 6 pin mini DIN female • 1 x VGA HDB 15 pin female

KVM Cables • 4 x KVM Multiple Connection Cable • 4 x KVM Audio/Microphone Cable

• 1 x VGA 15 pin male to male connector • 1 x USB type A connector • 1 x PS/2 Connector (Keyboard connector)

Cable Interface • 1 x USB to PS/2 Gender Connector (Support for PS/2 Mouse)
