TRENDnet TE100-S800i Manual de usuario

The 8-Port 10/100Mbps Layer 2 Managed Switch provides

exceptional performance, ease of use and flexibility for managing

business networks. Utilizing a robust 3.8Gbps backplane, the 8 port

managed switch can connect to multiple switches while handling full-

duplex operations. In addition to the switch's scalability, it also offers

a variety of management features such as SNMP, IGMP for multi-

media applications, VLAN, Port Security, Spanning Tree Protocol,

Port Trunking, Broadcast Storm Filtering, Port Mirroring and other

features that can easily be accessed through a web browser or a

command line interface.

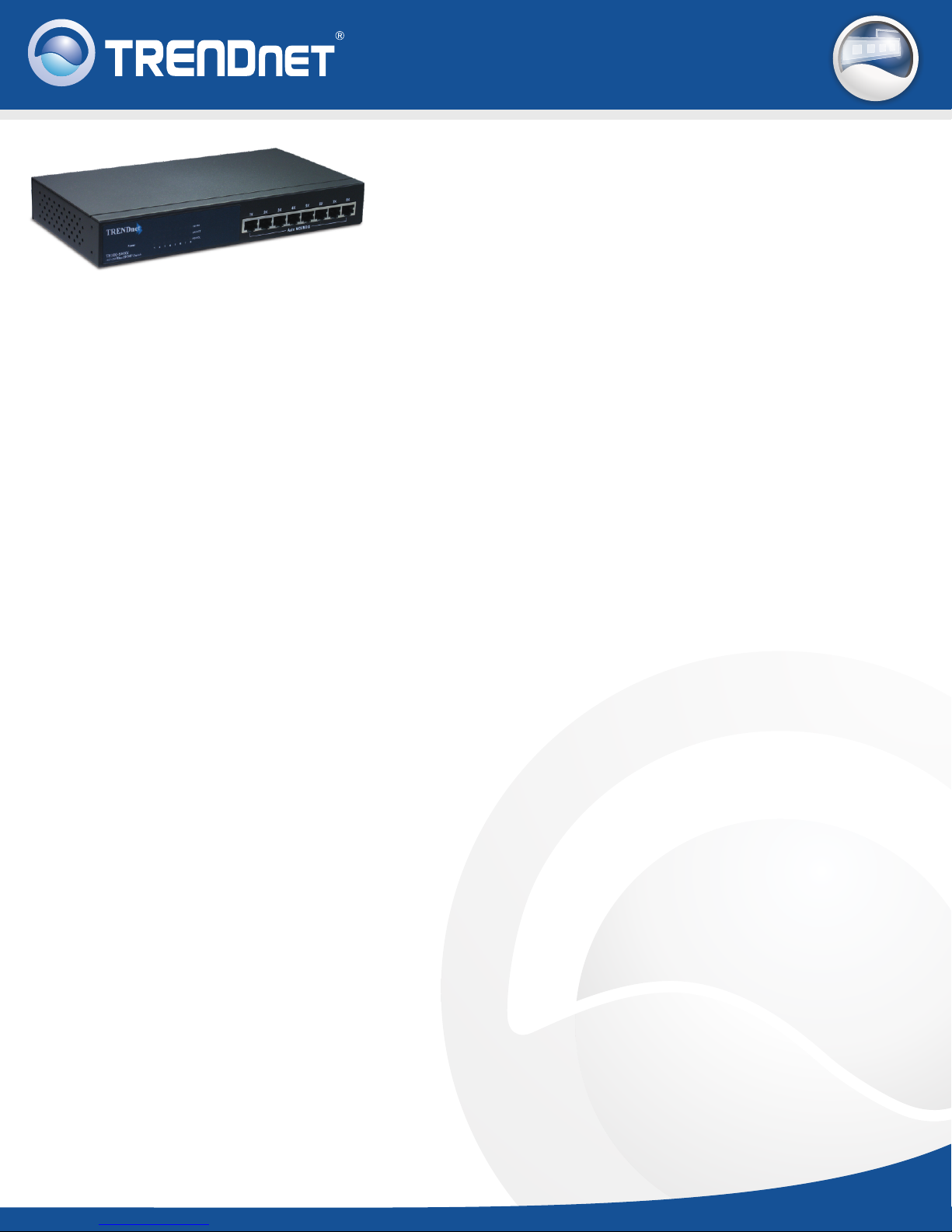

TE100-S800i

8-Port 10/100Mbps Layer 2 Managed Switch

TE100-S800i

rev:06.30.2010

switch

• 8 x 10/100Mbps Auto-MDIX Ports

• Supports switch Fabric up to 3.8GBps

• Layer 2 Management Switch with Full Software Support

• IGMP Snooping with Query Mode Support for Multi-Media Application

• Supports Broadcast Storm Filtering

• Supports Port Status Control (Status, Auto-Negotiation, Speed, Duplex and Flow Control)

• Supports Port Trunking with Flexible Load Distribution Control and Fail-Over Functions

• Supports Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN

• Supports IP Multicast, Port Mirroring, Spanning Tree, SNMP and RMON

• Supports Port Security and IEEE 802.1p Class of Services

• Store-and-Forward Switching Architecture with Non-Blocking Wire-Speed Performance

• Configuration via RS-232 Console Port, Telnet, and Web Browser (HTTP)

• TFTP Firmware Upgrade via Browser

• Configuration File Save and Restore Support

• 3-Year Limited Warranty

FEATURES

LED Display

Interface

Packet Forwarding and Filtering Rate

Cabling

Console Port

Protocol/Topology

Buffer Memory

Power

Power Consumption

Weight

Humidity

Safety Emissions

Dimensions

Temperature

• IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet

• Up to 3.8Gbps

• IEEE 802.3x Flow Control; IEEE 802.1D Spanning Tree

• Power, Link/Activity, Full Duplex/Collision

• 250 x 133 x 37mm (9.8 x 5.2 x 1.5 inch) (W x H x D)

• Operating: 0° ~ 45° C (32° ~ 113° F)

• 8 x 10/100Mbps Auto-MDIX RJ45 Fast Ethernet Port

• 100M Ethernet: 148,800 packets per second per port

• Fast Ethernet: UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max

• RS-232, female 9-Pin Serial Port (M-M serial cable included)

• Input: 100~240VAC, 50/60Hz Internal Power Supply

• (CSMA/CD) / Star

• 2Mbits Data Buffer

• 8K MAC Address Entries

• 1.08 Kg. (2.4 lb.)

• 17 watts

• 10% ~ 90% non-condensing

• FCC, CE

Filtering Address Table

Bandwidth

Standards

Hardware

SPECIFICATIONS

8-Port 10/100Mbps Layer 2 Managed Switch

TE100-S800i

• IEEE 802.1q Tag-based VLAN; IEEE 802.1p Class of Service

• IEEE 802.3ad Link Aggregation

• 10M Ethernet: 14,880 packets per second per port

• Storage: -40° ~ 70° C (-40° ~ 158° F)

Management

Trunk

Class of Service

QoS

VLAN

IP Multicast

Filter Database

Port Mirror

Broadcast Control

Spanning Tree

RFC Standard

• Web Management, RS-232 Console Management, Telnet

• Max 4 Groups ( up to 4 ports per group)

• Supports High and Low Priority

• Supports 8 Levels of Priority and Mapping to High/Low Priority Queue for Class of Service

• Up to 256 VLAN groups and up to 4094 VLAN ID

• IGMP Snooping up to 256 groups • 2 Types of Query Mode: Enable/Disable or Auto Query

• Port Static MAC address lock, MAC filter and Port Security

• Up to 8 ports

• None, 5%, 10%, 15%, 20%, 25%

• IEEE 802.1d Support

• RFC 768 UDP, RFC 783 TFTP, RDC791 IP, RFC 792 ICMP, RFC 854 TELNET Server/Client, RFC 1112 IGMP, RFC 2068

HTTP, RFC 2674 VLAN MID, RFC 1493 Bridge MIB, RFC 1157 SNMP, RFC 1213 MIB II, Bridge MIB, RFC 1643 Ethernet

Like, RFC 1757 RMON1, LANTECH Enterprise MIB, RFC 1215 Trap

Software

8-Port 10/100Mbps Layer 2 Managed Switch

TE100-S800i

TEG-S081Fi

TE100-S810Fi 8-Port 10/100Mbps Layer 2 Managed Switch

with 100Base-FX Port

• Quick Installation Guide

• RS-232 Cable / Power Cord

8-Port 100Base-FX Layer 2 Managed Switch

with GBIC Slot

• TE100-S800i

• CD-ROM (User's Guide)

RELATED PRODUCTS

PACKAGE CONTENTSNETWORKING SOLUTIONS

Servers with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWA)

Accounting Department

Workstations with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWN)

Workstations with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWN)

Sales Department

8-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S88Eplus)

5-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S5Pplus)

8-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S8P)

MIS Department

8-Port 10/100Mbps Layer 2 Managed Switch

(TE100-S800i)

Internet

100Mbps

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
