Physical Installation

Connecting Print Server to the Network:

1. Make sure the Print Server and Printer are powered OFF.

2. Connect the printer to the Print Server's printer port.

3. For Wired Network: Use a standard RJ-45 LAN cable to

connect the LAN port on the Print Server to a

10/100Base-TX network.

Note: When powering on the print server, if the LAN port is

not connected to a functioning network device, the LAN port

is disabled. To enable the LAN port, please power off the

print server, connect LAN port to a working network device

and then power on the print server.

4. For Wireless Network:

Note: For Wireless Only environment, do not connect RJ-45

LAN cable to the Print Server’s LAN port.

• Ad-Hoc Mode (Peer-to-Peer): Please match the

SSID/Channel with your other wireless devices

• Infrastructure Mode: Please match the

SSID/Channel with the Access Point

Page 1

5. Connect the supplied Power Adapter, power up both the

Printer and Print Server and check the Error LED on the

Print Server. It should flash, then goes off.

• It will blink if the USB Printer in not connected, or is

Off.

• It will remain On if there is a hardware problem.

LThis Quick Installation Guide contains brief

instructions for the following:

• Print Server Installation & Setup

• Windows 95/98/Me/NT/2000/XP client

setup

• Macintosh (AppleTalk) client setup

For Unix or Netware environments, please re-

fer to additional User Manuals in the Manual

folder on the CD-ROM.

Default Wireless Settings on the Print Server:

 Wireless Mode : 802.11b Ad-hoc

 SSID : ANY

 Channel : 11

Page 2

Configuring Print Server

Non-Windows Systems

The "Manual" folder on the CD-ROM contains manuals for

Unix and Netware.

Windows Systems

1. Insert the supplied CD-ROM into your drive. If the setup

program does not start automatically, run Autorun.exe in

the root folder.

2. On the first screen, shown below, click Setup Wizard.

3. Click Next on the first screen, to view a list of

Print Servers on your LAN.

4. Select your new Print Server, then click Next to continue.

5. Enter the required data on the Print Server screen.

• Name can be changed if you wish.

• Comment is optional.

Page 3

• Select or enter the Workgroup name for this Print

Server.

• You can enter a name (eg. Printer Model) for each

Printer.

6. Click Next to configure the TCP/IP screen.

• Select Obtain IP Address automatically if your LAN

has a DHCP Server

• Select Fixed IP Address(recommended), enter an un-

used address from the range used on your LAN, or

click the Suggest New Values Button.

Use the same Network Mask and Gateway as PCs on

your LAN.

7. On the Wireless Screen, the settings should be set to

match your other Wireless Stations. For details, refer to

Wireless Settings below.

8. Click Next to continue to the final screen.

9. Click Finish to save the data to the Print Server.

10. Print Server configuration is now complete.

Wireless Settings

Mode Set to Infrastructure mode if using

with an Access Point, otherwise use

Ad-hoc.

SSID Must to set to match your Access Point

or other Wireless Stations.

Channel For Ad Hoc mode, use the same Chan-

nel as other Wireless stations.

For Infrastructure mode, the correct

Channel is selected automatically.

WEP Settings Must be set to match your Access Point

or other Wireless stations.

Page 4

PC Setup

Windows PTP (Peer-to-Peer) Printing

With this system, each PC prints directly to the Print Server.

Windows 2000 & XP require no additional software.

For other versions of Windows, the supplied PTP (Peer-to-

Peer) Printer Port software must be installed on each PC.

Windows 2000/XP Setup

The recommended printing method is to use LPR, as follows:

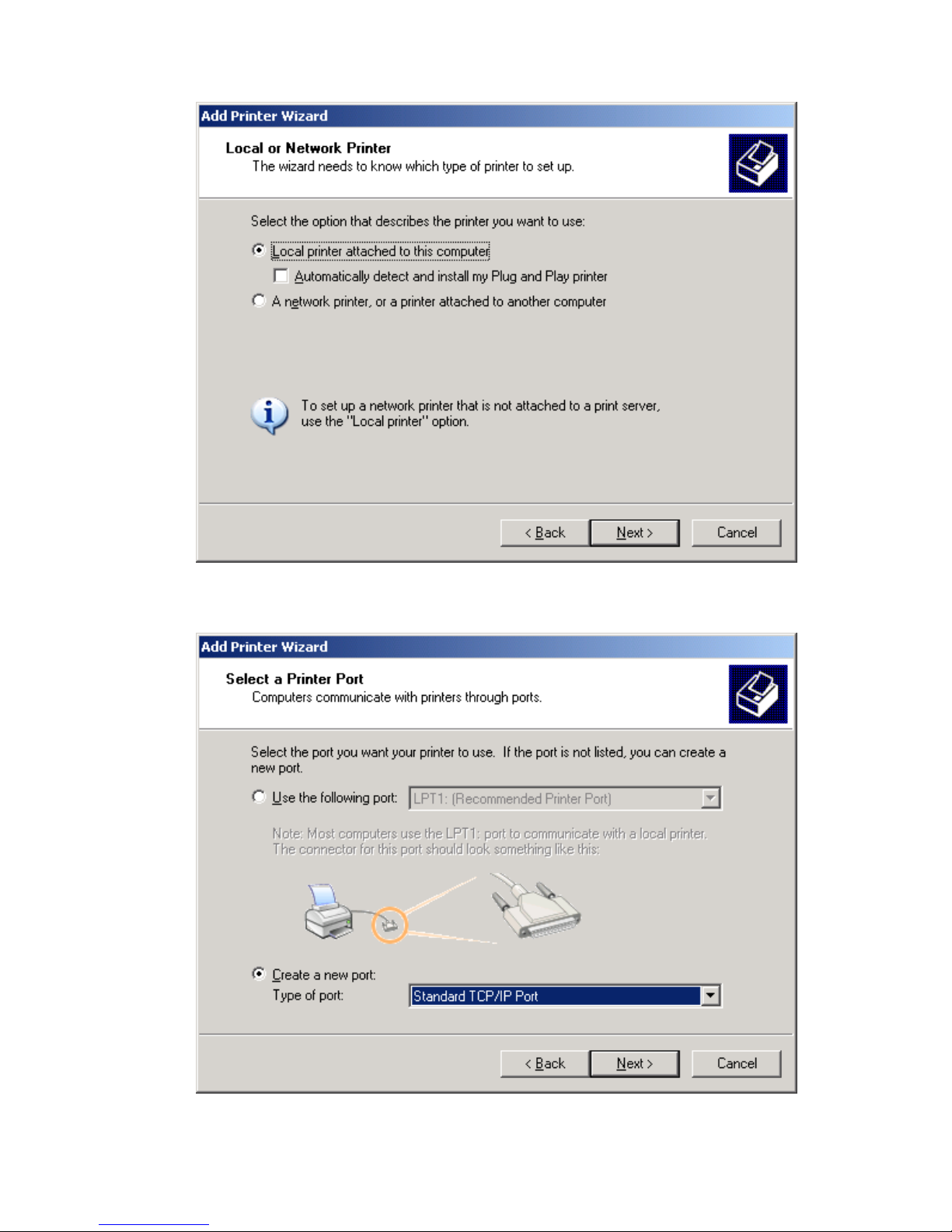

1. Open your Printers folder, click on Add a Printer and

click Next to start adding a printer to your PC

2. Select Local printer option as shown in the figure below

and click Next

Page 5

3. Choose Create a new port and select Standard TCP/IP

Port, then click Next.

Page 6

4. Enter Print Server’s IP Address here.

IP Address

5. On this screen, select Custom, and click the Settings but-

ton.

ustom

Page 7

6. Choose LPR in the Protocol section, then enter Queue

name (L1 for Parallel Port, L2 for USB Port) and ensure

the LPR Byte Counting Enabled setting is Enabled.

7. Follow the prompts to install printer driver and complete

the Wizard.

8. Go back to Printer folder, click on the new created

printer, right-click on the printer icon and select Proper-

ties option.

Page 8

9. Go to Ports tab, disable Bi-Directional Support and click

on OK to complete the installation

Page 9
