TRENDnet TEW-511BRP Guía de instalación

F.A.Q’s for TEW-511BRP

Q: How do I configure the TEW-511BRP for a DSL, PPPoE, connection?

1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

2) Click on Setup then Basic Setup at the top of the page.

3) Choose PPPoE in the Internet Connection Type field.

4) Enter in the information required by your ISP (Internet Service Provider) and click Apply.

Q: How do I configure the TEW-411BRP for a Cable connection?

01/16/06

1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

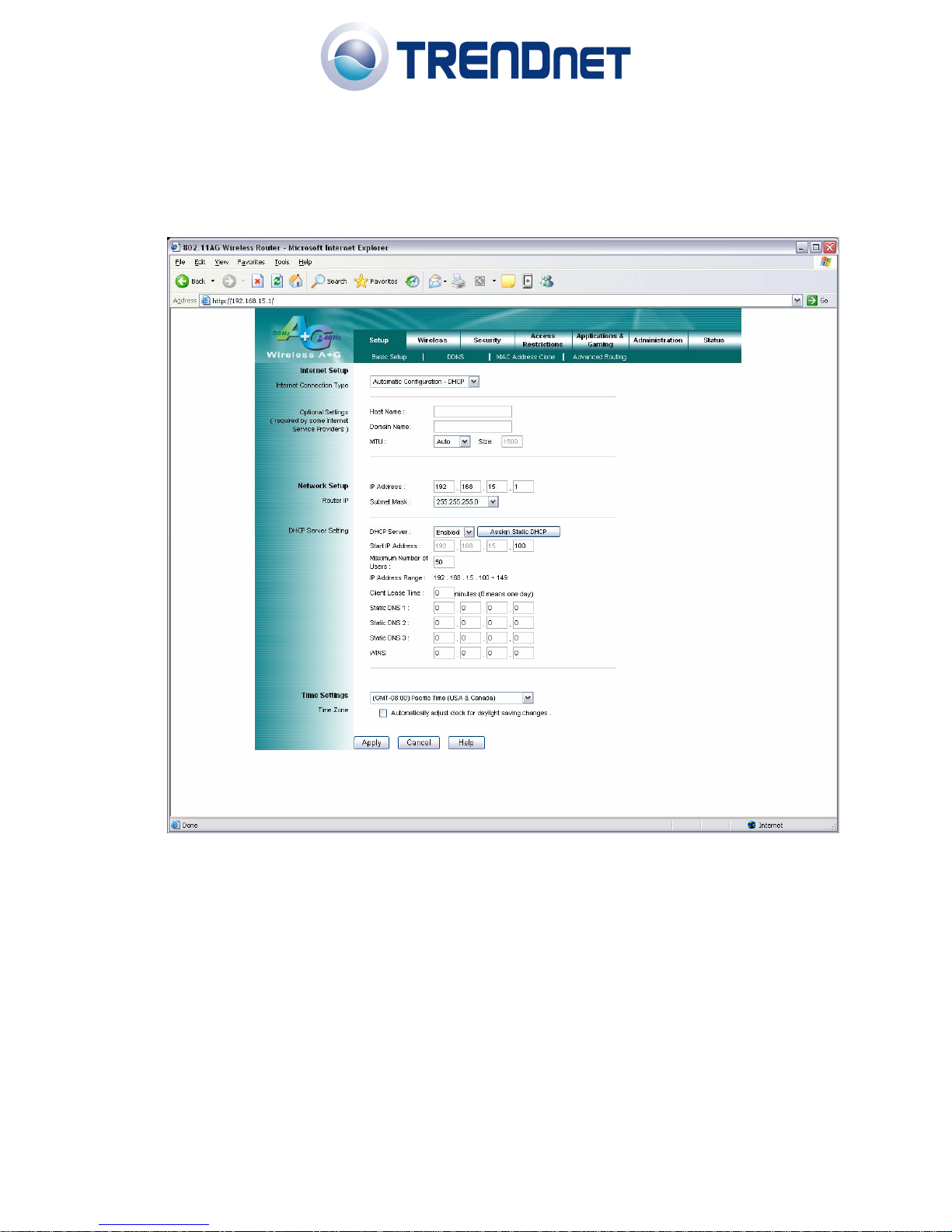

2) Click on Setup then Basic Setup at the top of the page.

3) Choose Automatic Configuration - DHCP in the Internet Connection Type field if you

have a dynamic IP address. If you have a static IP address choose Static IP.

4) Click Apply if you have a dynamic IP address. If you have a static IP address enter in

the information required by your ISP (Internet Service Provider) and click Apply.

Q: How do I change the username & password on my TEW-511BRP?

01/16/06

1) Open your web browser and type the IP address of the TEW-511BRP in the address

bar. The default IP address is 192.168.1.1. At the login, leave the username field

blank and enter the password (admin).

2) Click on Administration then Management at the top of the page.

3) You can change the password in the Router Password field. You need to confirm it

as well.

4) Click Apply to save the changes.

Note: You cannot change or set a username for the TEW-511BRP.

Q: What can I do if I forgot my password or want to reset back to factory defaults?

01/16/06

1) Locate the reset button on the back of the TEW-511BRP.

2) Press and hold in the reset button for approximately 15 seconds.

This will reset the unit back to its default configuration.

Q: What is the default IP address of my TEW-511BRP?

A: The default IP address for the TEW-511BRP is 192.168.1.1.

Q: What is the default username and password for the TEW-511BRP?

A: There is no default username for the TEW-511BRP. Leave the username field blank. The

default password for the TEW-511BRP is (admin).

Q: How do I change the IP Address of my TEW-511BRP?

1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

2) Click on Setup then Basic Setup at the top of the page.

01/16/06

3) You can change the password under the Network Setup section.

Q: How do I configure the TEW-511BRP?

A: First configure your Wireless Ethernet Adapter to connect to the “wlan-a” or “wlan-g” SSID.

Note: If you are using a hard-wired computer connected directly to a LAN port, you will use the

Local Area Connection that is bound to your Ethernet Adapter.

1) Click Start then click on the Control Panel. For Windows 2000 click on Start, highlight

settings then click on the Control Panel.

2) Double-Click on the Network Connection icon.

3) Right-Click on the Wireless Network Connection icon then click on Properties. For

Windows 2000 it will be listed as Local Area Connection. Make sure you are selecting

the Local Area Connection that is bound to your Wireless Ethernet Adapter.

01/16/06

4) Highlight the Internet Protocol (TCP/IP) then click on Properties.

01/16/06

5) Select Obtain an IP address automatically and Obtain DNS server address

automatically.

01/16/06

6) Click OK.

7) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

Q: What are the default SSIDs of my TEW-511BRP?

A: The default SSIDs of the TEW-511BRP are “wlan-a” and “wlan-g”, without the quotes and they

are case sensitive.

Q: How do I enable wireless encryption on my TEW-511BRP?

1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

2) Click on Wireless then Wireless Security at the top of the page.

01/16/06

3) Enter in the desired encryption values and click Apply.

Q: Where can I find the MAC Address of my TEW-511BRP?

1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

2) Click on Status then Router at the top of the page.

01/16/06

The MAC address is listed under the Router Information section next to Internet MAC

Address.

Q: How do I forward ports in my TEW-511BRP?

Well Known Ports

1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.

The default IP address is 192.168.1.1. At the login, leave the username field blank and

enter the password (admin).

2) Click Applications & Gaming then Port Range Forwarding at the top of the page.

01/16/06
