TRENDnet TEW-222CF Manual de usuario

TRENDnet’s TEW-222CF Wireless CompactFlash Network

Adapter is the latest product for wireless network application

for your Pocket PC. It is the simplest and quickest way to

connect your PDA to the Local Area Network, wirelessly.

Designed for Pocket PC and Windows CE-base palm-sized

PC’s, TRENDnet’s TEW-222CF is compliant with the IEEE

802.11b standard and operates with 2.4GHz Direct Sequence

Spread Spectrum (DSSS) transmission technology. With the

optional PCMCIA-to-CompactFlash Converter (CF-PCM), it

also works with Windows based Notebook computers. The

freedom to connect to the network with your PDA has never

been so easy without the hassles of wires, cables, or

installation!

TEW-222CF

11Mbps Wireless CompactFlash Network Adapter

Low interference and high susceptibility guarantee reliable

performance

Complies with CompactFlash Type-I standard

2.4 GHz frequency band

Supports Ad-Hoc (peer-to-peer) mode and Infrastructure (Access

Point) mode wireless network architectures

Dynamically shifts between 11, 5.5, 2, and 1 Mbps network speed

(based on signal strength), for maximum availability and reliability

of connection

Allows user to move between Access Points without reconfiguring

the settings

Antenna is built into the adapter with LED indicating Link status

Optional CompactFlash-to-PCMCIA Adapter (CF-PCM) for working

with Notebook Computers

Provides drivers supporting Windows CE 3.0/Pocket PC

2002/98/ME/NT4.0/2000/XP

64/128-bit Wired Equivalent Privacy (WEP)

Coverage distance up to 60 meters indoor and up to 250 meters

outdoors

3-year Warranty

BENEFITSFEATURES

Integration Friendly:

Economical:

Flexible:

Cost Effective:

Performance:

Drivers support most popular Network

Operating Systems.

Save time, labor, and material for

network cable installation.

Creates wireless peer-to-peer network

in Ad-Hoc mode or connects to

Ethernet LAN in Infrastructure mode

via wireless Access Point.

Supports IEEE 802.11b standard;

connects to any IEEE 802.11b

wireless network.

Connects at a speed up to 11Mbps,

wirelessly!

TEW-222CF (03-26-2003)

TRENDnet

TRENDware, USA

What's Next in Networking

PRODUCT INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

SPECIFICATIONS

Weight:

15g (0.48oz.)

Temperature:

Operating: 0° ~ 65° C (32° ~ 149° F)

Storage: -20° ~ 75° C (-4° ~ 167° F)

Humidity:

Max. 95% (Non-condensing)

Certification:

FCC, CE, EN300328 and

EN300826 in Europe

•

TEW-222CF

11Mbps Wireless CompactFlash Network Adapter

TEW-222CF

11Mbps Wireless CompactFlash Network Adapter

Adapter Type:

CompactFlash Type-I

Standards:

IEEE 802.11b, Wi-Fi

Data Rate:

11Mbps, 5.5Mbps, 2Mbps, and 1Mbps

Module Technique:

Direct Sequence Spread Spectrum

(DSSS), CCK, DQPSK, DBPSK

Antenna:

Internal Chip Antenna

Media Access Protocol:

CSMA/CA with ACK

LED Indicator:

Link, Act

•

Frequency:

2.4 to 2.4835GHz

(Industrial Scientific Medical Band)

Output Power:

15dBm (typical)

Receiving Sensitivity:

-82dBm @11Mbps with 10-5

Bit Error Rate (BER) (typical)

Power Requirement:

Operating Voltage: 5V or 3.3V

TX: 300mA (max)

RX: 200mA (max)

Sleep Mode: 50mA

Channels:

11 Channels (US & Canada)

Dimensions:

69 x 43 x 6.5 mm

(2.7 x 1.7 x 0.26 inch)

•

TEW-221PC: 11Mbps Wireless CardBus PCMCIA Network Adapter

TEW-222CF: 11Mbps Wireless CompactFlash Network Adapter

CF-PCM: PCMCIA to CompactFlash Converter

TEW-223PI: 11Mbps Wireless PCI Network Adapter

TEW-224UB: 11Mbps Wireless USB Network Adapter

TEW-303PI: 22/11Mbps Wireless PCI Network Adapter

TEW-310APB: 22/11Mbps Wireless Access Point + Bridge

TEW-311BRP: 22/11Mbps Wireless Broadband Router + Access Point

TEW-PS3: 3-port Wireless Ethernet Print Server

TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit

____________________

http://www.TRENDNET.com.

TRENDware International, Inc.

3135 Kashiwa Street

Torrance, CA. 90505. USA

Tel: 310-891-1100

Fax: 310-891-1111

Web:

Email: [email protected]

www.TRENDNET.com

ORDERING INFORMATION

TRENDnet

TRENDware, USA

Otros manuales para TEW-222CF

Otros manuales de Tarjeta de red de TRENDnet

TRENDnet

TRENDnet TPL-101U Manual de usuario

TRENDnet

TRENDnet TEW-601PC - SUPER G MIMO WRLS PC CARD Manual de usuario

TRENDnet

TRENDnet TEM-336T Manual de usuario

TRENDnet

TRENDnet 10/100 Mbps Ethernet Card PF-16 PCMCIA Manual de usuario

TRENDnet

TRENDnet TEG-PCITXM Manual de usuario

TRENDnet

TRENDnet TFM-CF56 Manual de usuario

TRENDnet

TRENDnet TEW-647GA Manual de usuario

TRENDnet

TRENDnet TEW-603PI Manual de usuario

TRENDnet

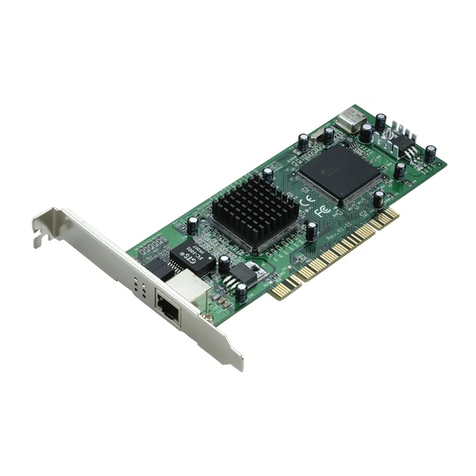

TRENDnet TEG-PCITX Manual de usuario
