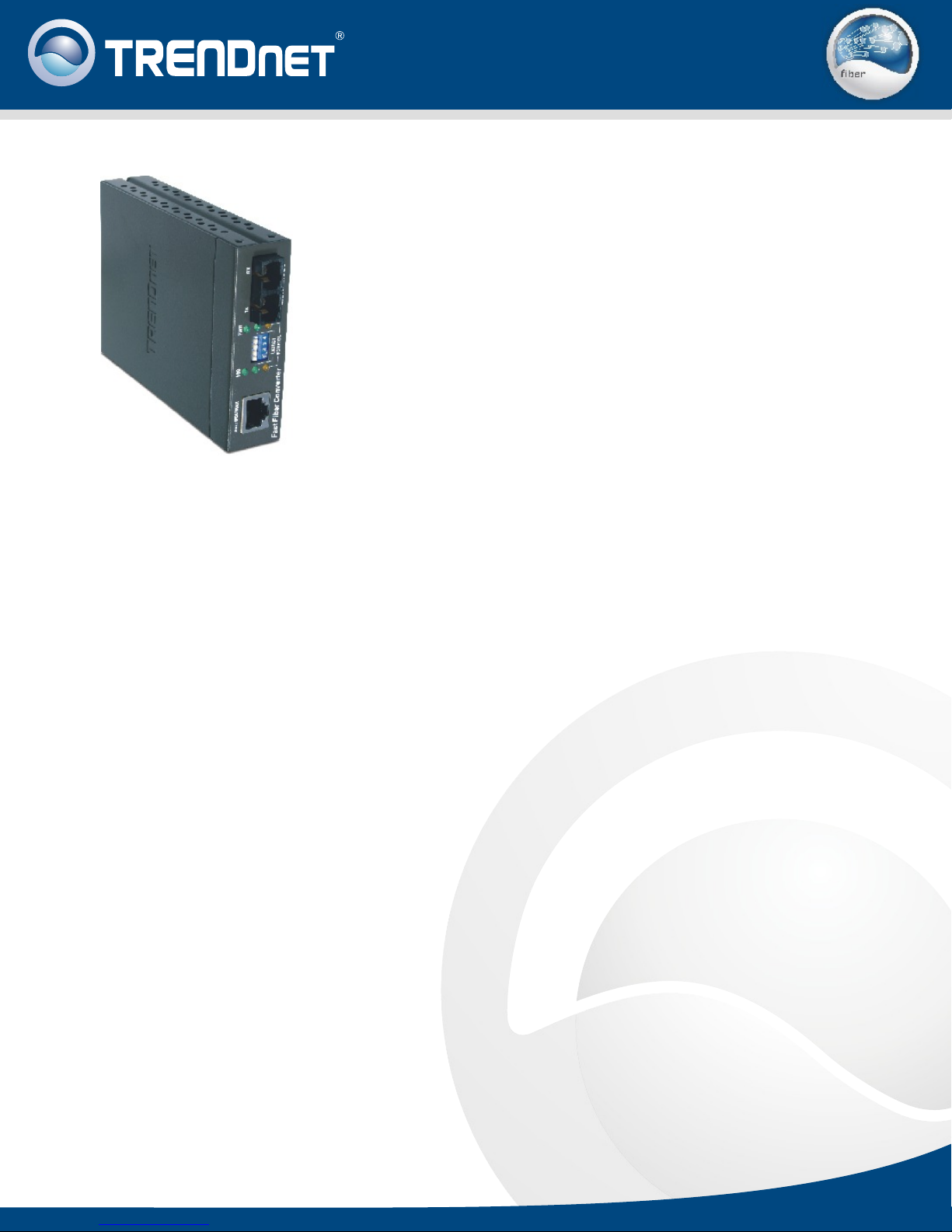

TRENDnet TFC-210MSC Manual de usuario

This Fiber Converter transforms 10/100Base-TX UTP/STP media to

100Base-FX multi-mode media. The 10/100Base-TX port supports

auto-negotiation and auto-MDIX. Designed to connect up to 2KM,

the converters are the perfect Fast Ethernet, multi-mode solution.

TFC-210MSC (v1.0R)

10/100Base-TX to 100Base-FX Fiber

Multi-Mode SC-Type Fiber Converter

TFC-210MSC

rev:03.02.2007

• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX standards

• One 10/100Base-TX Auto-Negotiation, Auto-MDIX RJ-45 port

• One 100Base-FX multi-mode SC-type Fiber port

• Supports LLCF (Link Loss Carry Forward)

• Provides Dip switches to set: UTP (Auto Negotiation/Full Duplex), Fiber (Half Duplex/Full Duplex) , LLCF (Enable/Disable), Mode

(Pure Mode/ Switch Mode)

• 802.3x flow control for 10/100Base-TX port

• Diagnostic LEDs

• Plug & Play, Hot Swappable

• Optional 19” Fiber Converter Chassis (TFC-1000) holds up to 10 Media Converters

• 5-Year Warranty

FEATURES

PACKAGE CONTENTS

• Power Adapter

• TFC-210MSC

• Multi-Language Quick Installation Guide

RELATED PRODUCTS

TFC-210S30

TFC-1000 10-Bay Fiber Chassis

10/100Base-TX to 100Base-FX ST -Type

Multi-Mode Fiber Converter

10/100Mbps-TX to 100Base-FX

SC-Type Single-Mode Fiber Converter

TFC-210MST

Frame Packet Size

Network Media

Protocol

Transfer Rate

Ports

Dip Switch

Diagnostic LED

Dimensions

Power Adapter

Weight

• IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX, 100Base-FX

• Dip Switch 1: ON: TX Port Fully Duplex OFF: TX Port Auto- Negotiation

• 10Base-T: UTP/STP Cat. 3, 4, 5, EIA/TIA-568 100-ohm

• 100Base-TX: UTP/STP Cat. 5, EIA/TIA-568 100-ohm

• 100Base-FX: 50/125ìm or 62.5/125ìm Multi-Mode Duplex SC-Type Fiber Cable, up to 2km

• CSMA/CD

• 64 to 1600 Bytes

• 1 x 10/100Base-TX RJ-45 Port • 1 x 100Base-FX Multi-Mode SC-Type Fiber Port

• 100Mbps (Half/Full Duplex)

• 9V DC, 700mA External Power Adapter

• Per Device: Power

• 2.7 Watts (max)

Standard

Hardware

SPECIFICATIONS

• Dip Switch 2: ON: FX Port Half Duplex OFF: FX Port Full Duplex

• Dip Switch 3: ON: LLCF Enable OFF: LLCF Disable

• Dip Switch 4: ON: Pure Converter Mode OFF: Switch Converter Mode

* After changing the DIP Switch settings, power cycle the Fiber converter.

• Per port (TX): 100Mbps, Link/Activity, Full Duplex/Collision; (FX): Link/Activity, Full Duplex/Collision

• 85 x 125 x 25mm (3.35 x 4.92 x 0.98in.)

• 300g (10.6oz.)

2km

50/125µm -23.5 -31 7.5

Sensitivity Power Budget (dBm) Distance

MMF

Wavelength

Media Power Output (dBm)

(1270nm~1380nm)

62.5/125µm 11

-20 -31

1310nm

Humidity

Temperature

Certification

• Operating : 0°C ~ 45°C (32°F ~ 113°F) • Storage : -40°C ~ 70°C (-40°F ~ 158°F)

• 5% ~ 90% RH

• CE, FCC

10/100Base-TX to 100Base-FX Fiber Multi-Mode SC-Type Fiber Converter

TFC-210MSC (v1.0R)

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
