TRENDnet TFC-110S40D3 Manual de usuario

TFC-110S40D3/D5

10/100Mbps TX to 100Base-FX Dual-

Wavelength Single-Mode Fiber Converter

TEW-503PI (07-28-2005) TFC-110S40D3/D5

rev:12.27.2005

FEATURESFEATURES

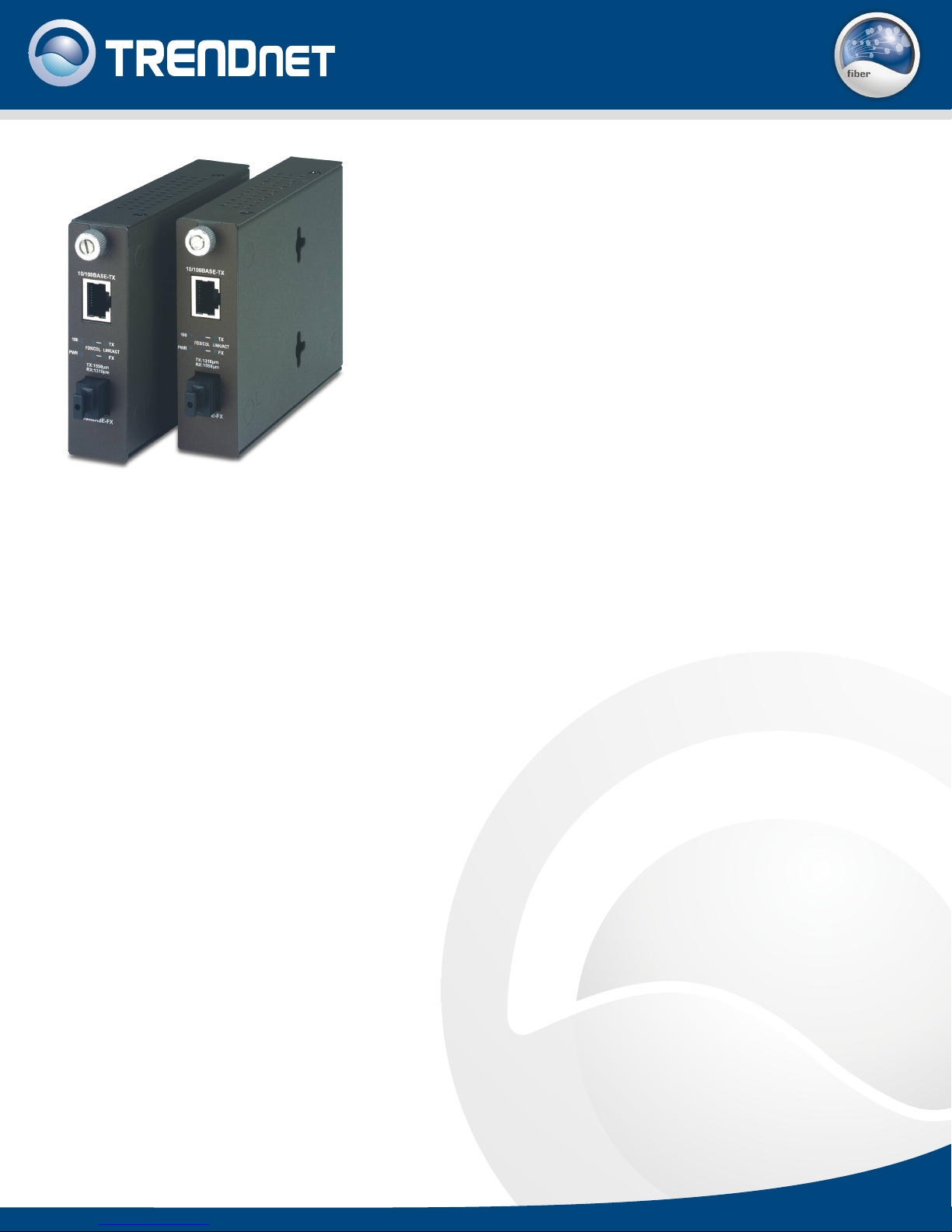

TFC-110S40D3 or TFC-110S40D5 Bi-Directional Single-Fiber

Media Converter transforms 10/100Base-TX UTP/STP media to

100Base-FX media and vice versa. The 10/100Base-TX Port Auto-

Negotiating 10 or 100Mbps connection speed with Auto-MDIX

media type, the fiber supports single-mode SC type connection.

This converter will give your Switch/Hub the ability to interface with

fiber connection over a distance up to 40 km.

• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards

• Provides Dip Switch for Fiber(FDX/HDX), UTP (Auto Negotiation/Manual), Speed(10/100M), LLR (Enable/Disable), LLCF

(Enable/Disable)

• Support LLCF (Link Loss Carry Forward, Link Pass Through)

• Supports LLR (Link Loss Return) for FX Port

• Hot Pluggable & Wall-Mountable

• Optional 19” System Chassis (TFC-1600) holds up to 16 Media Converters

• 5-Year Warranty

Network Media

Weight

Protocol

Ports

Dip Switch

Transfer Rate

Diagnostic LED

Power Adapter

Temperature

Humidity

Safty Emissions

• IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX, 100Base-FX

• 7.5V DC, 1.5A External Power Adapter

• 10Base-T: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm STP • 100Base-TX: UTP Cat. 5, EIA/TIA-568 100-ohm STP

• 7.2 watts (max)

• 120 x 88 x 25mm (4.7 x 3.46 x 0.98 inches)

• 5% ~ 90% RH

• 100Base-FX: 9/125μm or 10/125μm Single-Fiber Optic Cable, up to 40km

• CSMA/CD

• 1 x 10/100Base-TX RJ-45 Port • 1 x 100Base-FX Single-Fiber Bi-Directional Port SC Connector

• TX: Duplex Mode, Auto Negotiation or Manual, Speed, LLCF (enable/disable)

• 354g (12.5oz)

• FX: Duplex Mode, LLR (enable/disable), LLCF

• 10Base-T : 10Mbps/20Mbps (Half/Full Duplex) • 100Base-TX : 100Mbps/200Mbps (Half/Full Duplex)

• Per Unit : Power • Per Port : Link/Activity, FDX/HDX, Link Fail, Speed (only for TX Port)

• FCC,CE

• Operating : 0° ~ 40° C (32° ~ 104° F) • Storage : -25° ~ 70° C (-13° ~ 158° F)

Power Consumption

Dimensions

Standard

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

10/100Mbps TX to 100Base-FX Dual-Wavelength Single-Mode Fiber Converter

TFC-110S40D3/D5

RELATED PRODUCTSRELATED PRODUCTS

PACKAGE CONTENTSPACKAGE CONTENTS

TFC-1000S10D3/D5

TFC-110S20D3/D5 10/100Mbps TX to 100Base-FX Dual-Wavelength

Single-Mode Fiber Converter

• User’s Guide

1000Base-T to1000Base-LX Single-Mode Fiber

Converter (10Km) with SC-Type Connector

• TFC-110S40D3/D5

• Power Adapter

ORDERING INFORMATIONORDERING INFORMATION

To Order Please Call:

1-888-326-6061

3135 Kashiwa Street,Torrance, CA 90505 USA

Tel: 1-888-777-1550

Fax: 310-891-1111

Web:

Email: [email protected]

www.trendnet.com

SPECIFICATIONSSPECIFICATIONS

Model Name

TFC-110S40D3 -15dBm -32dB 17dBm

TFC-110S40D5 -18dBm -32dB 14dBm

Sensitivity Power

TX: 1550nm; RX: 1310nm

Wavelength Pout

TX: 1310nm; RX: 1550nm

Otros manuales para TFC-110S40D3
