TRENDnet TFC-110 Manual de usuario
TFC-110 Series
10/100BASE-TX to 100BASE-FX
Fast Ethernet
Media Converter
Quick Installation Guide
2
FCC Class B Certification
This equipment has been tested and found to comply
with the regulations for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user’s guide,
may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference,
in which case the user will be required to correct the
interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment,
this product may cause radio interference, in which case
the user may be required to take adequate measures.
VCCI Class B Compliance (Japan)
3
Introduction
Thank you for choosing the 10/100BASE Fast Ethernet
Media Converter, The Converter introduced here
provides one channel media conversion between
10/100BASE-TX and 100BASE-FX.
About Media Converter
The Media Converter is a network technology specified
by IEEE 802.3 10BASE-T, IEEE802.3u100BASE-TX,
and 100BASE-FX standards.
4
Product Features
?? One-channel media conversion between
10/100BASE-TX and 100BASE-FX
?? Fiber media allows: multi-mode fiber using SC,
LC, or MT-RJ connector; single-modefiberusing
SC connector
?? Auto negotiation of speed and duplex mode on TX
port
?? Auto MDI-X on TX port
?? One slide switch for configuring fixed half/full
duplex modes
?? Store-and-forward mechanism
?? Back-pressure & IEEE802.3x compliant flow
control
?? Full wire-speed forwarding rate
?? Front panel status LEDs
?? Used as a stand-alone device or with a chassis
?? Hot-swappable when used with a chassis
5
Installation
This chapter gives step-by-stepinstallationinstructions
for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the
equipment where it will not be subjected to extreme
temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the
following requirements:
1. The ambient temperature should be between 32
and 104 degrees Fahrenheit (0 to 40 degrees
Celsius).
2. The relative humidity should be less than 90
percent, non-condensing.
3. Surrounding electrical devices should not exceed
the electromagnetic field (RFC) standards for
IEC 801-3, Level 2 (3V/M) field strength.
4. Make sure that the equipment receives adequate
ventilation. Do not block the ventilation holes on
either side of the switch or the fan exhaust port
on the side or rear of the equipment.
5. The power outlet should be within 1.8metersof
the switch.
6
Connecting to Power
1. This Converter is a plug-and-play device.
2. Connect the supplied AC to DC power adaptor
with a power voltage of 7.5VDC/1.5Amp to the
receptacle on the rear panel of the converter, and
then attach the plug into a standard AC outlet
with a voltage range from 100 to 260VAC.

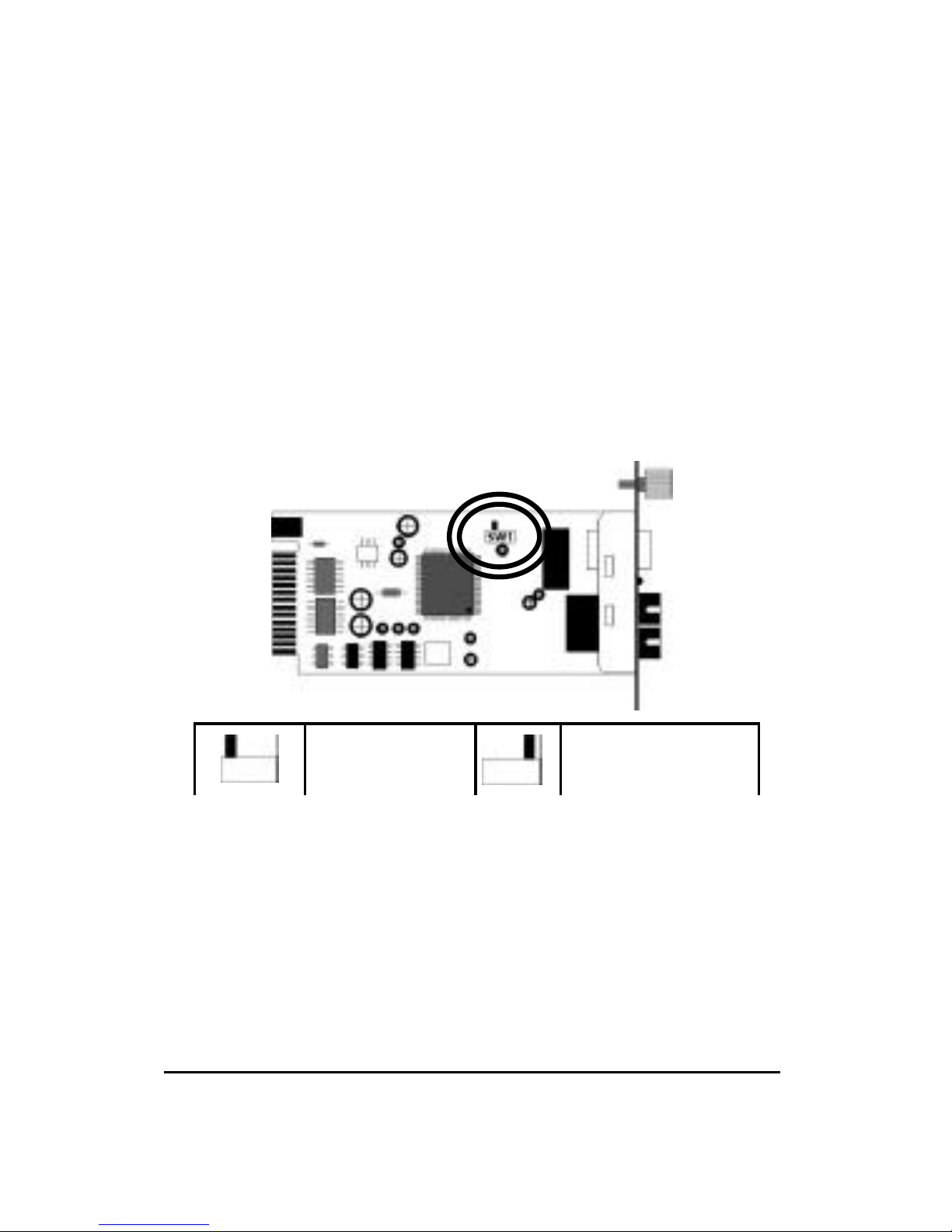

Sliding Switch
There is a sliding switch for duplex mode setting for
fiber port. Refer to the table below for more details.
Please select the correct duplex mode according to the
incoming/outgoing fiber connection.
If the Fiber Connection is runningat half-duplexmode,
the maximum cable distance is 412 metersfor both
multimode and single mode fiber cables.
Half Duplex Full Duplex
(default)
7

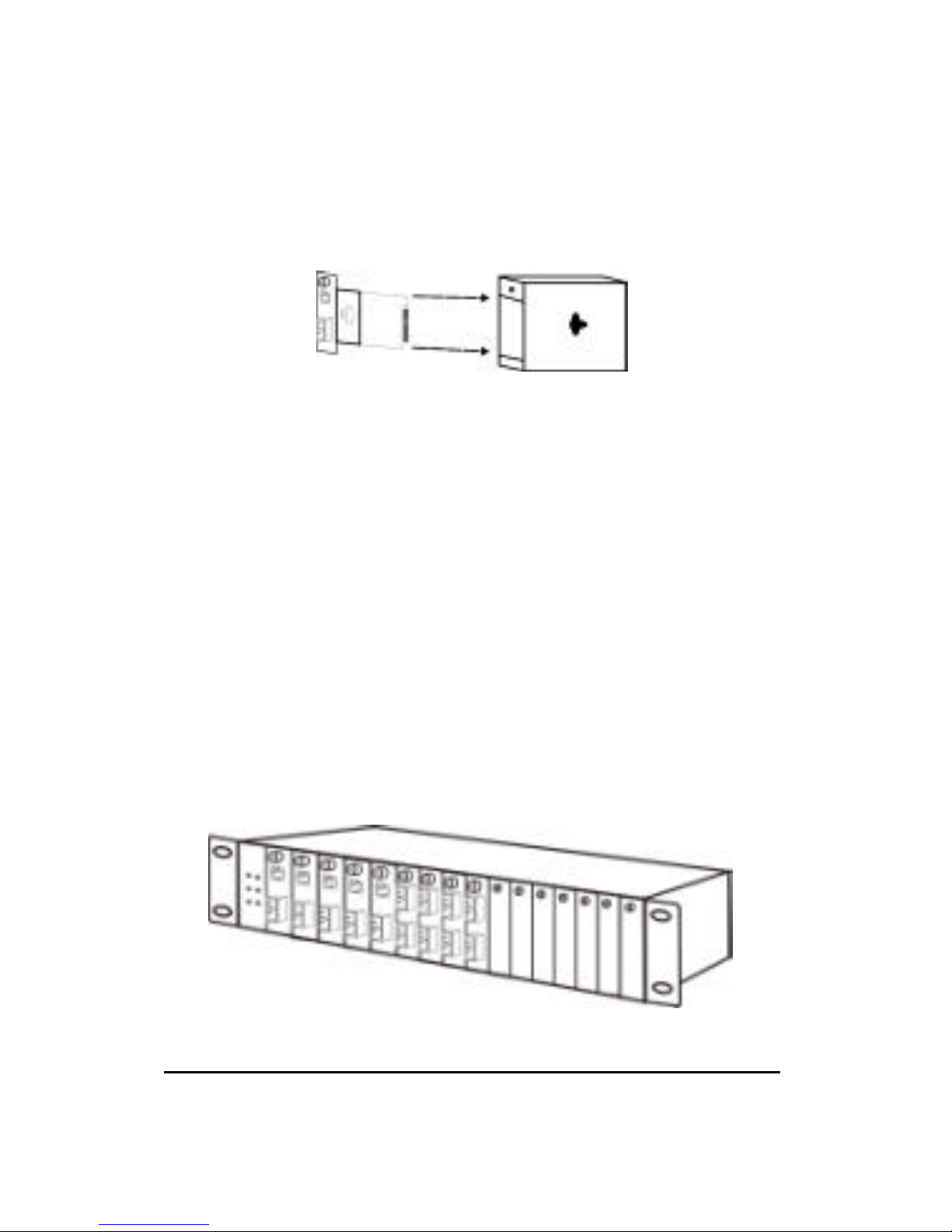

Installing in a Chassis
The Converter can be fit into any of the expansion slots
on a special designed chassis (TFC-1600).
?First, install the converter onto a carriersuppliedwith
the chassis:
Step 1-Locate a vacant slot on the chassis, unscrew
the thumbscrew, and remove the dust cover
(save the cover).
Step 2-Remove the screw on the converter as shown
above pull put the converter board.
Step 3-Insert the converter board in the empty slot,
make sure it is fully seated to the slot, and
tighten the thumbscrew to secure it on the
chassis.
Unscrew and pull out the
media converter board
8

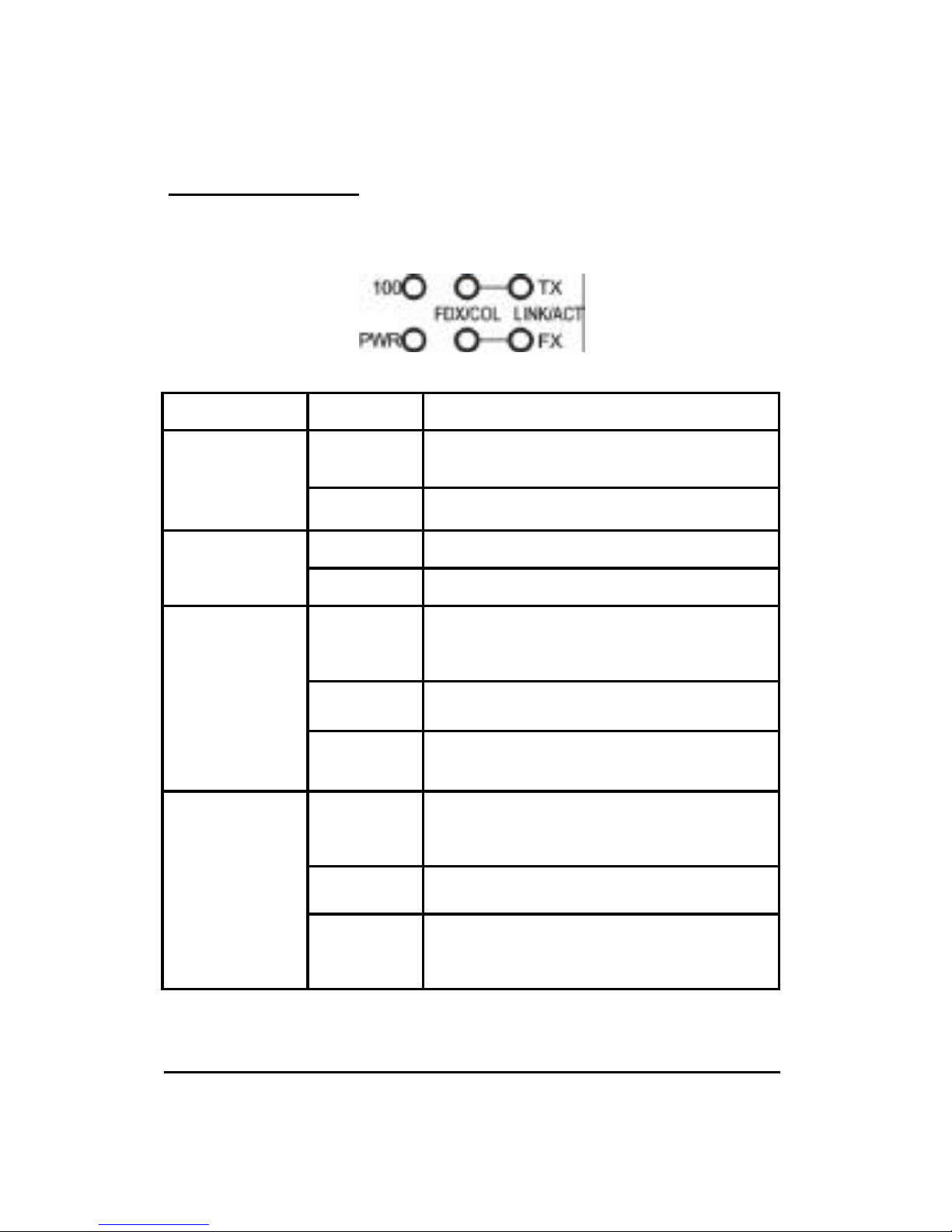

LED Indicator
The LED indicators give you instant feedback on status
of the converter:
LEDs State Indication
Solid Power onPWR
(Power) Off Power off
Solid Runs at 100Mbps on TX port100
(100Mbps) Off Runs at 10Mbps on TX port
Solid (FDX)
Connection in full duplex mode
FDX stands for FULL-DUPLEX
off Connection in half duplex mode
FDX/COL
TX Port (TX)
FX Port (FX)
Blinking
(COL) Data collision
Solid
(LINK)
A valid network connection
established
off No connection
LINK/ACT
TX Port (TX)
FX Port (FX)
Blinking
(ACT)
Transmitting or receiving data
(ACT stands for Activity)
9
Specifications
Applicable
Standards IEEE 802.3 10BASE-T
IEEE802.3u 100BASE-TX & 100BASE-FX
Fixed Ports 1 TX port, 1 FX port
Speed 10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
Forwarding
rate 148,800pps
Per Unit-(2 LEDs): Power; Speed (100)LED
Indicators Per Port-(2 LEDs): FDX/COL, LINK/ACT
Cable 10BASE-T --
2-pair UTP Cat. 3,4,5, up to 100 m (328 ft)
100BASE-TX --
2-pair UTP Cat. 5, up to 100 m (328 ft)
100BASE-FX --
62.5/125um or 50/125um multi-mode fiber
optic cable, up to 2 km (412 meters in
half-duplex mode)
9/125um or 10/125um single-mode fiber
optic cable, up to 75 km (412 meters in
half-duplex mode)
Dimensions L120 × W88 × H25 mm
Weight 305 g
Power External power adaptor 7.5V 1.5A
Power
Consumption 7.2W Max.
10
Operating
Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage
Temperature -25°C ~ 70°C (-13°F ~ 158°F)
Humidity 10 ~ 90%, non-condensing
Emissions FCC part 15 Class B, CISPR ClassB, VCCI
Class B, CE Mark
Ordering Information
Please include the following information when ordering:
Fiber type: multi-mode or single-mode
Fiber connector type: SC, LC or MT-RJ
Segment distance range for the fiber port
TX port
Connector
Type Cabling Segment Distance
RJ-45 Copper Wire Max. 100 m
FX port
Connector
Type Cabling Segment Distance
SC Multi-Mode Fiber Max. 2 km
MT-RJ Multi-Mode Fiber Max. 2 km
LC Multi-Mode Fiber Max. 2 km
SC Single-Mode Fiber Max. 15 km
SC Single-Mode Fiber Max. 40 km
SC Single-Mode Fiber Max. 75 km
P/N:6012-MC11000 Rev:A1-01
