TRENDnet TV-IP345PI Manual de usuario
TV-IP345PI (V1)
Quick Installation Guide
Table of Content
1 English
1. Before You Start
2. Hardware Installation and Configuration
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
1
1. Before You Start
Package Contents
ŸTV-IP345PI
ŸCD-ROM (Utility, Software and User's Guide)
ŸQuick Installation Guide
ŸNetwork cable (1.5m / 5ft.)
ŸRJ-45 coupler
ŸCamera Mounting hardware
Minimum Requirements
ŸPower over Ethernet (PoE) switch (e.g. TPE-S50) or PoE Injector (e.g. TPE-113GI)
ŸA networked computer and web browser
ŸWired network
Note:
ŸThe TV-IP345PI only works with Power over Ethernet (PoE) devices that follow the IEEE
802.3af standard.
ŸThe TV-IP345PI has a 5.5 mm barrel connector for an optional 12 V DC 1A power adapter.
ŸOptional Power Supply (not included).
TRENDnetVIEW Pro Requirements
Supported Operating
Systems
1-8 Cameras
CPU CPU
9-32 Cameras
Memory Memory
Windows 10 /
Windows 8.1 /
Windows 8 /
Windows 7 /
Windows Server 2008 /
Windows Server 2012
2 GHz 2 GHz2 GB RAM
or above
4 GB RAM
or above
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
2. Hardware Installation and Configuration
1. Do not install or mount the IP camera until after you complete the installation steps below.
Temporarily place the IP camera next to your computer.

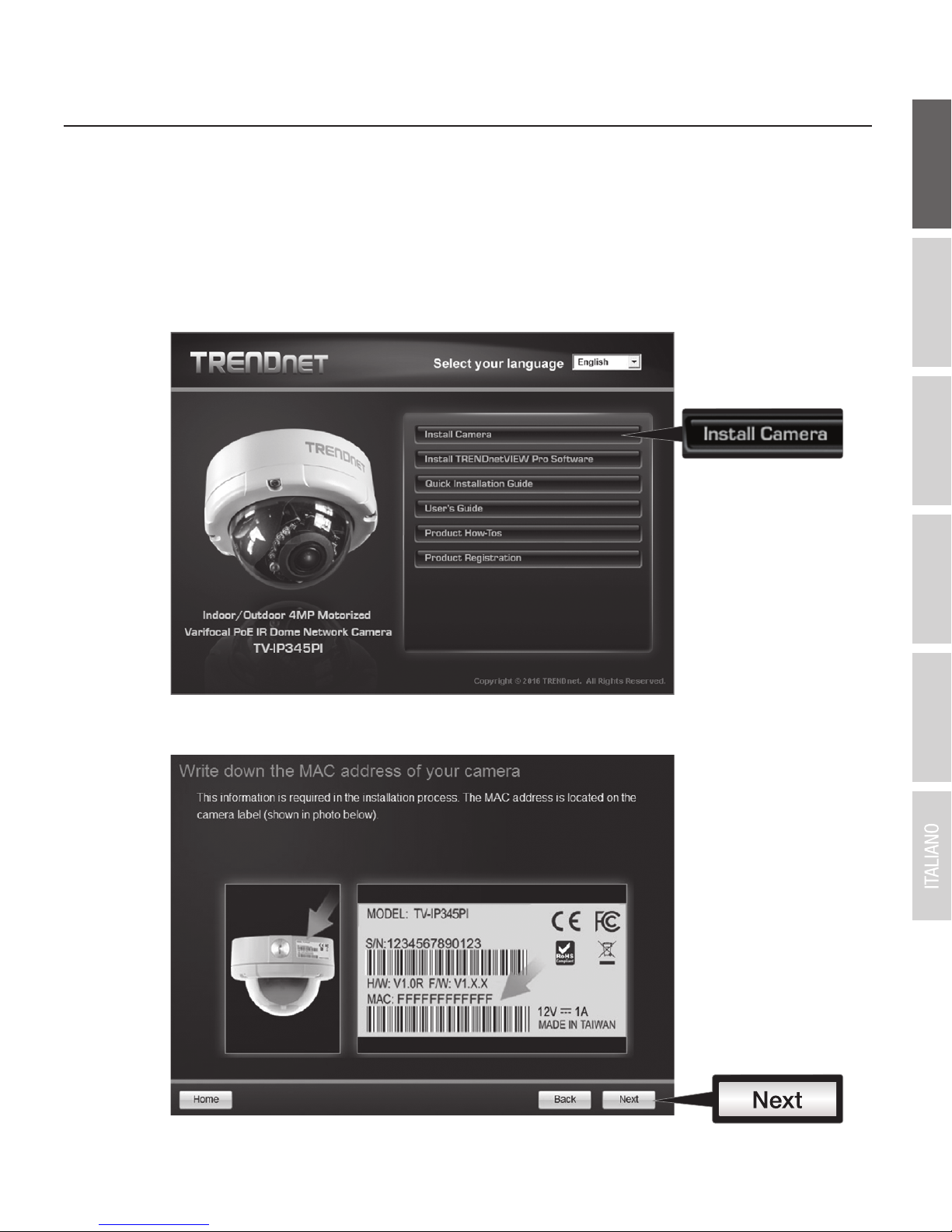

2. Insert the Utility CD-ROM into your CD-ROM drive.
3. Select language from the drop down menu.
4. Click Install Camera.
5. Write down the MAC address of your camera. Then click Next.
2
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
6. Connect a network cable from the camera's network port to your PoE source The IR LEDs will
turn on and show a dim visible red light. Allow 60 seconds for the camera to boot up. Then
click Next.
3
7. Select your camera. Click Next and follow the instructions.
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
4
8. Select DHCP option to assign an IP by DHCP server, select “Fixed IP” to set IP address
manually. Click Next.
9. If you select “Fixed IP”, fill out the IP address, subnet mask, default gateway, and DNS server.
Please ensure that the IP address of the camera and the computer must be within the same
network. Click Next.
10. Select Change Password. Enter a new password, confirm the new password and then click
Next.
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
5
12. Congratulations! Your camera is now ready to be installed in its final location. Scan the QR
code to download a free mobile app to view the camera from your mobile device. Click Finish
to exit the installation wizard.
11. Initial Setup is complete! Your camera is now connected to your network. Click the hyperlink
to confirm access to the management page. This will open up a web browser. To resume
installation, minimize the web browser and then click Next.
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
6
13. To managemultiple cameras and for more advanced features, please install the
TRENDnetVIEW Pro software. Install the software by clicking Install TRENDnetVIEW Pro
Software in the Autorun window and refer to the TRENDnetVIEW Pro User's Guide on the CD
for more information.
Note
ŸSee User's Guide for advanced management functions
ŸTwo User's Guides are included – one for the camera and one for the complimentary
management software.
ŸWhen viewing through Chrome, please follow the steps in the User’s Guide.
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
7
Using the TV-IP345PI with a PoE switch (TPE-S50)
ŸConnect the provided network cable from the Power over Ethernet switch (e.g. TPE-S50) to
the network port on the IP Camera.
ŸConnect the switch to your network.
14. Install the camera in your desired location. To connect the IP camera to your network with
PoE, please use either of the following examples:
TV-IP-345PI
PoE
Internet
Non-PoE
TPE-S50
ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
8
TPE-113GI
DATA
IN
PWR+DATA
OUT
Non-PoE
PoE
ŸConnect the power adapter to the TPE-113GI and then to a power outlet.
ŸConnect a network cable from the TV-IP345PI to the TPE-113GI's PWR+DATA OUT (PoE)
port.
ŸConnect a network cable from a switch or router (e.g. TEW-818DRU) to the TPE-113GI's
DATA IN (Non-PoE) port.
Using the TV-IP345PI with an Injector (TPE-113GI)
Internet
TV-IP-345PI
