TRENDnet TV-IP121WN Manual de usuario

- 1 -

Preface

Thank you for purchasing the TV-IP121WN, a powerful andhigh-quality

image SecurView Wireless Day/Night Internet Camera. The infrared LEDs

and light sensor enable the camera to capture images even in dark

environments. The camera can be installed as a standalonesystem within

your application environment easily and quickly, and supports remote

management function so that you can access and control it using a Web

browser on your computers.

This User Guide provides you with the instructions and illustrations on how

to use your camera, which includes:

Chapter 1 Introduction to Your Camera describes the features of the

camera. You will also know the components and functions of

the camera.

Chapter 2 Hardware Installation helps you install the camera according

to your applicationenvironment. You can use thiscamera at

home, at work, at any where you want.

Chapter 3 Accessing the Camera lets you start using yourcamera

without problem. The camera can be set up easily and work

within your network environment instantly.

Chapter 4 Configuring the Camera guides you through the configuration

of the camera using the web browser on your PC.

Chapter 5 Using SecurView™ Pro showsyou the detail instructions on

operating SecurView™ Pro software.

Chapter 6 How to Access the Camera Behind a Router provides the

instruction how to setup your DDNS.

Chapter 7 Appendix provides the specification of the camera and some

useful information for using your camera.

NOTE The illustrations and configuration values in this guide are for reference only. The

actual settings depend on your practical application ofthe camera.

- 2 -

CONTENTS

PREFACE.............................................................................1

CHAPTER 1.......................................................................4

INTRODUCTION TO YOUR CAMERA...........................4

1.1 CHECKING THE PACKAGE CONTENTS..............................................4

1.2 GETTING TO KNOW YOUR CAMERA...............................................5

1.3 FEATURES AND BENEFITS ............................................................7

1.4 SYSTEM REQUIREMENT...............................................................8

CHAPTER 2.......................................................................9

HARDWARE INSTALLATION .........................................9

2.1 INSTALLING THE CAMERA STAND ..................................................9

2.2 CONNECTING THE CAMERA TO LAN/WLAN................................10

2.3 APPLICATIONS OF THE CAMERA..................................................11

CHAPTER 3.....................................................................12

ACCESSING THE CAMERA...........................................12

3.1 USING IPSETUP.......................................................................12

3.2 ACCESSING TO THE CAMERA ......................................................17

3.3 CONFIGURING THE IPADDRESS OF THE PC...................................20

CHAPTER 4.....................................................................21

CONFIGURING THE CAMERA.....................................21

4.1 USING THE WEB CONFIGURATION ..............................................21

4.2 USING SMART WIZARD.............................................................22

4.3 BASIC SETUP...........................................................................27

4.4 NETWORK SETTINGS ................................................................31

4.5 SETTING UP VIDEO &AUDIO .....................................................40

4.6 EVENT SERVER CONFIGURATION.................................................43

4.7 MOTION DETECT.....................................................................47

4.8 EVENT CONFIG........................................................................48

4.9 TOOLS ...................................................................................52

4.10 INFORMATION.........................................................................54

CHAPTER 5.....................................................................55

- 3 -

SECURVIEW™ PRO SOFTWARE .................................55

5.1 INSTALLATION .........................................................................56

5.2 USING SECURVIEW™PRO.........................................................59

CHAPTER 6.....................................................................90

HOW TO ACCESS THE CAMERA BEHIND A ROUTER..........90

CHAPTER 7.....................................................................96

APPENDIX ......................................................................96

A.1 SPECIFICATION ........................................................................96

A.2 GLOSSARY OF TERMS................................................................98

LIMITED WARRANTY......................................................107

- 4 -

CHAPTER 1

INTRODUCTION TO YOUR CAMERA

1.1 Checking the Package Contents

Check the items contained in the packagecarefully. You should have the

following:

TV-IP121WN

1 x CD-ROM (Utility & User’s Guide)

1 x Multi-Language Quick Installation Guide

1 x External antenna

1 x 5V 2.5A power adapter

1 x Network cable

1 x Camera stand.

NOTE: If there is any packaging contentmissing, please contact with your

local authorized dealer for replacement.

- 5 -

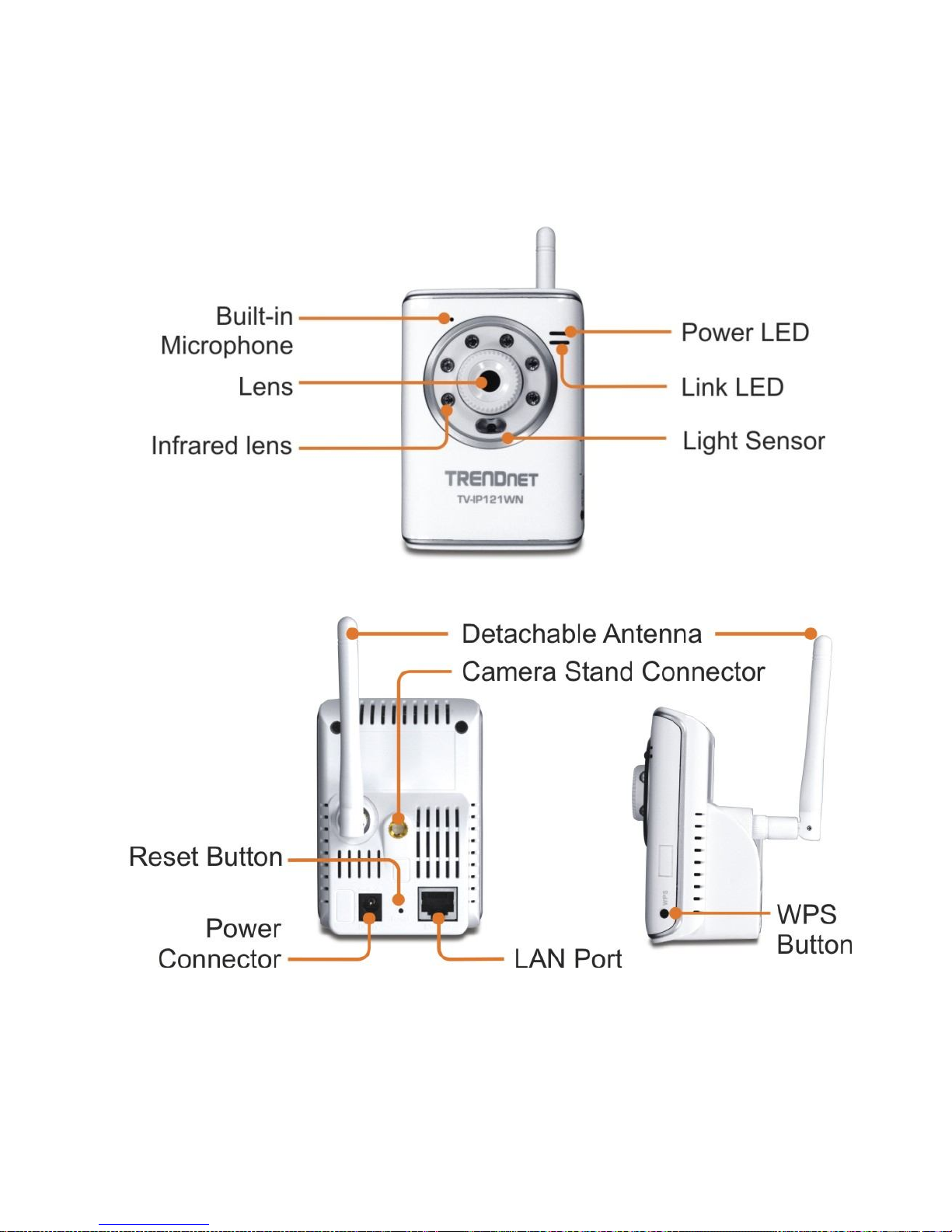

1.2 Getting to Know Your Camera

-Built-in Microphone: It allows the camera to receive the sound or

voice

- 6 -

-Infrared LEDs: It allows your camera to capture clear images in a dark

environment.

-Lens: Adjust the focus by rotate outside of the Lens.

-Light Sensor: It is used to trigger on and off the Infrared LEDs

according to the environmental light level.

-Power LED: A steady orange light indicates the camera is powered on.

-Link/Act LED: A blinking green light indicates the camera’s network

connection correctly.

-WPS Button: A push button to help you to connect camera to your

secured wireless network.

-Detachable Antenna: The detachable external antenna allows you to

adjust its position to obtain the maximum signal.

-Camera Stand Connector: Connects the camera with the camera

stand.

-Power Connector: Connectsthe AC power adapter to supply power to

the camera.

-LAN Port: It is used to connect the network RJ-45 cable, which

supports the Auto-MDIX so that the camera can detect thenetwork

speed automatically.

-Reset Button: Rest will be initiated when the reset button is pressed

once. The power LED begins to flash.

Factory Reset will be initiated when the reset button is pressed

continuously for three seconds orwhen Power LED begins to light up.

Releasethe reset button and thePower LEDwill begin to flash.

- 7 -

1.3 Features and Benefits

Audio Capability

The built-in microphone of the camera provides on-the-spot audio via

the Internet, allowing you to monitor the on-site voice.

Day & Night Surveillance Supported

The six Infrared LEDs around the standard lens assembly (optional)

enable the camera to capture crystal clearimages in the dark

environment or at night. When theLight Sensor detects the

environmental light level becomeslow, the camera captures the

images in black & white mode using these infrared LEDs.

Remote Control Supported

By using a standard Web browser or the bundledSecurView™ Pro

software application, the administrator can easily change the

configuration, upgrade the firmware. Theusersare allowed to monitor

the images and taking the snap via network.

Multiple Platforms Supported

The camera supports multiple networkprotocols, includingTCP/IP,

SMTP e-mail*, HTTP, and otherInternet related protocols.

Multiple Applications Supported

Through the remote access technology, you can use the cameras to

monitor various objects and places for your own purposes.

For example, babies at home, patientsin the hospital, offices and

banks, and more. The camera can capture both still imagesand video

clips, so that you can keep the archives and restore them atany time.

WPS (Wi-Fi Protected Setup) Supported

WPS is a new solution thatsimplifies the process of configuring Wi-Fi

security settings, allowing you to establish a secure wireless network

by simply pressing a button.

Note: Support SSL with complimentary software

- 8 -

1.4 System Requirement

Networking

LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet, Auto-MDIX

WLAN: Based on IEEE 802.11n technology,IEEE 802.11g/b

Accessing the Camera using Web Browser

Platform: Microsoft® Windows® 7/Vista/XP

CPU: Intel Pentium III 800MHz or above

RAM: 512MB

Resolution: 800x600 or above

User Interface: Microsoft® Internet Explorer 6.0 or above

Accessing the Camera using SecurView Pro

Platform: Microsoft®Windows® 7/Vista/XP

Hardware Requirement:

1 ~ 8 cameras: Intel Core 2 Duo; 2GB RAM

9 ~ 32cameras: Intel Core 2 Quad; 4GB RAM

NOTE: It is higher recommended that using a high performance

computer to monitor multiple cameras.

- 9 -

CHAPTER 2

HARDWARE INSTALLATION

2.1 Installing the Camera Stand

The camera comes with a camera stand,which uses a swivel ball screw

head to lock to the camera’s screw hole. When the camera stand is

attached, you can place the camera anywhere bymounting the camera

through the three screw holes located in the base of the camera stand.

The Camera Stand
