TRENDnet TU2-ET100 Manual de usuario
- i -
ii
Table of Contents
1. Introduction..........................................................................................................1
Features.............................................................................................................................1
Package Contents ..............................................................................................................1
System Requirements........................................................................................................1
LED Status..........................................................................................................................2
2. Installation in Windows .........................................................................................3
Windows 7/ Vista ..............................................................................................................3
Windows XP ......................................................................................................................5
Verifying the Driver Installation in Windows...................................................................7
TCP/IP Setting in Windows................................................................................................8
3. Installation in Mac ...............................................................................................13
Mac 10.6x........................................................................................................................13
Mac 10.5x........................................................................................................................16
Mac 10.4.x.......................................................................................................................19
Verifying the Driver Installation on Mac .........................................................................21
TCP/IP Setting in Mac ......................................................................................................22
4. Specifications ......................................................................................................28
Limited Warranty ....................................................................................................29
1
1. Introduction
The TU2-ET100 is a high speed USB network adapter that allows you to instantly connect
to a 10/100Mbps network from a USB enabled desktop or Notebook PC. Compliant
with USB 2.0 and backwards compatible with the USB 1.0 and 1.1, you can share files
and printers and also gain access to broadband Internet to explore valuable resources on
the web.
Features
Compliant with USB 2.0 and 1.1 specifications
Compliant with IEEE 802.3 and 802.3u standards
Supports both full-duplex and half-duplex operations
Supports Suspend mode and Hibernate mode to remote wake-up through link-up or
magic packet
Compliant with Windows 7/ Vista/ XP or Mac OS X 10.4~10.6
Powered by USB port. No external power adapter required
Diagnostic LEDs
Plug & Play for easy installation
Package Contents
Before installation, please check the items of the package. The package should contain the
following items:
TU2-ET100
Multi-Language Quick Installation Guide
CD-ROM(Driver & User’s Guide)
System Requirements
CPU: 300MHZ or above
Memory: 256MB RAM or above
Computer with an available USB 1.1 or 2.0 Port
Windows7 (32/64-bit) / Vista (32/64-bit) / XP (32/64-bit)
Mac OS X 10.4 ~ 10.6
2
LED Status
LED
Color
Description
100Mbps
Green
On for 100Mbps
Off for 10Mbps or not connected
Link
Amber
LAN activity. Blinking when there is data flow between LAN and the
host computer.
3
2. Installation in Windows
Windows 7/ Vista
1. Insert the Driver CD-ROM into your CD-ROM Drive.
2. Click Run Install.exe.
3. Click Install Driver to install the driver.
4
4. Click Next.
5. Click Install.
6. Click Finish.
5
7. Remove the CD-ROM from your computer’s CD-ROM drive.
8. Connect the adapter to an available USB port on your computer
9. The adapter’s drivers will install automatically.
10. Connect a network cable from the TU2-ET100 to a switch, router or cable/DSL
modem.
Windows XP

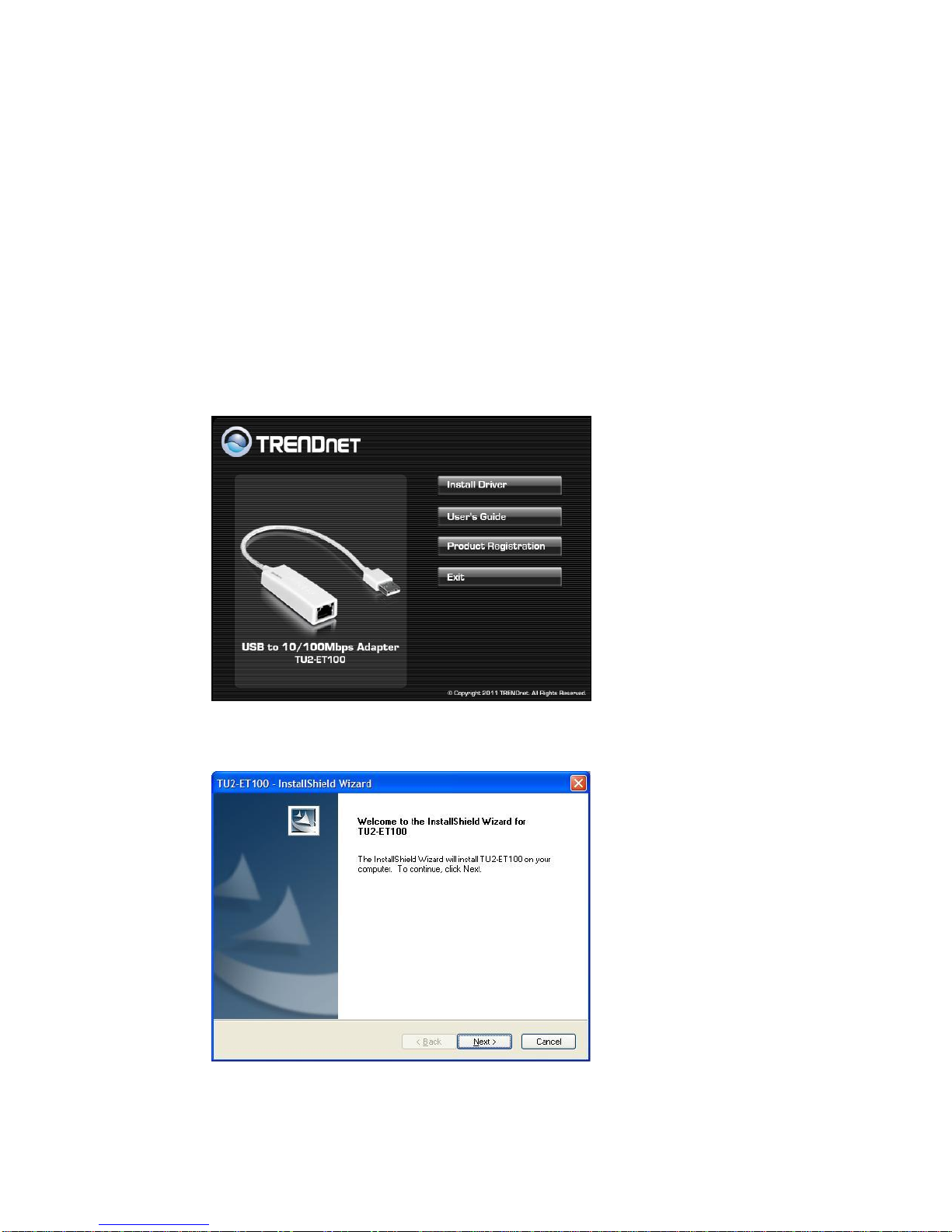

1. Insert the Driver CD-ROM into your CD-ROM Drive.
2. Click Install Driver to install the driver.
3. Click Next.
6
4. Click Install.
5. Click Finish.
6. Remove the CD-ROM from your computer’s CD-ROM drive.
7. Connect the adapter to an available USB port on your computer
8. The adapter’s drivers will install automatically.
9. Connect a network cable from the TU2-ET100 to a switch, router or cable/DSL
modem.
7
Verifying the Driver Installation in Windows
To verify the driver installation on your Ethernet adapter, please launch Device Manager
through the steps below.
On Windows® 7/Vista: Right-click on the Computer icon on the desktop and select Properties > Device
Manager.
On Windows® XP: Right-click on the My Computer icon on the desktop and select Properties > System >
(Hardware) > Device Manager.
8
TCP/IP Setting in Windows
1. Click Start, Control Panel and, then click Network and Sharing Center, and then clicking Change Adapter
settings
2. Right-click on the Local Area Connection of the adapter, and then click Properties.
3. Under Networking tab, click Internet Protocol Version 4 (TCP/IPv4) for IPv4 setting or Internet Protocol
Version 6 (TCP/IPv6) for IPv6 setting, and then click Properties.
