Travis Industries DVS EG Firebacks Manual de usuario

DVS/DVL EG Firebacks

Page 1 of 4 17602176 - 9/14/20 Travis Industries, Inc.

SKU Numbers

DVS Firebacks DVL Firebacks

Straight Brick/Herringbone sku# 96100473 Straight Brick/Herringbone sku# 96100483

Handmade Brick/Graystone sku# 96100474 Handmade Brick/Graystone sku# 96100484

Black Glass sku# 96100475 Black Glass sku# 96100485

Ledgestone sku# 96100476 Ledgestone sku# 96100486

Compatibility Tools Needed

DVS EmberGlo™ Inserts – (starting 2020) ¼” Nut Driver

DVL EmberGlo™ Inserts – (starting 2020)

Packing List

(1) Rear Fireback

(2) Side Firebacks

(2) Short - Top Fireback Clips (For Glass Firebacks ONLY)

(2) Long -Bottom Fireback Clips (For Glass Firebacks ONLY)

Installation

WARNING Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.

GLASS FIREBACK WARNINGS

HANDLING THE FIREBACKS: The glass firebacks are fragile – especially the edges. Take care to prevent

contacting/scraping the glass against metal or rough surfaces. You may wish to lay out a blanket during

installation in case you need to set the firebacks down.

We recommend the use of gloves and safety glasses during the installation of the glass firebacks.

GLASS FIREBACK CLEANING

These firebacks require periodic cleaning. Do not use ammonia-based cleaners (this may cloud the glass). We

recommend ammonia-free glass cleaner (i.e. vinegar and water) to clean the fireback.

CERAMIC FIREBACK WARNINGS

The rear fireback is rectangular and must be placed right side up. Lay the firebacks on a flat

surface prior to installing to verify the texture (brick, ledgestones) are aligned.

The firebacks are fragile, especially after being exposed to heat. Take care to prevent contacting/scraping the

firebacks against metal or rough surfaces.

NOTE On two-sided firebacks make sure the rear and sides patterns match.

NOTE On rear firebacks that have brick texture make sure the edge with the full brick is at the top.

1. Access the firebox (see Owner’s Manual).

2. There are (2) fireback clips in the

firebox ceiling for DVS (1) on each

side and (3) for DVL– (1) on each

side and (1) in the back. Use a ¼” nut

driver to loosen the screws just

enough to allow the fireback clip to

move. The clip has a “keyhole” slot

on it. Slide the clip forward until it can

move freely over the head of the

screw. Tighten the screws so they do

not obstruct the installation of the

fireback panels in a later step.

Fireback Clip

Loosen Screw

TIghten Screw

DVS/DVL EG Firebacks

Page 2 of 4 17602176 - 9/14/20 Travis Industries, Inc.

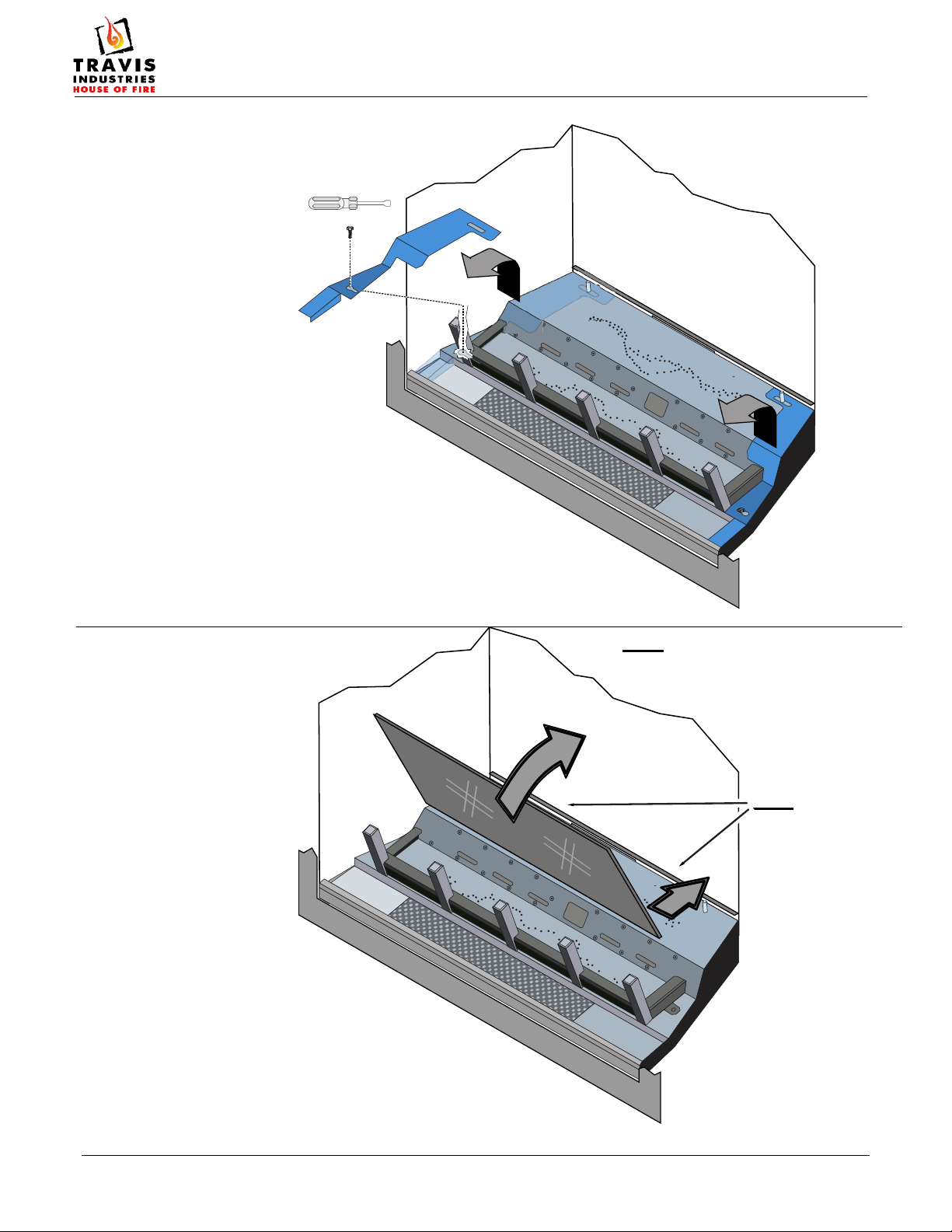

3. Use a ¼” nut driver to

loosen the screws (1

each side) that secure

the burner side covers

to the burner. There is

a “keyhole” slot in the

cover so removal of the

screw is not necessary.

Push the burner side

cover toward the center

of the insert until the

hole in the cover lines

up with the head of the

screw. Lift up slightly

and remove the cover

from the firebox.

Repeat for other cover.

Set the covers aside

for reinstallation.

4. Place the rear fireback

into position and support

it with your hand until

you install the rear

fireback clip in the next

step.

1/4" Nutdriver

NOTE: the fireback

NOTE: Install the rear

rests on the ledge at

fireback bottom first. Then

the back of the firebox

tilt the top into place.

DVS/DVL EG Firebacks

Page 3 of 4 17602176 - 9/14/20 Travis Industries, Inc.

BLACK GLASS FIREBACKS ONLY – For all other firebacks skip to step 6

5. Prepare the side firebacks for

installation. Each side uses (1)

large clip on the bottom of the panel

and (1) small clip on the top of the

panel (just after the mitered corner.

Place the clips as shown below and

bend the small tabs (1 on the top

and 3 on the bottom) to secure the

clips to the glass.

NOTE: You may want to pre-bend

the tabs before placing the clip on

the glass.

6. Make sure the rear

fireback is centered in

the insert.

(DVL ONLY) Replace

the rear fireback clip to

secure the rear fireback

in place.

(DVS ONLY) The rear

fireback will be held in

place by the side

firebacks in the next

step. Support the rear

fireback with your hand

until at least one side

fireback is in place

(next step).

DVS/DVL EG Firebacks

Page 4 of 4 17602176 - 9/14/20 Travis Industries, Inc.

7. Install one of the side

panels into the firebox

as shown below. The

side fireback rests on

a shelf located to the

side of the burner.

NOTE: Push the side

fireback backward

until it contacts the

rear fireback.

8. Install a fireback clip

(removed in step 2) over the

screw. Slide the clip against

the fireback (the fireback will

be sandwiched between the

clip and the side of the

firebox). Tighten the screws

to lock the glass in place (see

below).

9. Repeat steps 6 and 7 for the opposite side fireback.

10. Reinstall the burner side covers removed in step 3.

NOTE: Slide the side burner covers toward the sides of the unit until they contact the side firebacks. Tighten the

screws to hold them in place.

Hold the side firebacks at an angle

and place them into position.

Replace the fireback

clip to secure the

fireback in place.

(see step #8).

NOTE: Mitered

corners should face

the front of the insert.
