Travis Industries 96100110 Manual de usuario

DVS GSR / 31 DVI SS/Enamel Firebacks

SKU # 96100110 Black Enamel 96100112 Stainless Steel

Page 1 of 2 17601616 - 4/28/10 © Travis Industries, Inc.

Packing List

• Rear Fireback • (2) Side Firebacks • Rear Fireback Shelf (used on the DVS GSR Only)

STAINLESS STEEL WARNINGS

HA DLI G THE FIREBACKS: The stainless steel firebacks are shipped in vinyl to prevent marring the surface

of the stainless steel. Remove the vinyl prior to installation. Wear clean gloves when installing the firebacks

to prevent fingerprints on the surface (or use a rag or paper towel to handle the firebacks).

COLORATION AND CLEANING: These stainless steel firebacks will obtain a slight “patina” (brown tint) after

use. Do not clean the firebacks. This patina becomes consistent. Any cleaning may lead to unequal coloring.

If soot forms on the fireback, we recommend brushing it off with a soft cloth or brush.

Cleaning Ena el Firebacks

We recommend cleaning the enamel surface with glass cleaner and a soft cloth.

Installation

WARNING Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.

1 Remove the glass frame and logs (see the manual for details).

2 Follow the steps below to install the firebacks (see illustrations on the following page).

a) For the DVS GSR bend the accent light down (if installed) and install the rear fireback shelf

(see illustration below).

b) Install the rear fireback (see illustration on the following page).

c) Install the side firebacks (see illustration on the following page).

d) For the DVS GSR, return the accent light to the correct configuration.

e) Replace the burner.

3 Restore the appliance to the correct configuration.

Installing the Fireback Shelf (DVS GSR ONLY)

Remove the two screws on the back wall of the firebox

(see illustration to the right). Align the holes on the rear

fireback shelf with the screw holes and attach with the

screws. The rear fireback rests on this shelf.

DVS GSR / 31 DVI SS/Enamel Firebacks

SKU # 96100110 Black Enamel 96100112 Stainless Steel

Page 2 of 2 17601616 - 4/28/10 © Travis Industries, Inc.

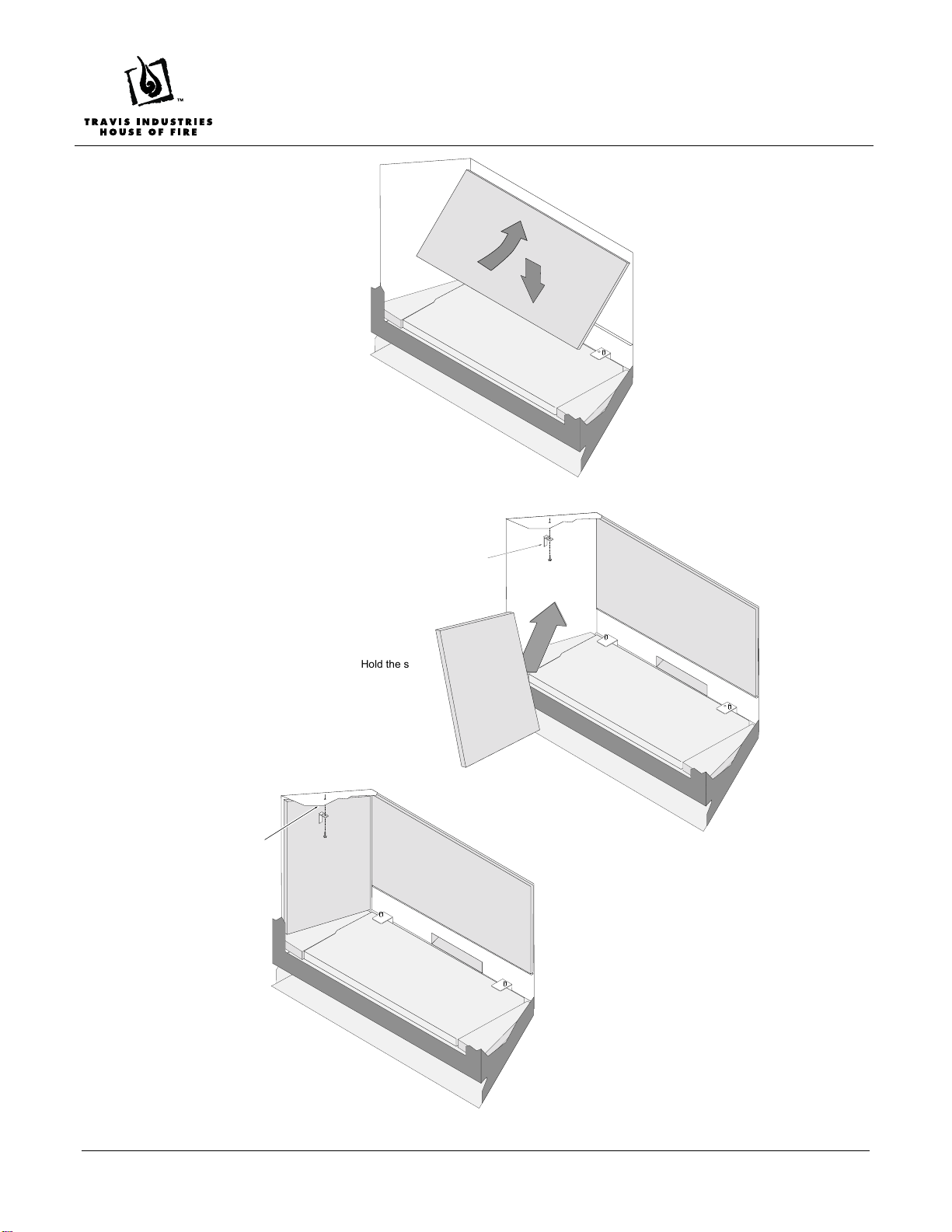

Slide the top of the rear

fireback behind the baffle on

top of the firebox and pivot it

back into place. It rests on

the shelf at the back of the

firebox.

AA

AA

AA

AA

AA

Hold the side

firebacks at a

slight angle and

place them into

position (both

sides).

Remove this clip attached to

the firebox ceiling (both sides).

Replace the clip

to secure the

side fireback

(both sides).
