Introduction

Congratulations on purchasing Transcend’s StoreJet

™

2.5.This tiny, Ultra-portable, Hi-Speed USB

storage device is the perfect data management system for uploading, downloading, storing and

transferring your vital data and information. With a huge storage capacity and Hi-Speed USB 2.0 data

transfer rates, the compact StoreJet

™

2.5 is ideal for storing and transferring your files, folders,

documents, photos, music and e-work between it and any desktop, or notebook computer. In addition, the

StoreJet

™

2.5 comes with a very useful software (please see the Software User’s Manual for detailed

instructions) pack that can increase your productivity. The User’s Manual and accompanying Software

User’s Guide are written to help you get the most from your new device, please read both in detail before

using the StoreJet

™

2.5.

Introduction

Features

•

Hi-Speed USB 2.0 compliant and USB 1.1 backwards compatible

•

Easy Plug and Play installation

•

Optional 2.5” Hard Disk Drive

•

Ultra-Portability

•

One Touch Auto-Backup function

•

Powered via the USB port. No external power or battery needed

•

Includes Transcend Elite™ backup and security software

•

LED indicates the status of power on, data transfer activity

System Requirements

Desktop or notebook computer with a working USB port.

One of following Operating Systems (OS):

•

Windows



2000

•

Windows



•

Windows



Vista

•

Mac



OS 9.0, or later

•

Linux



Kernel 2.4, or later

Introduction

Safety Precautions

These usage and safety guidelines are IMPORTANT! Please follow them carefully.

Your StoreJet

™

2.5 is connected to a computer using a Mini USB (on the StoreJet

™

) to USB

A-Type (on a Desktop, Notebook) cable. Please ensure that you connect the cable ends to

the ports correctly.

General Use

•

Carefully unpack the contents of the StoreJet

™

2.5 package.

•

During operation, avoid exposing your StoreJet

™

2.5 to extreme temperatures above 55℃, or

below 5℃.

•

Do not drop your StoreJet

™

2.5.

•

Do not allow your StoreJet

™

2.5 to become damp or wet from water or any other liquids.

•

Do not use a damp/wet cloth to wipe or clean the exterior case.

•

Do not use or store your StoreJet

™

2.5 in any of the listed environments:

oDirect sunlight

oNext to an air conditioner, electric heater or other heat sources

oIn a closed car that is in direct sunlight

Backing Up Data

•

Transcend does NOT take any responsibility for data loss, or damage during operation.

If you decide to store data on your StoreJet

™

2.5 we strongly advise that you regularly backup

the data to a computer, or other storage medium.

•

To ensure High-Speed USB 2.0 data transfer rates when using your StoreJet

™

2.5 with a

computer, please check that the computer has the relevant USB drivers. If you are unsure

about how to check this, please consult the computer or motherboard User’s Manual for USB

driver information.

Transporting

•

Do not pack your StoreJet

™

2.5 into luggage without the proper padded support. Other items

in the luggage may damage your StoreJet

™

2.5 if it does not have the proper protection.

•

Avoid squeezing your StoreJet

™

2.5 to prevent damage to the internal HDD.

•

Avoid placing objects onto your StoreJet

™

2.5 to prevent damaging it.

Power

•

The StoreJet

™

2.5 is powered directly via a computer USB port; however, the power supplied

by the USB port on some older computers is below the required 5V DC power. In this instance,

please connect the other USB A-Type connector from the provided USB Y cable to a USB port

on the computer, this will provide the additional power necessary to run the drive.

Safety

The other USB A-Type connector is used to provide additional power.

•

Please use the Mini USB to USB A-Type cable that came with the StoreJet

™

2.5 to connect it

to a computer, and always ensure that the cable you are using is in good condition. NEVER

use a cable that is frayed or damaged.

•

Ensure nothing is resting on the USB cable and that the cable is not located where it can be

tripped over or stepped on.

Reminders

Always follow the procedures in the “Disconnecting from a Computer” section to remove your

StoreJet

™

from a computer.

Safety

Product Overview

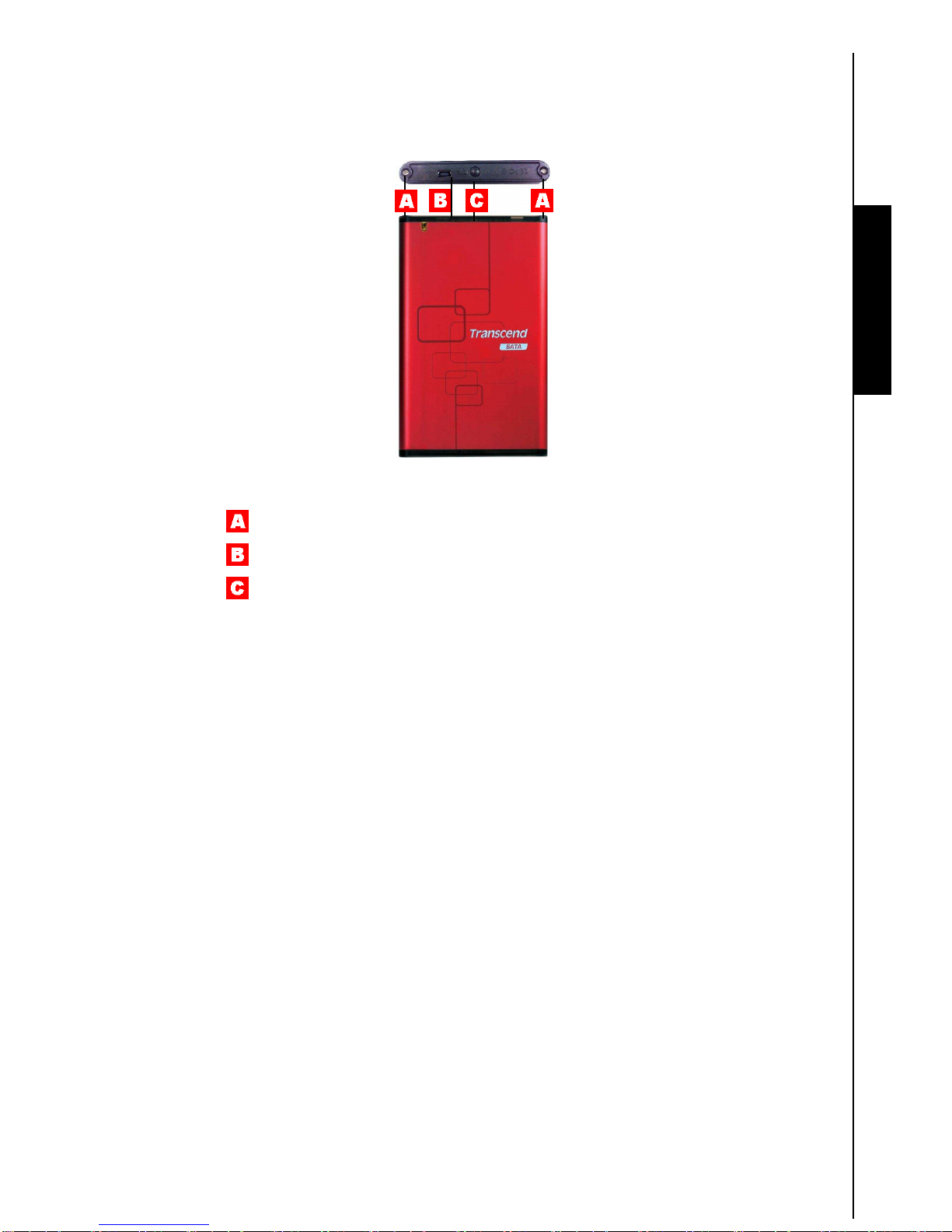

Figure 1. StoreJet 2.5

Screws x 2

Mini USB Port

One Touch Auto-Backup Button

Product Overview

Installing a Hard Drive

If you purchased a StoreJet

™

2.5 that does not have a Hard Disk Drive already installed, please read this

section, otherwise you can skip to the “Driver Installation” section.

Open the StoreJet

™

2.5 by removing the two screws from either side of the top cover, as indicated in

the diagram.

Figure 2. Remove the screws from the top cover

Remove the cover revealing a control board adapter; this converts the SATA interface connector of the

hard drive to a Mini USB 2.0 interface. Slide out the control board.

Figure 3. Remove the top cover revealing the SATA adapter

Carefully line up and plug in the SATA connector on the control board to the hard drive. Do NOT force

the SATA connector into the hard drive and do NOT insert the connector at an angle, otherwise you

may damage it.

Installing a Hard Drive

Figure 4. Connect the hard drive to the SATA adapter

Carefully reinsert the SATA control board and its connected 2.5” hard drive into the metal case.

Figure 5. Reinsert the adapter plus drive and reattach the screws

Reattach the screws to the top cover.

Installing a Hard Drive

WARNING

a.Make sure the cube-shaped conductive grounding pad is securely attached to

the control board.

b.When inserting the drive, be careful not to let the control board’s grounding pad

get caught on the edge of the case. Gently compress the grounding pad before

sliding the control board completely into the case.

(Incorrect) (Correct)

Driver Installation

Driver Installation for Windows







2000, XP and Vista

No drivers are required. These Windows

Operating Systems have built-in drivers to support the

StoreJet

™

2.5. Plug your StoreJet

™

into an available USB port and Windows will install the necessary

files. A new Local Disk drive with a newly assigned drive letter representing the StoreJet

™

2.5 will

appear in the My Computer window.

Driver Installation for Mac

™

OS 9.0, or Later

No drivers are required. Plug your StoreJet

™

2.5 into an available USB port and your computer will

automatically detect it.

Figure 6. Mac Driver Installation

Driver Installation for Linux

™

Kernel 2.4, or Later

No drivers are required. Plug your StoreJet

™

2.5 into a USB port and mount it.

First create a directory for the StoreJet

™

2.5.

Example: mkdir /mnt/Storejet

2. Then, mount the StoreJet

™

2.5.

Example: mount –a –t msdos /dev/sda1 /mnt/Storejet

Driver Installation
