400X CompactFlash Card

Transcend Information Inc.

V1.0

Description

Dedicated to fulfill the demanding requirements of

performance-conscious photographers, Transcend

proudly releases its Extreme 400X CompactFlash

cards. With its amazing performance,the Transcend

400X CompactFlash memory card allows the

professional photographers and enthusiasts to get the

most from your digital single lens reflex (DSLR)

camera. Users are guaranteed to make consecutive

shooting and non-stop video recording and share their

digital artwork with the world!

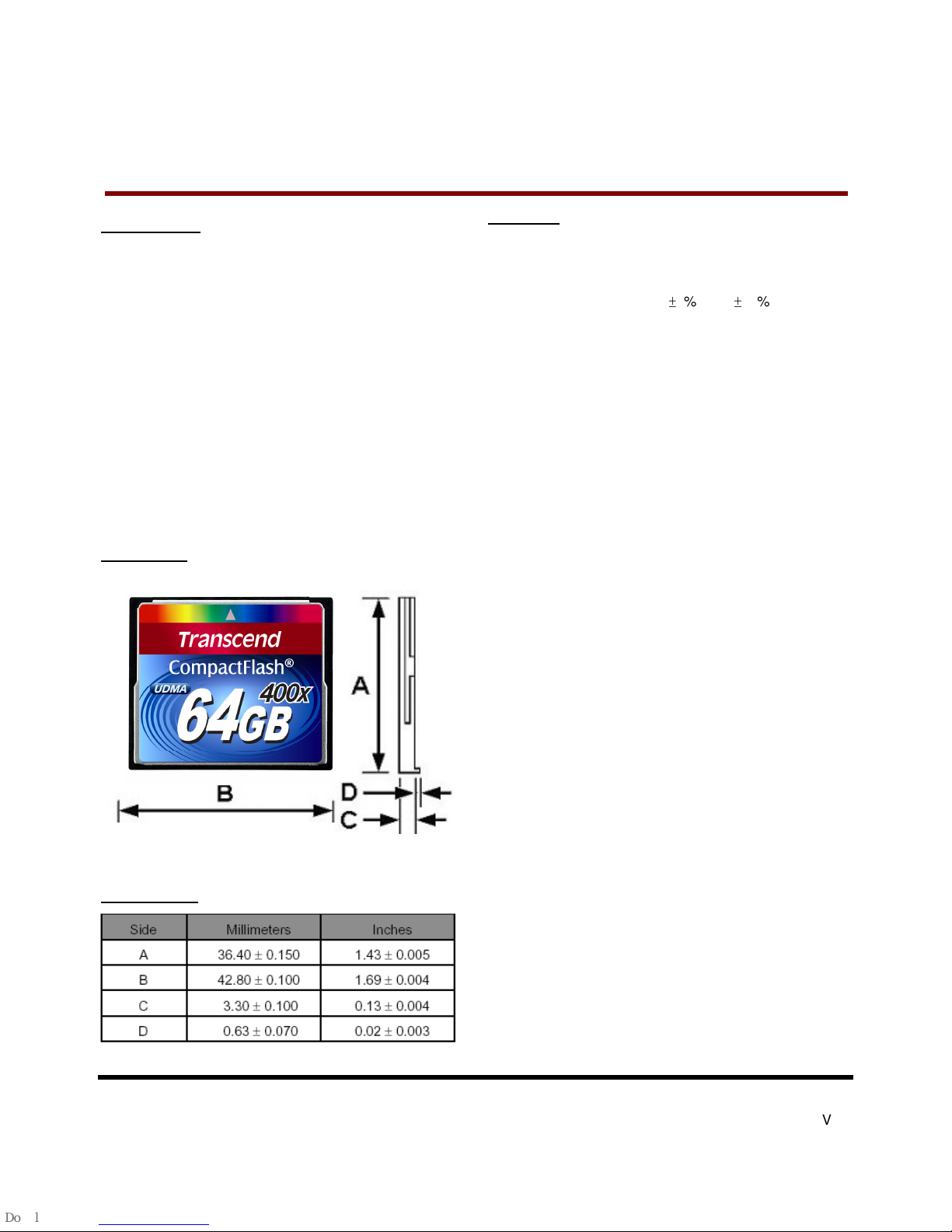

Placement

Dimensions

Features

•CompactFlash Specification Version 4.1 Compliant

•RoHS compliant products

•Single Power Supply: 3.3V

5% or 5V

10%

•Operating Temperature: -25

C to 85

•Storage Temperature: -40

C to 85

•Operating/ Storage Humidity: 5% to 95%

•Operation Modes:



PC Card Memory Mode



PC Card IO Mode



True IDE Mode

•True IDE Mode supports:



Ultra DMA Mode 0 to Ultra DMA Mode 6 (Ultra DMA

mode 5/6 must supply with 3.3V)



MultiWord DMA Mode 0 to MultiWord DMA Mode 4



PIO Mode 0 to PIO Mode 6

•PC Card Mode supports up to Ultra DMA Mode 6

•True IDE mode: Fixed Disk (Default)

•PC Card Mode: Removable Disk (Default)

•Durability of Connector: 10,000 times

•

Built-in 15 bit ECC (Error Correction Code) functionality

•Support Global Wear-Leveling to extend product life

•Transfer rate up to read 90MB/s write 60MB/s based on

TestMetrix.

400X CompactFlash Card

Transcend Information Inc.

V1.0

Specification

* Note: 24-hours chamber test on ASUS Striker 2 Extreme, 1GB RAM, Windows

XP Version 2002 SP3.

Interface Specification

Drivers No Device Driver Required

ATA/ATAPI 7

PIO Mode 0 - 6

Multiword mode 0 - 4

ATA Compatibility

UDMA Mode 0 - 6

Physical Specification

Form Factor Compact Flash Card

Storage Capacities 16 GB to 64 GB

Length 36.40 ±0.15

Width 42.80 ±0.10

Dimensions (mm)

Height 3.30 ±0.10

Environmental Specifications

Operating Temperature -25

℃

to 85

℃

Storage Temperature -40

℃

to 85

℃

Humidity

Operating Humidity (Non condensation) 5% to 95%

Storage Humidity (Non condensation) 5% to 95%

Power Consumption

Product TS16GF400 TS32GCF400 TS64GCF400

Standby

0.2mA 0.2mA 0.2mA

Read 221.0mA 225.7mA 231.6mA

Power

Consumption

(DC 3.3V

℃

)

Write 213.2mA 231.7mA 205.7mA

400X CompactFlash Card

Transcend Information Inc.

V1.0

Note : 25

℃

, according to IDE to CF card transferring board test on ASUS P4S800-MX, 1GB RAM, IDE interface support

UDMA6, Windows

XP Version 2002 SP2, CrystalDiskMark, copied file 100MB

* Note: FAT32 format

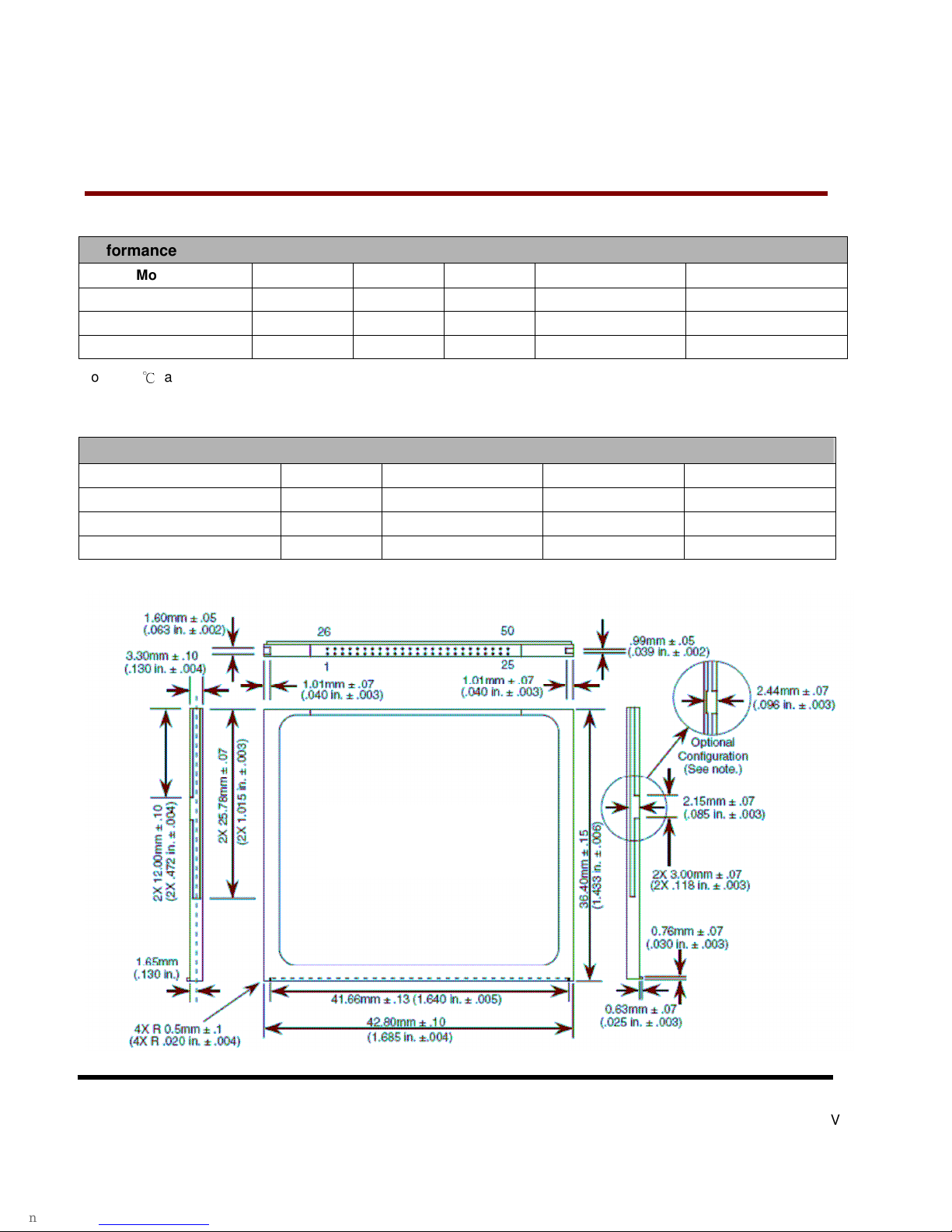

Performance

Model P/N Capacity Read(MB/s)

Write(MB/s)

Random Read (MB/s)

Random Write (MB/s)

TS16GCF400 16GB 83.67 44.96 82.38 8.671

TS32GCF400 32GB 86.16 45.82 85.09 10.99

TS64GCF400 64GB 88.87 39.67 88.48 10.59

Actual Capacity

Model P/N User LBA Cylinder Head Sector

TS16GCF400 31293360 31045 16 63

TS32GCF400 62537328 62041 16 63

TS64GCF400 125059072 16383 15 63

Transcend

400X CompactFlash Card

Transcend Information Inc.

V1.0

Block Diagram

400X CompactFlash Card

Transcend Information Inc.

V1.0

400X CompactFlash Card

Transcend Information Inc.

V1.0

Pin Assignments and Pin Type

PC Card Memory Mode PC Card I/O Mode True IDE Mode

Num

Signal

Name

Type

In, Out Type

Pin Num

Signal

Name

Type

In, Out

Type

Num

Signal

Name

Type

In, Out

Type

1 GND

Ground 1 GND

Ground

1 GND

Ground

2 D03 I/O I1Z, OZ3 2 D03 I/O I1Z, OZ3

2 D03 I/O I1Z, OZ3

3 D04 I/O I1Z, OZ3 3 D04 I/O I1Z, OZ3

3 D04 I/O I1Z, OZ3

4 D05 I/O I1Z, OZ3 4 D05 I/O I1Z, OZ3

4 D05 I/O I1Z, OZ3

5 D06 I/O I1Z, OZ3 5 D06 I/O I1Z, OZ3

5 D06 I/O I1Z, OZ3

6 D07 I/O I1Z, OZ3 6 D07 I/O I1Z, OZ3

6 D07 I/O I1Z, OZ3

7 -CE1 I I3U 7 -CE1 I I3U 7 -CS0 I I3Z

8 A10 I I1Z 8 A10 I I1Z 8 A10

I I1Z

9 -OE I I3U 9 -OE I I3U 9 -ATA SEL

I I3U

A09 I I1Z 10 A09 I I1Z 10 A09

I I1Z

A08 I I1Z 11 A08 I I1Z 11 A08

I I1Z

A07 I I1Z 12 A07 I I1Z 12 A07

I I1Z

VCC

Power 13 VCC

Power

13 VCC

Power

A06 I I1Z 14 A06 I I1Z 14 A06

I I1Z

A05 I I1Z 15 A05 I I1Z 15 A05

I I1Z

A04 I I1Z 16 A04 I I1Z 16 A04

I I1Z

A03 I I1Z 17 A03 I I1Z 17 A03

I I1Z

A02 I I1Z 18 A02 I I1Z 18 A02 I I1Z

A01 I I1Z 19 A01 I I1Z 19 A01 I I1Z

A00 I I1Z 20 A00 I I1Z 20 A00 I I1Z

D00 I/O I1Z, OZ3 21 D00 I/O I1Z, OZ3

21 D00 I/O I1Z, OZ3

D01 I/O I1Z, OZ3 22 D01 I/O I1Z, OZ3

22 D01 I/O I1Z, OZ3

D02 I/O I1Z, OZ3 23 D02 I/O I1Z, OZ3

23 D02 I/O I1Z, OZ3

WP O OT3 24 -IOIS16

O OT3 24 -IOCS16

O ON3

-CD2 O Ground 25 -CD2 O Ground

25 -CD2 O Ground

-CD1 O Ground 26 -CD1 O Ground

26 -CD1 O Ground

D11

I/O

I1Z, OZ3 27 D11

I/O

I1Z, OZ3

27 D11

I/O

I1Z, OZ3

D121 I/O

I1Z, OZ3 28 D12

I/O

I1Z, OZ3

28 D12

I/O

I1Z, OZ3

D13

I/O

I1Z, OZ3 29 D13

I/O

I1Z, OZ3

29 D13

I/O

I1Z, OZ3

D14

I/O

I1Z, OZ3 30 D14

I/O

I1Z, OZ3

30 D14

I/O

I1Z, OZ3

D15

I/O

I1Z, OZ3 31 D15

I/O

I1Z, OZ3

31 D15

I/O

I1Z, OZ3

-CE2

I I3U 32 -CE2

I I3U 32 -CS1

I I3Z

-VS1 O Ground 33 -VS1 O Ground

33 -VS1 O Ground

400X CompactFlash Card

Transcend Information Inc.

V1.0

PC Card Memory Mode PC Card I/O Mode True IDE Mode

Num

Signal Name

Type

In, Out

Type

Num

Signal Name

Type

In, Out

Type

Num

Signal Name

Type

In, Out

Type

-HIOE

HSTROBE

-HIOE

HSTROBE

HDMARDY

I I3U 34

-HIOE

HSTROBE

-HDMARDY

I I3U 34

-HDMARDY

I I3Z

-IOWR -IOWR -IOWR

STOP

10,11

I I3U 35

STOP

10,11

I I3U 35

STOP

8,9

I I3Z

-WE I I3U 36 -WE I I3U 36 -WE

I I3U

READY O OT1 37 -IREQ O OT1 37 INTRQ O OZ1

VCC Power

38 VCC Power

-CSEL

I I2Z 39 -CSEL

I I2Z 39 -CSEL I I2U

-VS2 O OPEN

40 -VS2 O OPEN

RESET I I2Z 41 RESET I I2Z 41 -RESET I I2Z

-WAIT -WAIT IORDY

ON1

-DDMARDY

DSTROBE

O OT1 42

DSTROBE

O OT1 42

DSTROBE

O OT1

-INPACK -INPACK

-DMARQ

O OT1 43

-DMARQ

O OT1 43 DMARQ O OZ1

-REG I I3U 44 -REG

-DMACK

DMACK

I I3U 44 -DMACK

I I3U

BVD2 O OT1 45 -SPKR O OT1 45 -DASP I/O I1U, ON1

BVD1 O OT1 46 -STSCHG O OT1 46 -PDIAG I/O I1U, ON1

D08

I/O

I1Z,

OZ3 47 D08

I/O

I1Z,

OZ3 47 D08

I/O

I1Z, OZ3

D09

I/O

I1Z,

OZ3 48 D09

I/O

I1Z,

OZ3 48 D09

I/O

I1Z, OZ3

D10

I/O

I1Z,

OZ3 49 D10

I/O

I1Z,

OZ3 49 D10

I/O

I1Z, OZ3

GND Ground

50 GND Ground

Note: 1) These signals are required only for 16 bit accesses and not required when installed in 8 bit systems. Devices should allow for 3-state

signals not to consume current.

2) The signal should be grounded by the host.

3) The signal should be tied to VCC by the host.

4) The mode is required for CompactFlash Storage Cards.

5) The -CSEL signal is ignored by the card in PC Card modes. However, because it is not pulled upon the card in these modes,

it should not be left floating by the host in PC Card modes. In these modes, the pin should be connected by the host to PC

Card A25 or grounded by the host.

6) If DMA operations are not used, the signal should be held high or tied to VCC by the host. For proper operation in older hosts: while DMA

operations are not active, the card shall ignore this signal,including a floating condition

7) Signal usage in True IDE Mode except when Ultra DMA mode protocol is active.

8) Signal usage in True IDE Mode when Ultra DMA mode protocol DMA Write is active.

9) Signal usage in True IDE Mode when Ultra DMA mode protocol DMA Read is active.

10) Signal usage in PC Card I/O and Memory Mode when Ultra DMA mode protocol DMA Write is active.

11) Signal usage in PC Card I/O and Memory Mode when Ultra DMA mode protocol DMA Read is active.

12) Signal usage in PC Card I/O and Memory Mode when Ultra DMA protocol is active.

400X CompactFlash Card

Transcend Information Inc.

V1.0



Input Leakage Current

Note: In Table 1 below, x refers to the characteristics described in table 2. For example, I1U indicates a pull-up resistor with a type 1

input characteristic.

Table 1: Input Leakage Current

Type Parameter Symbol

Conditions MIN

TYP

MAX

Units

IxZ Input Leakage Current

IL Vih = Vcc / Vil = Gnd

-1

1 µA

IxU Pull-Up Resistor RPU1 Vcc = 5.0V 50k

500k

Ohm

IxD Pull-Down Resistor RPD1 Vcc = 5.0V 50k

500k

Ohm

Note: The minimum pull-up resistor resistance meets the PCMCIA PC Card specification of 10k ohms but is intentionally higher in the

CompactFlash Specification to reduce power use.



Input Characteristics

Table 2: Input Characteristics

MIN

TYP MAX

MIN

TYP MAX

Type

Parameter Symbol

VCC = 3.3 V VCC = 5.0 V

Units

1 Input Voltage

CMOS

Vih

Vil 2.4

0.6 4.0

0.8 Volts

2 Input Voltage

CMOS

Vih

Vil 1.5

0.6 2.0

0.8 Volts

Input Voltage

CMOS Schmitt

Trigger

Vth

Vtl

1.8

1.0

2.8

2.0

Volts

Notes: 1) The host provides a logic output high voltage for a CMOS load of .9 x VCC. For a 5 volt product, this translates to .9 x

4.5 = 4.05 volts minimum Voh.



Output Drive Type

Note: In Table 3 below, x refers to the characteristics described in Table 4. For example, OT3 refers to Totem pole output with a type

3 output drive characteristic.

Table 3: Output Drive Type

Type Output Type Valid Conditions

OTx Totempole Ioh & Iol

OZx Tri-State N-P Channel Ioh & Iol

OPx P-Channel Only Ioh Only

ONx N-Channel Only Iol Only

400X CompactFlash Card

Transcend Information Inc.

V1.0



Output Drive Characteristics

Table 4: Output Drive Characteristics

Type

Parameter Symbol Conditions MIN TYP MAX Units

1 Output Voltage

Voh

Vol

Ioh = -4 mA

Iol = 4 mA

Vcc

-0.8V

Gnd

+0.4V

Volts

2 Output Voltage

Voh

Vol

Ioh = -4 mA

Iol = 4 mA

Vcc

-0.8V

Gnd

+0.4V

Volts

3 Output Voltage

Voh

Vol

Ioh = -4 mA

Iol = 4 mA

Vcc

-0.8V

Gnd

+0.4V

Volts

X Tri-State Leakage

Current Ioz Vol = Gnd

Voh = Vcc -10

10 µA

400X CompactFlash Card

Transcend Information Inc.

V1.0

Signal Description

Signal Name

Dir.

Description

A10 – A00

(PC Card Memory Mode)

A10 – A00

(PC Card I/O Mode)

A02 - A00

(True IDE Mode)

8,10,11,12,

14,15,16,17,

18,19,20

These address lines along with the -REG signal are used to

select the following:

The I/O port address registers within the CompactFlash Storage Card , the

memory mapped

port address registers within the CompactFlash Storage Card,

a byte in the card's information structure and its configura

tion control and status

registers.

This signal is the same as the PC Card Memory Mode signal.

In True IDE Mode, only A[02:00] are used to select the one of eight registers

in the Task File, the remaining address lines should be grounded by the

host.

BVD1

(PC Card Memory Mode)

-STSCHG

(PC Card I/O Mode)

Status Changed

-PDIAG

(True IDE Mode)

I/O

46 This signal is asserted high, as BVD1 is not supported.

This signal is asserted low to alert the host to changes in the

READY and Write

Protect states, while the I/O interface is configured. Its use is controlled by the

Card Config and Status Register.

In the True IDE Mode, this input / output is the Pass Diagnostic signal in the

Master / Slave handshake protocol.

BVD2

(PC Card Memory Mode)

-SPKR

(PC Card I/O Mode)

-DASP

(True IDE Mode)

I/O

45 This signal is asserted high, as BVD2 is not supported.

This line is the Binary Audio output from the card. If the Card does not support

the Binary Audio function, this line should be held negated.

In the True IDE Mode, this input/output is the Disk Active/Slave

Present signal in

the Master/Slave handshake protocol.

-CD1, -CD2

(PC Card Memory Mode)

-CD1, -CD2

(PC Card I/O Mode)

-CD1, -CD2

(True IDE Mode)

26,25 These Card Detect pins are connected to ground on the

CompactFlash Storage

Card. They are used by the host to determine that the CompactFlash Storage

Card is fully inserted into its socket.

This signal is the same for all modes.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Almacenamiento de Transcend

Transcend

Transcend StoreJet SJM100 Manual de usuario

Transcend

Transcend StoreJet 2.5 SATA Series Manual de usuario

Transcend

Transcend CompactFlash CF 133X Manual de usuario

Transcend

Transcend TS128MJF-DSC Manual de usuario

Transcend

Transcend 32MB4GB Manual de usuario

Transcend

Transcend MMC Series Instrucciones de montaje

Transcend

Transcend StoreJet 25M3 Manual de usuario

Transcend

Transcend TS1~2GUSD-S3 Manual

Transcend

Transcend TS16GCF600 Manual de usuario

Transcend

Transcend JetDrive 855 Manual de usuario

Transcend

Transcend Memory Card 2GSDM80 Manual de usuario

Transcend

Transcend StoreJet 25M3 USB 3.0 750GB Manual de usuario

Transcend

Transcend PhotoBank TS40GPB ts40gpb ts40gpb Manual de usuario

Transcend

Transcend StoreJet TS250GSJ25C Manual de usuario

Transcend

Transcend ExpressCard SSD TS8GSSD34E-M Manual de usuario

Transcend

Transcend JetFlash V20 Manual de usuario

Transcend

Transcend JetFlash 220 Manual de usuario

Transcend

Transcend StoreJet 2.5 IDE Series Manual de usuario

Transcend

Transcend 40GB Portable Hard Disk TS40GHDENC Manual de usuario

Transcend

Transcend USB JetFlash Manual de usuario

Transcend

Transcend StoreJetTM 25P Manual de usuario

Transcend

Transcend TS120GSJ25T Manual de usuario

Transcend

Transcend USB JetFlash Manual de usuario

Transcend

Transcend TS500GSJ25F Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario
