Transcend CompactFlash CF 133X Manual de usuario

133X CompactFlash Card

Transcend Information Inc.

Description

The Transcend CF 133X is a High Speed Compact

Flash Card with high quality Flash Memory assembled

on a printed circuit board.

Placement

Features

•CompactFlash Specification Version 4.1 Complaint

•RoHS compliant products

•Single Power Supply: 3.3V±5% or 5V±10%

•Operating Temperature: -25oC to 85oC

•Storage Temperature: -40oC to 85oC

•Operation Modes:

 PC Card Memory Mode

 PC Card IO Mode

 True IDE Mode

•True IDE Mode supports:

 Ultra DMA Mode 0 to Mode 4

 MultiWord DMA Mode 0 to Mode 4

 PIO mode 0 to mode 6

•True IDE mode: Fixed Disk (Standard)

•PC Card Mode: Removable Disk (Standard)

•Durability of Connector: 10,000 times

•Support S.M.A.R.T (Self-defined)

•Support Security Command

•Support Wear-Leveling to extend product life

•Compliant to CompactFlash, PCMCIA, and ATA

standards

Dimensions

133X CompactFlash Card

Transcend Information Inc.

Transcend

133X CompactFlash Card

Transcend Information Inc.

Block Diagram

133X CompactFlash Card

Transcend Information Inc.

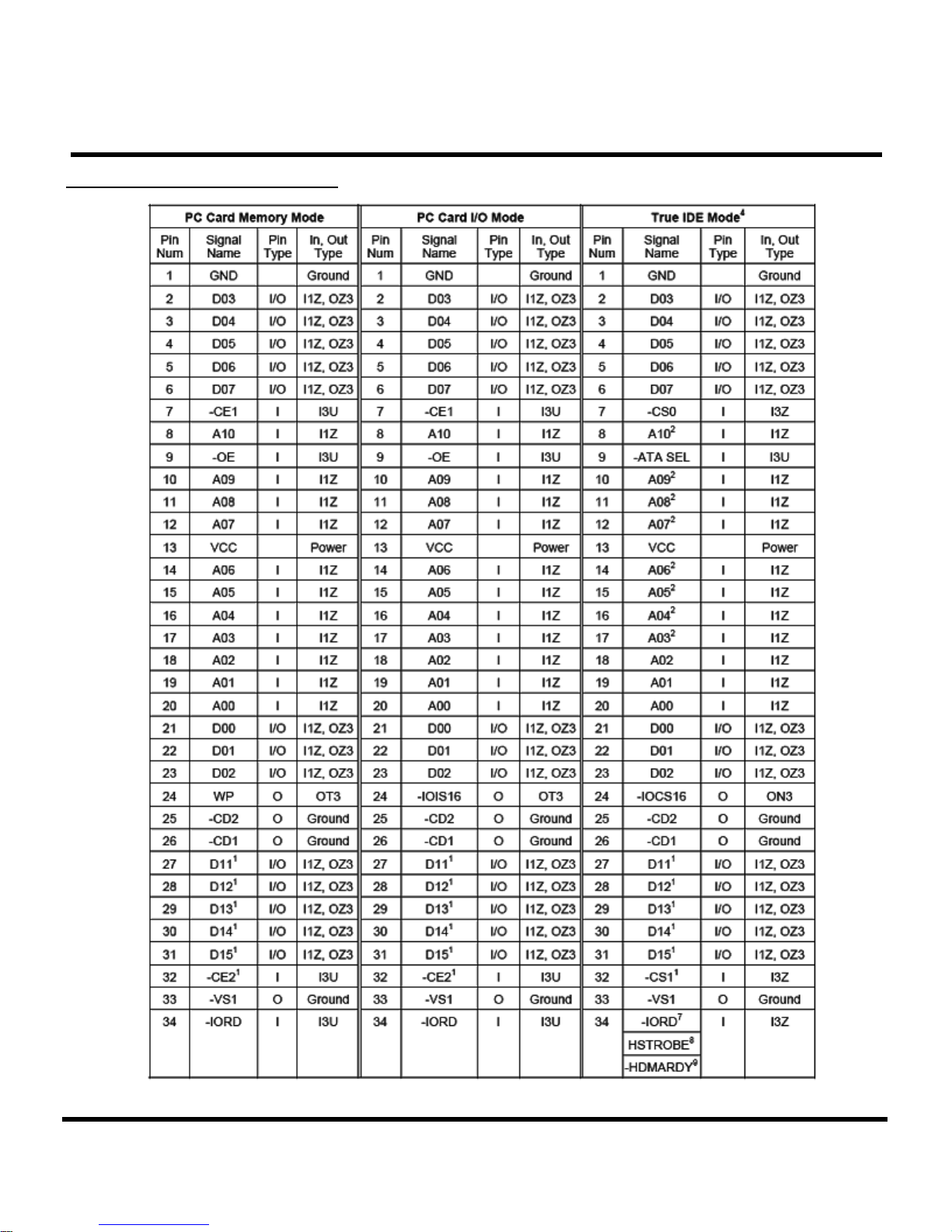

Pin Assignments and Pin Type

133X CompactFlash Card

Transcend Information Inc.

Note: 1) These signals are required only for 16 bit accesses and not required when installed in 8 bit

systems. Devices should allow for 3-state signals not to consume current.

2) The signal should be grounded by the host.

3) The signal should be tied to VCC by the host.

4) The mode is required for CompactFlash Storage Cards.

5) The -CSEL signal is ignored by the card in PC Card modes. However, because it is not

pulled upon the card in these modes, it should not be left floating by the host in PC Card

modes. In these modes, the pin should be connected by the host to PC Card A25 or

grounded by the host.

6) If DMA operations are not used, the signal should be held high or tied to VCC by the host. For

proper operation in older hosts: while DMA operations are not active, the card shall ignore

this signal,including a floating condition

7) Signal usage in True IDE Mode except when Ultra DMA mode protocol is active.

8) Signal usage in True IDE Mode when Ultra DMA mode protocol DMA Write is active.

9) Signal usage in True IDE Mode when Ultra DMA mode protocol DMA Read is active.

10) Signal usage in PC Card I/O and Memory Mode when Ultra DMA mode protocol DMA Write is active.

11) Signal usage in PC Card I/O and Memory Mode when Ultra DMA mode protocol DMA Read is active.

12) Signal usage in PC Card I/O and Memory Mode when Ultra DMA protocol is active.

133X CompactFlash Card

Transcend Information Inc.

Signal Description

Signal Name Dir. Pin Description

A10 – A00

(PC Card Memory Mode)

A10 – A00

(PC Card I/O Mode)

A02 - A00

(True IDE Mode)

8,10,11,12,

14,15,16,17,

18,19,20

These address lines along with the -REG signal are used to select the following:

The I/O port address registers within the CompactFlash Storage Card , the

memory mapped port address registers within the CompactFlash Storage Card,

a byte in the card's information structure and its configuration control and status

registers.

This signal is the same as the PC Card Memory Mode signal.

In True IDE Mode, only A[02:00] are used to select the one of eight registers

in the Task File, the remaining address lines should be grounded by the host.

BVD1

(PC Card Memory Mode)

-STSCHG

(PC Card I/O Mode)

Status Changed

-PDIAG

(True IDE Mode)

I/O 46 This signal is asserted high, as BVD1 is not supported.

This signal is asserted low to alert the host to changes in the READY and Write

Protect states, while the I/O interface is configured. Its use is controlled by the

Card Config and Status Register.

In the True IDE Mode, this input / output is the Pass Diagnostic signal in the

Master / Slave handshake protocol.

BVD2

(PC Card Memory Mode)

-SPKR

(PC Card I/O Mode)

-DASP

(True IDE Mode)

I/O 45 This signal is asserted high, as BVD2 is not supported.

This line is the Binary Audio output from the card. If the Card does not support

the Binary Audio function, this line should be held negated.

In the True IDE Mode, this input/output is the Disk Active/Slave Present signal in

the Master/Slave handshake protocol.

-CD1, -CD2

(PC Card Memory Mode)

-CD1, -CD2

(PC Card I/O Mode)

-CD1, -CD2

(True IDE Mode)

O 26,25 These Card Detect pins are connected to ground on the CompactFlash Storage

Card. They are used by the host to determine that the CompactFlash Storage

Card is fully inserted into its socket.

This signal is the same for all modes.

133X CompactFlash Card

Transcend Information Inc.

Signal Name Dir. Pin Description

-CE1, -CE2

(PC Card Memory Mode)

Card Enable

-CE1, -CE2

(PC Card I/O Mode)

Card Enable

-CS0, -CS1

(True IDE Mode)

I 7,32 These input signals are used both to select the card and to indicate to the card

whether a byte or a word operation is being performed. -CE2 always accesses

the odd byte of the word.-CE1 accesses the even byte or the Odd byte of the

word depending on A0 and -CE2. A multiplexing scheme based on A0,-CE1,

-CE2 allows 8 bit hosts to access all data on D0-D7. See Table 27, Table 29,

Table 31, Table 35, Table 36 and Table 37.

This signal is the same as the PC Card Memory Mode signal.

In the True IDE Mode, -CS0 is the address range select for the task file

registers while -CS1 is used to select the Alternate Status Register and the

Device Control Register.

While –DMACK is asserted, -CS0 and –CS1 shall be held negated and the

width of the transfers shall be 16 bits.

-CSEL

(PC Card Memory Mode)

-CSEL

(PC Card I/O Mode)

-CSEL

(True IDE Mode)

I 39 This signal is not used for this mode, but should be connected by the host to PC

Card A25 or grounded by the host.

This signal is not used for this mode, but should be connected by the host to PC

Card A25 or grounded by the host.

This internally pulled up signal is used to configure this device as a Master or a

Slave when configured in the True IDE Mode.

When this pin is grounded, this device is configured as a Master.

When the pin is open, this device is configured as a Slave.

D15 - D00

(PC Card Memory Mode)

D15 - D00

(PC Card I/O Mode)

D15 - D00

(True IDE Mode)

I/O 31,30,29,28,

27,49,48,47,

6,5,4,3,2,

23, 22, 21

These lines carry the Data, Commands and Status information between the host

and the controller. D00 is the LSB of the Even Byte of the Word. D08 is the LSB

of the Odd Byte of the Word.

This signal is the same as the PC Card Memory Mode signal.

In True IDE Mode, all Task File operations occur in byte mode on the low order

bus D[7:0] while all data transfers are 16 bit using D[15:0].

GND

(PC Card Memory Mode)

GND

(PC Card I/O Mode)

GND

(True IDE Mode)

-- 1,50 Ground.

This signal is the same for all modes.

133X CompactFlash Card

Transcend Information Inc.

Signal Name Dir. Pin Description

-INPACK

(PC Card Memory Mode)

-INPACK

(PC Card I/O Mode)

Input Acknowledge

DMARQ

(True IDE Mode)

O 43 This signal is not used in this mode.

The Input Acknowledge signal is asserted by the CompactFlash Storage Card

when the card is selected and responding to an I/O read cycle at the address that

is on the address bus. This signal is used by the host to control the enable of any

input data buffers between the CompactFlash Storage Card and the CPU.

This signal is a DMA Request that is used for DMA data transfers between host

and device. It shall be asserted by the device when it is ready to transfer data to

or from the host. For Multiword DMA transfers, the direction of data transfer is

controlled by -IORD and -IOWR. This signal is used in a handshake manner with

-DMACK, i.e., the device shall wait until the host asserts -DMACK before

negating DMARQ, and reasserting DMARQ if there is more data to transfer.

DMARQ shall not be driven when the device is not selected.

While a DMA operation is in progress, -CS0 and –CS1 shall be held negated and

the width of the transfers shall be 16 bits.

If there is no hardware support for DMA mode in the host, this output signal is not

used and should not be connected at the host. In this case, the BIOS must report

that DMA mode is not supported by the host so that device drivers will not

attempt DMA mode.

A host that does not support DMA mode and implements both PCMCIA and

True-IDE modes of operation need not alter the PCMCIA mode connections

while in True-IDE mode as long as this does not prevent proper operation in any

mode.

-IORD

(PC Card Memory Mode)

-IORD

(PC Card I/O Mode)

-IORD

(True IDE Mode – Except

Ultra DMA Protocol Active)

-HDMARDY

(True IDE Mode – In Ultra

DMA Protocol DMA Read)

HSTROBE

(True IDE Mode – In Ultra

DMA Protocol DMA Write)

I 34 This signal is not used in this mode.

This is an I/O Read strobe generated by the host. This signal gates I/O data onto

the bus from the CompactFlash Storage Card when the card is configured to use

the I/O interface.

In True IDE Mode, while Ultra DMA mode is not active, this signal has the same

function as in PC Card I/O Mode.

In True IDE Mode when Ultra DMA mode DMA Read is active, this signal is

asserted by the host to indicate that the host is read to receive Ultra DMA data-in

bursts. The host may negate -HDMARDY to pause an Ultra DMA transfer.

In True IDE Mode when Ultra DMA mode DMA Write is active, this signal is the

data out strobe generated by the host. Both the rising and falling edge of

HSTROBE cause data to be latched by the device. The host may stop

generating HSTROBE edges to pause an Ultra DMA data-out burst.

133X CompactFlash Card

Transcend Information Inc.

Signal Name Dir. Pin Description

-IOWR

(PC Card Memory Mode)

-IOWR

(PC Card I/O Mode)

-IOWR

(True IDE Mode – Except

Ultra DMA Protocol Active)

STOP

(True IDE Mode – Ultra DMA

Protocol Active)

I 35 This signal is not used in this mode.

The I/O Write strobe pulse is used to clock I/O data on the Card Data bus into the

CompactFlash Storage Card controller registers when the CompactFlash

Storage Card is configured to use the I/O interface.

The clocking shall occur on the negative to positive edge of the signal (trailing

edge).

In True IDE Mode, while Ultra DMA mode protocol is not active, this signal has

the same function as in PC Card I/O Mode. When Ultra DMA mode protocol is

supported, this signal must be negated before entering Ultra DMA mode

protocol.

In True IDE Mode, while Ultra DMA mode protocol is active, the assertion of this

signal causes the termination of the Ultra DMA burst.

-OE

(PC Card Memory Mode)

-OE

(PC Card I/O Mode)

-ATA SEL

(True IDE Mode)

I 9 This is an Output Enable strobe generated by the host interface. It is used to read

data from the CompactFlash Storage Card in Memory Mode and to read the CIS

and configuration registers.

In PC Card I/O Mode, this signal is used to read the CIS and configuration

registers.

To enable True IDE Mode this input should be grounded by the host.

READY

(PC Card Memory Mode)

-IREQ

(PC Card I/O Mode)

INTRQ

(True IDE Mode)

O 37 In Memory Mode, this signal is set high when the CompactFlash Storage Card is

ready to accept a new data transfer operation and is held low when the card is

busy.

At power up and at Reset, the READY signal is held low (busy) until the

CompactFlash Storage Card has completed its power up or reset function. No

access of any type should be made to the CompactFlash Storage Card during

this time.

Note, however, that when a card is powered up and used with RESET

continuously disconnected or asserted, the Reset function of the RESET pin is

disabled. Consequently, the continuous assertion of RESET from the application

of power shall not cause the READY signal to remain continuously in the busy

state.

I/O Operation – After the CompactFlash Storage Card Card has been configured

for I/O operation, this signal is used as -Interrupt Request. This line is strobed

low to generate a pulse mode interrupt or held low for a level mode interrupt.

In True IDE Mode signal is the active high Interrupt Request to the host.

133X CompactFlash Card

Transcend Information Inc.

Signal Name Dir. Pin Description

-REG

(PC Card Memory Mode)

Attribute Memory Select

-REG

(PC Card I/O Mode)

I 44 This signal is used during Memory Cycles to distinguish between Common

Memory and Register (Attribute) Memory accesses. High for Common Memory,

Low for Attribute Memory.

The signal shall also be active (low) during I/O Cycles when the I/O address is on

the Bus.

-DMACK

(True IDE Mode) This is a DMA Acknowledge signal that is asserted by the host in response to

DMARQ to initiate DMA transfers.

While DMA operations are not active, the card shall ignore the -DMACK signal,

including a floating condition.

If DMA operation is not supported by a True IDE Mode only host, this signal

should be driven high or connected to VCC by the host.

A host that does not support DMA mode and implements both PCMCIA and

True-IDE modes of operation need not alter the PCMCIA mode connections

while in True-IDE mode as long as this does not prevent proper operation all

modes.

RESET

(PC Card Memory Mode)

RESET

(PC Card I/O Mode)

-RESET

(True IDE Mode)

I 41 The CompactFlash Storage Card is Reset when the RESET pin is high with the

following important exception:

The host may leave the RESET pin open or keep it continually high from the

application of power without causing a continuous Reset of the card. Under

either of these conditions, the card shall emerge from power-up having

completed an initial Reset.

The CompactFlash Storage Card is also Reset when the Soft Reset bit in the

Card Configuration Option Register is set.

This signal is the same as the PC Card Memory Mode signal.

In the True IDE Mode, this input pin is the active low hardware reset from the

host.

VCC

(PC Card Memory Mode)

VCC

(PC Card I/O Mode)

VCC

(True IDE Mode)

-- 13,38 +5 V, +3.3 V power.

This signal is the same for all modes.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Almacenamiento de Transcend

Transcend

Transcend StoreJet 35T3 Manual de usuario

Transcend

Transcend 1.8" StoreJet Portable HDD 20GB (TOSHIBA)... Manual de usuario

Transcend

Transcend JetFlash V90 Classic Manual de usuario

Transcend

Transcend Secure Digital Card SD80 Manual de usuario

Transcend

Transcend StoreJet 25M2 Manual de usuario

Transcend

Transcend Secure Digital Card TS2GSD150 Manual de usuario

Transcend

Transcend TS128GSSD18M-M Manual de usuario

Transcend

Transcend TS4GSDOM22H Manual

Transcend

Transcend 128 Manual de usuario

Transcend

Transcend microSD Manual de usuario

Transcend

Transcend TS2G-8GCF266 Manual

Transcend

Transcend StoreJet 25M3 Manual de usuario

Transcend

Transcend MMC Series Instrucciones de montaje

Transcend

Transcend 128MB-4GB JetFlash Manual de usuario

Transcend

Transcend Memory Card 2GSDM80 Manual de usuario

Transcend

Transcend USB JetFlash Manual de usuario

Transcend

Transcend JetFlash 110 Instrucciones de montaje

Transcend

Transcend CompactFlash TS16GCF100I-P Manual de usuario

Transcend

Transcend StoreJet 25H2 Manual de usuario

Transcend

Transcend StoreJet 2.5 SATA Series Manual de usuario

Transcend

Transcend JETFLASHTM TS32M-2GJF2B Manual de usuario

Transcend

Transcend StoreJet Cloud Manual de usuario

Transcend

Transcend 40GB Portable Hard Disk TS40GHDENC Manual de usuario

Transcend

Transcend StoreJetTM 3.5 Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario
