Tractel Handifor 20 Guía de instalación

20 kg / 50 kg / 100 kg / 200 kg

Handifor™

Installation, operating and maintenance manual English Original manual EN

Manuel d’installation, utilisation et maintenance Français Traduction de la notice originale FR

Installations-, Gebrauchs- und Wartungsanleitung Deutsch Übersetzung der Originalanleitung DE

Handleiding voor installatie, gebruik en onderhoud Nederlands Vertaling van de oorspronkelijke handleiding NL

Manual de instalación, de utilización y de

mantenimiento Español Traducción del manual original ES

Manuale d’installazione, d’impiego e di

manutenzione Italiano Traduzione del manuale originale IT

Manual de instalação, de uso e de manutenção Português Tradução do manual original PT

Stallasjons-, bruks- og vedlikeholdshåndbok Norsk Oversettelse av originalanvisning NO

Installations-, bruks- och underhållsanvisning

Svenska Översättning av originalbruksanvisningen SE

Asennus-, käyttö- ja huoltokäsikirja Suomi Alkuperäisen ohjeen käännös FI

Manual for installation, brug og vedligeholdelse Dansk Oversættelse af den originale manual DK

Instrukcja instalacji, użytkowania i konserwacji Polski Tłumaczenie oryginalnej instrukcji obsługi PL

139975-1

16 mm

152 mm

70 mm

Ep. 30 mm

Fig. 1

Figure, Abbildung, Figuur, Figura, Figur, Kuva, Figur, Rysunek

SURCHARGE

Voir 4.3§

daN

Ibs

Net

Gr.

ON / OFF TARE HOLD

UNITS

+–

139975-2

Fig. 2

Fig. 3

139975-3

Table of contents

1. Priority instructions ..................................................................... 5

2. Denitions and pictograms ......................................................... 6

2.1. Denitions......................................................................... 6

2.2. Pictograms........................................................................ 7

3. Description and marking............................................................. 7

3.1. Presentation...................................................................... 7

3.2. Markings ........................................................................... 7

3.3. Display.............................................................................. 8

4. Associated equipment ................................................................ 8

5. Uses ........................................................................................... 8

5.1. Installing the batteries....................................................... 8

5.2. Installation......................................................................... 9

5.3. Starting up and stopping the device ................................. 9

5.4. Functions ........................................................................ 10

5.4.1. Automatic zero.................................................... 10

5.4.2. Tare function ....................................................... 10

5.4.3. Peak load function ...............................................11

5.4.4. Change of units....................................................11

5.4.5. Overload ............................................................. 12

5.4.6. Adjustment.......................................................... 12

6. Prohibited use........................................................................... 13

7. Maintenance and periodic verication ...................................... 13

7.1. Replacing the batteries................................................... 13

7.2. Other verications .......................................................... 14

8. Transport and storage .............................................................. 14

9. Product disposal and environmental protection........................ 14

10. Technical specications.......................................................... 15

11. Regulations and standards..................................................... 15

12. Troubleshooting...................................................................... 16

1. Priority instructions

1. Before installing and using this product, it is essential that you

read this manual and comply with its instructions for safe and

e󰀨ective use. A copy of this manual must be made available to

all operators. Additional copies can be obtained upon request

from Tractel®.

2. Do not use this product if any of the labels a󰀩xed to it or any of

its accessories, or any of the markings on it as shown at the end

of this manual are no longer present or legible. Identical labels

can be obtained upon request from Tractel® and must be a󰀩xed

before continuing to use this product.

3. Make sure that any user of this product is familiar with its

operation and capable of applying the safety requirements for

the task to be performed. This manual must be provided to all

users. Protect your equipment from uncontrolled intervention.

4. This product must be installed and put into operation in

conditions that ensure the safety of the installer in accordance

with applicable local regulations.

5. Every time you use the product, rst inspect its condition and

that of any accessories. Never use a product that does not

appear to be in good condition.

6. Return the product to the manufacturer for servicing if there

are any visible or operating problems unrelated to the battery

condition.

7. Protect the product from impacts.

8. This product may never be used for operations other than those

described in this manual. It may never be used for loads above

the safe working load indicated on the product. It may never be

used in an explosive atmosphere.

9. Before this product is used in a man-riding system, the

supervisor must rst verify the application of the coe󰀩cients

of use required for the safety of personnel, and generally

compliance with the safety regulations applicable to the load

line in which it is used.

10. Tractel® shall not be liable for the operation of this product in an

assembly conguration not described in this manual.

11. Any modication of this product without the approval of Tractel®

or any removal of any component part shall release Tractel®

from any liability.

12. Any disassembly of this product not described in this manual or

any repair work not approved by Tractel® shall release Tractel®

from any liability, especially if original parts are replaced by

parts from another source.

13. A Dynafor™ dynamometer is a lifting accessory and the safety

regulations applicable to that category of equipment must be

applied.

14. When the product is nally withdrawn from service, it must be

scrapped in such a way that it cannot be used again. Comply

with environmental protection regulations.

15. This product is approved according to European regulations

and the standards specied in the section “11. Regulations

and standards”, and must be veried for compliance with the

regulations of any other country in which it may be used, prior to

commissioning and use. Comply with such regulations.

16. Any use of this product with additional equipment that relays

its signals to an operating system must be preceded by a

risk analysis specic to the operating functions used and all

appropriate measures must be taken accordingly.

17. The product is not approved for commercial transactions.

18. As part of continual product improvement, Tractel® reserves the

right to make changes to the product.

2. Denitions and pictograms

2.1. Denitions

In this manual, the following terms have the meaning given below:

“Product”: Item or equipment described in this manual and

delivered complete in the standard version, or in its various existing

models.

“Installation”: All the operations required to bring the complete

product from the state in which it was delivered into a state of

commissioning (or connection to other elements for commissioning).

“Supervisor”: Individual or party responsible for the management

and safe use of the product described in the manual.

“Technician”: Qualied person familiar with the product, in charge

of the maintenance operations described and permitted in the

manual.

“Operator”: Individual using the product in accordance with the

instructions in this manual.

“MR”: Measurement Range (full scale).

“SWL”: Safe Working Load.

2.2. Pictograms

DANGER: When placed at the beginning of a paragraph, it

indicates instructions for preventing injuries ranging from minor to

fatal and also environmental damage.

IMPORTANT: When placed at the beginning of a paragraph, it

indicates instructions for preventing product failure or damage which

would not directly endanger the life or health of operators or other

individuals and/or which may harm the environment.

NB: When placed at the beginning of a paragraph, it

indicates the necessary precautions to apply for e󰀩cient and

ergonomic installation, use and maintenance.

: When placed on the product itself or a product component, it

indicates the need to read the operating and maintenance manual.

3. Description and marking

3.1. Presentation

The Handifor™ micro-weighers are precision force sensors (0.5

% MR) used to measure tensile forces and to indicate loads.

The equipment is supplied in a cardboard box containing:

a) The Handifor™ micro-weigher.

b) An operating and maintenance instructions manual.

c) A CE statement of compliance.

d) A snap shackle and an “S” hook.

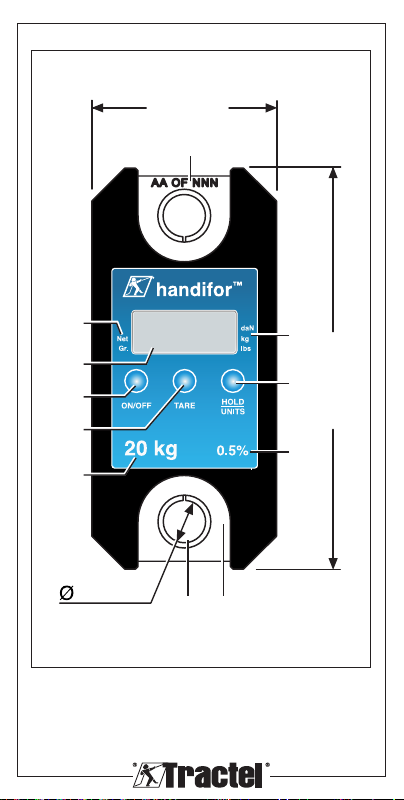

3.2. Markings

ACapacity

BSerial No.

CLCD screen

DON/OFF button

ETare button

FHold/unit button

GPrecision

HSensor body

IHole for accessories

JUnit symbol

KCalibration information

Back of

device Battery compartment cover Manufacturer’s markings

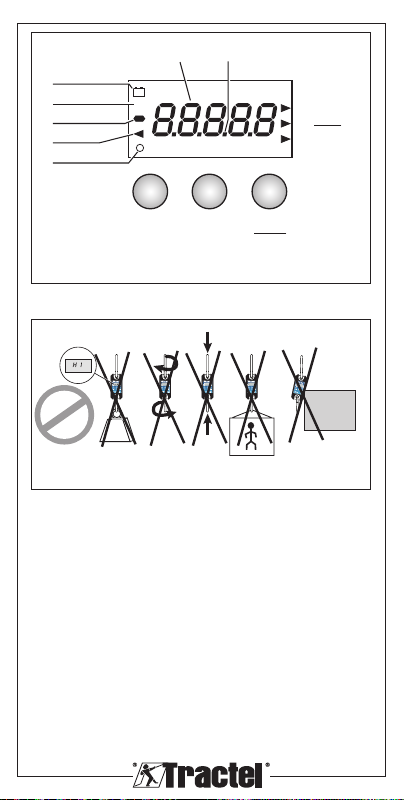

3.3. Display

ABattery indicator

BPeak load indicator

CMeasurement symbol

DNET indicator (Net Value of Measurement)

EGROSS indicator (Gross Value of measurement)

FForce value

GDecimal point

HUnit indicator

4. Associated equipment

The product is only compatible with its lifting accessories.

5. Uses

The supervisor must ensure that a technician is tasked with

installing the product. The supervisor must ensure that the operator

has reviewed this installation, operation and maintenance manual

before they use the product.

5.1. Installing the batteries

The two 1.5V “AAA” batteries are not provided with the product:

• Using a Phillips screwdriver, remove the battery housing cover.

• Place the two 1.5 V “AAA” batteries checking the polarities.

• Replace the battery housing cover.

5.2. Installation

During installation, it is absolutely necessary to:

1. Make sure that the load line anchor point or points are

su󰀩ciently strong for the force that will be applied.

2. Make sure that the lifting accessories at both ends of the product

are compatible and comply with applicable local regulations.

3. Correctly lock the lifting accessories.

4. Allow the product to line up freely in the line of force.

5. Check the presence and condition of the batteries in the sensor.

Use the product only with tensile force.

Check that the product has a valid calibration certicate.

The product may be used in all directions, including horizontally.

The product works satisfactorily in a temperature range of -10°C to

+50°C. For use beyond those temperatures, the product must have

thermal protection.

5.3. Starting up and stopping the device

ON/OFF

ON: Press the button to switch on the unit.

OFF: Press and hold the button for 2 seconds to

switch o󰀨 the unit.

Auto-OFF If not used, the unit will switch o󰀨 automatically after

2 minutes.

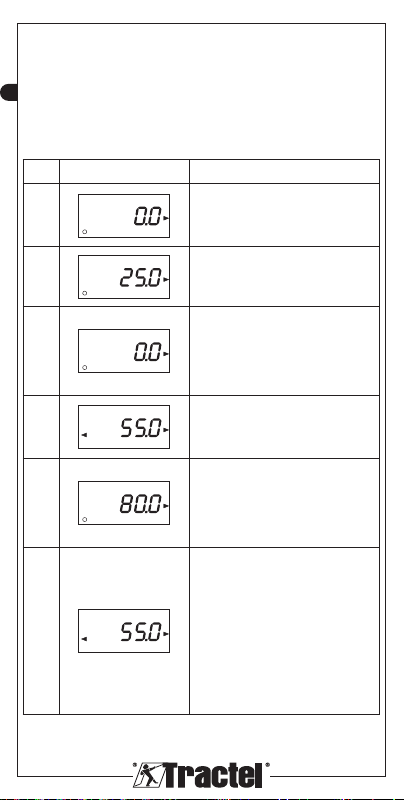

Nbr Display Remarks

daN

Ibs

Gr.

+–

On power up.

Display of all active segments.

Reinitialisation of all functions.

Display duration: 2 seconds.

daN

Ibs

Display of capacity in kg

(ex 200 kg).

Display duration: 2 seconds.

daN

Ibs

Display of last adjustment date.

YY.MM

(10.09: year 2010, September)

Display duration: 2 seconds.

daN

Ibs

Device ready to operate.

Default unit: last unit selected “Gr”

indicator (GROSS measurement)

activated.

5.4. Functions

5.4.1. Automatic zero

On power up, the display will indicate “0” so long as the force

measured is less than 10 % of the maximum capacity of the device.

5.4.2. Tare function

Nbr Display Remarks

daN

Ibs

Gr.

Device ready to operate.

No load suspended

“Gr” indicator (GROSS

measurement) activated.

daN

Ibs

Gr.

A 25 kg recipient is currently

suspended.

daN

Ibs

Gr.

The operator presses 2 seconds on

the TARE button.

The value of the weight currently

measured is stored.

The display goes to “0.0”.

The “Net” indicator is activated.

daN

Ibs

Gr.

The operator loads 55 kg of

equipment in the recipient.

The display indicates 55, i.e. the

NET weight.

daN

Ibs

Gr.

The operator presses the TARE

button.

The display indicates 80, i.e. the

GROSS weight.

The “Net” indicator is deactivated;

the “Gr.” indicator is activated.

daN

Ibs

Gr.

The operator presses the TARE

button.

The display indicates 55.0, i.e. the

NET weight.

By successively pressing the TARE

button, the display switches back

and forth the “Net” and the “Gr.”

indicators.

The load can be increased in both

conditions; the di󰀨erence between

“GROSS” and “NET” will always be

the weight stored in step 3.

Otros manuales para Handifor 20

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Instrumento de medición de Tractel

Tractel

Tractel dynafor LLX2 Series Manual de usuario

Tractel

Tractel Dynafor LLX2 1 t Manual de usuario

Tractel

Tractel Dynafor Pro Guía de instalación

Tractel

Tractel Handifor 20 Manual

Tractel

Tractel dynafor LLXh Series Manual de usuario

Tractel

Tractel dynafor LLX1 Series Manual de usuario

Tractel

Tractel dynafor LLZS Series Manual

Tractel

Tractel Dynarope HF36/3/LPT Manual de usuario

Tractel

Tractel dynafor LLX-TR Manual de usuario

Tractel

Tractel dynafor HHD Guía de instalación

Tractel

Tractel dynafor Industrial Series Guía de instalación

Tractel

Tractel dynafor Expert 0.5 Guía de instalación

Tractel

Tractel dynafor Pro 1 Guía de instalación

Tractel

Tractel dynafor LLX1 Series Manual de usuario

Tractel

Tractel dynafor LLX2 Series Manual de usuario

Tractel

Tractel HF36/1/LPT Manual de usuario

Tractel

Tractel dynafor LLX2 Series Manual de usuario

Tractel

Tractel Dynarope HF 36 Series Manual de usuario

Tractel

Tractel dynafor LLX1 Series Manual de usuario

Tractel

Tractel dynafor HHD Guía de instalación

Tractel

Tractel dynafor LLX1 Series Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
