0. Introduction

WorldTracker Enduro Pro is a powerful GPS locator designed for vehicle, pets and assets

tracking. With superior receiving sensitivity, fast TTFF and GSM frequencies

850/900/1800/1900, its location can be real time or schedule tracked by backend server or

specified terminals. Based on the embedded @Track protocol, WorldTracker Enduro Pro

can communicate with the backend server through GPRS/GSM network, and transfer

reports of emergency, Geo-fencing, device status and scheduled GPS position etc… It is

easy for Service providers to setup their tracking platform based on the functional @Track

protocol.

WorldTracker Enduro Pro User manual TRACKINGTHEWORLD

- 4 -

1. Product Overview

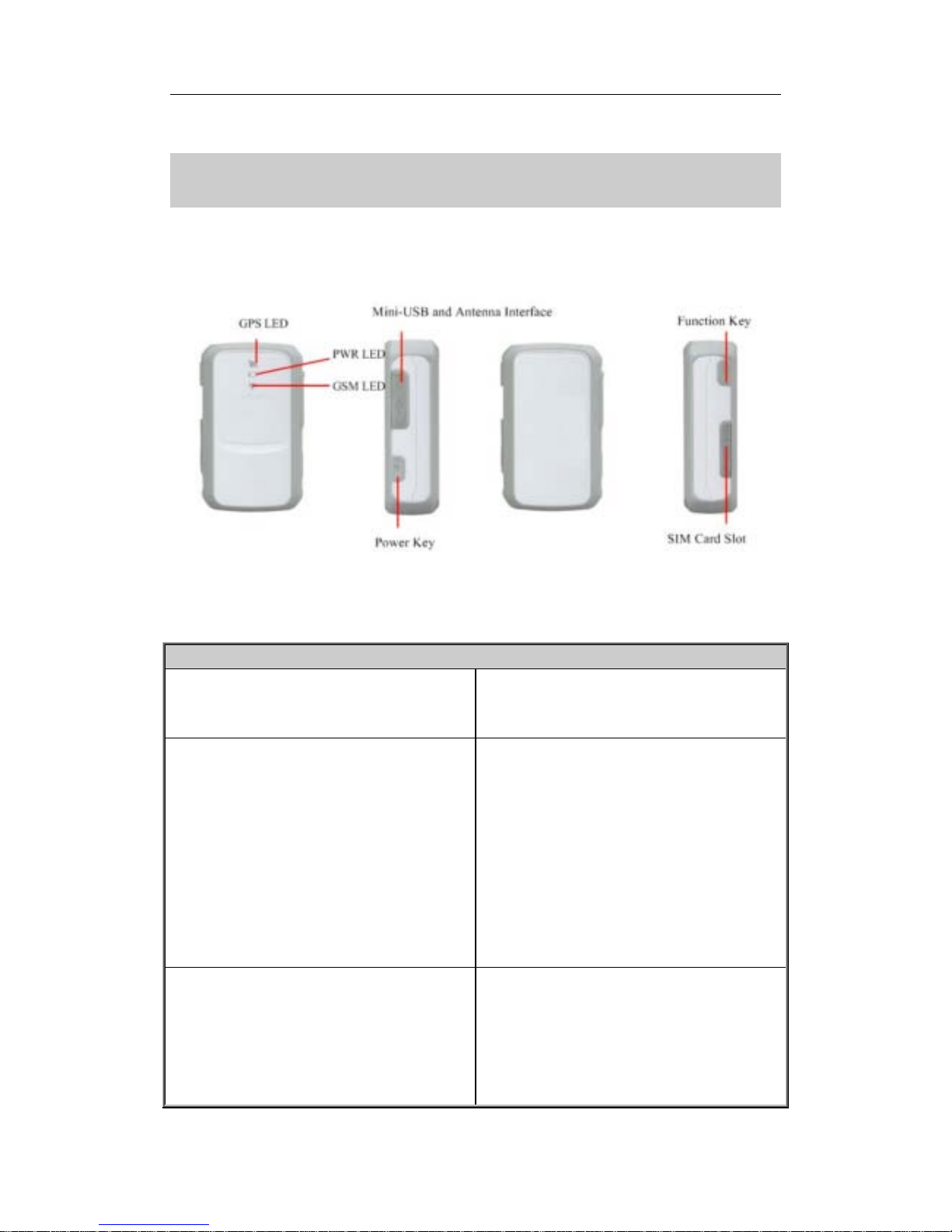

1.1. Appearance

1.2. Buttons/Mini USB Interface Description

Button /Mini USB Interface Description

Power Key Turn on WorldTracker Enduro Pro

Turn off WorldTracker Enduro Pro when

without charging. (If power key is enabled)

Function Key Geo-Fence mode

Long press the key to enable/disable

Geo-Fence ID0

Geo-Fence in current position mode

Long press the key to enable/disable

Geo-Fence ID0. If enable Geo-Fence ID0,

using the current position as the centre of

Geo-Fence 0.

SOS mode (default)

Long press the key to active SOS alarm

Mini USB interface 

Connect a 5V DC adapter can power

WorldTracker Enduro Pro

and charge the

internal battery

Connect a 3.7V Li-ion or Li-Polymer

battery can power

WorldTracker Enduro

Pro

WorldTracker Enduro Pro User manual TRACKINGTHEWORLD

- 5 -



Backend server developer or administrator

can use the Data_Cable_M to configure

1.3. LEDs Description

There are three LED in WorldTracker Enduro Pro, the description as following.

1.4. External Power Interface

1.4.1. External DC Charger Interface

The Pin2 on Mini-USB connector are used for charging and named as VCHG pin. It can

be connected to a 5V DC power supply to power WorldTracker Enduro Pro and charge the

internal battery.

Light Event State

GSM light

Searching network

Fast flash

Network has been registered Slow flash

Power off

Dark

GPS light GPS has fixed Solid

GPS is in fixing Fast flash

GPS is on and GPS data wrong Slow flash

GPS is off Dark

If “LED On” is not selected, and the GPS LED will

not work after turn on 150 seconds.

Dark

Power light Power on and normal Dark

Charger inserted and charging completed Solid

Charger inserted and charging Fast flash

Power key was pressed and prepare to power off Fast flash

Abnormal

Fast flash

Power low alert

Slow flash

Power off or turn off the power light by command

Dark

WorldTracker Enduro Pro User manual TRACKINGTHEWORLD

- 6 -

1.4.2. External Battery Interface

The Pin 8 on Mini-USB connector is for external battery and named as EXTBAT pin. It

can be connected to 3.7V Li-ion or Li-Polymer battery to power WorldTracker Enduro Pro.

WorldTracker Enduro Pro User manual TRACKINGTHEWORLD

- 7 -

1.5. External GPS antenna specification

There is a MMCX RF connector on WorldTracker Enduro Pro and it is for the external GPS antenna.

The specification of the external GPS antenna is listed in the following table.

GPS antenna: Frequency: 1575.42MHz

Bandwidth: >5MHz

Beamwidth: >120 deg

Supply voltage: 3.3V

Polarization: RHCP or Linear

Gain: Passive: 0dBi minimum

Active: 15dB

Impedance: 50Ω

VSWR: ﹤2

Noise figure: <3

Connector MMCX

1.6. Ignition Detection

The Pin 7 on Mini-USB connector is for ignition detection whenWorldTrackerEnduro Pro is

used in vehicle tracking application. It is named as IGN_IND pin.

WorldTracker Enduro Pro User manual TRACKINGTHEWORLD

- 8 -

2. Getting Started

2.1. Parts List

Name Picture Remark

WorldTracker Enduro Pro Locater

The GSM/GPRS/GPS locator.

AC-DC Power Adapter

(Standard accessory)

used to charge the internal battery

WorldTracker Enduro Pro Sheath

(Optional accessory)

used to attach to a belt.

Car Cigarette Charger

(Optional accessory)

used to power the WorldTracker

Enduro Pro with a cigarette power

output on the vehicle.

Car Kit Charger

(Optional accessory)

used to power the WorldTracker

Enduro Pro with the battery output on

the vehicle.

External Battery Kit

(Optional accessory)

a set of accessories including an

external battery, and a pelican

waterproof case With a magnet. It will

greatly increase the time between

charges of The Enduro Pro and also let

the Enduro Pro be used for special

applications, like container tracking.

WorldTracker Enduro Pro User manual TRACKINGTHEWORLD

- 9 -

WorldTracker Enduro Pro Data

Cable

(Optional accessory)

the USB data cable which can be used

for firmware upgrading and

configuration.

WorldTracker Enduro Pro External

Cable

(Optional accessory)

the extend cable which includes the

charger interface and external battery

interface. It also includes the ignition

detection interface.

WorldTracker Enduro Pro External

GPS Active Antenna

(Optional accessory)

External GPS active antenna is

optional according to application

scenarios.

WorldTracker Enduro Pro

Mini-Mag Magnetic Case

(Optional accessory)

used to hold the WorldTracker Enduro

Pro to metal with the magnet.

2.2. Battery Charging

Please connect AC-DC power adapter to WorldTracker Enduro Pro.

Insert the AC-DC power adapter into the power socket.

During charging, the PWR LED will flash fast. When the battery is fulyl charged, the PWR LED

will be Ever-light.

You can also charge the battery by the USB cable, which connects the WorldTracker Enduro

Pro to a PC.

Charging time is about 5 hours.

Note: Before the first time using WorldTracker Enduro Pro, please full charge the battery.
