TP-Link TL-SL1218MP Manual de usuario

Business Networking Solution

Installation Guide

TL-SL1218MP

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• Some models featured in this guide may be unavailable in your country or region. For local sales

information, visit https://www.tp-link.com.

• The figures in Chapter 2 to Chapter 3 are for demonstration purposes only. Your switch may differ

in appearance from that depicted.

• This Guide uses the specific formats to highlight special messages. The following table lists the

notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and product information, please visit the official website:

https://www.tp-link.com

Contents

Chapter 1 Introduction ——————————— 1

1.1 Product Overview ...........................................................1

1.2 Appearance.......................................................................1

Chapter 2 Installation ——————————— 4

2.1 Package Contents ..........................................................4

2.2 Safety Precautions .........................................................4

2.3 Installation Tools..............................................................6

2.4 Product Installation ........................................................6

Chapter 3 Connection ——————————— 8

3.1 Ethernet Port ....................................................................8

3.2 SFP Port..............................................................................8

3.3 Verify Installation.............................................................8

3.4 Power On............................................................................9

3.5 Initialization........................................................................9

Appendix A Troubleshooting ———————— 10

Appendix B Specications ————————— 11

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Introduction

Chapter 1 Introduction

1.1 Product Overview

TL-SL1218MP is a 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged Switch that requires no

configuration. TL-SL1218MP is also a Power Sourcing Equipment (PSE*). 16 of the RJ45 ports on

the switch support Power over Ethernet (PoE*) function, which can automatically detect and supply

power for those powered devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at.

Note:

■*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.

■*PoE is a technology that describes a system to transmit electrical power, along with data, to

remote devices over standard twisted-pair cable in an Ethernet network.

■*PD is a device powered by a PSE and thus consumes energy. Examples include powering

IP telephones, wireless LAN access points, network cameras, network hubs, embedded

computers and so on.

1.2 Appearance

■Front Panel

The front panel of TL-SL1218MP is shown as the following figure.

Figure 1-1 Front Panel of TL-SL1218MP

10/100Mbps

RJ45 Port (Port 1-16)

LEDs Switches 10/100/1000Mbps

RJ45 Port (Port 17-18)

SFP Port

(Port 17F-18F)

LEDs

LED Indication

PWR On: The switch is powered on.

Off: The switch is powered off.

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Introduction

LED Indication

Link/Act

For Port 1-16:

On: Running at 10/100Mbps but no activity.

Flashing: Running at 10/100Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

For Port 17/17F-18/18F:

Green On: Running at 1000Mbps but no activity.

Green Flashing: Running at 1000Mbps and is transmitting or receiving data.

Yellow On: Running at 10/100Mbps but no activity.

Yellow Flashing: Running at 10/100Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

PoE Status

On: The port is connecting to a PD and supplying power for it.

Flashing: The PoE power circuit may be in short or the power current may be overloaded.

Off: No PD is connected to the corresponding port, or no power is supplied according to

the power limits of the port.

PoE Max

On: Total power supply ≥ 185W.

Flashing: Total power supply ≥ 185W and last for more than 2 minutes.

Off: Total power supply ≤ 185W.

Switches

Switch Indication

Extend Mode

Off: Port 1-16 run at 10/100 Mbps and support PoE power supply up to 100m away.

On (Port1-8): Port 1-8 run at 10 Mbps and support PoE power supply up to 250m away.

On (Port1-16): Port 1-16 run at 10 Mbps and support PoE power supply up to 250m away.

Priority Mode

Off: All the ports transmit data in the same priority.

On: Port 1-8 transmit data in a higher priority than Port 9-18. When congestion occurs,

packets which are transmitted by the ports with higher priority occupy the whole

bandwidth.

10/100Mbps RJ45 Port (Port 1-16)

The ports are designed to connect to devices with a bandwidth of 10Mbps or 100Mbps. The ports can

provide power and transmit data for PDs. The maximum PoE power is 30W for each PoE port and 192W

for all the PoE ports. The ports can also connect to non-PoE devices, but only transmit data.

10/100/1000Mbps RJ45 Port (Port 17-18)

The ports are designed to connect to devices with a bandwidth of 10Mbps, 100Mbps or 1000Mbps.

SFP Port (Port 17F-18F)

The ports are designed to install the SFP module. An SFP Port (Port 17F-18F) and the associated

10/100/1000Mbps RJ45 Port (Port 17-18) are called a “Combo” port, which means they cannot be used

simultaneously, otherwise only the SFP port works.

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Introduction

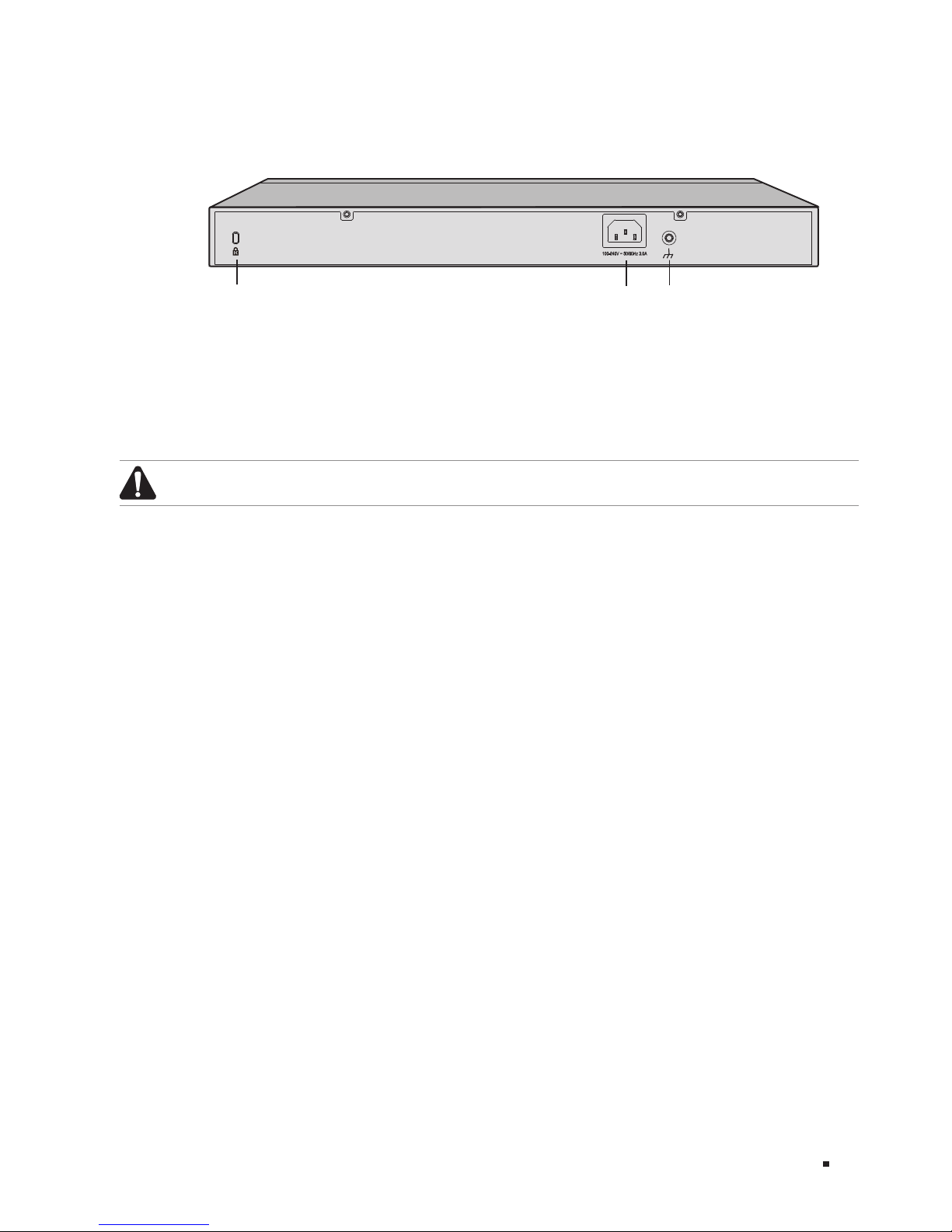

■Rear Panel

The rear panel is shown as the following figure.

Figure 1-2 Rear Panel

Kensington Security Slot Power Socket Grounding Terminal

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being stolen.

Power Socket

Connect the female connector of the power cord here, and the male connector to the AC power outlet.

Please make sure the voltage of the power supply meets the requirement of the input voltage (100-240V~

50/60Hz).

Note:

Please use the provided power cord.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground the

switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed

information, please refer to the Lightning Protection Guide from the training center of our website:

https://www.tp-link.com/en/conguration-guides/lightning_protection_guide/?congurationId=2962

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Installation

Chapter 2 Installation

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is damaged or

missing, please contact your distributor.

One Switch One Power Cord

Two mounting brackets and the

ttings

This Installation Guide

Installation Guide

BusinessNetworking Solution

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, please observe the following

rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is

well grounded.

■Use only the power cord provided with the switch.

■Make sure that the supply voltage matches the specifications indicated on the rear panel of the

switch.

■Ensure the vent hole is well ventilated and unblocked.

■Do not open or remove the cover of the switch.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never

use any other liquid cleaning method.

■Place the device with its bottom surface downward.

■Site Requirements

Temperature/Humidity

40℃

0℃

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Installation

Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may

lead to bad insulation, electricity leakage, mechanical property changes and corrosions. Too high

temperature may accelerate aging of the insulation materials and can thus significantly shorten

the service life of the device. For normal temperature and humidity of the device, please check the

following table.

Environment Temperature Humidity

Operating 0℃to 50℃10% to 90%RH Non-condensing

Storage -40℃to 70℃5% to 90%RH Non-condensing

Clearness

The dust accumulated on the switch can be absorbed by static electricity and result in poor contact

of metal contact points. Some measures have been taken for the device to prevent static electricity,

but too strong static electricity can cause deadly damage to the electronic elements on the internal

circuit board. To avoid the effect of static electricity on the operation of the switch, please attach

much importance to the following items:

■Dust the device regularly, and keep the indoor air clean.

■Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected by

external interferences, such as conducted emission by capacitance coupling, inductance coupling,

and impedance coupling. To decrease the interferences, please make sure to take the following

measures:

■Use the power supply that can effectively filter interference from the power grid.

■Keep the device far from high-frequency, strong-current devices, such as radio transmitting station.

■Use electromagnetic shielding when necessary.

Lightning Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air in

the electric discharge path can be instantly heated up to 20,000℃. As this instant current is strong

enough to damage electronic devices, more effective lightning protection measures should be

taken.

■Ensure the rack and device are well earthed.

■Make sure the power socket has a good contact with the ground.

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Installation

■Keep a reasonable cabling system and avoid induced lightning.

■Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note:

For detailed lightning protection measures, please refer to the Lightning Protection Guide

from the training center of our website:

https://www.tp-link.com/en/conguration-guides/lightning_protection_guide/?congurationId=2962

Installation Site

When installing the device on a rack or a flat workbench, please note the following items:

■The rack or workbench is flat and stable, and sturdy enough to support the weight of 5.5kg at least.

■The rack or workbench has a good ventilation system. The equipment room is well ventilated.

■The rack is well grounded. Keep the power socket less than 1.5 meters away from the device.

2.3 Installation Tools

■Phillips screwdriver

■ESD-preventive wrist wrap

■Cables

Note:

These tools are not provided with our product. If needed, please self purchase them.

2.4 Product Installation

■Desktop Installation

To install the device on the desktop, please follow the steps:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all

fittings.

2. Remove the adhesive backing papers from the rubber feet.

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at

each corner of the device.

Figure 2-1 Desktop Installation

Feet

Bottom of the Device

Notch

Tabla de contenidos

Otros manuales de Cambiar de TP-Link

TP-Link

TP-Link SG6654X Manual de usuario

TP-Link

TP-Link JetStream TL-SG2210P Manual de usuario

TP-Link

TP-Link TL-SF1016D Manual de instrucciones de instalación

TP-Link

TP-Link JetStream TL-SL3428 Manual de usuario

TP-Link

TP-Link TL-SX3206HPP Manual de usuario

TP-Link

TP-Link TL-SG1005P Manual de usuario

TP-Link

TP-Link JetStream T2700G-28TQ Manual de usuario

TP-Link

TP-Link T1600G-18TS Manual de usuario

TP-Link

TP-Link JetStream TL-SL5428E Manual de usuario

TP-Link

TP-Link TL-RP108GE Manual de usuario

TP-Link

TP-Link TL-SG105E Manual de usuario

TP-Link

TP-Link TL-SF1005D Manual de usuario

TP-Link

TP-Link JetStream TL-SL5428E Manual de instrucciones

TP-Link

TP-Link TL-SF1008D Manual de usuario

TP-Link

TP-Link TL-SF1016DS Manual de usuario

TP-Link

TP-Link TL-SL2428 Manual de usuario

TP-Link

TP-Link JetStream T2600G-28TS Manual de usuario

TP-Link

TP-Link JetStream T2600G-28TS Manual de usuario

TP-Link

TP-Link TL-SG1005D - 5 PORT GIGABIT DESKTOP SWITCH Manual de usuario

TP-Link

TP-Link P1200-08 Manual de operación

TP-Link

TP-Link Tapo S210 Manual de usuario

TP-Link

TP-Link Omada SG3210X-M2 Manual de usuario

TP-Link

TP-Link JetStream TL-SL3452 Manual de usuario

TP-Link

TP-Link TL-SL2210WEB Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
