TP-Link JetStream T1500G-10MPS Guía de inicio rápido

How to upgrade a TP-Link Switch?

This guide suit for all the TP-Link Switch which have new VI (Vision Interface) with

different logo and blendent like below.

Notice:

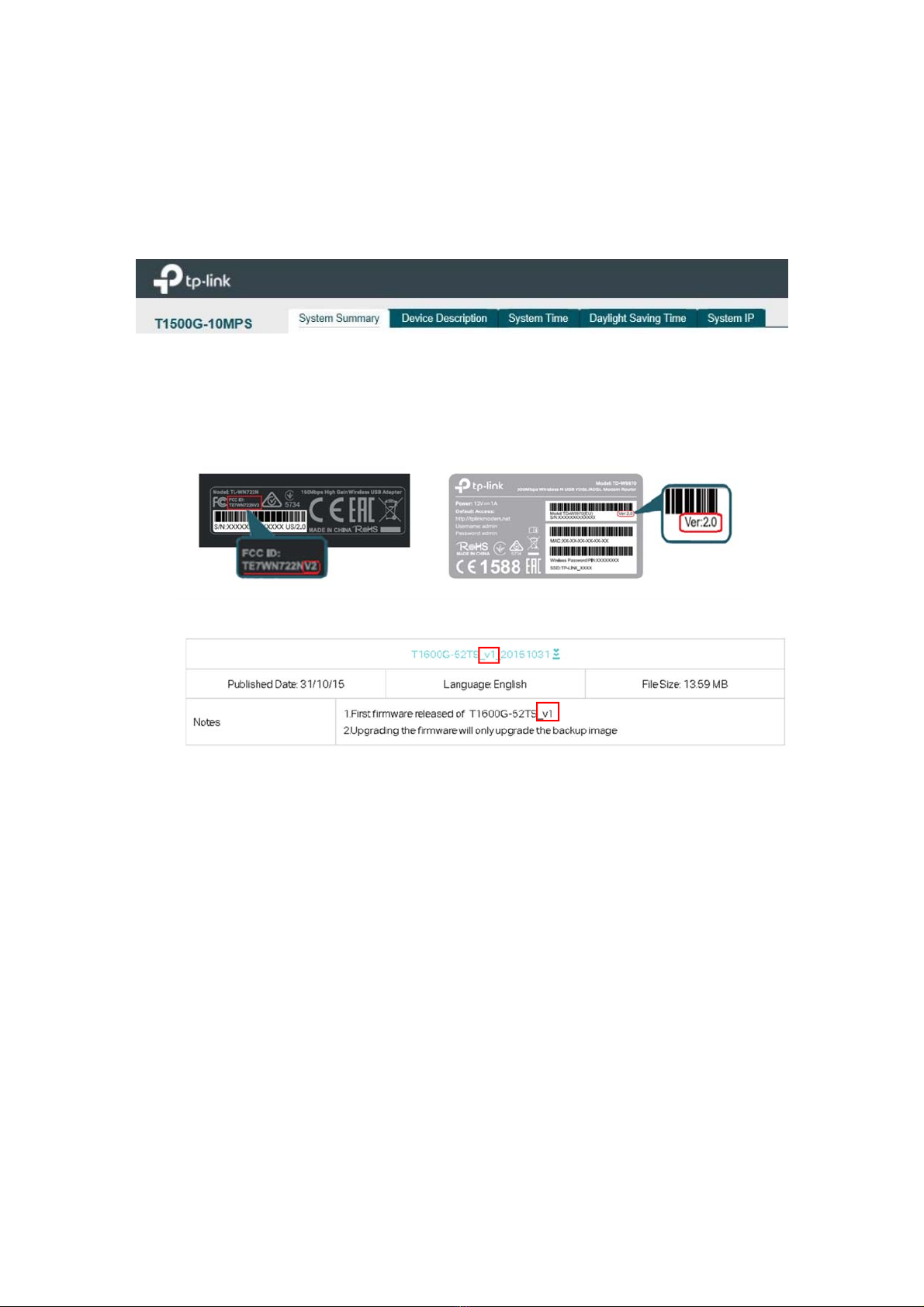

Please verify the hardware version of your device for the firmware version. You

can find the label at the bottom of the devices as shown below. The two different

label V2 and Ver: 2.0 both stand for the version 2. Please be attention,

wrong firmware upgrading may damage your device and void the warranty.

According to your device version, download the correct firmware from the

website. Also you can find the version information like the printscreen below.

After you downloaded the firmware from TP-Link website, please use a

decompression software such as WinZIP or WinRAR to extract the firmware file to

a folder, and remember the path you store it;

Do NOT turn off the power or cut down the Ethernet cable during upgrade process;

Please have a backup and enter them manually after upgrading if you need save

the pervious configuration.

We suggest using Internet Explorer (IE) to upgrade the firmware. (Other explorer

like Firefox and Chrome are also alright.)

Step 1 Connect the PC to the switch. As default, the management IP of our switch is

192.168.0.1, so we must keep the PC’s IP in the subnet of 192.168.0.0 unless

you have changed it before. Set the IP address of your PC to 192.168.0.2-254

(eg.192.168.0.100), set subnet mask to 255.255.255.0.

Step 2 Log into the switch by typing http://192.168.0.1 in the address bar of the web

browser(such as Internet Explorer, Firefox). The User Name and Password are

both admin unless you have changed it before.

Step 3 Click SystemSystem ToolsFirmware Upgrade, click the Browse button to

choose the firmware you already extracted in the folder just now.

Step 4 Click Upgrade button. The device will reboot automatically after the upgrading

has been finished. Please wait for a minutes.

Step 5 Click SystemSystem InfoSystem Summary, verify that the switch’s firmware

has been upgraded.

Congratulations! The upgrading is OK now.
