TP-Link KS230 KIT Manual de usuario

Smart Wi-Fi 3-Way Dimmer

KS230 KIT

Quick Start Guide

7106509733 REV2.0.0 *Images may dier from actual products.

*This quick start guide only applies to V2 version.

Wiring guide:

Scan QR code or visit

https://www.tp-link.com/support/faq/3400/

Specications

Safety Notice

Before installing, servicing or removing the switch, read and follow all safety

precautions including the following:

• CAUTION – Risk of Electric Shock – More than one disconnect switch may be

required to de-energize the equipment before servicing. A circuit breaker which

disconnects the Line and Neutral conductor simultaneously is suitable. Ensure

power is o at the circuit breaker before removing or installing any switch. Use a

non-contact voltage tester to ensure the power is o.

• The Smart Switch must be installed and used in accordance with the National

Electric Code (NEC) or your local electrical code. If you are unfamiliar with these

codes and requirements, or are uncomfortable performing the installation,

consult a qualied electrician.

• Do not install the Smart Switch with wet hands or when standing on wet or damp

surfaces.

• Install only in a suitable UL Listed outlet box (suitable dimensions: H > 2.95 in./75

mm, W > 1.81 in./46 mm, D > 2 in./51 mm).

• Tighten terminal screws to 13 lbf-in for the main dimmer switch, and 11 lbf-in for

the satellite switch.

• Keep the device away from water, re, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service,

please contact us.

• Do not use the device where wireless devices are not allowed.

Rating: 120 V~ 60 Hz

Load: 300 W Incandescent 150 W LED (MLV)

Operation temperature: 0~40℃

Dimming Type*: Leading Edge Dimming / TRIAC Phase Cut

Operating control, Type 1 action

Pollution Degree 2

Rated Impulse Voltage 2500 V

Software Class A

*It’s also suggested to contact your bulb’s Support to check the

supported dimming type of the bulb.

Brightness Indicators

Main Dimmer Button & LED

Buttons

Press to turn on / off your dimmer.

Restart

Reset

On/Off

Button

Press and hold for about 5 seconds to reset

Wi-Fi while keeping previous settings.

Press to restart your dimmer.

Decrease or increase the brightness.

Press and hold for about 10 seconds to

restore your dimmer to factory default settings.

Brightness

Indicators

Indicate the brightness of the light. More

indicators means higher brightness.

Starting up.Solid amber

Blinking amber

Blinking green

Solid red

Solid green for 30s

Blinking amber & green

Connecting to Wi-Fi.

Ready for setup.

The dimmer is being reset to

factory default settings.

Blinking red quickly The wires are incorrectly

connected.

Solid white

The dimmer is off.

LED is on to indicate the dimmer

location in the dark.

Disconnected from Wi-Fi.

Connected to Wi-Fi.

LED

Appearance

This 3-Way Dimmer Kit has a main dimmer and a satellite dimmer. They cannot work separately or with traditional

3-way switches.

Main Dimmer Satellite Dimmer

Brightness Indicators

Dimmer Buttons

On/O Button

LED

Reset

Restart

Satellite Dimmer Button & LED

Buttons

Press to turn on / off your dimmer.

On/Off

Button

Decrease or increase the brightness.

LED

The dimmer is off.

LED is on to indicate the dimmer location in

the dark.

Solid White

Support

For technical support, user guides, FAQs, warranty & more,

Set Up Your 3-Way Dimmer

STEP 2 SET UP

Tap the button in the app. Select Smart Switches

then Smart 3-Way Dimmer. Then follow the app

instructions to set up your smart dimmer.

Get the Kasa Smart app from the App Store or

Google Play.

DOWNLOAD APP

STEP 1

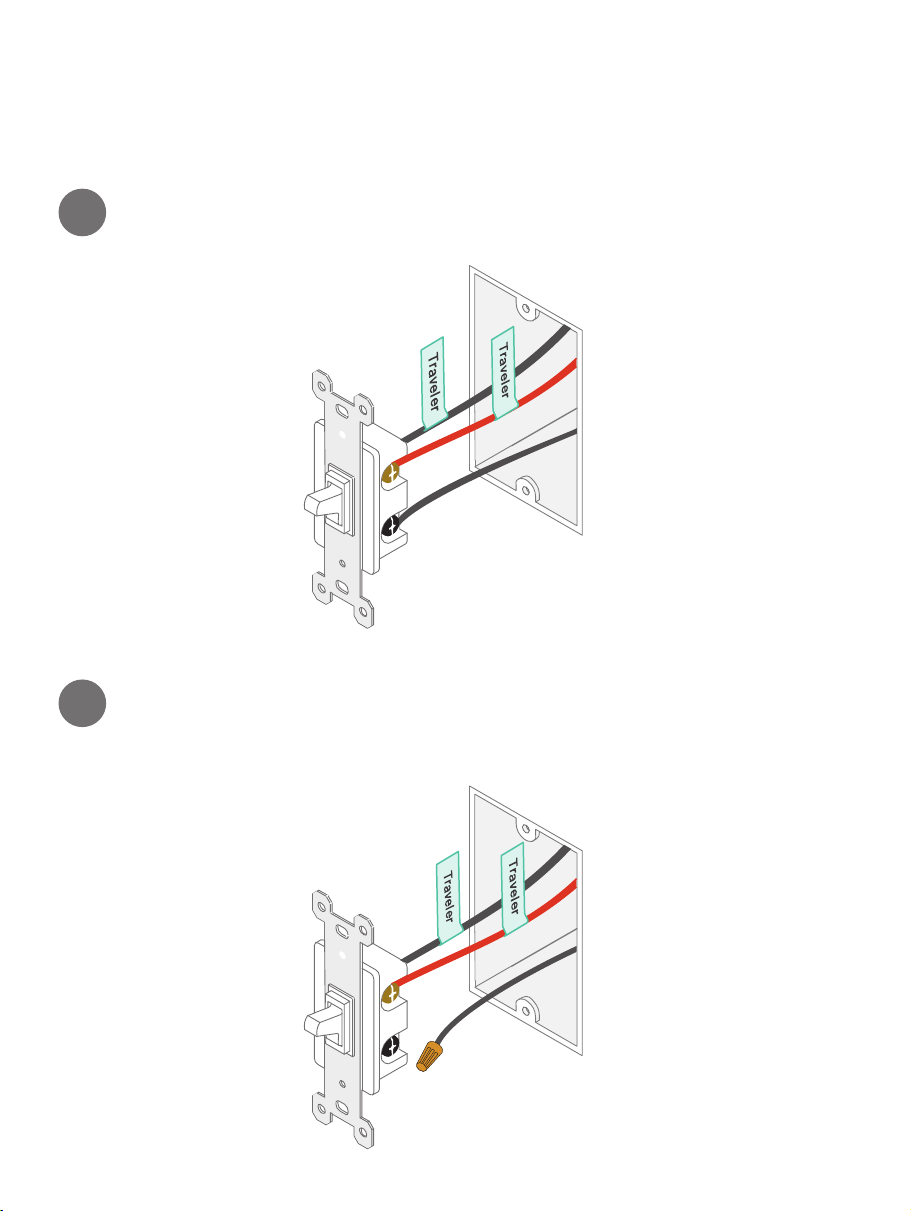

Label the Traveler wires in the two wallboxes.

3Disconnect all wires from the two dumb switches, and connect them to the Smart 3-Way Dimmer as below.

Wire Your 3-Way DimmerBefore You Start

Turn o the circuit breaker. Then remove the two

wallplates. Your dumb switches might look like this.

Line (Live/Hot): Usually black. One end is connected to the circuit

breaker, the other to your FIRST 3-Way switch.

Load: Usually black. One end is connected to the light xture, the

other to your SECOND 3-Way switch.

Travelers: Usually one is black and the other is red.

Neutral: Usually a bundle of white wires, not connected to the dumb

switch. They may be folded up in the very back.

Ground: Usually green or copper.

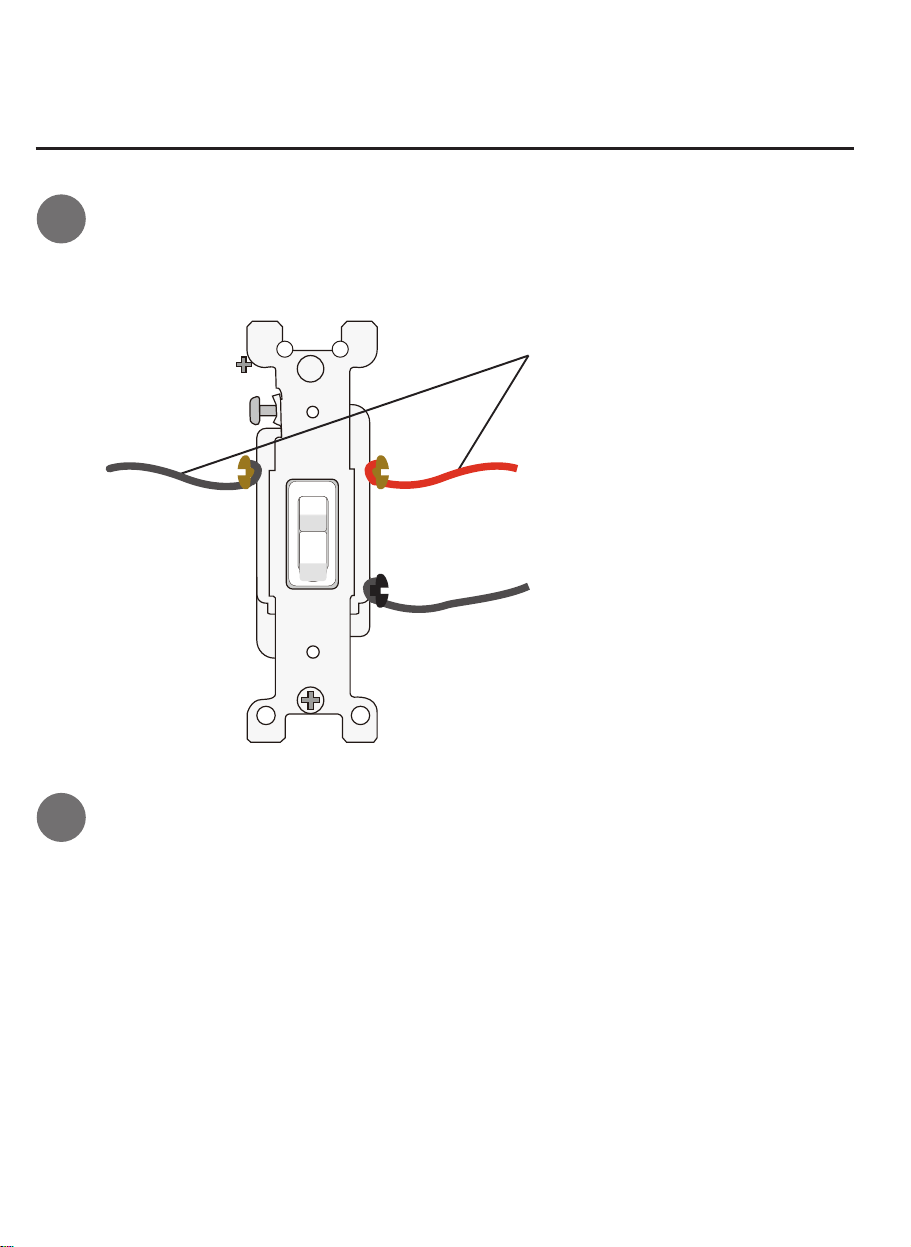

Get to know the wires.

Two Traveler wires

(Opposite each other with

the same color screws.)

Line/Load wire

(Black. Line and Load wires

are in dierent boxes.)

3) Label the other wire in the other wallbox as the Load wire.

This is the wallbox for the satellite dimmer.

Identify the Line and Load wires in the two wallboxes.

1) Turn on the circuit breaker. Use a voltage detector to identify

the energized wire (Line wire).

2) Turn o the circuit breaker and label the Line wire. This is the

wallbox for the main dimmer.

Take care to avoid electric shocks.

Load wireLine wire

Label the Neutral wire in the wallbox for the main

dimmer, and the Ground wires in both wallboxes.

Disconnect the Line/Load wires from the two

switches, then cover them with the provided wire

nuts for safety.

Satellite Dimmer

Main Dimmer

Power Source To Light Bulbs

Electrical Cable

(Usually inside wall)

Blinking red quickly:

This means the wires are incorrectly connected. Please check the wiring. We recommend consulting an electrician.

1. Method of mounting: Independently mounted (Vertically

position only);

2. High Voltage - Disconnect power supply before servicing.

CAUTION:

The wire colors used in this guide are recommended

by the National Electric Code (NEC). Your actual wire

colors may vary.

The main and satellite dimmers cannot work

separately or with traditional 3-way switches.

The main and satellite dimmers are dierent and

should be installed in the correct wallboxes.

You can always nd detailed wiring instructions in the

Kasa Smart app.

What should I do if the main dimmer LED blinks red quickly after installation?

Note: No need to distinguish between the two traveler wires.

Set Up Your 3-Way Dimmer

STEP 2 SET UP

Tap the button in the app. Select Smart Switches

then Smart 3-Way Dimmer. Then follow the app

instructions to set up your smart dimmer.

Get the Kasa Smart app from the App Store or

Google Play.

DOWNLOAD APP

STEP 1

Label the Traveler wires in the two wallboxes.

3Disconnect all wires from the two dumb switches, and connect them to the Smart 3-Way Dimmer as below.

Wire Your 3-Way DimmerBefore You Start

Turn o the circuit breaker. Then remove the two

wallplates. Your dumb switches might look like this.

Line (Live/Hot): Usually black. One end is connected to the circuit

breaker, the other to your FIRST 3-Way switch.

Load: Usually black. One end is connected to the light xture, the

other to your SECOND 3-Way switch.

Travelers: Usually one is black and the other is red.

Neutral: Usually a bundle of white wires, not connected to the dumb

switch. They may be folded up in the very back.

Ground: Usually green or copper.

Get to know the wires.

Two Traveler wires

(Opposite each other with

the same color screws.)

Line/Load wire

(Black. Line and Load wires

are in dierent boxes.)

3) Label the other wire in the other wallbox as the Load wire.

This is the wallbox for the satellite dimmer.

Identify the Line and Load wires in the two wallboxes.

1) Turn on the circuit breaker. Use a voltage detector to identify

the energized wire (Line wire).

2) Turn o the circuit breaker and label the Line wire. This is the

wallbox for the main dimmer.

Take care to avoid electric shocks.

Load wireLine wire

Label the Neutral wire in the wallbox for the main

dimmer, and the Ground wires in both wallboxes.

Disconnect the Line/Load wires from the two

switches, then cover them with the provided wire

nuts for safety.

Satellite Dimmer

Main Dimmer

Power Source To Light Bulbs

Electrical Cable

(Usually inside wall)

Blinking red quickly:

This means the wires are incorrectly connected. Please check the wiring. We recommend consulting an electrician.

1. Method of mounting: Independently mounted (Vertically

position only);

2. High Voltage - Disconnect power supply before servicing.

CAUTION:

The wire colors used in this guide are recommended

by the National Electric Code (NEC). Your actual wire

colors may vary.

The main and satellite dimmers cannot work

separately or with traditional 3-way switches.

The main and satellite dimmers are dierent and

should be installed in the correct wallboxes.

You can always nd detailed wiring instructions in the

Kasa Smart app.

What should I do if the main dimmer LED blinks red quickly after installation?

Note: No need to distinguish between the two traveler wires.
